DAHUA

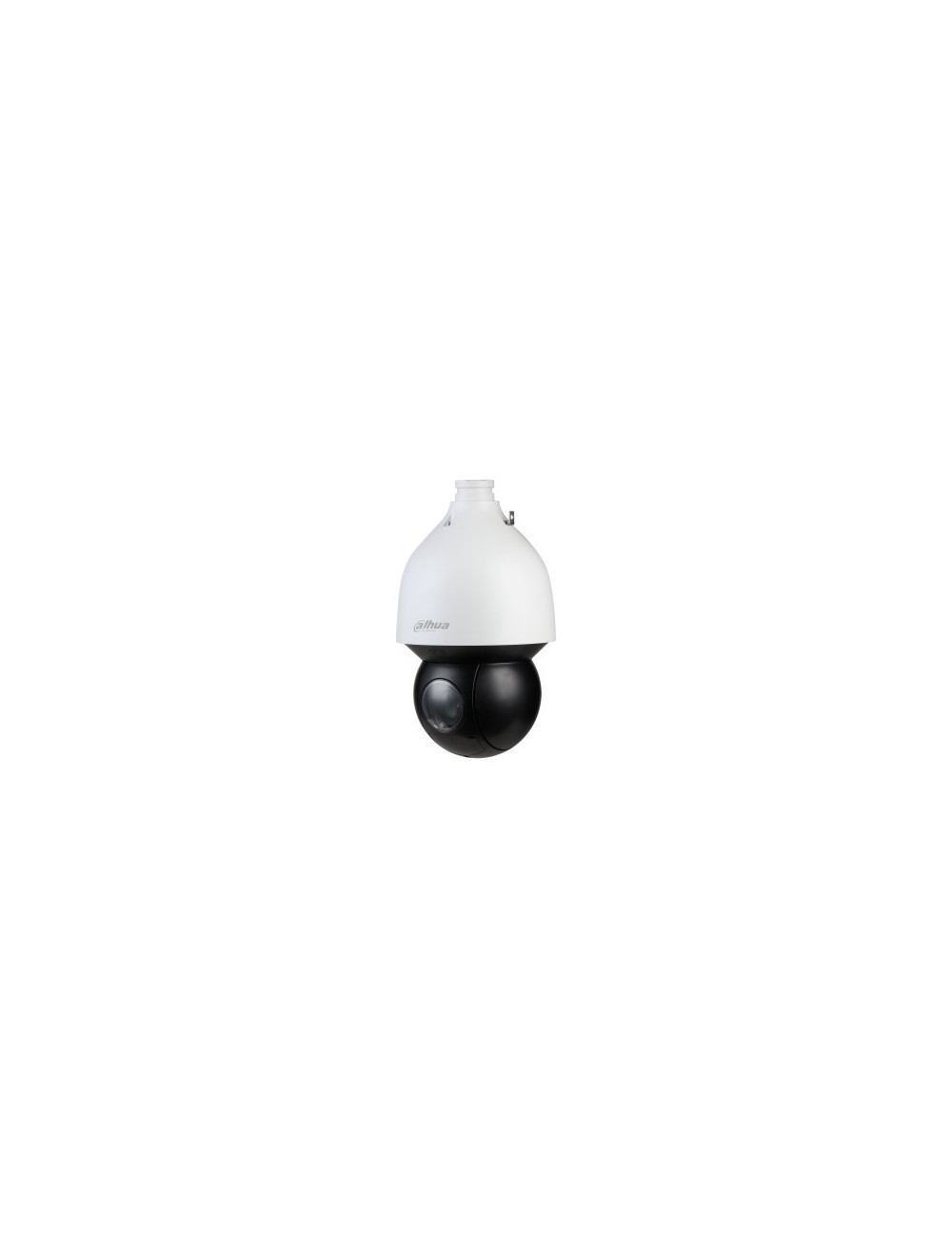

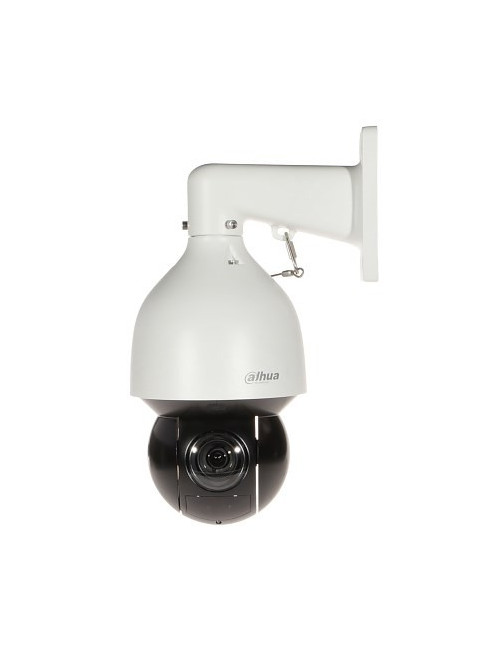

DAHUA SD5A432GB-HNR IP CAMERA

€916.63

Tax included

Product Details
Quick Compare

Product Details

Reference WLONONWCR6742

In stock 4 Items

Data sheet

Type: IP security camera
Height: 332 mm
Connectivity technology: Wired
Weight: 4.7 kg
Package weight: 8 kg
Power source type: DC, PoE
Operating temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Mounting type: Ceiling
Form factor: Dome
Bluetooth: No
Noise reduction: Yes
Sensor type: CMOS
Wi-Fi: No
Internal memory: 1000 MB
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512 GB
Display diagonal: 2.54 cm (1")
Audio formats supported: G.722.1
Power consumption (max): 22 W
Power consumption (typical): 13 W
Maximum resolution: 2560 x 1440 pixels
Placement supported: Indoor & outdoor
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN: Yes
Headphone outputs: 1
Focus: Manual
Supported graphics resolutions: 704 x 576
Zoom capability: Yes
Diameter: 19 cm
International Protection (IP) code: IP67
Digital zoom: 16x
Auto focus: Yes
Optical Zoom: 32x
Web-based management: Yes
Product colour: Black
Tilt angle range: 15 - 90°
Focal length range: 4.8–154
Web browser: Yes
LED type: IR
Night vision: Yes
Total megapixels: 4 MP
PTZ control: Yes
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
White balance: Indoor
Minimum illumination: 0.0005 lx
Pan range: 0 - 360°
Lens viewing angle, diagonal: 67.5–3.2
Video compression formats: H.264H
DC output current: 2.5 A
DC output voltage: 24
Number of cameras: 1
Camera pan control: Yes
Camera tilt control: Yes
Night vision distance: 150 m
Number of lenses: 1
Auto-tracking: Yes
Built-in HDD: No
Lens viewing angle, vertical: 31.9–1.3
Noise reduction technology: 2D noise reduction, 3D noise reduction
Digital Wide Dynamic Range (DWDR): Yes
Maximum aperture number: 4
Lens viewing angle, horizontal: 58.5–2.8
Wide Dynamic Range (WDR): Yes
Progressive scan: Yes
Back Light Compensation (BLC): Yes
ROM capacity: 4000 MB
Number of illumination LEDs: 4
IK code: IK10
Digital Wide Dynamic Range (DWDR) (panoramic camera): Yes
Closest focusing distance: 0.8 m
Detect distance: 2124 m
Observe distance: 839 m
Recognize distance: 425 m
Identify distance: 212 m
Minimum aperture number: 1.6
Pan preset speed: 400 °/sec
PTZ modes: 5 Pattern
Tilt preset speed: 300 °/sec
Pan manual speed: 0.1 - 300 °/sec
Tilt manual speed: 0.1 - 200 °/sec
Warnings: The product contains electronic components; do not dispose of with the normal household waste.
