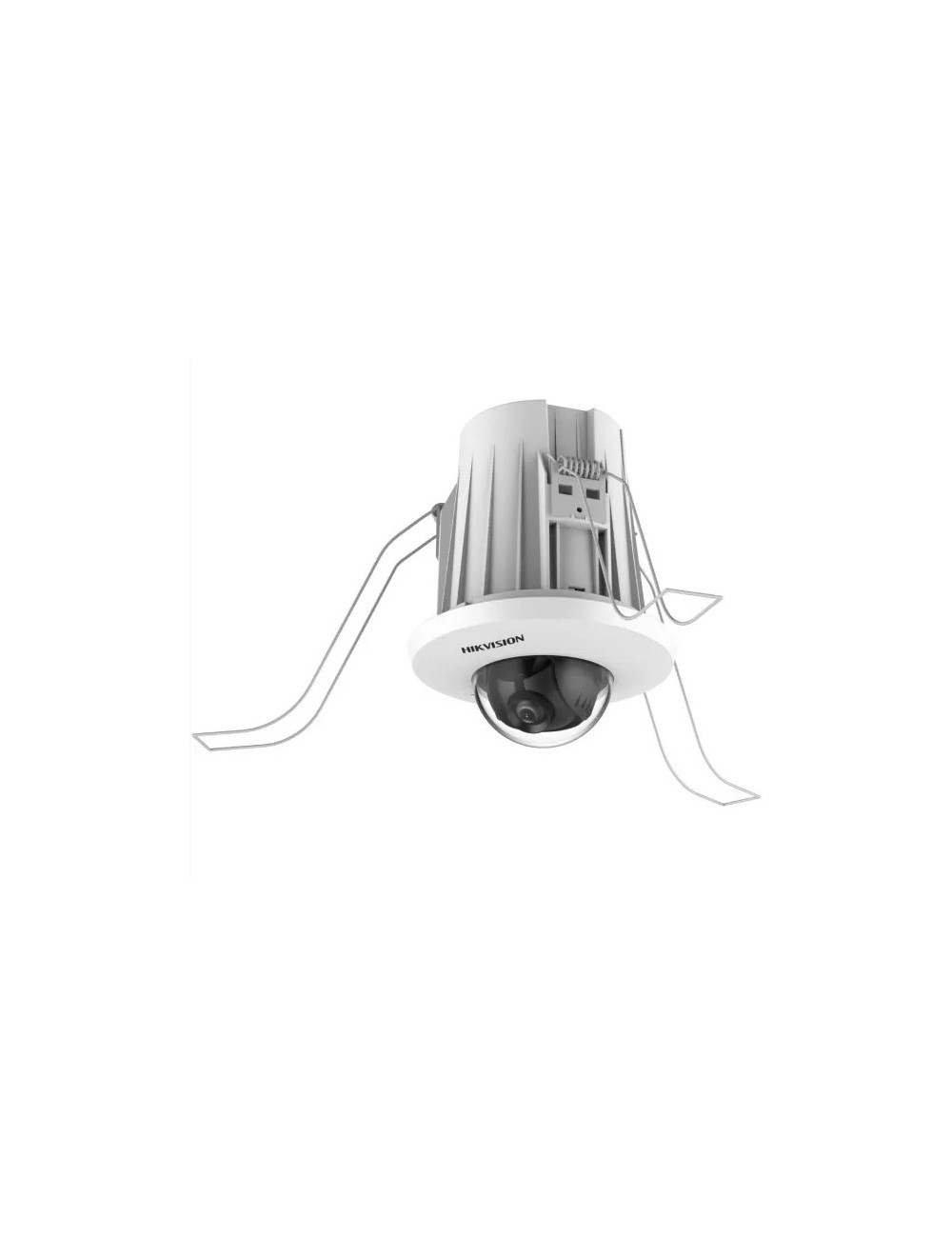

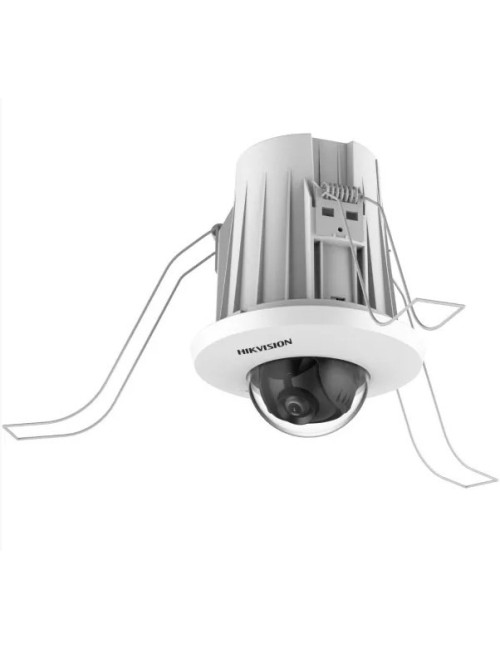

CAMERA IP HIKVISION DS-2CD2E43G2-U (2.8mm)

Product Details

Reference WLONONWCRDZYJ

In stock 57 Items

Data sheet

Type

IP security camera

Height

117.5 mm

Connectivity technology

Wired

Weight

155 g

Package depth

135 mm

Package height

183 mm

Package width

135 mm

Package weight

325 g

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-10 - 50 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-10 - 50 °C

Mounting type

Ceiling/wall

Form factor

Dome

Built-in microphone

Yes

Bluetooth

No

Sample rate

48 kHz

Bit rate

32 Kbps - 8 Mbps

Noise reduction

Yes

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSDXC

Maximum memory card size

256 GB

Audio formats supported

MP3

Power consumption (max)

3.2 W

Maximum resolution

2688 x 1520 pixels

Placement supported

Indoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Number of languages

33

Housing material

Plastic

Networking standards

IEEE 802.3af

Ethernet LAN

Yes

Ethernet interface type

Fast Ethernet

Number of Users

32 user(s)

Web-based management

Yes

Quality of Service (QoS) support

Yes

Reset button

Yes

Password protection

Yes

Frame Rate

30 fps

Product colour

White

Tilt angle range

0 - 75°

Fixed focal length

2.8 mm

Voice codecs

MP2L2

Night vision

No

Total megapixels

4 MP

Optical sensor size

25.4 / 3 mm (1 / 3")

Minimum illumination

0.005 lx

Lens viewing angle, diagonal

122°

Video compression formats

H.264+

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Number of lenses

1

Built-in HDD

No

Lens viewing angle, vertical

55°

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Lens viewing angle, horizontal

103°

Number of sensors

1

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Heartbeat

Yes

Anti-flicker

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

IP address filtering

Yes

Intelligent Video Surveillance (IVS) system features

Face detection

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Highlight Compensation (HLC)

Yes

Power consumption (Power over Ethernet (PoE))

4.2 W

HTTPS encryption

Yes

Behavior analysis

Intrusion detection, Line crossing detection

Detect distance

56 m

Observe distance

22 m

Recognize distance

11 m

Identify distance

6 m
