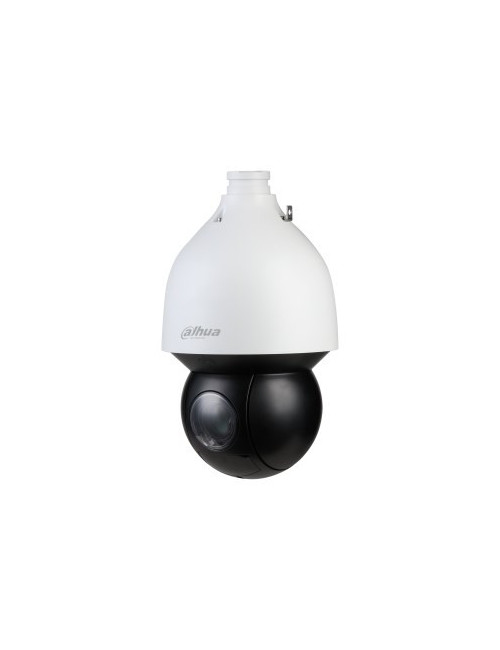

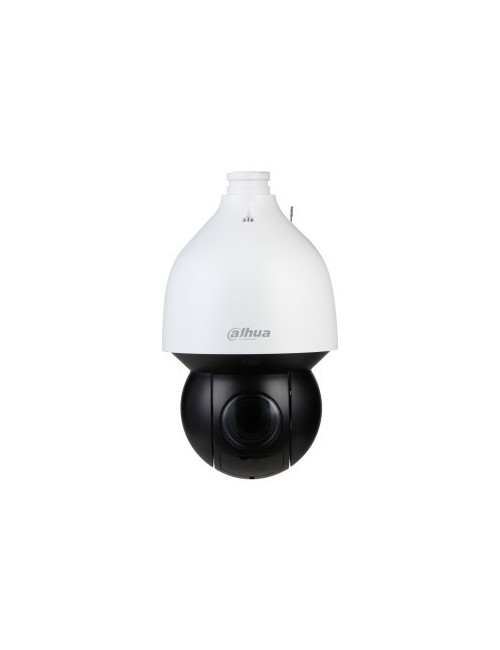

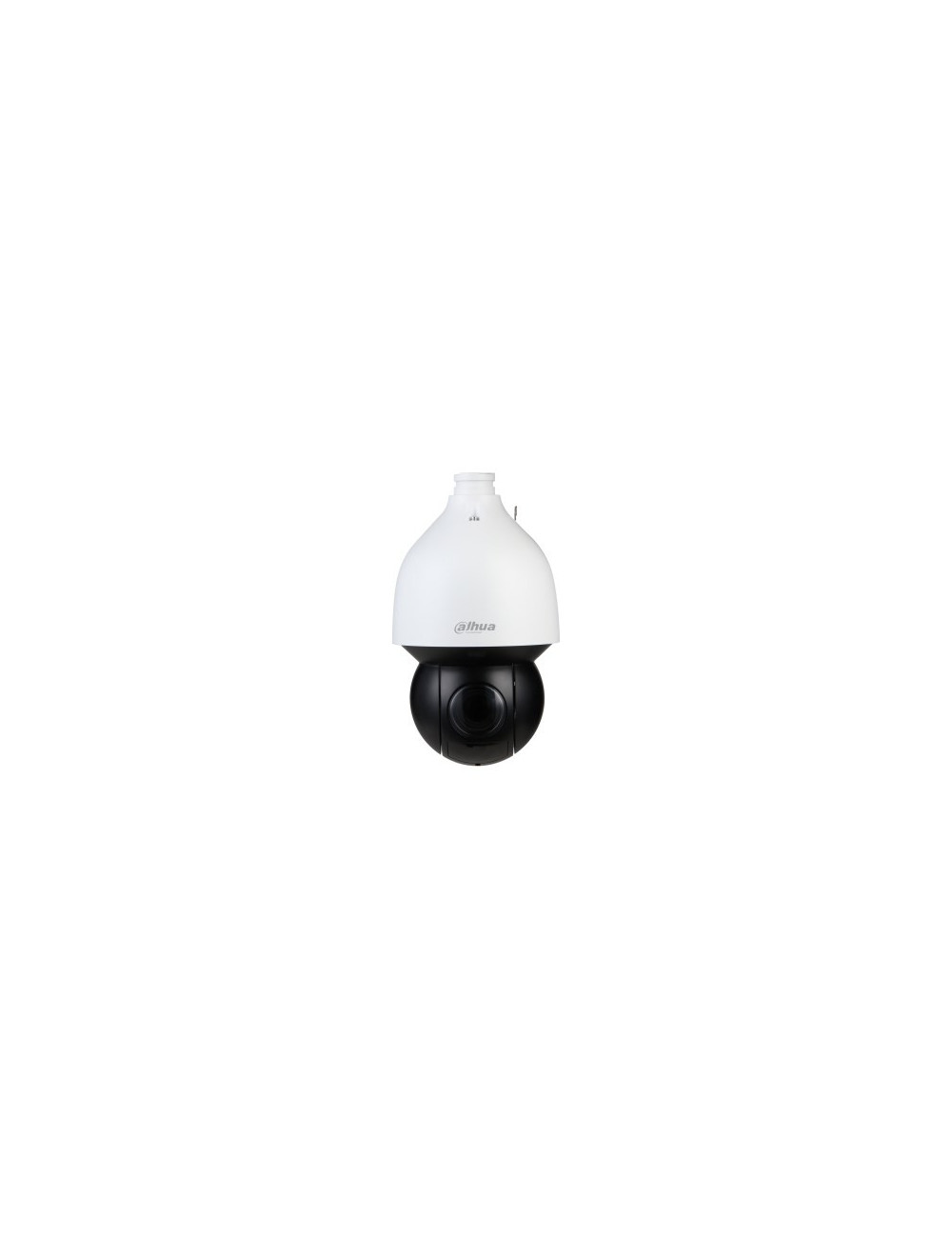

Dahua Technology WizSense DH-SD5A445GB-HNR security camera Dome IP security camera Outdoor 2560 x 1440 pixels Ceiling/wall

Product Details

Reference WLONONWCR5460

In stock 2 Items

Data sheet

Type

IP security camera

Height

332 mm

Connectivity technology

Wired

Weight

4.7 kg

Package weight

8 kg

Power source type

DC, PoE

Operating temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

0 - 95%

Mounting type

Ceiling/wall

Form factor

Dome

Bluetooth

No

Bit rate

H.264: 96 kbps–14848 kbps; H.265: 38 kbps–8960 kbps

Noise reduction

Yes

Mobile operating systems supported

Android

Sensor type

CMOS

Wi-Fi

No

Internal memory

1000 MB

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

512 GB

Signal-to-Noise Ratio (SNR)

55 dB

Power consumption (max)

22 W

Power consumption (typical)

10 W

Maximum resolution

2560 x 1440 pixels

Placement supported

Outdoor

Ethernet LAN (RJ-45) ports

1

Audio output channels

1 channels

Networking standards

IEEE 802.3at

Ethernet LAN

Yes

Supported graphics resolutions

2304 x 1296

Zoom capability

Yes

Diameter

19 cm

International Protection (IP) code

IP67

Digital zoom

16x

Optical Zoom

45x

Number of Users

20 user(s)

Web-based management

Yes

Quality of Service (QoS) support

Yes

Product colour

White

Tilt angle range

-15 - 90°

Focal length range

3.95 - 177.75 mm

Voice codecs

G.729

Image stabilizer

Yes

LED type

IR

Night vision

Yes

Total megapixels

4 MP

PTZ control

Yes

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

White balance

Street lamp

Minimum illumination

0.0005 lx

Pan range

0 - 360°

Lens viewing angle, diagonal

2.1 - 73.1°

Video compression formats

H.264+

Angle of rotation

360°

DC output voltage

24

Video motion detection

Yes

Number of cameras

1

Night vision distance

150 m

Number of lenses

1

Day/night mode

Yes

Preset points

Yes

Auto-tracking

Yes

Built-in HDD

No

Camera shutter type

Electronic

Lens viewing angle, vertical

1.1 - 39.4°

Noise reduction technology

2D noise reduction, 3D noise reduction

Smart IR

Yes

Region of Interest (ROI) encoding

Yes

Maximum aperture number

4.95

Lens viewing angle, horizontal

1.9 - 65.7°

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Fog proof

Yes

Active tampering alarm

Yes

Alarm input/output

Yes

Auto flip

Yes

Intelligent Video Surveillance (IVS) system features

Missing object

ROM capacity

4000 MB

Camera shutter speed

1/1 - 1/30000 s

Bit rate control

Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Gain control type

Auto/Manual

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Number of illumination LEDs

4

IK code

IK10

Streaming method

Unicast

Audio input channels

1 channels

Closest focusing distance

0.1 m

Detect distance

2451.7 m

Observe distance

972.9 m

Recognize distance

490.3 m

Identify distance

245.2 m

Pan preset speed

400 °/sec

Tilt preset speed

300 °/sec

PTZ protocols

DH-SD

Alarm output channels

1

Alarm input channels

2

Pan manual speed

0.1 - 300 °/sec

Tilt manual speed

0.1 - 120 °/sec

Tour recording

Yes
