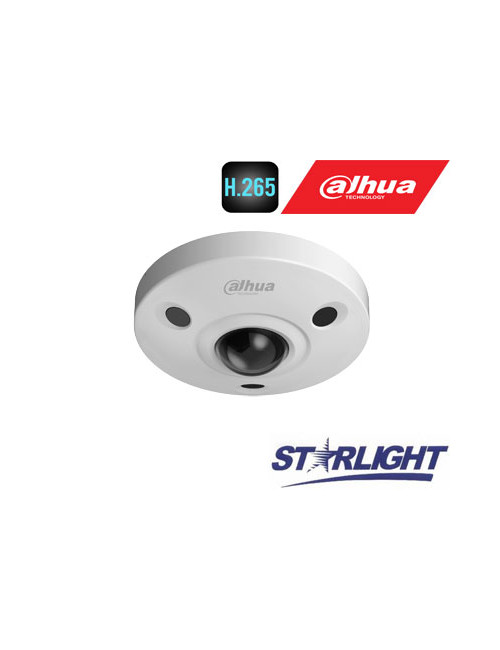

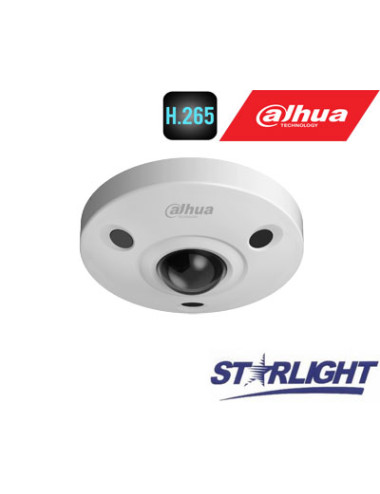

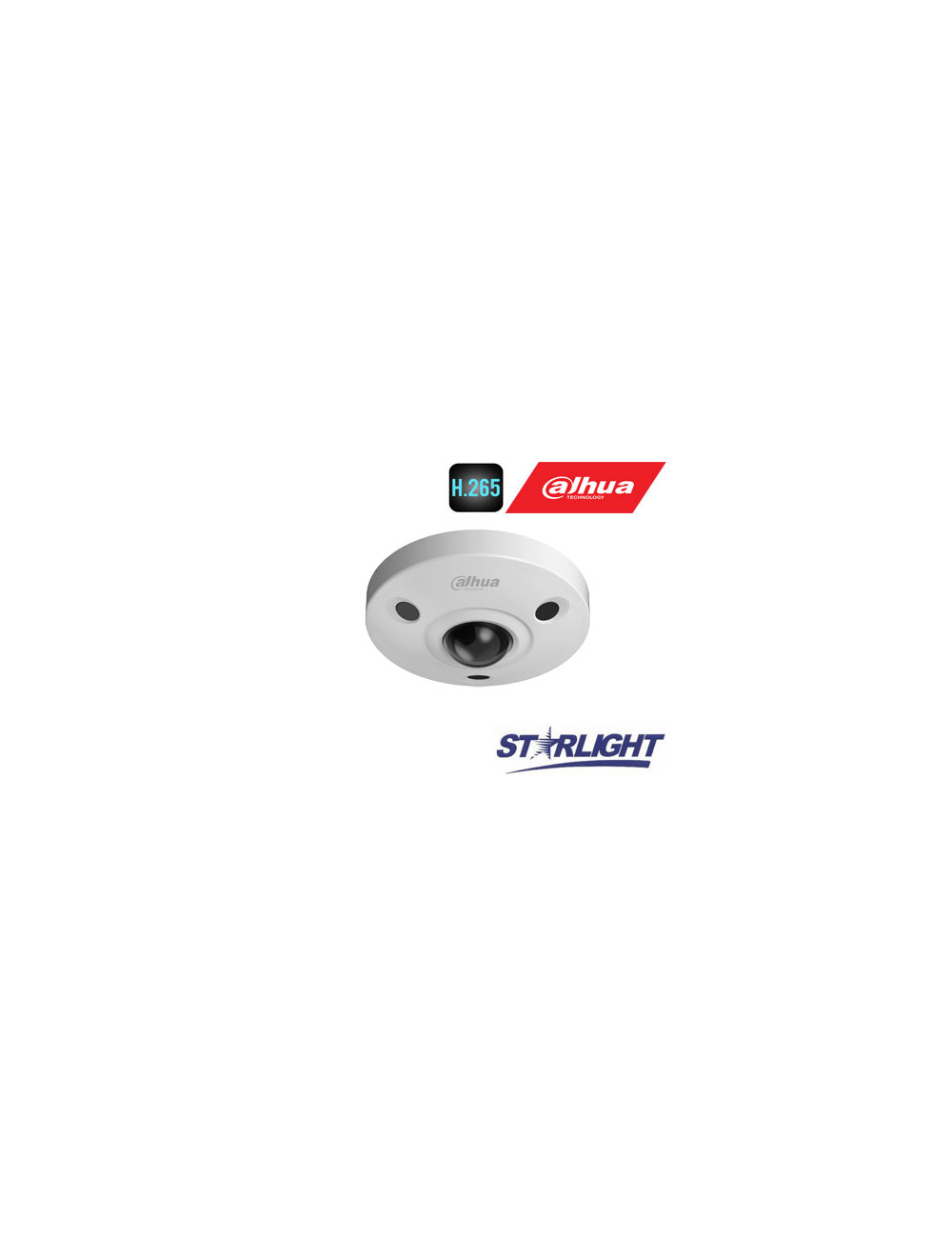

FishEye4K IP network camera 12M EBW81242P-AS-S2

Features:

• 12MP, 1/1.7”CMOS image sensor
• Max output 12MP (4000×3000)@30fps
• 3D DNR,AWB,HLC, BLC,ROI, SVC, SMART H.264/H.265
• People counting in multiple areas, queuing management in multiple areas, heat map (number of people /time), and track map
• 2/2 Alarm in/out, 1/1 audio in/out
• 12V DC/POE power support
• IP67, IK10 protection

Technical Specifications:

Camera
• Image Sensor 1/1.7” CMOS
• Effective Pixels 4000 (H) × 3000 (V)
• ROM 4 GB
• RAM 4 GB
• IR LEDs 3 (IR LEDs)
• Electronic Shutter Speed 1/3 s-1/100000 s (Auto/Manual)
• Min. Illumination: 0.001 Lux/F2.0 (Clolor, 1/3 s, 30 IRE) 0.01 Lux/F2.0 (Clolor, 1/30 s, 30 IRE) 0 Lux/F2.0 (IR on)
• IR Distance 10 m (32.8 ft)
• Scan Progressive
• Noise Reduction 3D DNR
• WDR DWDR
• S/N Ratio 49.7dB
• Gain control Manual
• White Balance Auto/Natural/street lamp/outdoor/manual/regional Custom
Lens
• Focal Length 1.85 mm
• Mount Type M12
• Max. Aperture F2.0
• Aperture Type Fixed aperture
• Lens Type Fixed focal
• Field of View Horizontal: 185°; Vertical: 180°
Audio
• Audio Input 1 channel (RCA port),1 build in MIC
• Audio Output 1 channel (RCA port)
• Audio Encoding G.711A, G.711Mu, G726, AAC
Video
• Video Encoding H.265, H.264, H.264H, H.264B, MJPEG
• Video Bit Rate H264: 88Kbps-16384Kbps ;H265: 52Kbps-16384Kbps
• Video Frame Rate: 50Hz Main Stream (4000 × 3000@25fps), sub Stream (704 × 576@25fps), third Stream (704 × 576@25fps) 60Hz Stream (4000 × 3000@30fps), sub Stream (704 × 480@30fps), third Stream (704 × 480@30fps)
• Fisheye: 1O (4000 x 3000), 1P (4096 x 1024), 2P (2432 x 2432), 1R (1216 x 1216), 2R (2432 x2432), 4R (2432 x 2432) 1O + 3R (2432 x 2432)
• Resolution: 4000 × 3000, 2880 × 2880, 2880 × 2160, 2048 × 1536 (3M), 1280 × 960 (1.3M), (704 × 576/704 × 480) D1, (352 × 288/352 × 240) CIF
• Bit Rate Control CBR/VBR
• Region of Interest Yes (4 areas)
• Smart IR Yes (Adjust by user)
• Language English, Italian, Spanish, Russian, French, German, Portuguese, Polish, Korean, Persian, Czech, Dutch, Arabic, European Spanish
Alarm
• Alarm Input 2 channels (Wet contact, and it supports max potential 3V-5V)
• Alarm Output 2 channels (Dry contact, and it supports max potential 30V)
Function
• SD Card Yes
• Storage FTP, Micro SD card (256 G)
• Max User 20 (Total bandwidth: 240 M)
• Browser IE: IE11, IE10, IE9, Google of high version: 48.0.2564.116, Firefox of high version: 48.0.2, Non-plug edge: 42.17134.1.0
• Privacy Masking 4 areas
Smart event
• IVS Analyze Intrusion, tripwire
• Heat Map Yes
Professional, intelligent
• People counting in 4 areas, number of people threshold alarm, 4 queue management, stranding alarm, number of people alarm, number of people heat map, average stranding heat map, track map and export (Report max range is 1 week.)
Network and port
• Network Protocol: HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP
• Interoperability ONVIF (Profile S/Profile G), GB/T28181, CGI
General
• Power Supply 12V DC /POE
• Power Consumption
• Basic power consumption: 6.2W (12V DC), 9.2W (POE)
• Max power consumption: (ICR switch, and IR full intensity): 9.2W (12V DC), 12.9W (POE)
• Operating Temperature -30°C to +45°C (-22°F to +113°F)
• Operating Humidity ?95%
• StrorageTemperature -30°C to +70°C (-22°F to +158°F)
• Strorage Humidity ?95%
• Protection Grade IP67, IK10
• Enclosure Metal + Plastic
• Dimensions 59.8 mm × ?149.8 mm (2.35'' × ?5.9'')
• Net Weight 0.77 kg(1.70 lb)
• Gross Weight 1.16 kg(2.56 lb)
Certification
• CE-LVD:EN60950-1
• EN 55032: 2015, Class B
• EN 61000-3-2: 2014
• EN 61000-3-3: 2013
• EN 55024: 2010+A1: 2015
• EN 55035: 2017
• EN 50130-4: 2011+A1: 2014
• CE-EMC:Electromagnetic Compatibility
• Directive 2014/30/EU
• FCC:47 CFR FCC Part15, Subpart B, Class B
• UL/CUL:UL60950-1 CAN/CSA C22.2
• No.60950-1-07
