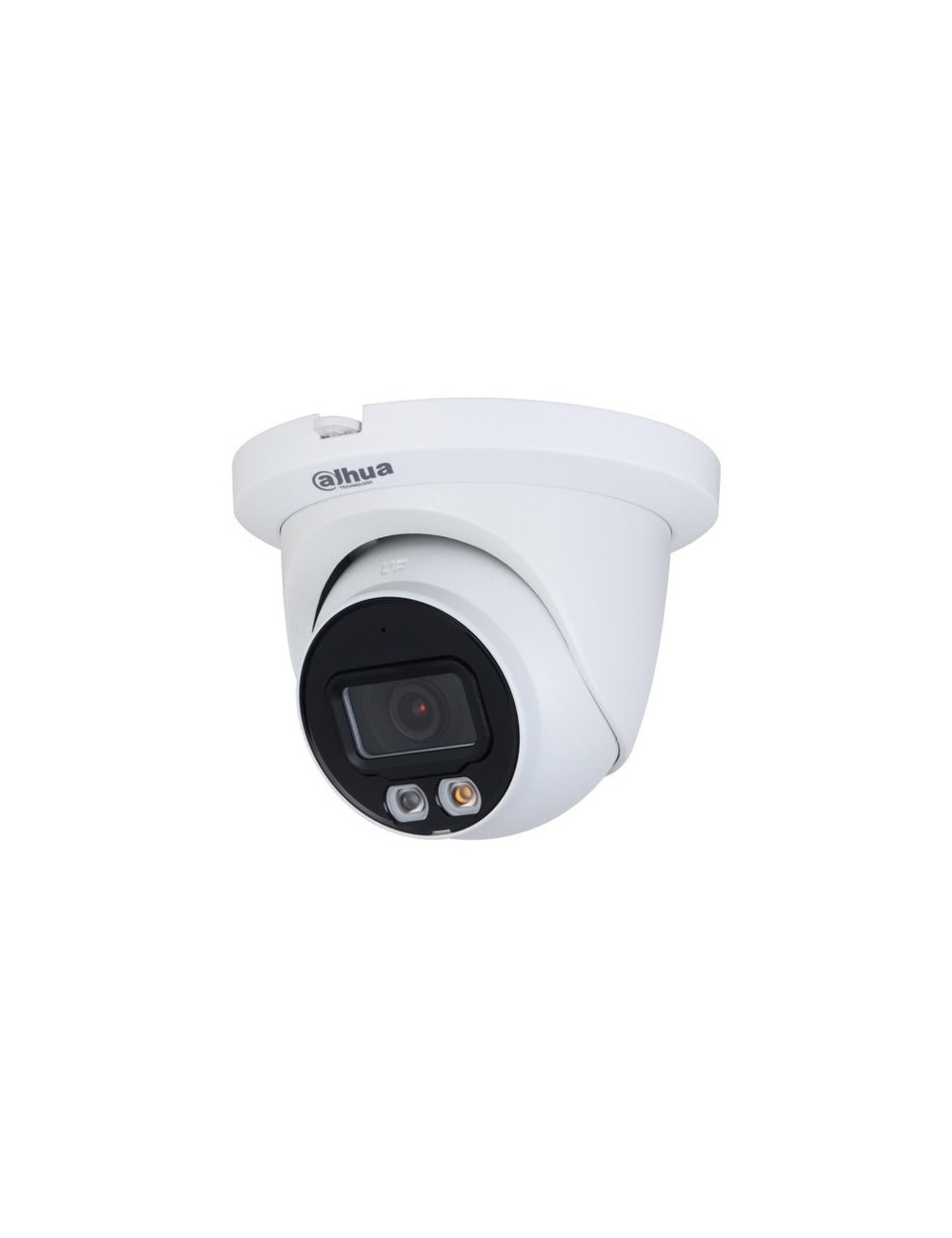

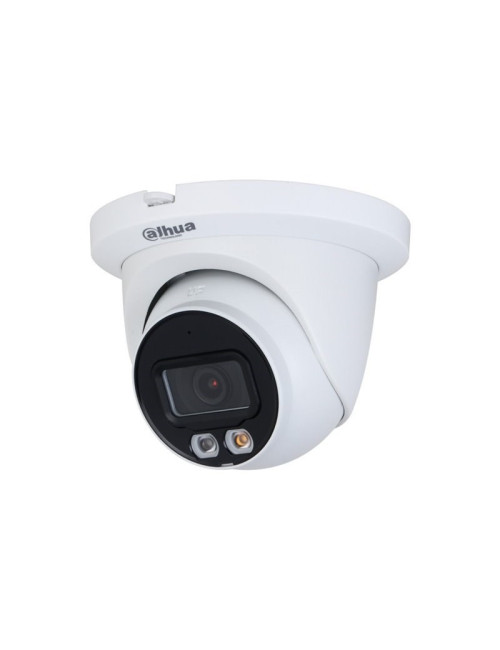

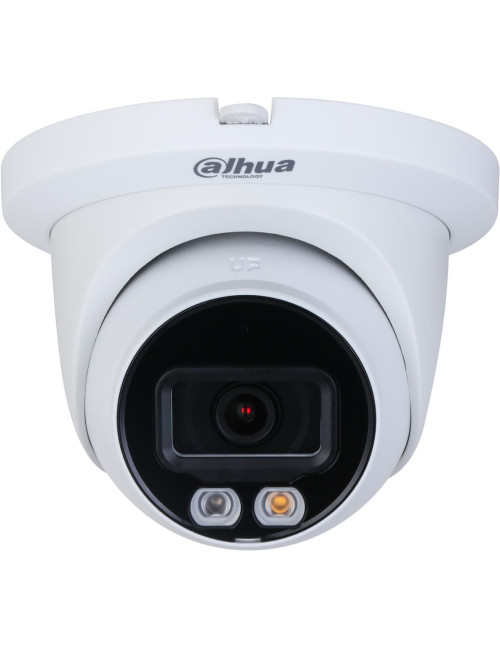

KAMERA IP DAHUA IPC-HDW2249TM-S-IL-0280B

Product Details

Reference WLONONWCR0093

In stock 20 Items

Data sheet

Type

IP security camera

Width

121.9 mm

Height

99.1 mm

Depth

121.9 mm

Connectivity technology

Wired

Weight

460 g

Power source type

DC, PoE

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-40 - 60 °C

Mounting type

Wall/ceiling

Form factor

Tube/dome

Built-in microphone

Yes

Bluetooth

No

Mobile operating systems supported

iOS

Sensor type

HD CMOS

Wi-Fi

No

Signal-to-Noise Ratio (SNR)

56 dB

Power consumption (max)

3.8 W

Power consumption (typical)

1.6 W

Maximum resolution

1920 x 1080 pixels

Placement supported

Outdoor

Housing material

Metal, Plastic

Networking standards

IEEE 802.3af

Lens type

Fixed focal length lens

International Protection (IP) code

IP67

Ethernet interface type

10 Megabit Ethernet

Motion Detection

Yes

Web-based management

Yes

Frame Rate

25 / 30 fps

Product colour

White

Focal length range

2.8 mm

Web browser

Yes

RAM capacity

128 MB

LED type

IR / White light LED

Night vision

Yes

Total megapixels

2 MP

4G LTE

No

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Minimum illumination

0.002 lx

Video compression formats

H.264

DC output voltage

12

Number of cameras

1

Night vision distance

30 m

Number of lenses

1

Lens viewing angle, vertical

56°

Maximum aperture number

1.6

Lens viewing angle, horizontal

107°

Number of sensors

1

Wide Dynamic Range (WDR)

120 dB

Viewing angle, diagonal

127°

Progressive scan

Yes

Video streaming

Yes

ROM capacity

128 MB

Camera shutter speed

1/3 - 1/100000 s

Adjustment shutter speed

Auto/Manual

Number of illumination LEDs

1 / 1

Motion detection

Yes

People detection

Yes

Two-way talk

N

People detection

Yes

Power consumption (Power over Ethernet (PoE))

4.4 W

Built-in loudspeaker

No

Horizontal rotation angle

0 - 360°

Vertical rotation angle

0 - 78°

Closest focusing distance

0.7 m

Audio codecs

PCM, G.711a G.711Mu, G.726

Warnings

The product contains electronic components; do not dispose of with the normal household waste.
