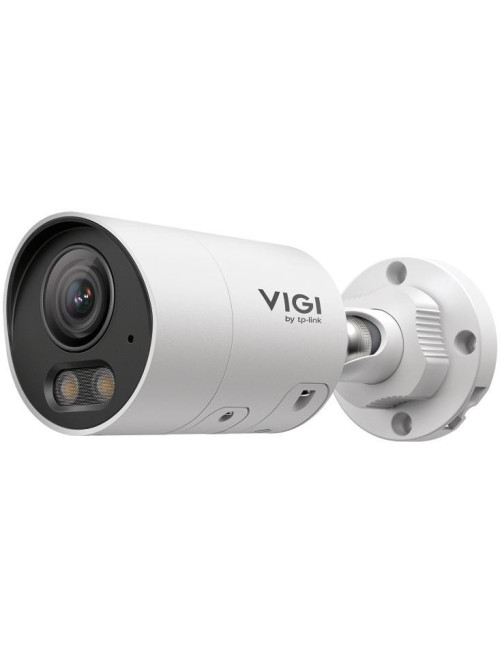

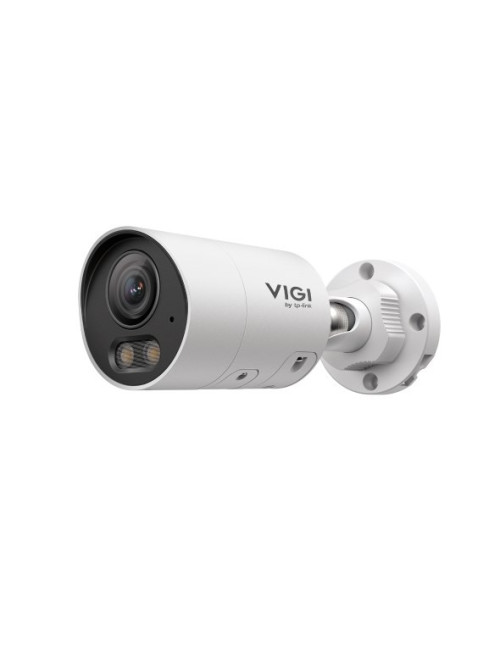

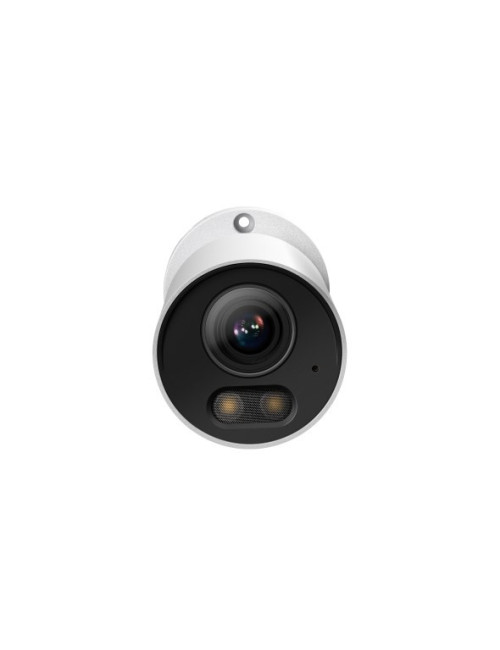

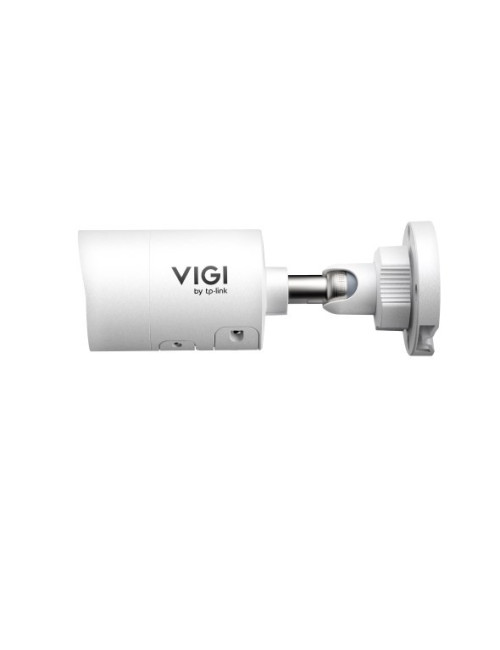

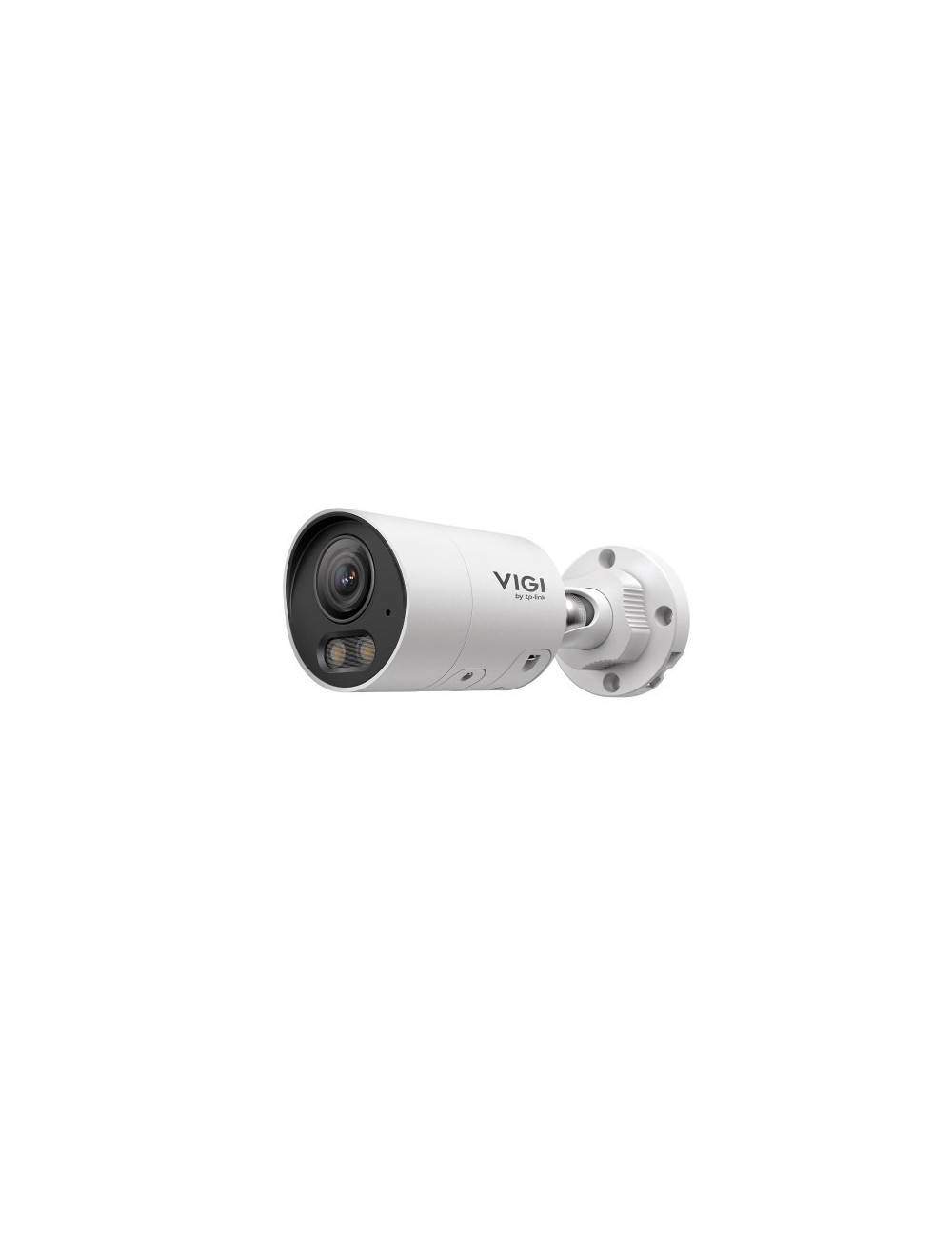

TP-Link InSight S345S Bullet IP security camera Outdoor 2688 x 1520 pixels Ceiling/Wall/Pole

Product Details

Reference WLONONWCROYTZ

In stock 5 Items

Data sheet

Type

IP security camera

Connectivity technology

Wired

Weight

600 g

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Manual

Yes

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-40 - 60 °C

Mounting type

Ceiling/Wall/Pole

Form factor

Bullet

Built-in microphone

Yes

Bluetooth

No

Bit rate

Main Stream: 256 Kbps - 6 Mbps; Sub-Stream: 64 Kbps - 1024 Kbps

Noise reduction

Yes

Length

191 mm

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

512 GB

Audio system

2-way

Signal-to-Noise Ratio (SNR)

52 dB

Maximum resolution

2688 x 1520 pixels

Built-in speaker(s)

Yes

Placement supported

Outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Housing material

Metal

Ethernet LAN

Yes

Supported graphics resolutions

2688 x 1520

Diameter

6.6 cm

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP

Password protection

Yes

Mounting kit

Yes

Product colour

White

Tilt angle range

0 - 75°

Fixed focal length

4 mm

Web browser

Yes

LED type

IR/White

Night vision

Yes

Total megapixels

4 MP

Optical sensor size

25.4 / 1.79 mm (1 / 1.79")

Minimum illumination

0.0005 lx

Pan range

0 - 360°

Dynamic range

120 dB

Lens viewing angle, diagonal

115°

Video compression formats

H.264

Angle of rotation

360°

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Night vision distance

30 m

Number of lenses

1

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

51°

Noise reduction technology

3D noise reduction

Smart IR

Yes

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1

Lens viewing angle, horizontal

95°

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Active tampering alarm

Yes

Alarm input/output

Yes

IP address filtering

Yes

Intelligent Video Surveillance (IVS) system features

Intrusion

Camera shutter speed

1/3 - 1/10000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Highlight Compensation (HLC)

Yes

Number of illumination LEDs

2

Cloud-managed

Yes

HTTPS encryption

Yes

Digest authentication

Yes

Detect distance

76 m

Observe distance

29 m

Recognize distance

14 m

Identify distance

7 m

Alarm output channels

1

Alarm input channels

1

Compliance certificates

CE
