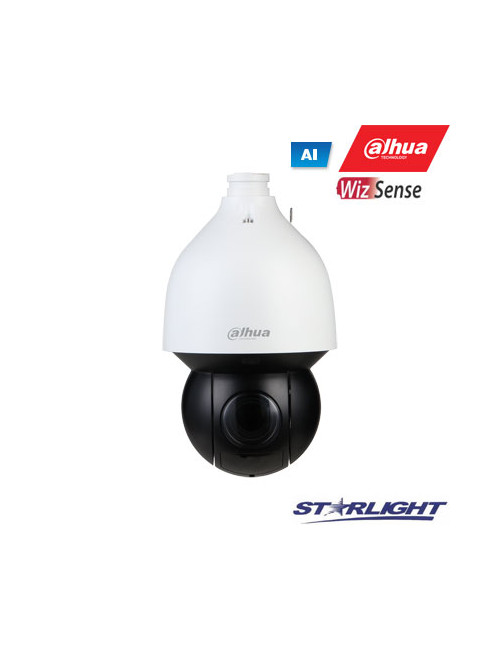

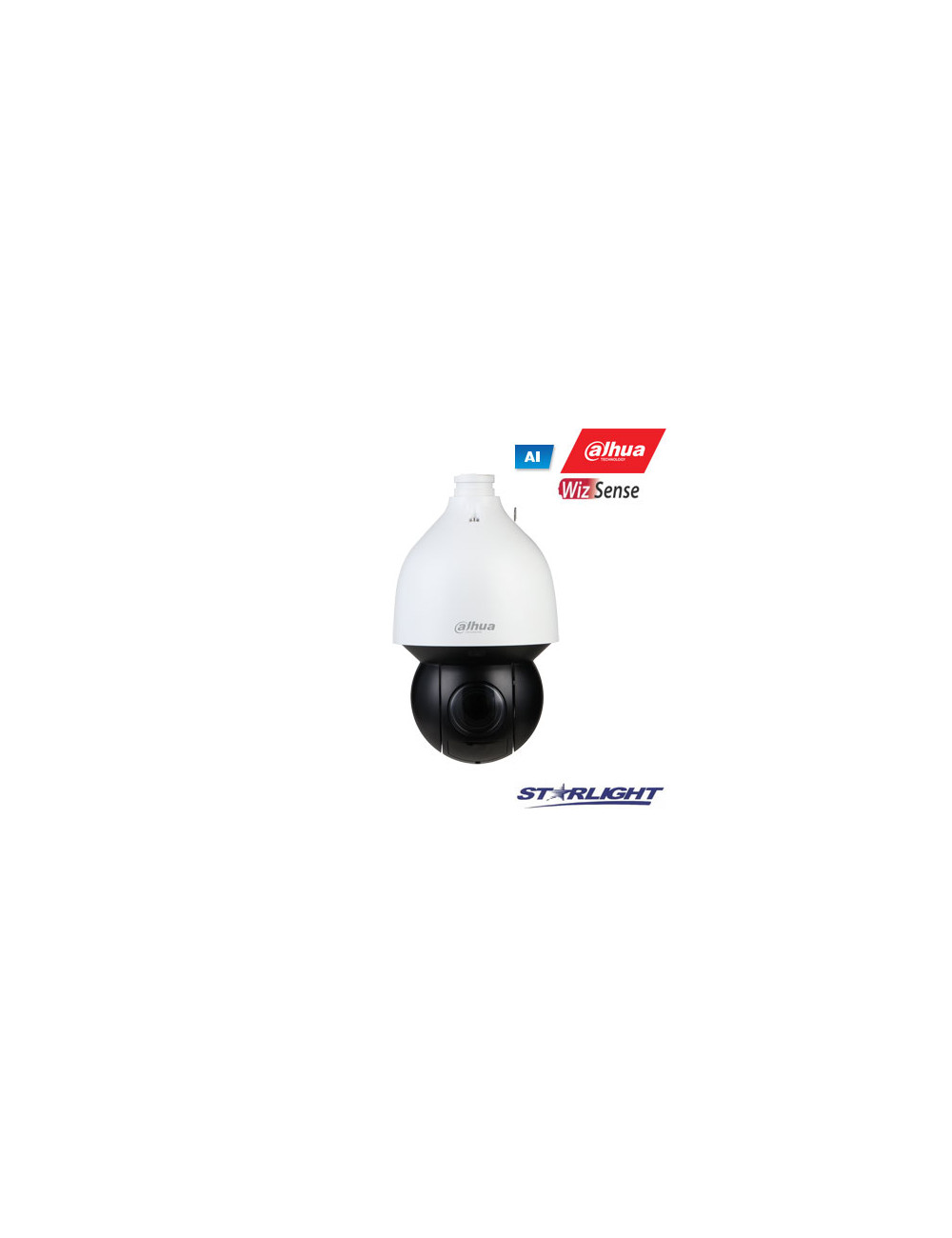

IP PTZ kam. 8MP SD5A825-HNR-YA
    DAHUA TECHNOLOGY CO., LTD

    IP PTZ kam. 8MP SD5A825-HNR-YA

    €1,182.93
    Tax included
    Quantity

    Add to favorites Add to compare

    Camera

    Image Sensor

    1/1.8" STARVIS™ CMOS

    Pixel

    8MP

    Max. Resolution

    3840 (H) x 2160 (V)

    ROM

    8 GB

    RAM

    2 GB

    Electronic Shutter Speed

    1/1 s–1/30,000 s

    Scanning System

    Progressive

    Min. Illumination

    Color: 0.005 Lux@F1.6
    B/W: 0.0005 Lux@F1.6
    0 Lux (IR on)

    Illumination Distance

    150 m (492.13 ft)

    Illuminator On/Off Control

    Zoom Prio/Manual/SmartIR

    Illuminator Number

    4 (IR Light)

    Lens

    Focal Length

    5.4 mm–135 mm

    Max. Aperture

    F1.6–F4.0

    Field of View

    H: 61.6°–3.6°; V: 35.7°–2°; D: 66.6°–4°

    Optical Zoom

    25x

    Focus Control

    Auto/Semi-Auto/Manual

    Close Focus Distance

    0.5 m–7 m (1.64 ft–22.97 ft)

    Iris Control

    Auto/Manual

    DORI Distance

    Detect

    Observe

    Recognize

    Identify

    2700 m (8858.27 ft)

    1066 m (3497.38 ft)

    540 m (1771.65 ft)

    270 m (885.83 ft)

    PTZ

    Pan/Tilt Range

    Pan: 0°–360° endless
    Tilt: -15°–+90°, auto flip 180°

    Manual Control Speed

    Pan: 0.1°–300°/s
    Tilt: 0.1°–200°/s

    Preset Speed

    Pan: 400°/s; Tilt: 300°/s

    Presets

    300

    Tour

    8 (up to 32 presets per tour)

    Pattern

    5

    Scan

    5

    Power-off Memory

    Support

    Idle Motion

    Preset/Tour/Pattern/Scanning

    Protocol

    DH-SD
    Pelco-P/D (auto recognition)

    General Intelligence

    IVS

    Object Abandoned/Missing

    Event Trigger

    Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly.

    Artificial Intelligence

    Perimeter Protection

    Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

    Auto tracking

    Support

    Video

    Compression

    H.265+; H.265; H.264+; H.264; MJPEG (sub stream)

    Streaming Capability

    3 streams

    Resolution

    4K (3840 x 2160); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576); CIF (352 x 288)

    Frame Rate

    Main stream: 8M/1080p/1.3M/720p (1–25/30 fps)
    Sub stream 1: D1/CIF (1–25/30 fps)
    Sub stream 2: 1080p/1.3M/720p (1–25/30 fps), D1/CIF (1–25/30 fps)

    Bit Rate Control

    Variable/Constant

    Bit Rate

    H.264/H.265: 32 kbps–8192 kbps

    Day/Night

    Auto (ICR)/Color/B/W

    BLC

    Support

    WDR

    120 dB

    HLC

    Support

    White Balance

    Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp

    Gain Control

    Auto/Manual

    Noise Reduction

    2D/3D

    Motion Detection

    Support

    Region of Interest (RoI)

    Support

    Image Stabilization

    Electronic

    Defog

    Support

    Digital Zoom

    16x

    Flip

    0°/180°

    Privacy Masking

    Up to 24 areas, and up to 8 areas in the same view

    S/N Ratio

    ? 56 dB

    Audio

    Compression

    G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2

    Network

    Ethernet

    RJ-45 (10/100Base-T)

    Protocol

    IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP

    Interoperability

    ONVIF Profile S&G&T; CGI;

    Streaming Method

    Unicast/Multicast

    User/Host

    20 (total bandwidth 64M)

    Storage

    FTP; Micro SD card (256 G)

    Browser

    IE7 and later versions
    Chrome 42 and later versions
    Firefox 52ESR and earlier versions
    Safari

    Management Software

    Smart PSS; DSS; Easy4ip

    Mobile Phone

    iPhone/iPad/Android/Windows Phone

    Certifications

    Certifications

    CE: EN55032/EN55024/EN50130-4
    FCC: Part15 subpartB, ANSI C63.4-2014

    UL:UL60950-1+CAN/CSA C22.2,No.60950-1

    Port

    Audio I/O

    1 (Line in; bare wire)/1 (Line out; bare wire)

    Alarm I/O

    2/1

    Power

    Power Supply

    DC 24 V/2.5 A ± 25%

    PoE NOT SUPPORTED

    Power Consumption

    11 W
    20 W (PTZ pan/tilt, IR on )

    Environment

    Operating Temperature

    –40 °C to +70 °C (–40 °F to +158 °F)

    Operating Humidity

    ? 95%

    Structure

    Casing

    Metal

    Dimensions

    Ø190 mm x 332 mm (7.48" x 13.07")

    Net Weight

    4.7 kg (10.36 lb)

    Gross Weight

    8 kg (17.64 lb)
