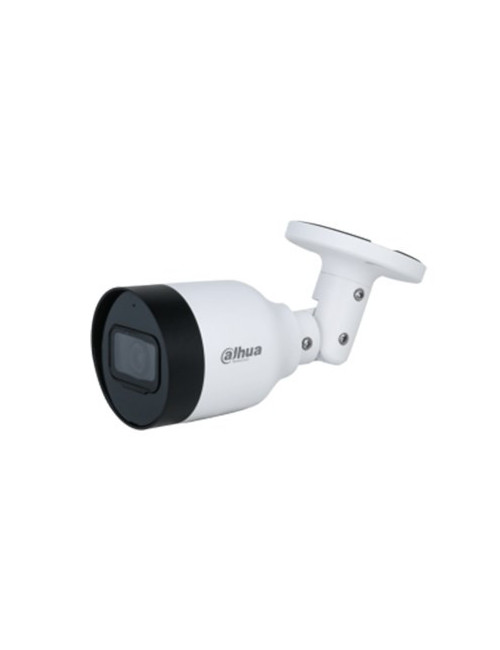

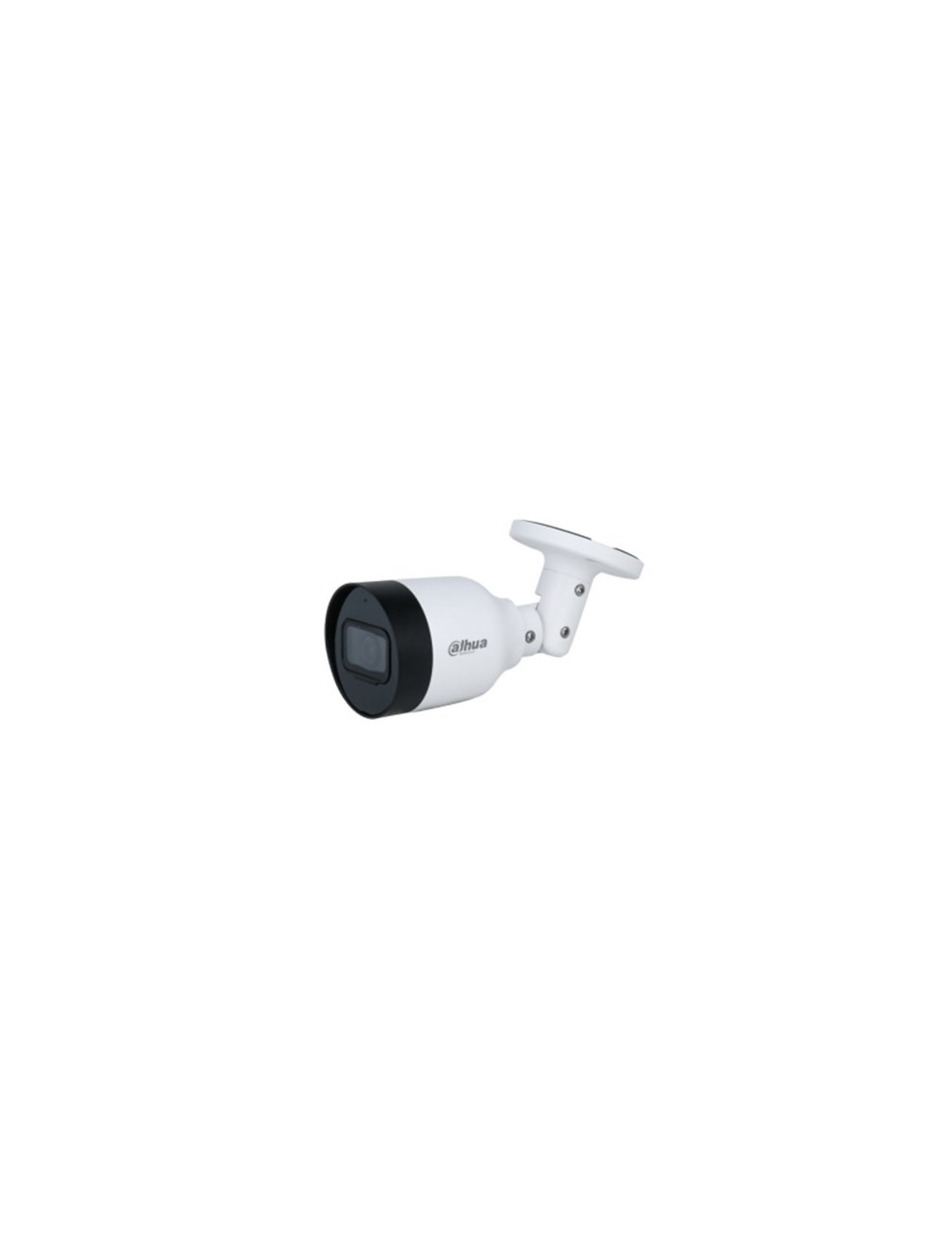

DAHUA Camera 1/2.7" 5 Mpx, Smart H.265/H.264, 20 fps @ 5Mpx (2880 × 1620), (2688 × 1520) @25/30 fps, , 2.8mm IPC-HDW1530T-028

Product Details

Reference WLONONWCRAKJD

In stock 42 Items

Data sheet

Type

IP security camera

Height

70.1 mm

Depth

162.1 mm

Connectivity technology

Wired

Weight

320 g

Package weight

450 g

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-40 - 60 °C

Mounting type

Ceiling/wall

Form factor

Bullet

Built-in microphone

Yes

Noise reduction

Yes

Mobile operating systems supported

iOS

Sensor type

CMOS

Internal memory

128 MB

Signal-to-Noise Ratio (SNR)

56 dB

Power consumption (typical)

1.9 W

Maximum resolution

2880 x 1620 pixels

Placement supported

Indoor & outdoor

Ethernet LAN (RJ-45) ports

1

Housing material

Metal

Security algorithms

HTTPS

Ethernet LAN

Yes

Supported graphics resolutions

2304 x 1296

Diameter

6.53 cm

International Protection (IP) code

IP67

Supported video modes

1080p

Supported network protocols

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast

Frame Rate

20 fps

Product colour

Black

Focal length range

2.8 mm

Web browser

Yes

LED type

IR

Night vision

Yes

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

White balance

Outdoor

Field of view (FOV) angle

106°

Minimum illumination

0.03 lx

Pan range

0 - 360°

Lens viewing angle, diagonal

125°

Video compression formats

H.264

Angle of rotation

360°

Video motion detection

Yes

Number of cameras

1

Night vision distance

30 m

Day/night mode

Yes

Camera shutter type

Electronic

Lens viewing angle, vertical

56°

Noise reduction technology

3D noise reduction

Smart IR

Yes

Digital Wide Dynamic Range (DWDR)

Yes

Region of Interest (ROI) encoding

Yes

Maximum aperture number

2

Lens viewing angle, horizontal

106°

Progressive scan

Yes

Mirror

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

ROM capacity

16 MB

Camera shutter speed

1/3 s–1/100000 s

Adjustment shutter speed

Auto/Manual

Bit rate control

Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Gain control type

Auto/Manual

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Number of illumination LEDs

1

Power consumption (Power over Ethernet (PoE))

2.3 W

Management software

Smart PSS; DSS; DMSS

Closest focusing distance

0.8 m

Detect distance

56 m

Observe distance

22.4 m

Recognize distance

11.2 m

Identify distance

5.6 m

Tilt speed

90 °/sec

Audio codecs

G.711a; G.711Mu; G.726; PCM
