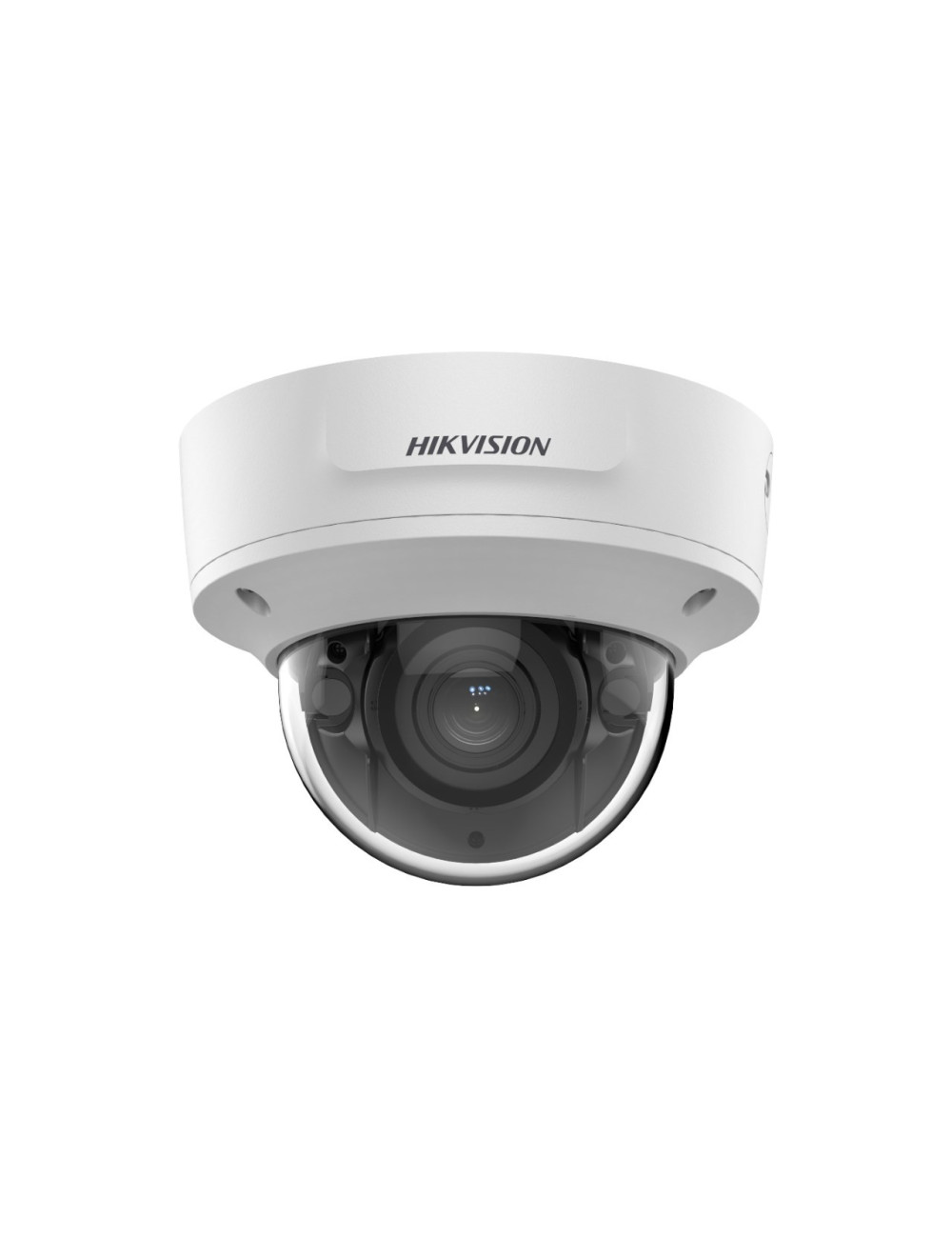

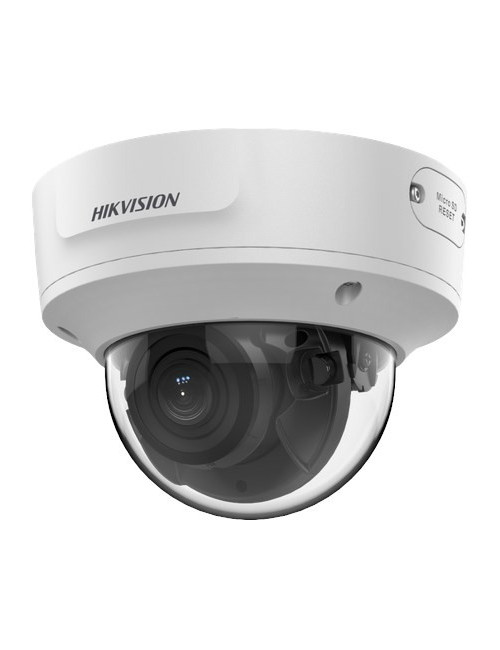

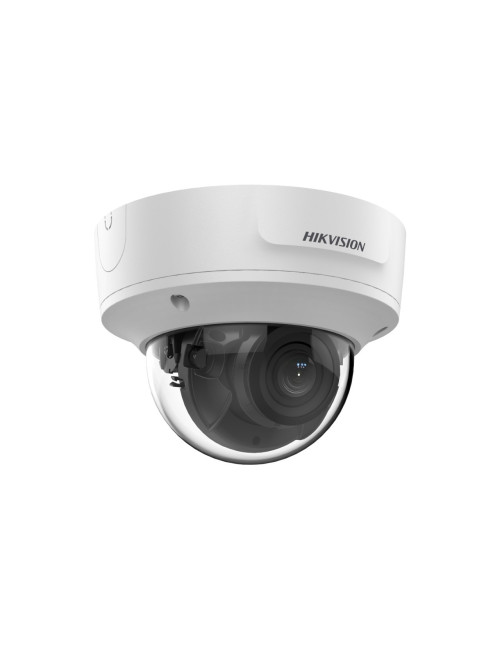

Hikvision Dome IR DS-2CD2726G2T-IZS(2.8-12mm) 2MP

Product Details

Reference WLONONWCRDZZ1

In stock 50 Items

Data sheet

Type

IP security camera

Height

111.6 mm

Connectivity technology

Wired

Weight

880 g

Package depth

174 mm

Package height

173 mm

Package width

244 mm

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Ceiling/wall

Form factor

Dome

Bluetooth

No

Sample rate

48 kHz

Bit rate

32 Kbps - 8 Mbps

Noise reduction

Yes

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

256 GB

Audio formats supported

MP3

Maximum resolution

1920 x 1080 pixels

Placement supported

Outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Number of languages

32

Housing material

Metal

Networking standards

IEEE 802.3af

Security algorithms

SSL/TLS

Ethernet LAN

Yes

Supported graphics resolutions

640 x 480 (VGA)

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of Users

32 user(s)

Web-based management

Yes

Quality of Service (QoS) support

Yes

Supported network protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

Reset button

Yes

Password protection

Yes

Frame Rate

30 fps

Product colour

White

Tilt angle range

0 - 75°

Web browser

Yes

Voice codecs

G.726

LED type

IR

Night vision

Yes

Total megapixels

2 MP

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Minimum illumination

0.002 lx

Pan range

0 - 355°

Video compression formats

H.265+

Angle of rotation

355°

DC output current

0.9 A

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

40 m

Number of lenses

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

58°

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1.4

Lens viewing angle, horizontal

113°

Number of sensors

1

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Heartbeat

Yes

Anti-flicker

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Alarm input/output

Yes

IP address filtering

Yes

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Highlight Compensation (HLC)

Yes

Power consumption (Power over Ethernet (PoE))

12.9 W

HTTPS encryption

Yes

Behavior analysis

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Image quality adjustment

Sharpness

IK code

IK10
