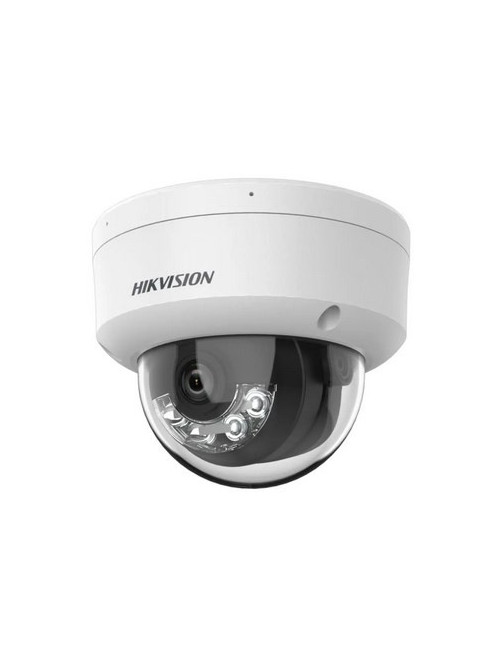

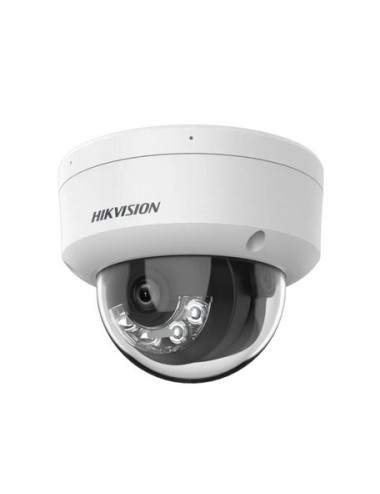

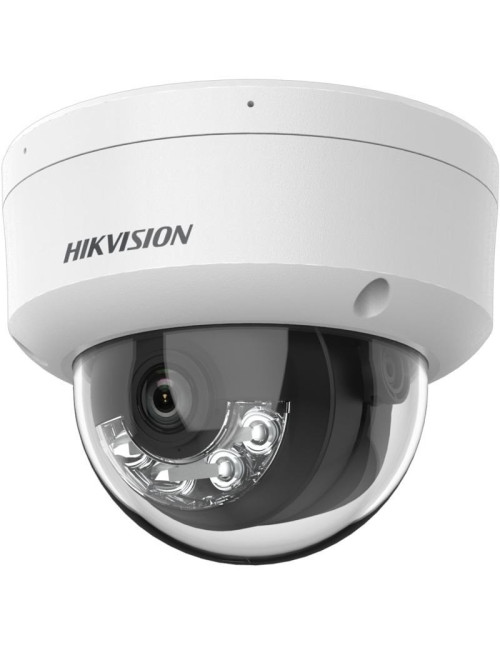

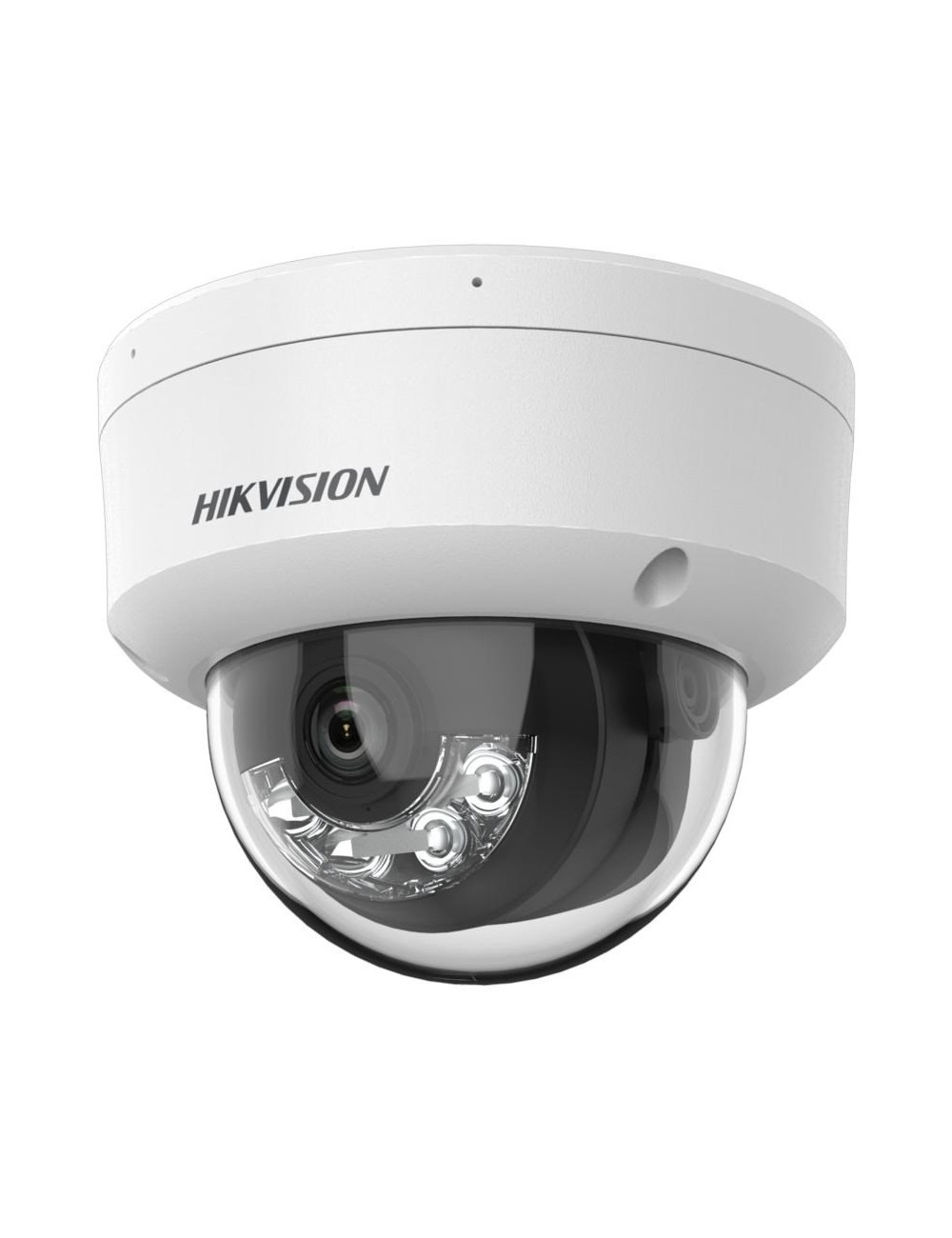

KAMERA IP HIKVISION DS-2CD1143G2-LIU (2.8mm)

Product Details

Reference WLONONWCR5432

In stock 98 Items

Data sheet

Type

IP security camera

Width

121.4 mm

Height

97.7 mm

Depth

121.4 mm

Connectivity technology

Wired

Weight

550 g

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Ceiling

Form factor

Dome

Built-in microphone

Yes

Bluetooth

No

Bit rate

32 Kbps - 8 Mbps

Noise reduction

Yes

Sensor type

CMOS

Wi-Fi

No

Maximum memory card size

512 GB

Power consumption (max)

6 W

Maximum resolution

2560 x 1440 pixels

Placement supported

External / Internal

Card reader integrated

Yes

Number of languages

2

Housing material

Metal, Plastic

Networking standards

IEEE 802.3af

Ethernet LAN

Yes

Lens type

Fixed focal length lens

Supported graphics resolutions

1280 x 720

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of Users

32 user(s)

Quality of Service (QoS) support

Yes

Password protection

Yes

Languages support

English

Memory Card Type

microSD / SDHC / SDXC

Frame Rate

25 fps

Product colour

White

Tilt angle range

0 - 75°

Fixed focal length

2.8 mm

LED type

IR / White light LED

Night vision

Yes

Total megapixels

4 MP

Optical sensor size

25.4 / 3 mm (1 / 3")

Pan range

0 - 355°

Lens viewing angle, diagonal

114°

Video compression formats

H.264+

DC output current

0.5 A

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

30 m

Number of lenses

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

54°

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1.6

Lens viewing angle, horizontal

98°

Number of sensors

1

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

120 dB

Progressive scan

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Power consumption (Power over Ethernet (PoE))

7.5 W

HTTPS encryption

Yes

Image quality adjustment

White balance

Identify distance (wide)

6 m

Recognize distance (wide)

12 m

Observe distance (wide)

25 m

Detect distance (wide)

63 m

Audio codecs

G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
