Hikvision

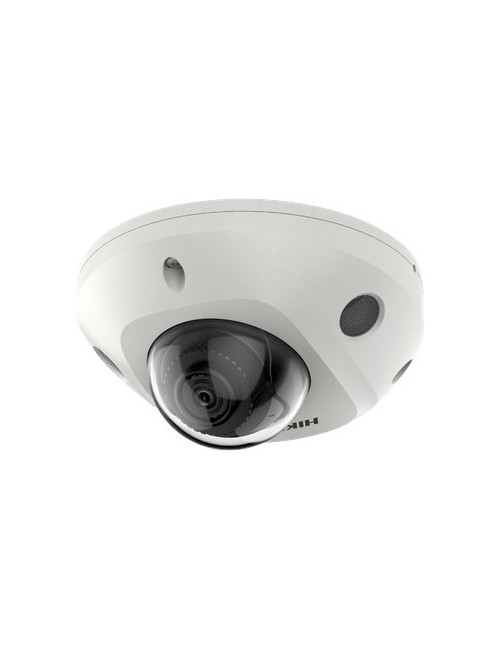

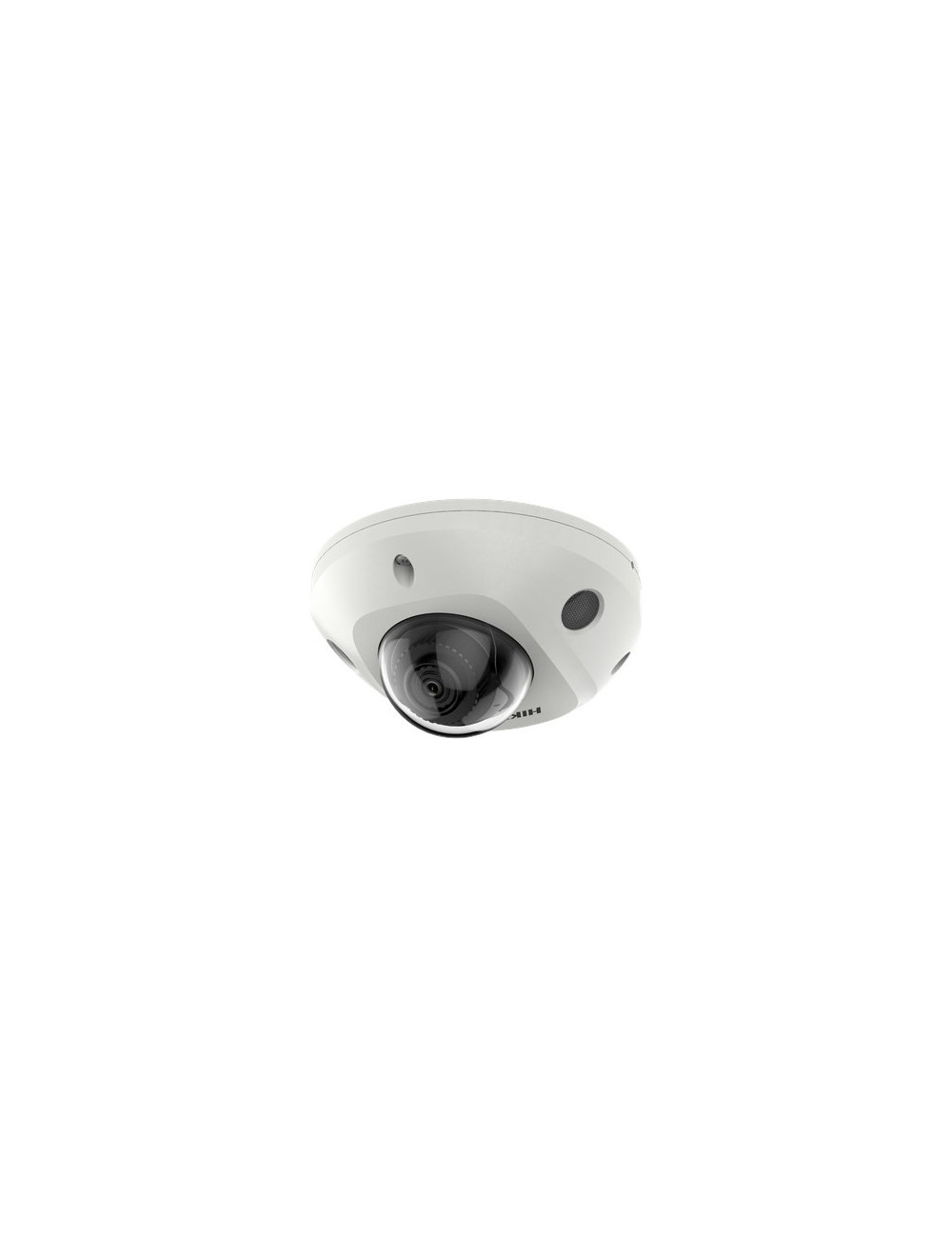

    HIKVISION IP CAMERA DS-2CD2543G2-IWS (2.8mm)

    €155.85
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    WLONONWCRDCWX
    33 Items

    Data sheet

    Type
    IP security camera
    Height
    57.4 mm
    Connectivity technology
    Wired & Wireless
    Weight
    380 g
    Package depth
    134 mm
    Package height
    108 mm
    Package width
    134 mm
    Package weight
    615 g
    Power source type
    DC, PoE
    Storage relative humidity (H-H)
    0 - 95%
    Operating temperature (T-T)
    -30 - 60 °C
    Operating relative humidity (H-H)
    0 - 95%
    Storage temperature (T-T)
    -30 - 60 °C
    Mounting type
    Ceiling/wall
    Form factor
    Dome
    Bluetooth
    No
    Sample rate
    48 kHz
    Bit rate
    32 Kbps - 8 Mbps
    Noise reduction
    Yes
    Sensor type
    CMOS
    Wi-Fi
    Yes
    Compatible memory cards
    MicroSDXC
    Wi-Fi standards
    802.11g
    Maximum memory card size
    256 GB
    Audio formats supported
    MP3
    Maximum resolution
    2688 x 1520 pixels
    Placement supported
    Outdoor
    Card reader integrated
    Yes
    Ethernet LAN (RJ-45) ports
    1
    Number of languages
    33
    Audio output channels
    1 channels
    Networking standards
    IEEE 802.3af
    Ethernet LAN
    Yes
    Diameter
    11 cm
    International Protection (IP) code
    IP67
    Wi-Fi data rate (max)
    300 Mbit/s
    Ethernet interface type
    Fast Ethernet
    Number of Users
    32 user(s)
    Web-based management
    Yes
    Quality of Service (QoS) support
    Yes
    Reset button
    Yes
    Frame Rate
    30 fps
    Product colour
    White
    Tilt angle range
    0 - 75°
    Fixed focal length
    2.8 mm
    Voice codecs
    G.711ulaw
    LED type
    IR
    Night vision
    Yes
    Total megapixels
    4 MP
    Optical sensor size
    25.4 / 3 mm (1 / 3")
    Pan range
    -30 - 30°
    Video compression formats
    H.264
    Angle of rotation
    360°
    DC output voltage
    12
    Video motion detection
    Yes
    Number of cameras
    1
    Camera pan control
    Yes
    Camera tilt control
    Yes
    Night vision distance
    30 m
    Number of lenses
    1
    Day/night mode
    Yes
    Infrared (IR) cut-off filter
    Yes
    Built-in HDD
    No
    Noise reduction technology
    3D noise reduction
    Region of Interest (ROI) encoding
    Yes
    Maximum aperture number
    1.6
    Number of sensors
    1
    Infra-red wavelength
    850 nm
    Wide Dynamic Range (WDR)
    Yes
    Progressive scan
    Yes
    Back Light Compensation (BLC)
    Yes
    Video streaming
    Yes
    Alarm input/output
    Yes
    Intelligent Video Surveillance (IVS) system features
    Face detection
    Camera shutter speed
    1/3 - 1/100000 s
    Bit rate control
    Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
    Gain control type
    Auto
    Highlight Compensation (HLC)
    Yes
    Power consumption (Power over Ethernet (PoE))
    7 W
    Behavior analysis
    Intrusion detection, Line crossing detection
    Image quality adjustment
    Brightness
    IK code
    IK08
    Audio input channels
    1 channels
    Detect distance
    64 m
    Observe distance
    25 m
    Recognize distance
    13 m
    Identify distance
    6 m
