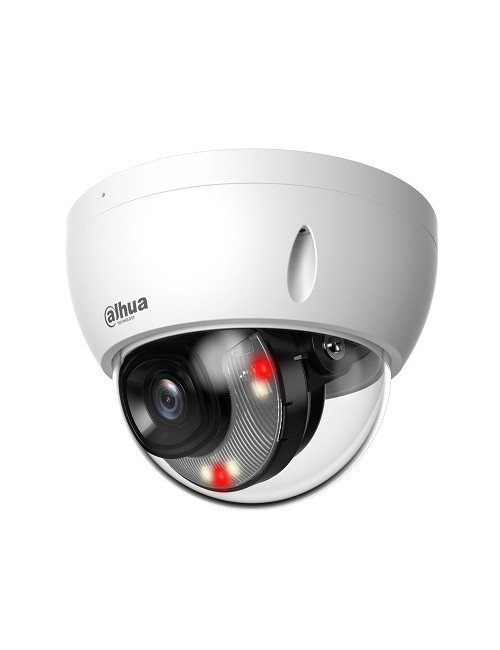

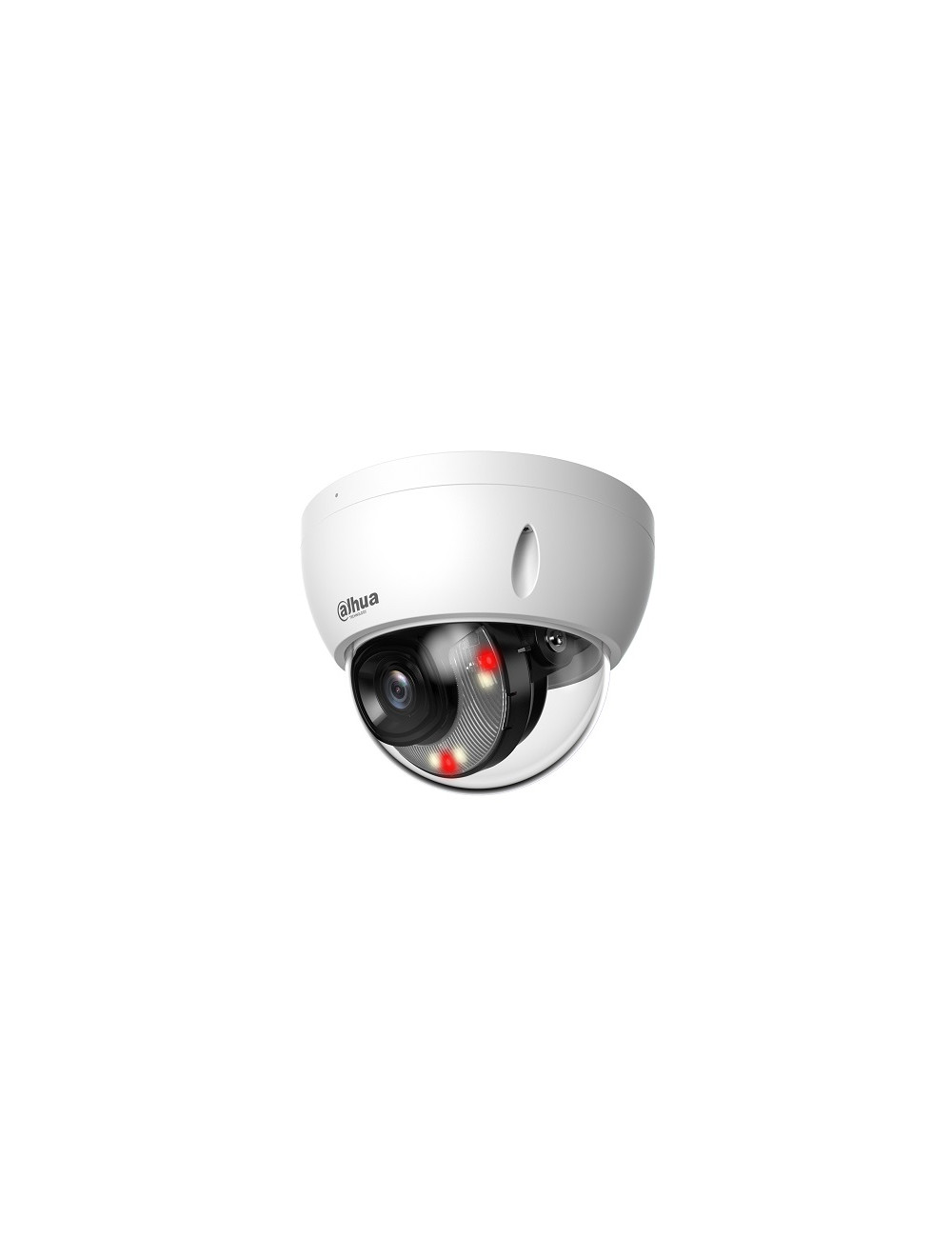

IP network camera 4MP HDBW2449E-S-IL 2.8mm
    DAHUA TECHNOLOGY CO., LTD

    IP network camera 4MP HDBW2449E-S-IL 2.8mm

    €150.54
    Tax included
    Quantity

    Add to favorites Add to compare

    Camera

    Image Sensor

    1/2.9" CMOS

    Max. Resolution

    2688 (H) x 1520 (V)

    ROM

    128 MB

    RAM

    128 MB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual 1/3 s–1/100,000 s

    Min. Illumination

    0.006 lux@F1.6 (Color, 30 IRE);

    0.0006 lux@F1.6 (B/W, 30 IRE);

    0 lux (Illuminator on)

    S/N Ratio

    >56 dB

    Illumination Distance

    Up to 30 m (98.43 ft) (IR)

    Up to 30 m (98.43 ft) (Warm light)

    Illuminator On/Off Control

    Auto;Manual

    Illuminator Number

    3 (IR LED); 4 (Warm light)

    Angle Adjustment

    Pan: 0°–355°;

    Tilt: 0°–65°;

    Rotation: 0°–355°

    Lens

    Lens Type

    Fixed-focal

    Lens Mount

    M12

    Focal Length

    2.8 mm

    Max. Aperture

    F1.6

    Field of View

    2.8 mm: H: 101°; V: 54°; D: 120°

    Iris Control

    Fixed

    Close Focus Distance

    2.8 mm: 1.1 m (3.61 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    2.8 mm

    63.6 m( 208.66 ft)

    25.4 m( 93.33 ft)

    12.7 m( 41.67 ft)

    6.4m

    ( 21.00 ft)

    DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

    Intelligence

    IVS (Perimeter Protection)

    Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

    SMD

    SMD Plus

    Smart Search

    Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

    Video

    Video Compression

    H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

    Smart Codec

    Smart H.265+; Smart H.264+

    Video Frame Rate

    Main stream: 2688 x 1520 @ (1–20 fps)/2560 x 1440@(1–25/30 fps)

    Sub stream: 704 x 576@(1–25 fps)/704 x 480@(1–30 fps)

    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

    Stream Capability

    2 streams

    Resolution

    4M (2688 x 1520/2560 x 1440); 3M (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720);D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)

    Bit Rate Control

    VBR;CBR

    Video Bit Rate

    H.264: 32 kbps–6144 kbps;

    H.265: 12 kbps–6144 kbps

    Day/Night

    Auto(ICR)/Color/B/W

    BLC

    Yes

    HLC

    Yes

    WDR

    120 dB

    White Balance

    Auto; natural; street lamp; outdoor; manual; regional custom

    Gain Control

    Auto/Manual

    Noise Reduction

    3D NR

    Motion Detection

    OFF/ON (4 areas, rectangular)

    Region of Interest (RoI)

    Yes (4 areas)

    Smart Illumination

    Yes

    Smart Dual Light

    Yes

    Image Rotation

    0°/90°/180°/270° (Support 90°/270° with 2688 x1520 resolution and lower)

    Mirror

    Yes

    Privacy Masking

    4 areas

    Audio

    Built-in MIC

    Yes, built-in Mic

    Audio Compression

    G.711a; G.711Mu; PCM; G.726

    Alarm

    Alarm Event

    No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

    Network

    Network Port

    RJ-45 (10/100 Base-T)

    SDK and API

    Yes

    Network Protocol

    IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

    Interoperability

    ONVIF (Profile S & Profile G & Profile T); CGI

    User/Host

    6 (Total bandwidth: 36 M)

    Storage

    FTP; SFTP; Micro SD card (support max. 256 GB)

    Browser

    IE; Chrome; Firefox

    Management Software

    Smart PSS Lite; DSS; DMSS; DoLynk Care

    Mobile Client

    iOS;Android

    Cyber Security

    Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade

    Certification

    Certifications

    CE-LVD: EN62368-1;

    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

    Power

    Power Supply

    12 VDC/PoE (802.3af)

    Power Consumption

    Basic: 2.4 W (12 VDC), 3 W (PoE);

    Max.: 6.6 W (12 VDC), 7.9 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity)

    Environment

    Operating Temperature

    –40 °C to +60 °C(–40 °F to +140 °F)

    Operating Humidity

    ?95%(RH), non-condensing

    Storage Temperature

    –40 °C to +60 °C(–40 °F to +140 °F)

    Storage Humidity

    ?95%(RH), non-condensing

    Protection

    IP67; IK10

    Structure

    Casing Material

    Metal

    Product Dimensions

    81.0 mm x ?109.9 mm (3.19" x ?4.33")

    Net Weight

    0.35 kg (0.77 lb)

    Gross Weight

    0.50 kg (1.10 lb)

    Product Details

    HDBW2449ESIL
    50 Items

    Quick Compare

    Product
    		 TP-Link VIGI C445 Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall TP-Link VIGI C355 Bullet IP security camera Outdoor 2880 x 1620 pixels Wall TP-Link VIGI C455(2.8mm) Turret IP security camera Indoor 2880 x 1620 pixels Ceiling TP-Link VIGI C355 Bullet IP security camera Outdoor 2880 x 1620 pixels Wall
    Availability
    Price
    €139.27
    €139.27
    €139.27
    €139.27
    Description
    Type
    		 IP security camera IP security camera IP security camera IP security camera
    Width
    		 111 mm 184 mm 111 mm 184 mm
    Height
    		 83.7 mm 74 mm 83.7 mm 74 mm
    Depth
    		 111 mm 74 mm 111 mm
    Connectivity technology
    		 Wired Wired Wired Wired
    Weight
    		 480 g 525 g 480 g 525 g
    Power source type
    		 DC DC, PoE AC, PoE DC, PoE
    Storage relative humidity (H-H)
    		 0 - 95% 0 - 95% 0 - 95%
    Operating temperature (T-T)
    		 -30 - 60 °C -30 - 60 °C -30 - 60 °C -30 - 60 °C
    Operating relative humidity (H-H)
    		 0 - 95% 0 - 95% 0 - 95%
    Storage temperature (T-T)
    		 -40 - 60 °C -40 - 60 °C -40 - 60 °C -40 - 60 °C
    Mounting type
    		 Ceiling/wall Wall Ceiling Wall
    Form factor
    		 Turret Bullet Turret Bullet
    Built-in microphone
    		 Yes Yes Yes Yes
    Bluetooth
    		 No No
    Sample rate
    		 8 kHz 8 kHz 8 kHz 8 kHz
    Bit rate
    		 6 Mbps 6 Mbps 6 Mbps
    Noise reduction
    		 Yes Yes Yes
    Protection features
    		 Waterproof
    Length
    		 74 mm
    Sensor type
    		 CMOS CMOS CMOS CMOS
    Wi-Fi
    		 No No
    Compatible memory cards
    		 MicroSD (TransFlash)
    Maximum memory card size
    		 512 GB
    Audio system
    		 2-way
    Audio formats supported
    		 G.711
    Signal-to-Noise Ratio (SNR)
    		 52 dB 52 dB 52 dB
    Power consumption (max)
    		 10.1 W 10.1 W 10.7 W
    Maximum resolution
    		 2688 x 1520 pixels 2880 x 1620 pixels 2880 x 1620 pixels 2880 x 1620 pixels
    Built-in speaker(s)
    		 Yes Yes Yes Yes
    Placement supported
    		 Indoor & outdoor Outdoor Indoor Outdoor
    Card reader integrated
    		 Yes
    Ethernet LAN (RJ-45) ports
    		 1 1 1
    Audio output channels
    		 1.0 channels
    DC-in jack
    		 Yes Yes
    Housing material
    		 Metal Metal Metal Metal
    Ethernet LAN
    		 Yes Yes Yes Yes
    Supported graphics resolutions
    		 2304 x 1296 1920 x 1080 (HD 1080) 2880 x 1620
    International Protection (IP) code
    		 IP67 IP67 IP67 IP67
    Ethernet interface type
    		 Fast Ethernet Fast Ethernet Fast Ethernet
    Video formats supported
    		 H.264
    Supported network protocols
    		 TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
    Reset button
    		 Yes
    Password protection
    		 Yes Yes Yes
    Frame Rate
    		 60 fps 60 fps 30 fps
    Product colour
    		 White White White White
    Tilt angle range
    		 0 - 85° -90 - 90° 0 - 85° 0 - 90°
    Focal length range
    		 4 mm 4 mm
    Fixed focal length
    		 4 mm 4 mm 2.8 mm 6 mm
    Web browser
    		 Yes Yes
    Voice codecs
    		 G.711alaw
    LED type
    		 IR IR/White IR IR/White
    Night vision
    		 Yes Yes Yes Yes
    Total megapixels
    		 4 MP 5 MP 5 MP 5 MP
    Optical sensor size
    		 25.4 / 2.7 mm (1 / 2.7") 25.4 / 1.2 mm (1 / 1.2") 25.4 / 2.7 mm (1 / 2.7") 25.4 / 2.7 mm (1 / 2.7")
    Minimum illumination
    		 0.005 lx 0.0005 lx 0.005 lx 0.005 lx
    Pan range
    		 0 - 360° 0 - 360° 0 - 360° 0 - 360°
    Dynamic range
    		 120 dB 120 dB 120 dB 120 dB
    Lens viewing angle, diagonal
    		 98.7° 105.4° 134° 67.2°
    Video compression formats
    		 H.264+ H.264+ H.265
    Angle of rotation
    		 360° 360°
    DC output voltage
    		 12
    Video motion detection
    		 Yes
    Number of cameras
    		 1 1 1 1
    Camera pan control
    		 Yes Yes
    Camera tilt control
    		 Yes Yes
    Night vision distance
    		 30 m 30 m 30 m 30 m
    Number of lenses
    		 1 1 1
    Privacy protection
    		 Yes Yes Yes
    Day/night mode
    		 Yes Yes Yes Yes
    Infrared (IR) cut-off filter
    		 Yes Yes Yes Yes
    Built-in HDD
    		 No No
    Lens viewing angle, vertical
    		 41.8° 46° 58.8° 31.3°
    Noise reduction technology
    		 3D noise reduction 3D noise reduction 3D noise reduction
    Smart IR
    		 Yes Yes Yes
    Region of Interest (ROI) encoding
    		 Yes Yes Yes Yes
    Maximum aperture number
    		 1.6 1.6 1.6
    Lens diameter
    		 4 mm 4 mm 2.8 mm
    Lens viewing angle, horizontal
    		 80.4° 88° 111.4° 57.3°
    Infra-red wavelength
    		 850 nm 850 nm 850 nm 850 nm
    Wide Dynamic Range (WDR)
    		 Yes Yes Yes Yes
    Progressive scan
    		 Yes Yes
    Back Light Compensation (BLC)
    		 Yes Yes
    IP address filtering
    		 Yes Yes Yes
    Camera shutter speed
    		 1/3 - 1/10000 s 1/10000 s 1/3 - 1/10000 s 1/3 to 1/10000
    Bit rate control
    		 Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR) Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR) Constant Bit Rate (CBR)/Variable Bit Rate (VBR) Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
    Privacy masking
    		 Yes Yes
    Highlight Compensation (HLC)
    		 Yes Yes
    Number of illumination LEDs
    		 4 4 4
    Signal-to-Noise Ratio (SNR) (panoramic camera)
    		 52 dB
    Image quality adjustment
    		 Brightness Sharpness
    Digest authentication
    		 Yes Yes Yes
    Built-in light
    		 Yes
    Audio input channels
    		 1.0 channels
    Detect distance
    		 80 m 80 m 64 m 120 m
    Observe distance
    		 33 m 33 m 27 m 50 m
    Recognize distance
    		 16 m 16 m 13 m 24 m
    Identify distance
    		 8 m 8 m 6 m 12 m
    Human and vehicle targets classification
    		 Yes
    Minimum aperture number
    		 1.6 1.6
    Bit rate range
    		 64 - 64 Kbit/s 256 - 6000 Kbit/s
    Number of Privacy masking areas
    		 4 4 4 4
    Warnings
    		 Avoid direct contact with water to prevent electrical damage. The product contains electronic components; do not dispose of with the normal household waste.
