DAHUA

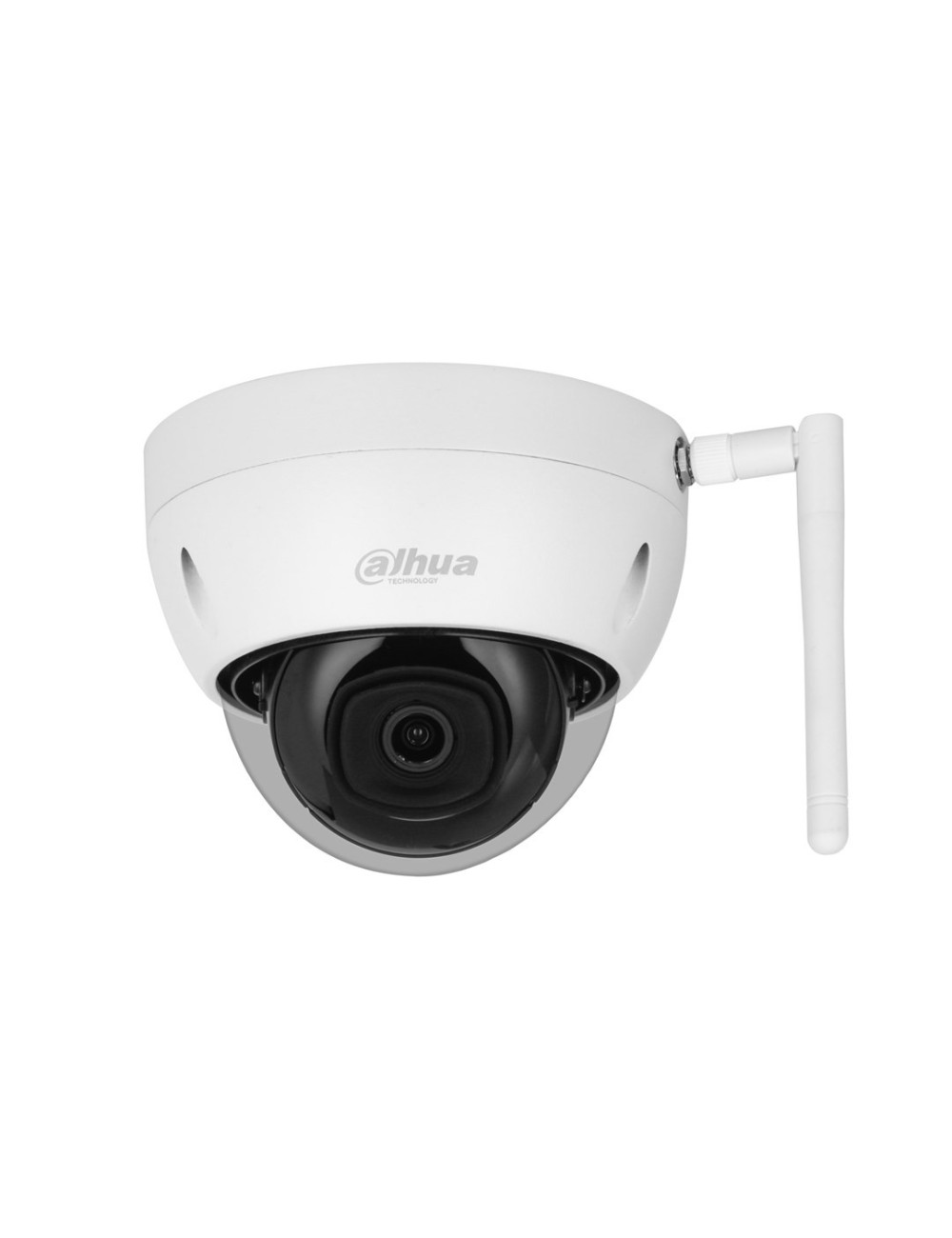

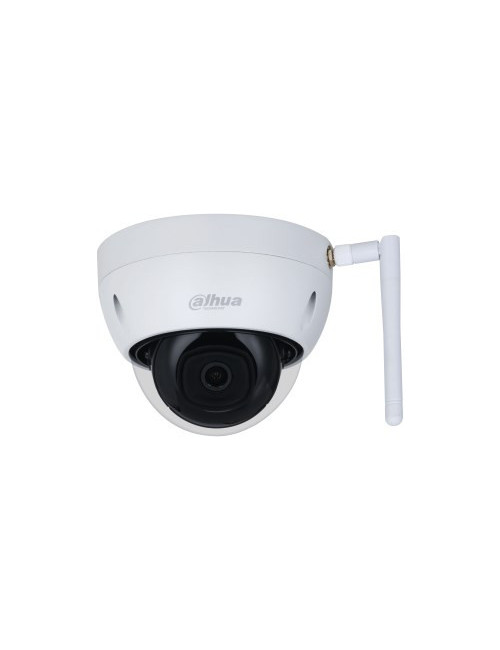

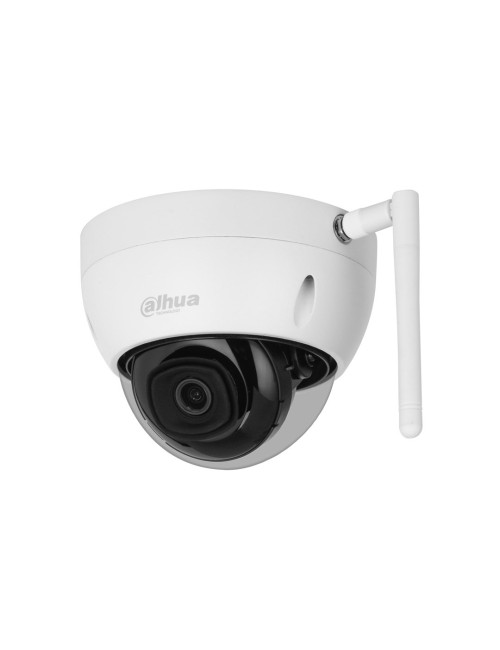

CAMERA IP DAHUA IPC-HDBW1230DE-SW-0280B

€83.33

Tax included

Product Details
Quick Compare

Product Details

Reference WLONONWCRDZMH

In stock 23 Items

Data sheet

Type: IP security camera
Height: 88.7 mm
Connectivity technology: Wired & Wireless
Weight: 414 g
Package weight: 592 g
Power source type: DC
Operating temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Mounting type: Ceiling
Form factor: Dome
Bluetooth: No
Bit rate: 9 - 4096
Noise reduction: Yes
Mobile operating systems supported: iOS
Sensor type: CMOS
Wi-Fi: Yes
Compatible memory cards: MicroSD (TransFlash)
Wi-Fi standards: Wi-Fi 4 (802.11n)
Maximum memory card size: 256 GB
Signal-to-Noise Ratio (SNR): 56 dB
Power consumption (max): 4.9 W
Power consumption (typical): 2 W
Maximum resolution: 1920 x 1080 pixels
Placement supported: Outdoor
Card reader integrated: Yes
Ethernet LAN (RJ-45) ports: 1
Housing material: Metal
Security algorithms: HTTPS
Ethernet LAN: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)
Zoom capability: No
Diameter: 11.1 cm
International Protection (IP) code: IP67
Flash memory: 64 MB
Wi-Fi data rate (max): 2400 Mbit/s
Antenna type: External
Antennas quantity: 1
Ethernet interface type: Fast Ethernet
Supported video modes: 960p
Video formats supported: H.264
Number of Users: 6 user(s)
Web-based management: Yes
Supported network protocols: IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP
Firmware upgradeable: Yes
Luminous flux: 0.0025 lm
Frame Rate: 30 fps
Product colour: White
Tilt angle range: 0 - 75°
Focal length range: 2.8 mm
Web browser: Yes
Video recording: Yes
LED type: IR
Night vision: Yes
Total megapixels: 2 MP
Motion sensor: Yes
Fixed focus: Yes
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
White balance: Street lamp
Field of view (FOV) angle: 120°
Minimum illumination: 0.0025 lx
Pan range: 0 - 355°
Dynamic range: 56 dB
Lens viewing angle, diagonal: 120°
Video compression formats: H.265
Angle of rotation: 355°
DC output voltage: 12
Video motion detection: Yes
Number of cameras: 1
Camera pan control: Yes
Camera tilt control: Yes
Number of lenses: 1
Built-in HDD: No
Camera shutter type: Electronic
Lens viewing angle, vertical: 53°
Noise reduction technology: 3D noise reduction
Smart IR: Yes
Digital Wide Dynamic Range (DWDR): Yes
Region of Interest (ROI) encoding: Yes
Maximum aperture number: 2
Lens diameter: 2.8 mm
Channel bandwidth: 36 MHz
Lens viewing angle, horizontal: 100°
Number of sensors: 1
Wide Dynamic Range (WDR): Yes
Progressive scan: Yes
Back Light Compensation (BLC): Yes
Video streaming: Yes
ROM capacity: 16 MB
Camera shutter speed: 1/3 s–1/100,000 s
Adjustment shutter speed: Auto/Manual
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Gain control type: Auto
Privacy masking: Yes
Flip & mirror: Yes
Number of illumination LEDs: 3
Live view: Yes
HTTPS encryption: Yes
IK code: IK10
Management software: Smart PSS; DSS; DMSS
Detect distance: 46.9 m
Observe distance: 18.8 m
Recognize distance: 9.4 m
Identify distance: 4.7 m
Smartphone/tablet remote support: Yes
Compliance certificates: Federal Communications Commission (FCC)
