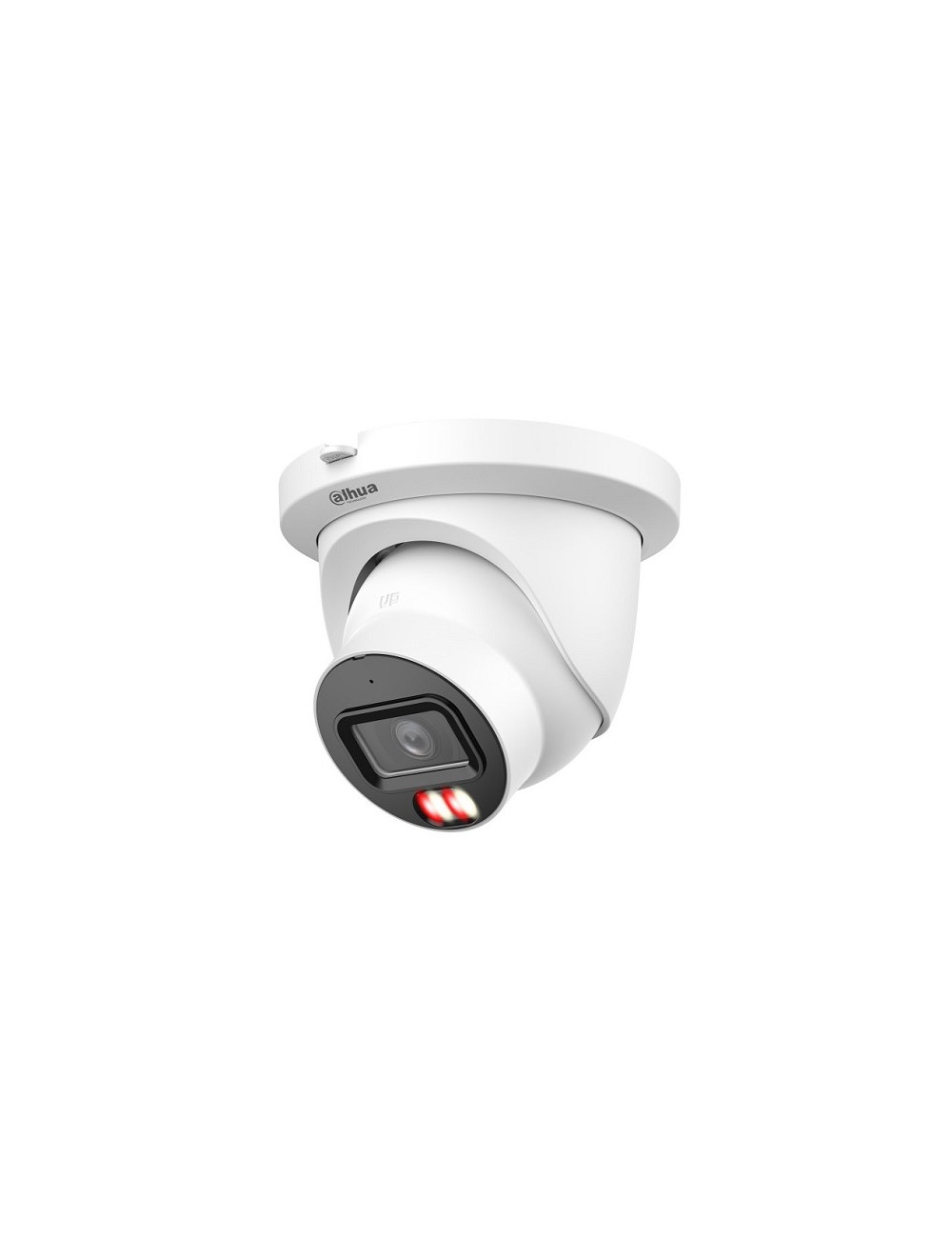

IP network camera 8MP IPC-HDW5859TM-ASE-IL 2.8mm

Camera

Image Sensor

1/1.8" CMOS

Max. Resolution

3840 (H) x 2160 (V)

ROM

4 GB

RAM

2 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0008 lux@F1.6(Color, 30IRE)
0.0004 lux@F1.6 (B/W, 30IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 50 m (164.04 ft) (IR)
Up to 50 m (164.04 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

2 (Multi-core (IR + warm) light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–80°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 110°; V: 56°; D: 134°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 2.1 m (6.89 ft)

DORI Distance

Intelligence

EPTZ

Yes

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.

SMD

SMD 4.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animal and motor vehicles, and search through live and recorded videos to quickly locate targets.

Face Detection

Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

People Counting

Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.

Heat Map

Yes

Video Metadata

Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload.
Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle.
Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

AI Coding

AI H.265; AI H.264
*Includes smart codec technology, Smart H.265+ and Smart H.264+.

Video Frame Rate

Main stream: 3840 x 2160@(1 fps–25/30 fps)
Sub stream: 704 x 576@(1 fps –25 fps)/704 x 480@(1 fps–30 fps)
Third stream: 1920 x 1080@(1 fps–25/30 fps)
Fourth stream: 1280 x 720@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Streaming Capability

4 streams

Resolution

8M (3840 x 2160); 6M (3072 x 2048/3200 x 1800); 5M (3072 x 1728/2592 x 1944/2960 x 1668); 4M (2688 x 1520/2560 x 1440); 3M (2048 x 1536/2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)

Bit Rate Control

VBR;CBR

Video Bit Rate

H.264: 3 kbps–16384 kbps
H.265: 3 kbps–16384 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Smart Dual Light

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 4M (2688 x 1520) resolution and lower)

Mirror

Yes

Privacy Masking

4 mosaics or 8 color blocks

LDC

Yes

Audio

Built-in MIC

Yes, built-in Mic

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception

Network

Network Port

RJ-45 (10/100 Enhancement Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration

Interoperability

ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 1 TB); NAS

Browser

IE: IE 11 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later

Management Software

DSS; DMSS; DoLynk Care

Mobile Client

iOS;Android

Security

Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Function

Sound Warning

Offers 11 sound alarms and supports importing 10 custom sound alarms.
Sound: 0–100
Play times can be set from 1 to 10.

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3–5 VDC

Alarm Output

1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply

12 VDC (±30%); PoE+ (802.3at); ePoE

Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

Basic: 4.2 W (12 VDC); 6.3 W (PoE)
Max. (H.265 + WDR+ warm light + intelligence on): 13.3 W (12 VDC); 15.6 W (PoE)

ePoE

Yes

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

?95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

?95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

105.5 mm x D122.0 mm (4.15" x D4.80")

Net Weight

530 g (1.17 lb)

Gross Weight

710 g (1.57 lb)
