Hikvision

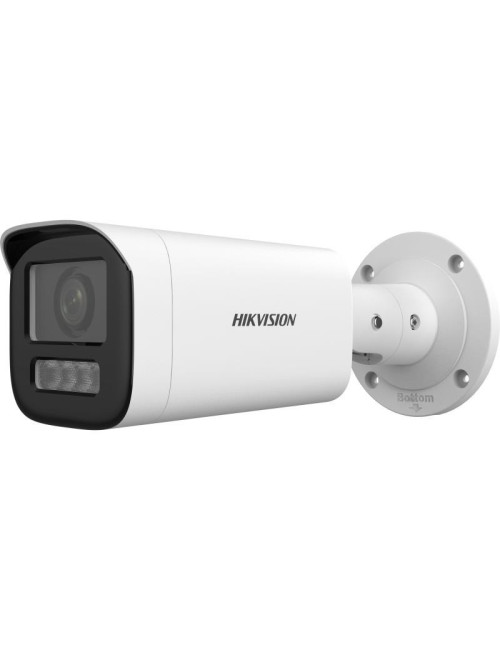

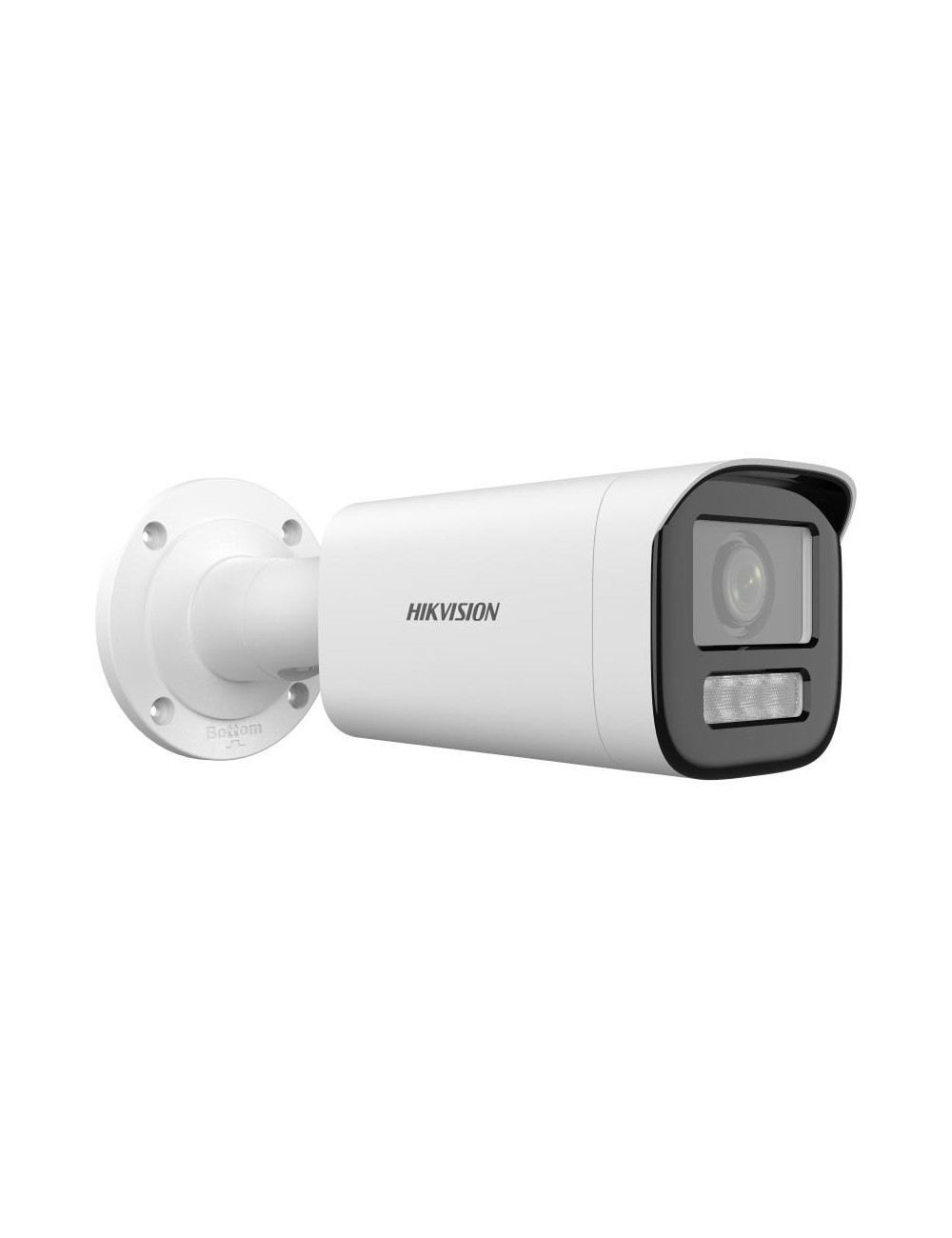

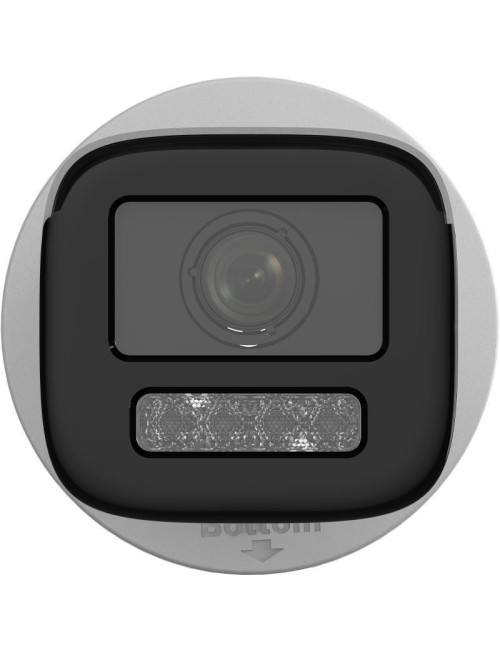

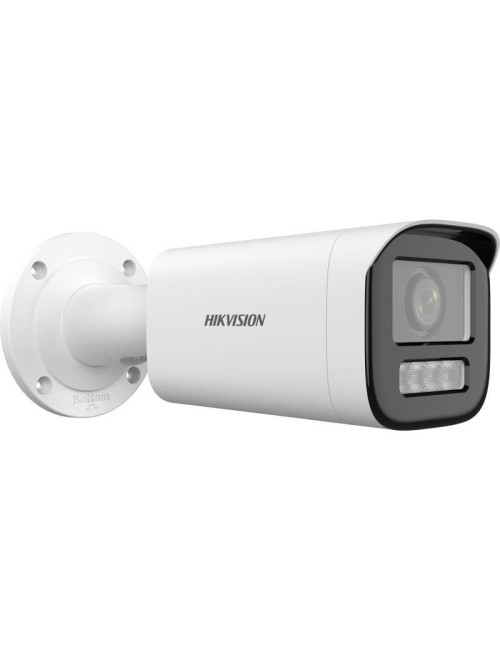

IP Camera: HIKVISION DS-2CD1663G2-LIZU 2.8-12mm EN

€189.64

Tax included

Product Details
Quick Compare

Product Details

Reference WLONONWCROFMZ

In stock 49 Items

Data sheet

Type: IP security camera
Connectivity technology: Wired
Weight: 750 g
Package depth: 137 mm
Package height: 141 mm
Package width: 315 mm
Package weight: 1.07 kg
Power source type: DC, PoE
Storage relative humidity (H-H): 0 - 95%
Manual: Yes
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Mounting type: Wall
Form factor: Bullet
Built-in microphone: Yes
Bluetooth: No
Bit rate: 32 Kbps - 16 Mbps
Noise reduction: Yes
Length: 252 mm
Sensor type: CMOS
Wi-Fi: No
Compatible memory cards: microSDHC
Maximum memory card size: 512 GB
Audio formats supported: AAC-LC
Signal-to-Noise Ratio (SNR): 52 dB
Power consumption (max): 10.5 W
Maximum resolution: 3200 x 1800 pixels
Placement supported: Indoor & outdoor
Card reader integrated: Yes
Ethernet LAN (RJ-45) ports: 1
Number of languages: 1
Housing material: Plastic
Networking standards: IEEE 802.3af
Ethernet LAN: Yes
Focus: Motorized
Supported graphics resolutions: 2688 x 1520
Diameter: 10.5 cm
International Protection (IP) code: IP67
Ethernet interface type: Fast Ethernet
Supported video modes: 480p
Video formats supported: H.265+
Number of Users: 32 user(s)
Web-based management: Yes
Quality of Service (QoS) support: Yes
Supported network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Reset button: Yes
Password protection: Yes
Languages support: Polish
Frame Rate: 30 fps
Product colour: White
Tilt angle range: 0 - 70°
Sustainability compliance: Yes
Focal length range: 2.8 - 12 mm
Video recording: Yes
LED type: IR/White
Night vision: Yes
Total megapixels: 6 MP
Optical sensor size: 25.4 / 2.4 mm (1 / 2.4")
Minimum illumination: 0 lx
Pan range: 0 - 355°
Dynamic range: 120 dB
Lens viewing angle, diagonal: 40.8 - 127.4°
Video compression formats: H.264
Angle of rotation: 355°
DC output current: 0.88 A
DC output voltage: 12
Video motion detection: Yes
Number of cameras: 1
Camera pan control: Yes
Camera tilt control: Yes
Night vision distance: 50 m
Number of lenses: 1
Privacy protection: Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Built-in HDD: No
Lens viewing angle, vertical: 20 - 55.9°
Noise reduction technology: 3D noise reduction
Smart IR: Yes
Region of Interest (ROI) encoding: Yes
Maximum aperture number: 1.6
Lens viewing angle, horizontal: 35.6 - 106°
Number of sensors: 1
Infra-red wavelength: 850 nm
Wide Dynamic Range (WDR): Yes
Progressive scan: Yes
Mirror: Yes
Heartbeat: Yes
Digital watermark: Yes
Back Light Compensation (BLC): Yes
Video streaming: Yes
Active tampering alarm: Yes
Camera shutter speed: 1/100000 - 1/3 s
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Privacy masking: Yes
Highlight Compensation (HLC): Yes
Live view: Yes
Power consumption (Power over Ethernet (PoE)): 12 W
Image quality adjustment: Brightness
Digest authentication: Yes
Password reset via email: Yes
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User
Identify distance (wide): 6.5 m
Recognize distance (wide): 13.6 m
Built-in light: Yes
Observe distance (wide): 27 m
Detect distance (wide): 68 m
Identify distance (tele): 20 m
Recognize distance (tele): 40 m
Detect distance (tele): 200 m
Observe distance (tele): 79 m
Bit rate range: 16 - 160 Kbit/s
Compliance certificates: Industry Canada (IC)
Number of Privacy masking areas: 4
Sample rates: 8 - 16 kHz
Audit log: Yes
