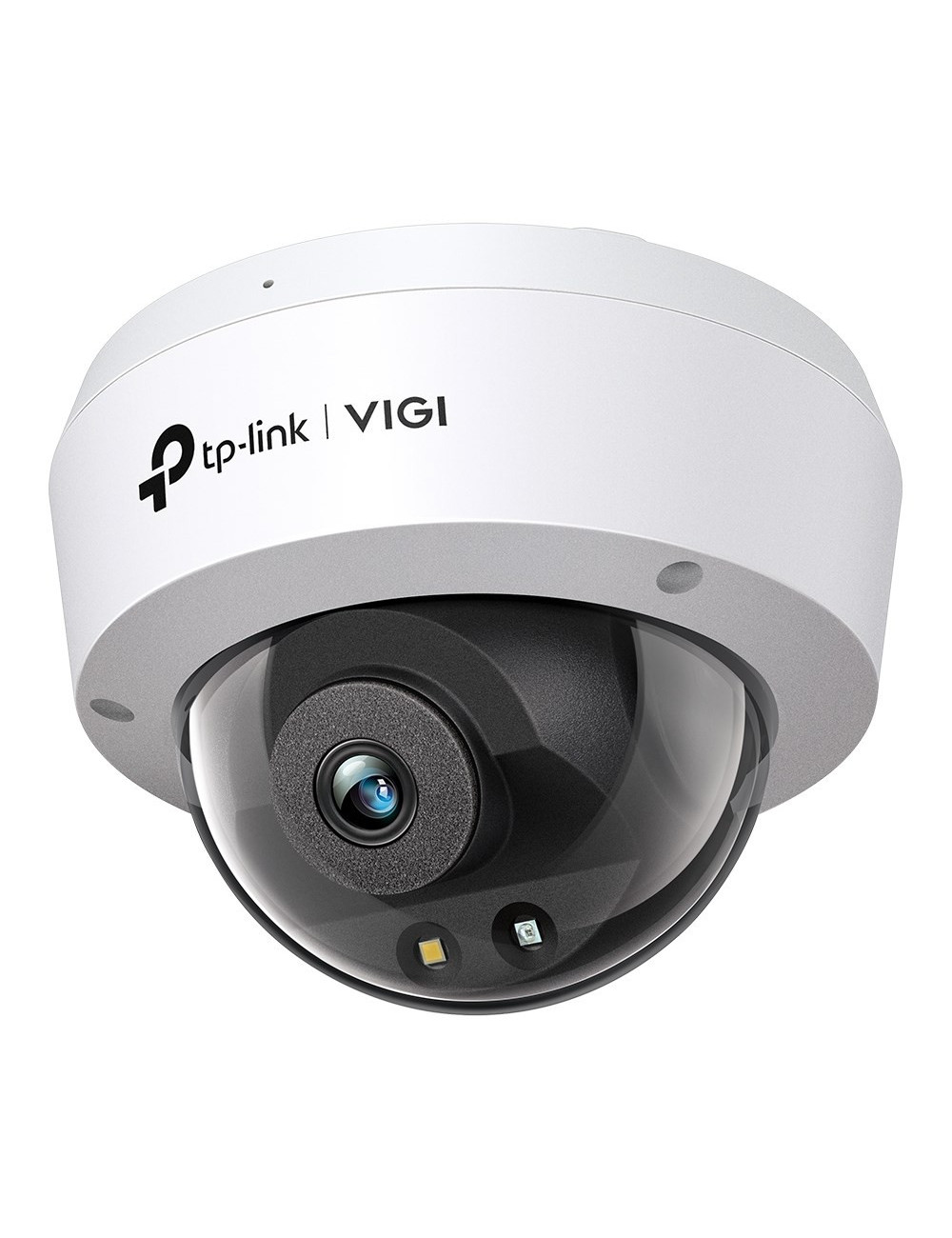

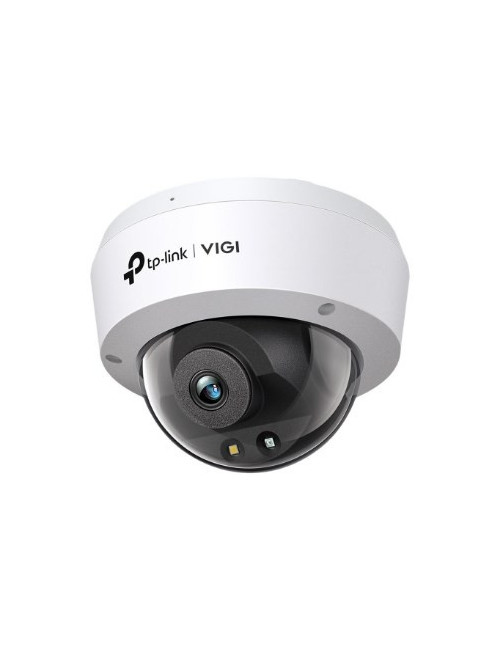

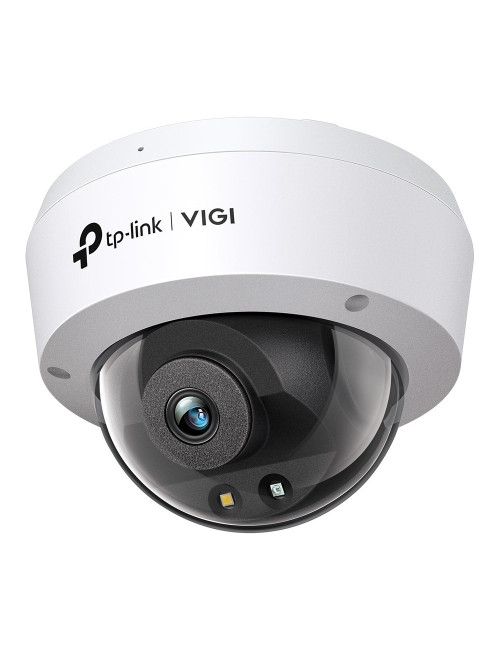

TP-Link VIGI 5MP Full-Color Dome Network Camera

Product Details

Reference WLONONWCRACTE

In stock 19 Items

Data sheet

Type

IP security camera

Package type

Box

Height

85.7 mm

Connectivity technology

Wired

Weight

280 g

Package depth

193 mm

Package height

120 mm

Package width

153 mm

Package weight

470 g

Power source type

DC

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-40 - 60 °C

Mounting type

Ceiling

Form factor

Dome

Built-in microphone

Yes

Bluetooth

No

Sample rate

8 kHz

Noise reduction

Yes

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

256 GB

Signal-to-Noise Ratio (SNR)

52 dB

Power consumption (max)

7 W

Power consumption (typical)

1.5 W

Maximum resolution

2880 x 1620 pixels

Placement supported

Indoor & outdoor

Ethernet LAN (RJ-45) ports

1

DC-in jack

Yes

Housing material

Plastic

Ethernet LAN

Yes

Supported graphics resolutions

2304 x 1296

Diameter

11.5 cm

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Supported video modes

1080p

Video formats supported

H.264+

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Reset button

Yes

Frame Rate

30 fps

Product colour

Black

Tilt angle range

0 - 85°

Fixed focal length

2.8 mm

Video recording

Yes

Voice codecs

G.711

Night vision

Yes

Total megapixels

5 MP

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Field of view (FOV) angle

128°

Minimum illumination

0.005 lx

Pan range

0 - 360°

Dynamic range

120 dB

Lens viewing angle, diagonal

128°

Number of cameras

1

Night vision distance

30 m

Number of lenses

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

57°

Smart IR

Yes

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1.6

Lens viewing angle, horizontal

109°

Number of sensors

1

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Weatherproof

Yes

Camera shutter speed

1/3 - 1/10000 s

Bit rate control

Variable Bit Rate (VBR)

Highlight Compensation (HLC)

Yes

Number of illumination LEDs

1

IK code

IK10

Built-in light

Yes

Detect distance

64 m

Observe distance

27 m

Recognize distance

13 m

Identify distance

6 m

Number of Privacy masking areas

4
