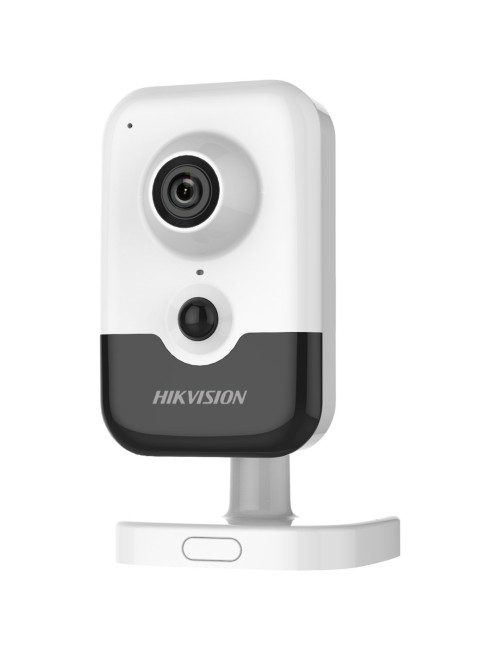

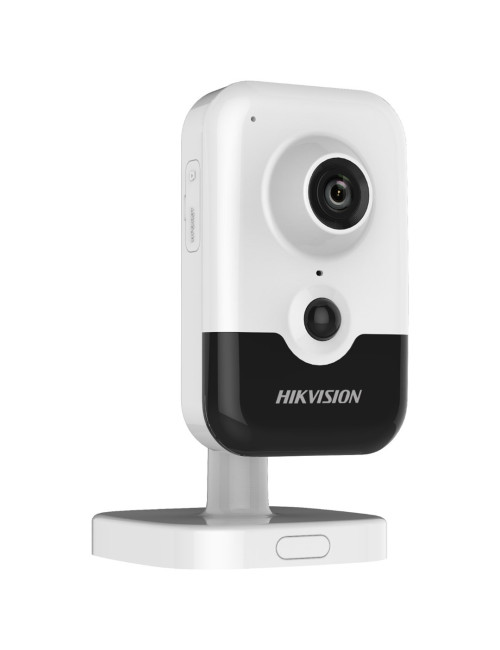

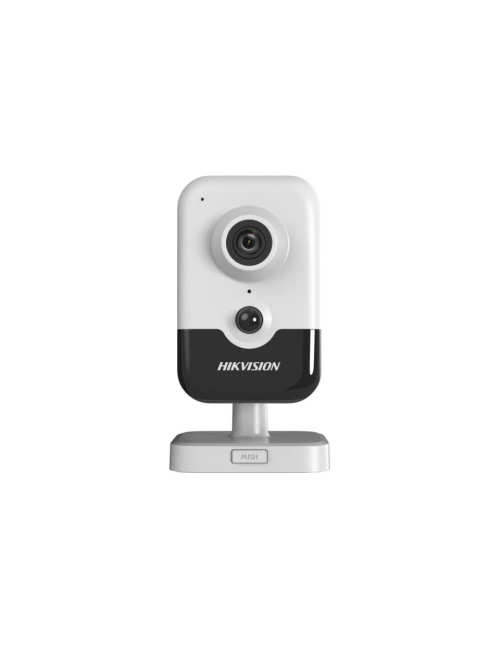

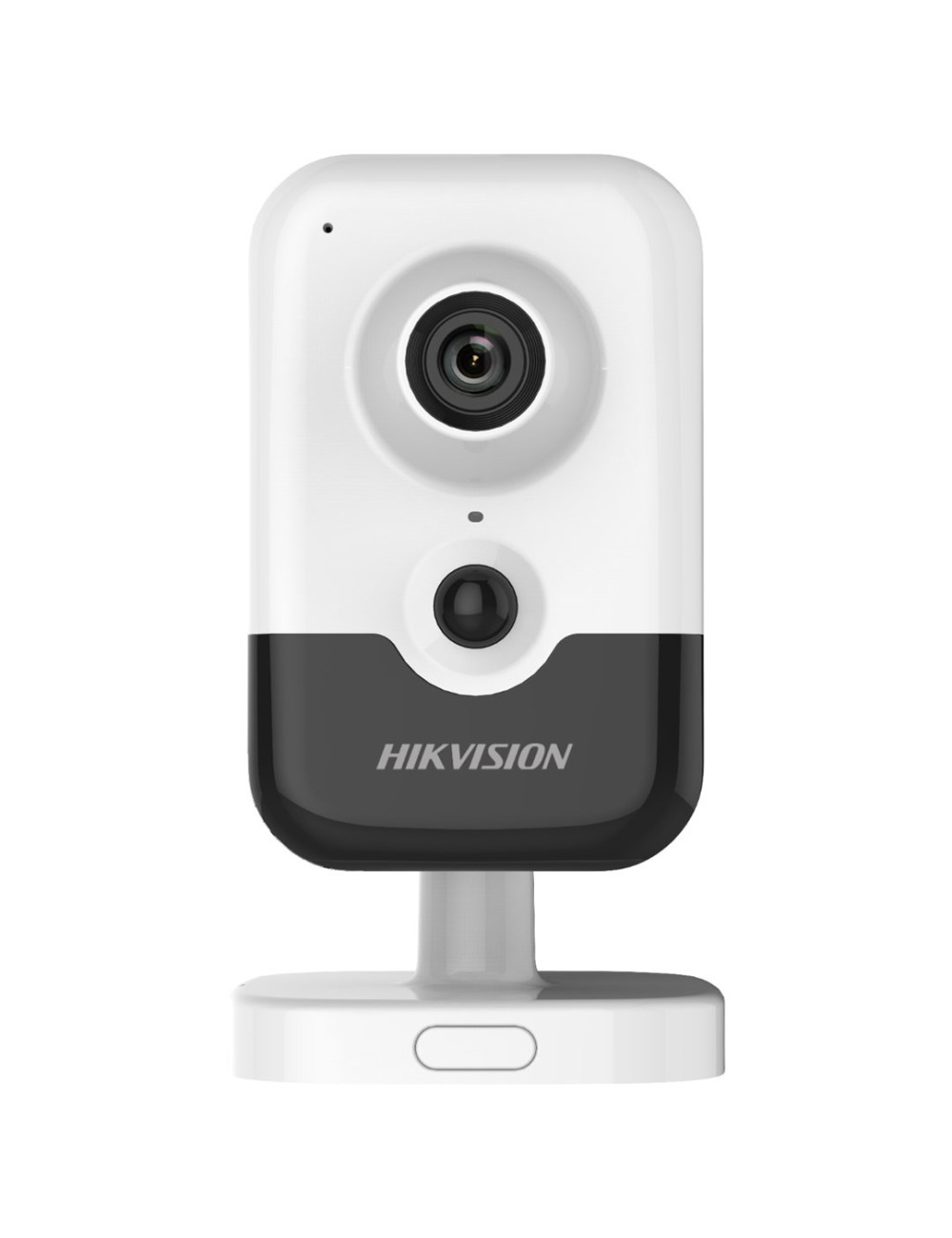

Hikvision DS-2CD2483G2-I Cube IP security camera Indoor 3840 x 2160 pixels Ceiling/wall

Product Details

Reference WLONONWCRFGN5

In stock 43 Items

Data sheet

Type

IP security camera

Width

102.9 mm

Height

32.6 mm

Depth

65.2 mm

Connectivity technology

Wired

Weight

120 g

Package depth

125 mm

Package height

99 mm

Package width

150 mm

Package weight

430 g

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-10 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-10 - 40 °C

Mounting type

Ceiling/wall

Form factor

Cube

Built-in microphone

Yes

Bluetooth

No

Sample rate

48 kHz

Bit rate

32 Kbps - 16 Mbps

Noise reduction

Yes

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

256 GB

Audio formats supported

MP3

Power consumption (max)

5.9 W

Maximum resolution

3840 x 2160 pixels

Built-in speaker(s)

Yes

Placement supported

Indoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Number of languages

33

Housing material

Plastic

Networking standards

IEEE 802.3af

Ethernet LAN

Yes

Ethernet interface type

Fast Ethernet

Number of Users

32 user(s)

Web-based management

Yes

Quality of Service (QoS) support

Yes

Reset button

Yes

Frame Rate

30 fps

Product colour

White

Tilt angle range

0 - 90°

Fixed focal length

2.8 mm

Voice codecs

G.711ulaw

LED type

IR

Night vision

Yes

Total megapixels

8 MP

Motion sensor

Yes

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Minimum illumination

0 lx

Pan range

0 - 360°

Lens viewing angle, diagonal

126.7°

Video compression formats

H.265

Angle of rotation

360°

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

10 m

Number of lenses

1

Detection distance

8 m

Motion sensor technology

Passive infrared (PIR) sensor

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

57.9°

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Maximum aperture number

2

Lens viewing angle, horizontal

107.8°

Number of sensors

1

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Power consumption (Power over Ethernet (PoE))

6.9 W

Behavior analysis

Intrusion detection, Line crossing detection

Image quality adjustment

Contrast

Detect distance

85.5 m

Observe distance

33.9 m

Recognize distance

17.1 m

Identify distance

8.6 m
