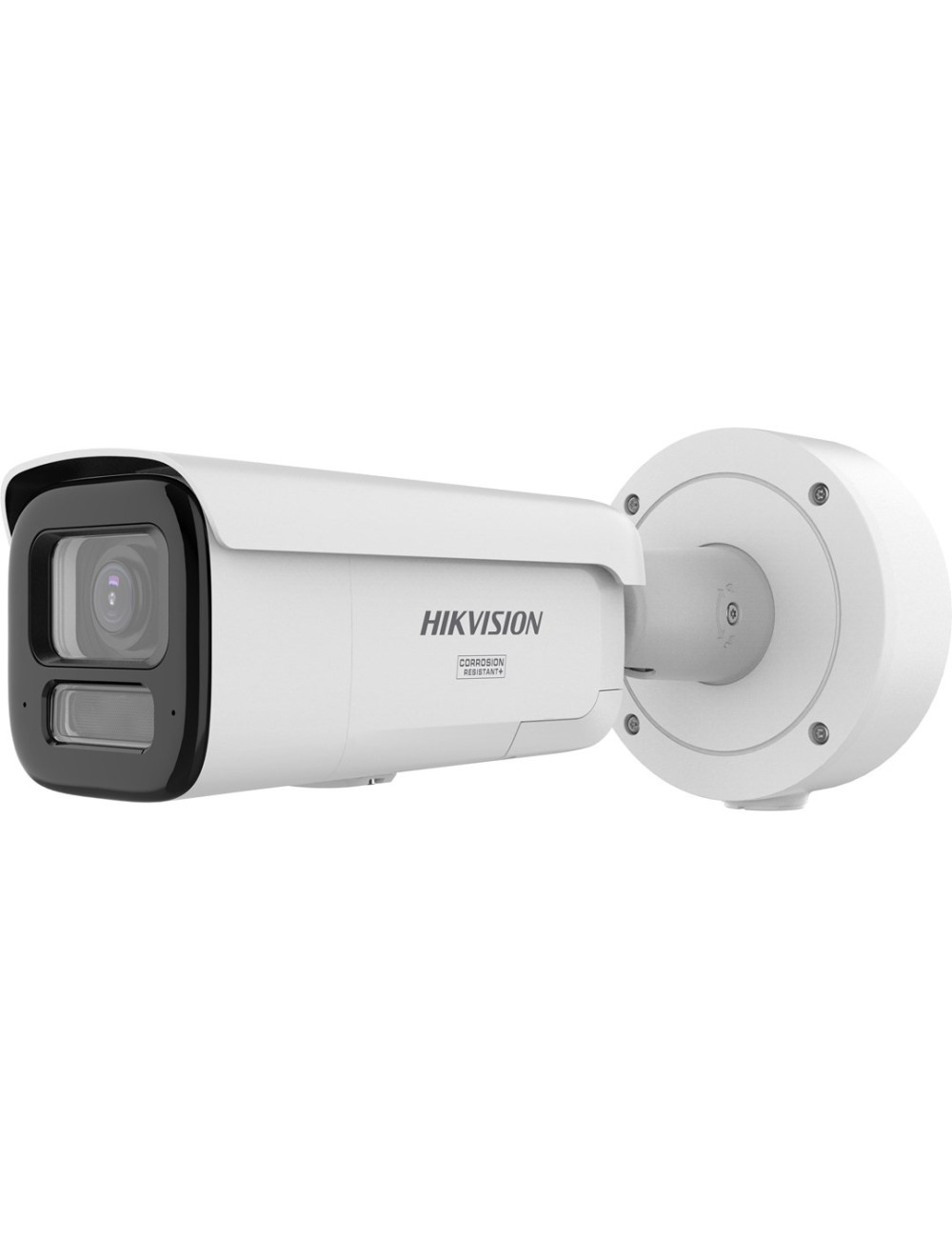

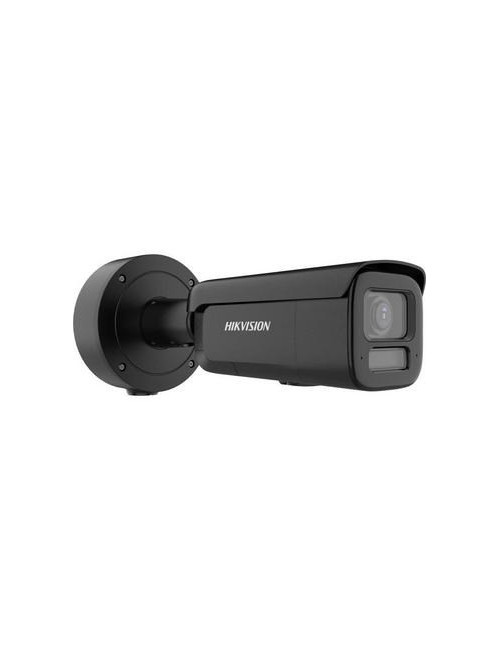

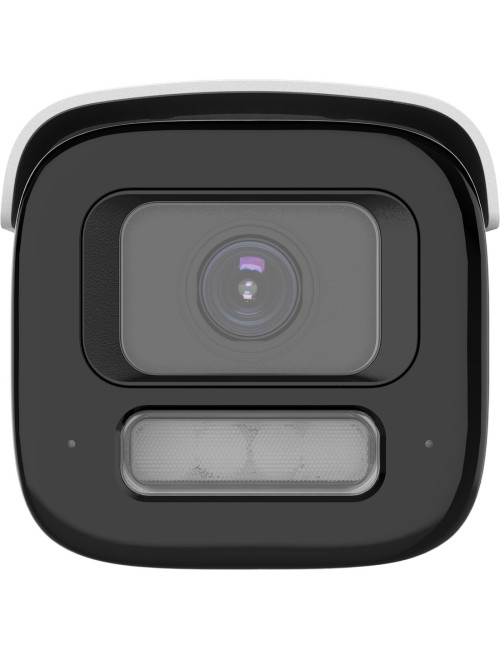

IP Camera Hikvision DS-2CD2687G3-LIZS2UY

Product Details

Reference WLONONWCROWD1

In stock 25 Items

Data sheet

Type

IP security camera

Depth

333.8 mm

Connectivity technology

Wired

Weight

1.55 kg

Package depth

190 mm

Package height

180 mm

Package width

386 mm

Package weight

2.37 kg

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Wall/Pole

Form factor

Bullet

Built-in microphone

Yes

Bluetooth

No

Bit rate

32 Kbps - 16 Mbps

Noise reduction

Yes

Protection features

Vandal proof

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSD (TransFlash)

Audio system

2-way

Audio formats supported

MP2L2

Power consumption (max)

14.5 W

Maximum resolution

3840 x 2160 pixels

Built-in speaker(s)

Yes

Placement supported

Indoor & outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Number of languages

33

Housing material

Metal

Networking standards

IEEE 802.3at

Security algorithms

EAP-LEAP

Ethernet LAN

Yes

Supported graphics resolutions

2688 x 1520

Diameter

14 cm

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of Users

32 user(s)

Reset button

Yes

Password protection

Yes

Languages support

Multi

Frame Rate

30 fps

Product colour

White

Tilt angle range

0 - 90°

Focal length range

2.8 - 12 mm

Number of microphones

2

Video recording

Yes

Image stabilizer

Yes

LED type

IR/White

Night vision

Yes

Total megapixels

8 MP

Motion sensor

Yes

Optical sensor size

25.4 / 1.8 mm (1 / 1.8")

Minimum illumination

0 lx

Pan range

0 - 360°

Dynamic range

130 dB

Lens viewing angle, diagonal

47.3 - 137.4°

Video compression formats

H.265+

Angle of rotation

360°

DC output current

1.21 A

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Night vision distance

60 m

Number of lenses

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

23.1 - 58.1°

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1.2

Lens viewing angle, horizontal

41.2 - 112.3°

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Heartbeat

Yes

Digital watermark

Yes

Back Light Compensation (BLC)

Yes

Active tampering alarm

Yes

IP address filtering

Yes

Intelligent Video Surveillance (IVS) system features

Vehicle detection

Camera shutter speed

1 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Highlight Compensation (HLC)

Yes

Live view

Yes

Power consumption (Power over Ethernet (PoE))

18 W

HTTPS encryption

Yes

Image quality adjustment

Saturation

IK code

IK10

Digest authentication

Yes

Password reset via email

Yes

Number of simultaneous live view channels

6 channels

User access level

Administrator, Operator, User

Identify distance (wide)

8.9 m

Recognize distance (wide)

17.8 m

Built-in light

Yes

Observe distance (wide)

35.4 m

Detect distance (wide)

89.2 m

Identify distance (tele)

22 m

Pixel counter

Yes

Human and vehicle targets classification

Yes

Recognize distance (tele)

44 m

Detect distance (tele)

220 m

Observe distance (tele)

87.3 m

Bit rate range

8 - 320 Kbit/s

Alarm output channels

2

Alarm input channels

2

Compliance certificates

RCM

Number of Privacy masking areas

4

Sample rates

8 - 48 kHz

Automatic Network Replenishment (ANR)

Yes

Network access storage (NAS)

Yes

Audit log

Yes

Flash log

Yes
