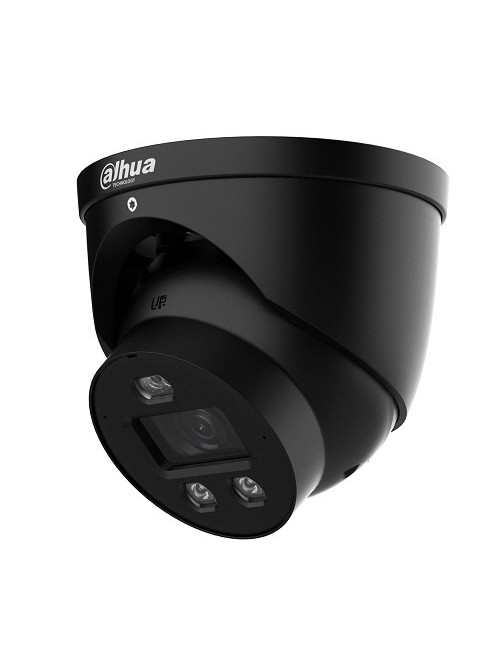

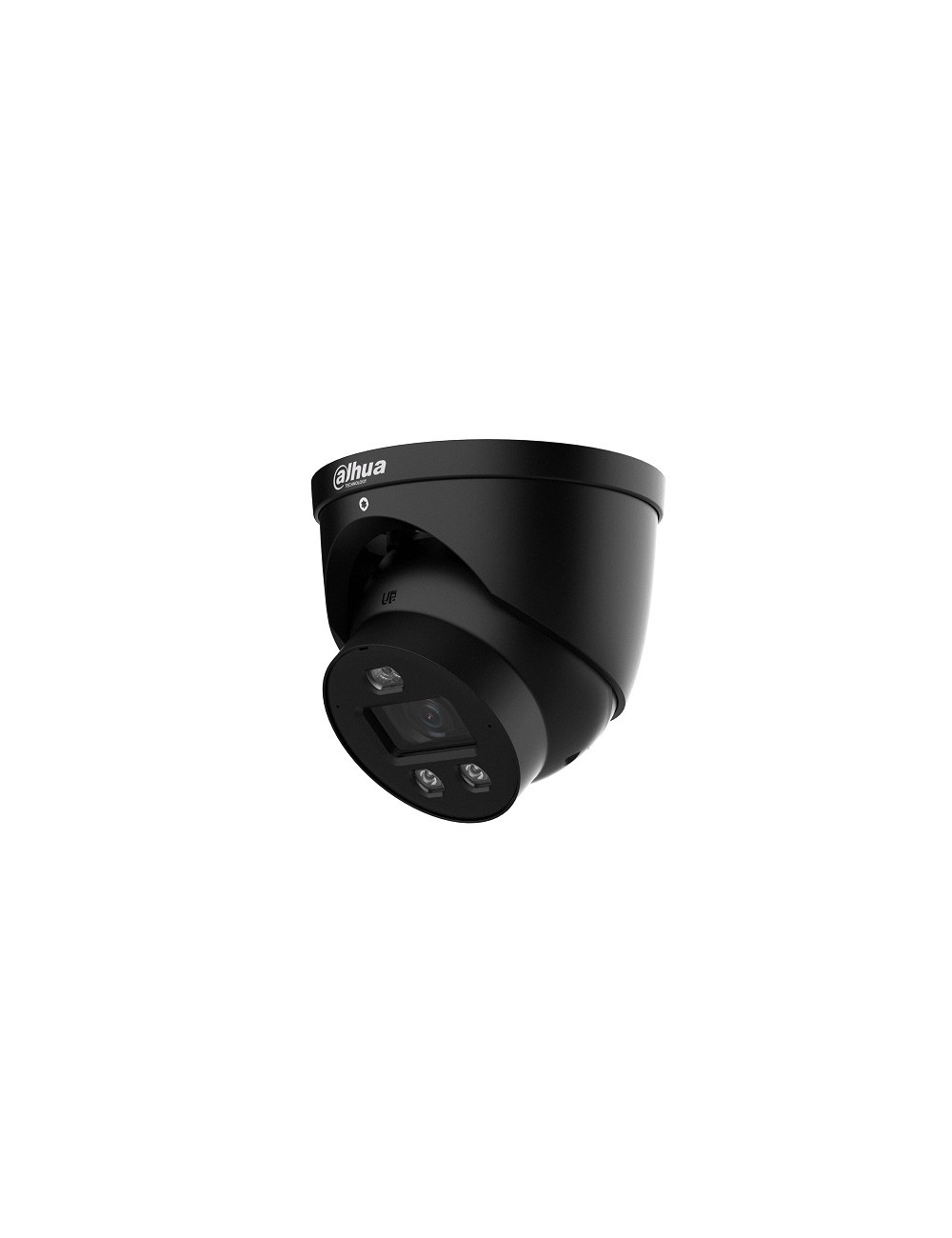

IP network camera 4MP IPC-HDW3449H-AS-PV-PRO 3.6mm Black
    DAHUA TECHNOLOGY CO., LTD

    IP network camera 4MP IPC-HDW3449H-AS-PV-PRO 3.6mm Black

    €233.60
    Tax included
    Quantity

    Add to favorites Add to compare

    Camera

    Image Sensor

    1/1.8" CMOS

    Max. Resolution

    2688 (H) x 1520 (V)

    ROM

    256 MB

    RAM

    1 G

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual 1/3 s–1/100,000 s

    Min. Illumination

    0.0005 Lux@F1.0 (Color, 30IRE)

    0.0004 Lux@F1.0 (B/W, 30IRE)

    0 lux (Illuminator on)

    S/N Ratio

    >56 dB

    Illumination Distance

    Up to 30 m (98.43 ft) (IR)
    Up to 30 m (98.43 ft) (Warm light)

    Illuminator On/Off Control

    Auto;Manual

    Illuminator Number

    2 (Multi-core (IR + warm) light)

    Angle Adjustment

    Pan: 0°–360°
    Tilt: 0°–78°
    Rotation: 0°–360°

    Lens

    Lens Type

    Fixed-focal

    Lens Mount

    M16

    Focal Length

    3.6 mm

    Max. Aperture

    F1.0

    Field of View

    3.6 mm: H: 95°; V: 51°; D: 114°

    Iris Control

    Fixed

    Close Focus Distance

    3.6 mm: 3.5 m (11.48 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    3.6 mm

    69.0 m

    (226.38 ft)

    27.6 m

    (90.55 ft)

    13.8 m

    (45.28 ft)

    6.9 m

    (22.64 ft)

    DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

    Intelligence

    IVS (Perimeter Protection)

    Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

    SMD

    SMD 4.0

    AcuPick

    Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

    AI SSA

    Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

    Smart Search

    Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

    Video

    Video Compression

    H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

    Smart Codec

    Smart H.265+; Smart H.264+

    AI Coding

    AI H.265 (Compression rate ?25%)
    AI H.264 (Compression rate ?25%)

    Video Frame Rate

    Main stream: 2688 x 1520@(1 fps–25/30 fps)
    Sub stream: 1920 x 1080@(1–25/30 fps)

    Third stream: 1920 x 1080@(1–25/30 fps)
    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

    Stream Capability

    3 streams

    Resolution

    4M (2688 x 1520/2560 x 1440); 3M (2304 x 1296); 1080p (1920 x 1080); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)

    Bit Rate Control

    CBR/VBR/ABR

    Video Bit Rate

    H.264: 3 kbps–16384 kbps;

    H.265: 3 kbps–16384 kbps

    Day/Night

    Auto(ICR)/Color/B/W

    BLC

    Yes

    HLC

    Yes

    WDR

    120 dB

    Scene Self-adaptation (SSA)

    Yes

    White Balance

    Auto; natural; street lamp; outdoor; manual; regional custom

    Gain Control

    Auto

    Noise Reduction

    3D NR

    Motion Detection

    OFF/ON (4 areas, rectangular)

    Region of Interest (RoI)

    Yes (4 areas)

    Smart Illumination

    Yes

    Smart Dual Light

    Yes

    Defog

    Yes

    Image Rotation

    0°/90°/180°/270° (Support 90°/270° with 2688 x 1520 resolution and lower)

    Mirror

    Yes

    Privacy Masking

    8 areas

    LDC

    Yes

    Audio

    Built-in MIC

    Yes, built-in dual Mic

    Built-in Speaker

    Yes, built-in speaker

    Audio Compression

    PCM; G.711a; G.711Mu; G.726; G.723

    Alarm

    Alarm Event

    No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception

    Network

    Network Port

    RJ-45 (10/100 Base-T)

    SDK and API

    Yes

    Network Protocol

    IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

    Interoperability

    ONVIF (Profile S; Profile G;Profile T); CGI

    User/Host

    20 (Total bandwidth: 64 M)

    Storage

    FTP;SFTP; Micro SD card (support max. 512 GB); NAS

    Browser

    IE: IE11
    Chrome
    Firefox

    Management Software

    Smart PSS Lite; DSS; DMSS; DoLynk Care

    Mobile Client

    iOS;Android

    Cyber Security

    Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog; HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade

    Certification

    Certifications

    CE-LVD: EN 62368-1;
    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

    Port

    Audio Input

    1 channel (RCA port)

    Audio Output

    1 channel (RCA port)

    Alarm Input

    1 channel in: wet contact, 5 mA 3–5 VDC

    Alarm Output

    1 channel out: wet contact, 300 mA 12 VDC

    Power

    Power Supply

    12 VDC; PoE

    Dual Power Backup

    When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

    Power Consumption

    Basic: 3.3 W (12 VDC); 4.5 W (PoE)

    Max.(H.265 + WDR+ warm light + siren and light active deterrence + intelligence on): 7.4 W (12 VDC); 8.7 W (PoE)

    Environment

    Operating Temperature

    –40 °C to +60 °C (–40 °F to +140 °F)

    Operating Humidity

    ?95%

    Protection

    IP67

    Structure

    Casing Material

    Metal

    Product Dimensions

    D 122.0 mm x 116.1 mm (4.80" x D 4.57")

    Net Weight

    0.8 kg (1.76 lb)

    Gross Weight

    1.0 kg (2.20 lb)

    Product Details

    HDW3449PRB36
