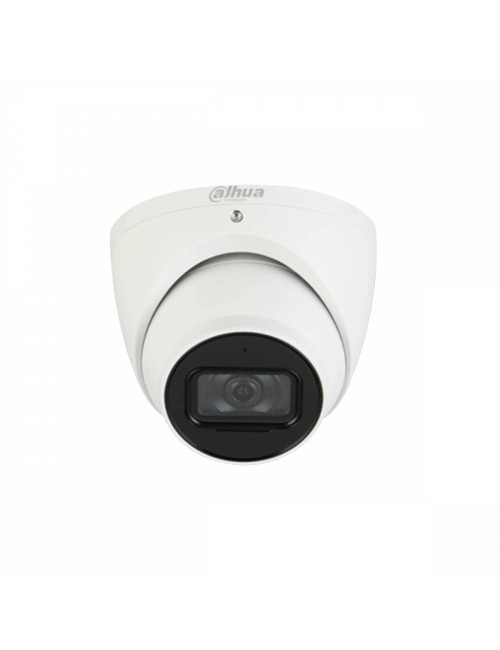

Dahua Technology IPC-HDW5541TM-ASE-0280B security camera Dome IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling

Product Details

Reference WLONONWCRMTC6

In stock 10 Items

Data sheet

Type

IP security camera

Height

93.6 mm

Connectivity technology

Wired

Weight

550 g

Package weight

710 g

Power source type

DC, PoE

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Ceiling

Form factor

Dome

Built-in microphone

Yes

Bluetooth

No

Bit rate

32 Kbps–8192 Kbps

Noise reduction

Yes

Mobile operating systems supported

iOS

Sensor type

CMOS

Wi-Fi

No

Internal memory

512 MB

Compatible memory cards

MicroSD (TransFlash)

Power consumption (typical)

7.2 W

Maximum resolution

2592 x 1944 pixels

Placement supported

Indoor & outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Housing material

Metal

Networking standards

IEEE 802.3af

Ethernet LAN

Yes

Supported graphics resolutions

2560 x 1440

Diameter

10.6 cm

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of Users

20 user(s)

Quality of Service (QoS) support

Yes

Frame Rate

60 fps

Product colour

White

Tilt angle range

0 - 78°

Fixed focal length

2.8 mm

Web browser

Yes

Voice codecs

AAC

LED type

IR

Night vision

Yes

Total megapixels

5 MP

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

White balance

Auto

Minimum illumination

0.005 lx

Pan range

0 - 360°

Video compression formats

H.264

Angle of rotation

360°

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Night vision distance

50 m

Number of lenses

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter type

Electronic

Lens viewing angle, vertical

71°

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1.6

Lens viewing angle, horizontal

102°

Number of sensors

1

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Intelligent Video Surveillance (IVS) system features

Tripwire

ROM capacity

128 MB

Camera shutter speed

1/3 s–1/100000 s

Adjustment shutter speed

Auto/Manual

Number of effective pixels (H x V)

2592 x 1944 pixels

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Gain control type

Auto/Manual

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Flip & mirror

Yes

Number of illumination LEDs

2

Streaming method

Unicast
