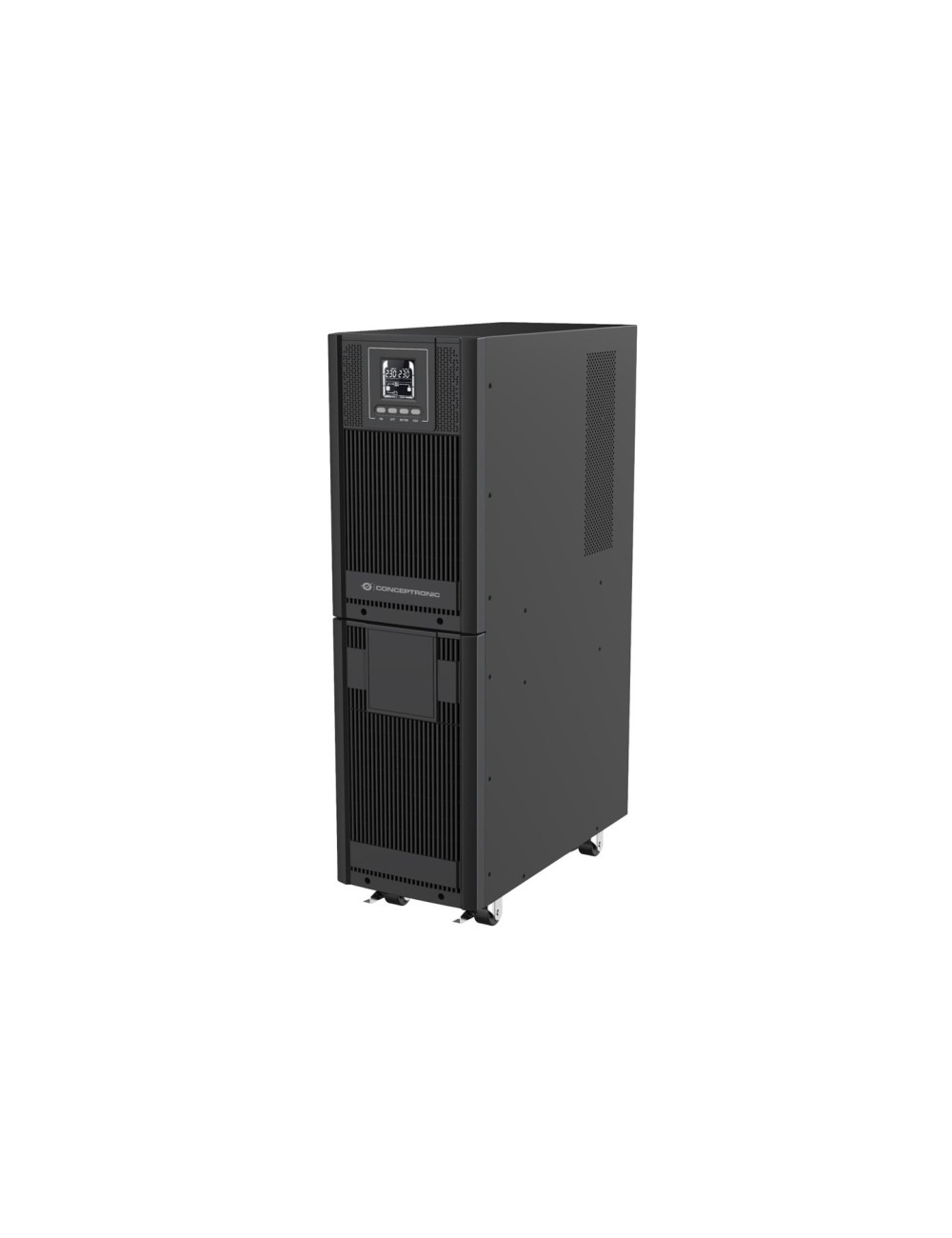

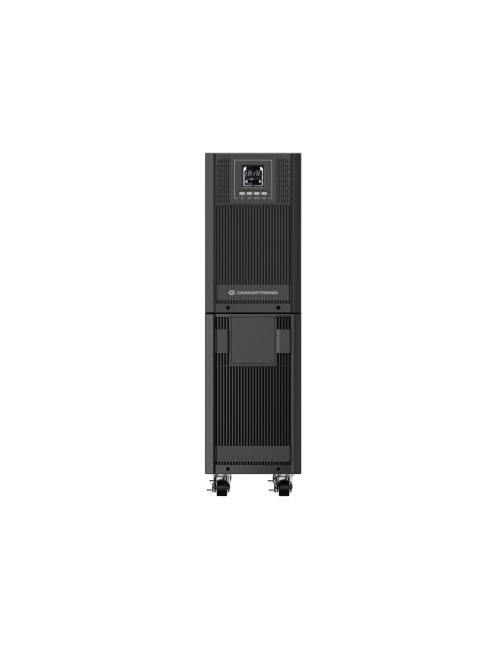

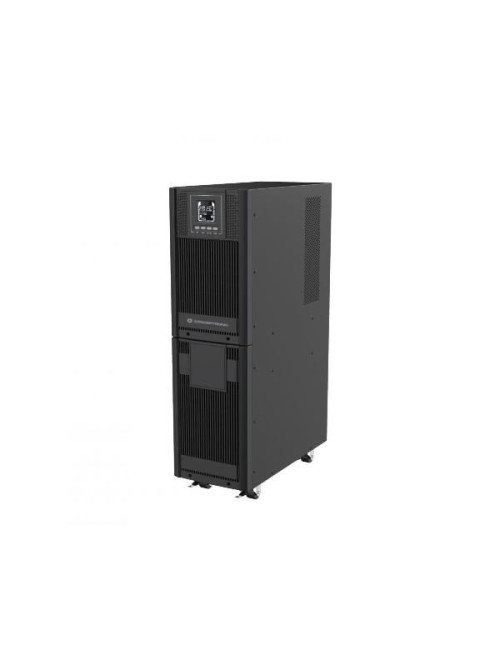

Conceptronic UPS ZEUS 6000VA 5400W Online UPS

Product Details

Data sheet

Package type

Box

Width

196 mm

Height

702 mm

Depth

412 mm

Weight

54 kg

Number of batteries supported

16

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 90%

Storage temperature (T-T)

-15 - 50 °C

Form factor

Tower

USB port

Yes

Battery capacity

84 Wh

Battery recharge time

4 h

Country of origin

China

Output power

5400 W

Input frequency

50/60 Hz

USB 2.0 ports quantity

1

Input operation voltage (min)

110 V

Output power capacity

6 kVA

Output operation voltage (max)

240 V

Waveform

Sine

Input operation voltage (max)

300 V

Audible alarm(s)

Yes

Battery voltage

192 V

Output operation voltage (min)

208 V

UPS topology

Double-conversion (Online)

Serial interface type

RS-232

Serial ports quantity

1

Product colour

Black

Harmonized System (HS) code

850440

Pallet gross length

76 cm

Pallet gross width

110 cm

Pallet gross height

126 cm

Products per master (outer) case

1 pc(s)

Master (outer) case gross weight

55.6 kg

Master (outer) case height

810 mm

Master (outer) case length

568 mm

Master (outer) case width

348 mm

Serial interface

Yes

ECO mode

Yes

USB port type

USB Type-B

Customs product code (TARIC)

8504406090

Compliance certificates

RoHS

Audible alarm modes

Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm

Output power factor

0.9

Emergency Power Off (EPO) connector

Yes

Input current Total Harmonic Distortion (THD)

5%
