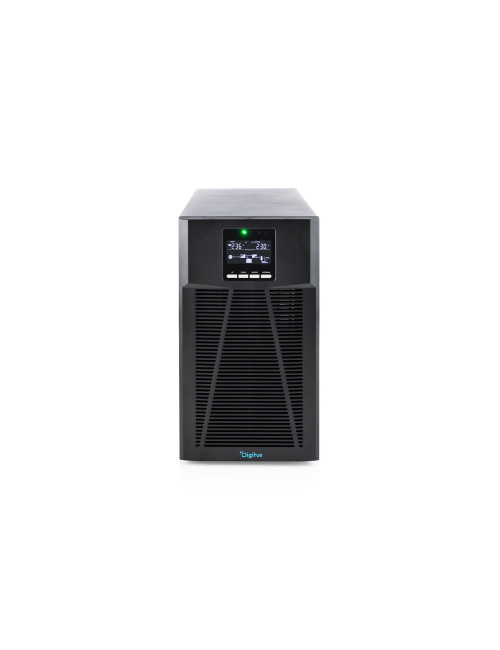

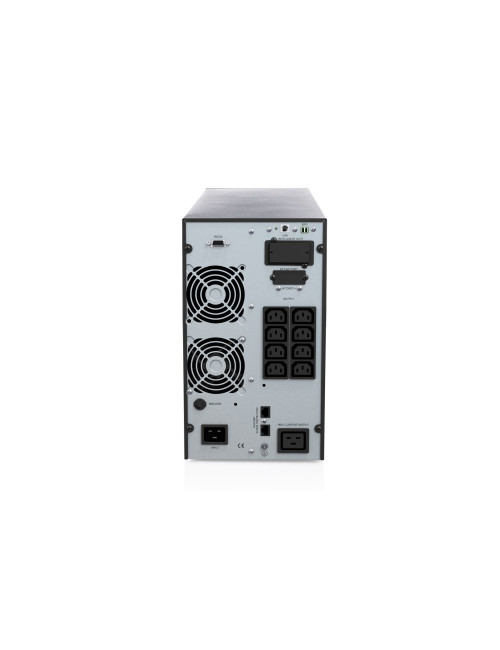

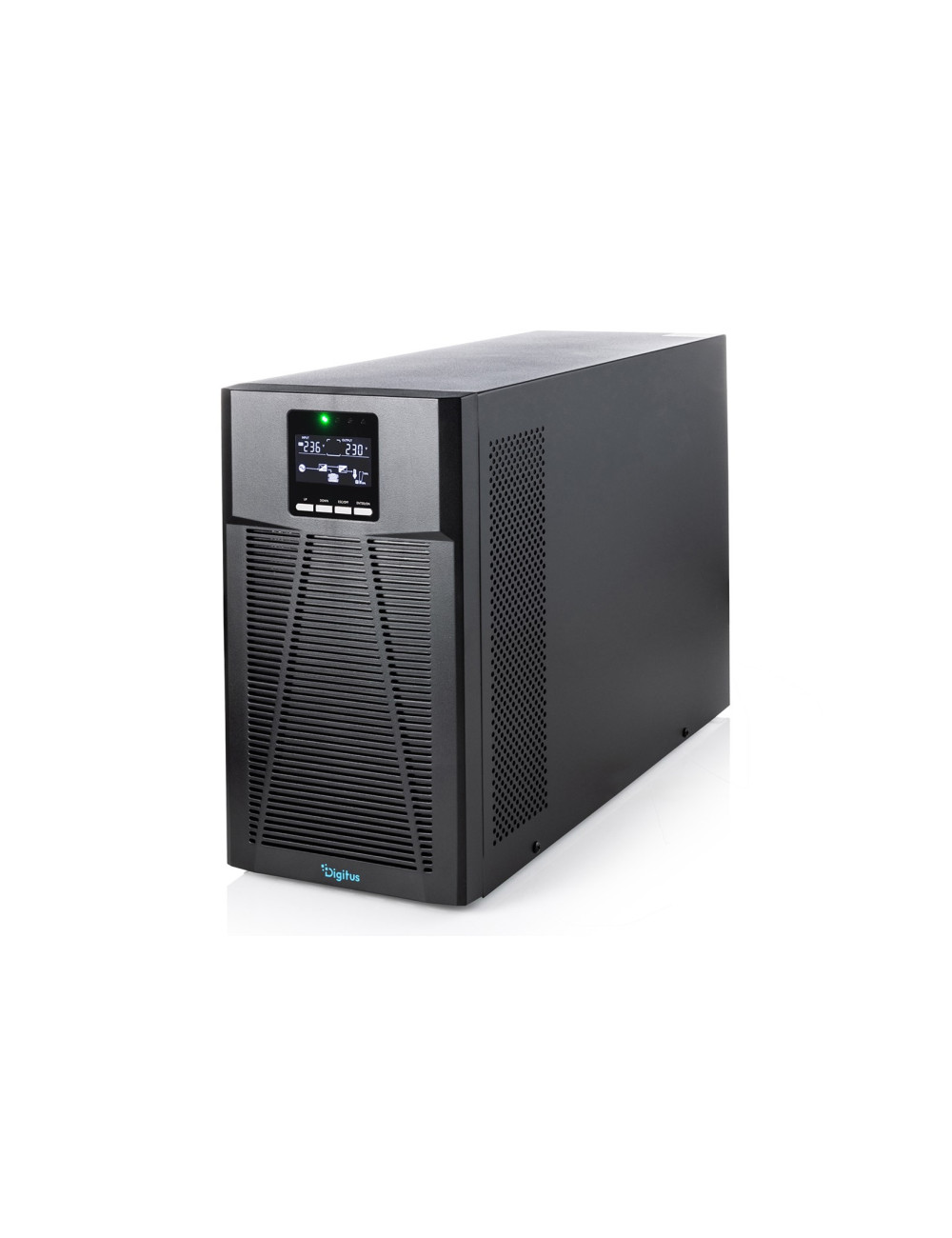

DIGITUS USV-3000 VA / 3000 W Tower Typ Online

Product Details

Data sheet

Package type

Box

Width

191 mm

Height

337 mm

Depth

460 mm

Weight

24.5 kg

Package depth

563 mm

Package height

446 mm

Package width

275 mm

Package weight

27.4 kg

Cables included

Power load cable, RS-232, USB cable

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 95%

Storage temperature (T-T)

-25 - 55 °C

Form factor

Tower

USB port

Yes

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

9 Ah

Battery recharge time

4 h

Output power

3000 W

Input frequency

40 - 70 Hz

Response time

4 ms

Display type

LCD

Number of battery cells

6

Efficiency

92%

Input operation voltage (min)

110 V

Power protection features

Overload

Cold start

Yes

AC outlets quantity

8 AC outlet(s)

Output power capacity

3 kVA

Output operation voltage (max)

240 V

Waveform

Pure sine

AC outlet types

C19 coupler

Input operation voltage (max)

300 V

Audible alarm(s)

Yes

Battery voltage

12 V

Output operation voltage (min)

208 V

UPS topology

Double-conversion (Online)

Output voltage regulation

1%

RS-232 ports

1

Operating altitude

0 - 1000 m

Quick installation guide

Yes

Output frequency

50/60 Hz

Noise Level

50 dB

Power plug

C20 coupler

Product colour

Black

Serial interface

Yes

Charging current

2 A

Output voltage Total Harmonic Distortion (THD)

3%

Power factor

1

Crest factor

3:1

Efficiency (ECO mode)

97%
