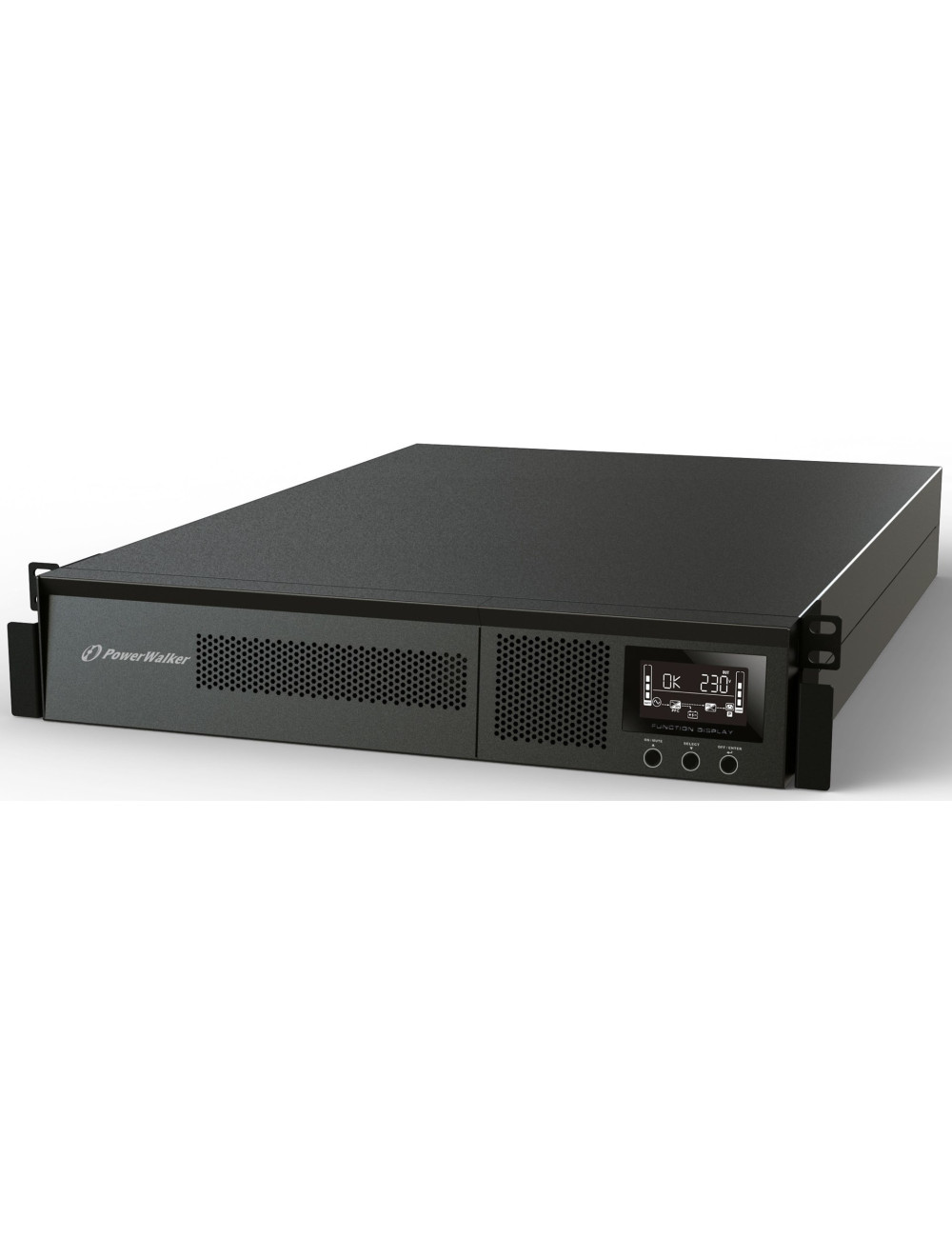

PowerWalker VFI 3000 RMG PF1 Double-conversion (Online) 3 kVA 3000 W

Product Details

Data sheet

Package type

Box

Width

190 mm

Height

318 mm

Depth

630 mm

Weight

27.5 kg

Package height

200 mm

Package width

600 mm

Number of batteries supported

6

Cables included

Input power cable, Output power cable, USB cable

Manual

Yes

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 95%

Form factor

Rackmount/Tower

USB port

Yes

Battery capacity

9 Ah

Battery recharge time

3 h

Output power

3000 W

Input frequency

40/70 Hz

USB 2.0 ports quantity

1

Display type

LCD

Ethernet LAN (RJ-45) ports

1

Input operation voltage (min)

110 V

Output power capacity

3 kVA

Output operation voltage (max)

240 V

Waveform

Sine

AC outlet types

C19 coupler

Input operation voltage (max)

300 V

Battery voltage

12 V

Output operation voltage (min)

200 V

UPS topology

Double-conversion (Online)

Modem (RJ-11) ports

1

Typical backup time at full load

3 min

Warranty card

Yes

Typical backup time at half load

10.1 min

Surge protection

Yes

Output voltage regulation

1%

RS-232 ports

1

Serial interface type

RS-232

Noise Level

50 dB

Power plug

C14 coupler

Product colour

Black

Harmonized System (HS) code

85078000

Serial interface

Yes

Output voltage Total Harmonic Distortion (THD)

2%

Power factor

0.99

Surge protection features

Network

Crest factor

3:1

Emergency Power Off (EPO)

Yes

Resource CD

Yes

Number of type F outputs

9

Emergency Power Off (EPO) connector

Yes

Input current Total Harmonic Distortion (THD)

1.6%

Warnings

Do not disassemble the unit housing, there may be a risk of electric shock.
