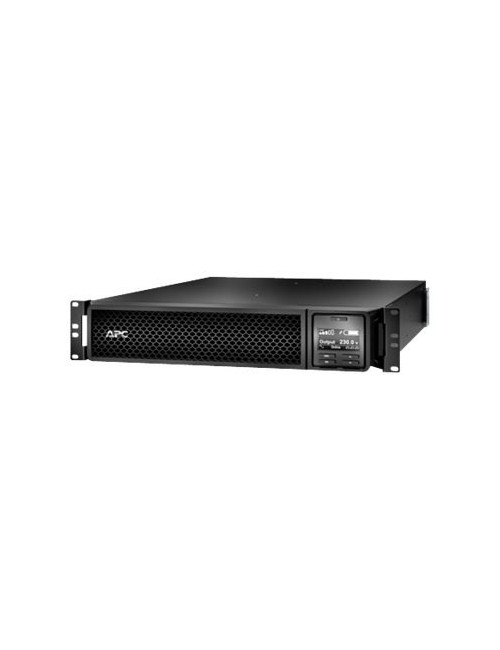

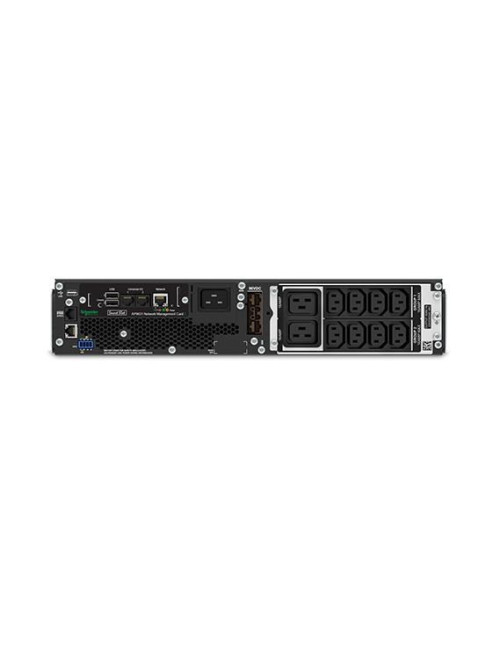

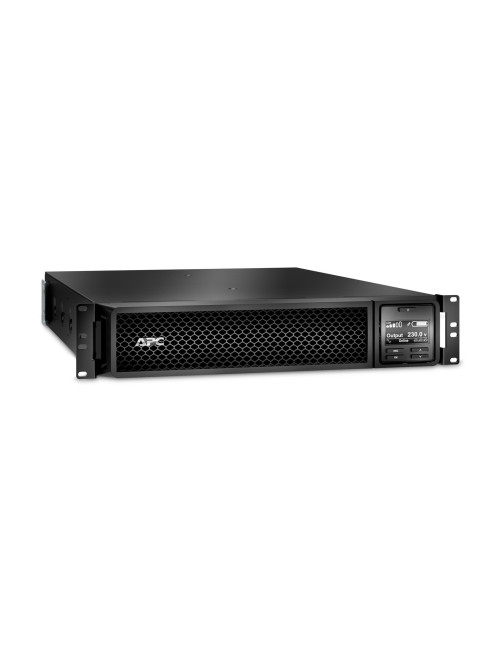

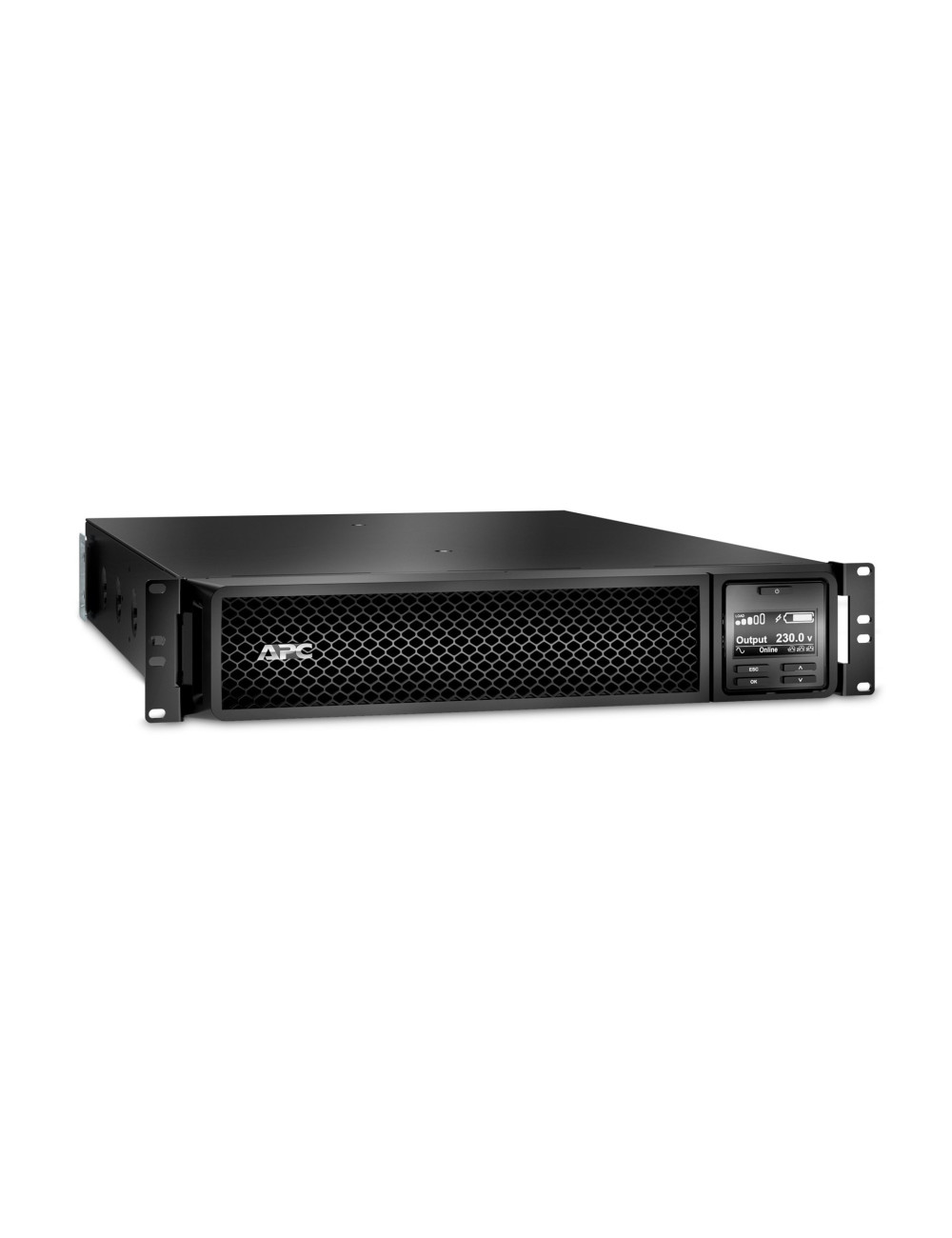

APC Smart-UPS On-Line SRT3000RMXLI-NC - 3000VA, 8x C13 & 2x C19, rackmount, NMC

Product Details

Reference WLONONWCRDZFN

In stock 3 Items

Data sheet

Cable length

2.44 m

Width

432 mm

Height

85 mm

Depth

635 mm

Weight

31.3 kg

Package depth

871 mm

Package height

246 mm

Package width

599 mm

Package weight

39.3 kg

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-15 - 45 °C

Form factor

Rackmount

USB port

Yes

LED indicators

Battery replacement

Battery technology

Sealed Lead Acid (VRLA)

Battery life (max)

5 year(s)

Battery capacity

505 VAh

Battery recharge time

3 h

Output power

2700 W

Input frequency

40 - 70 Hz

Output voltage

230 V

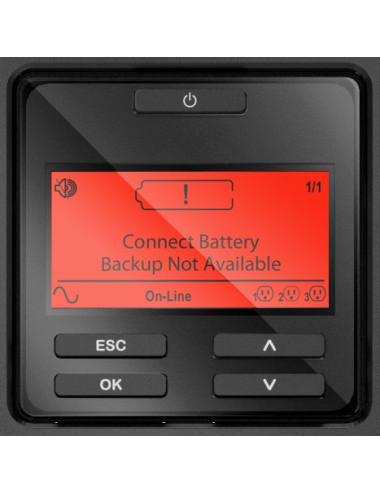

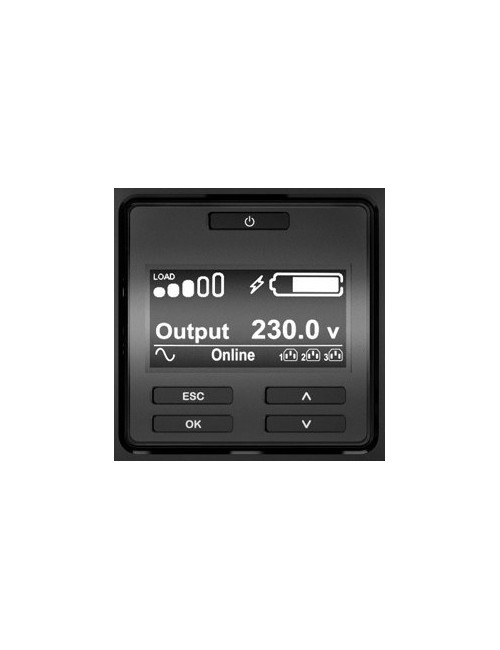

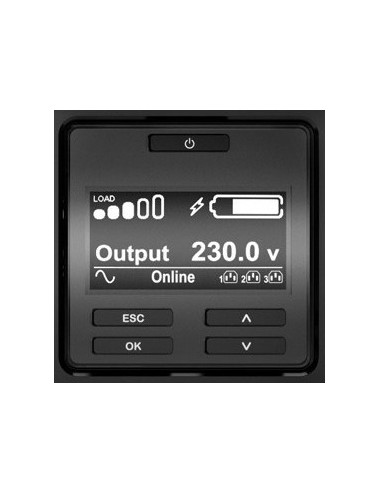

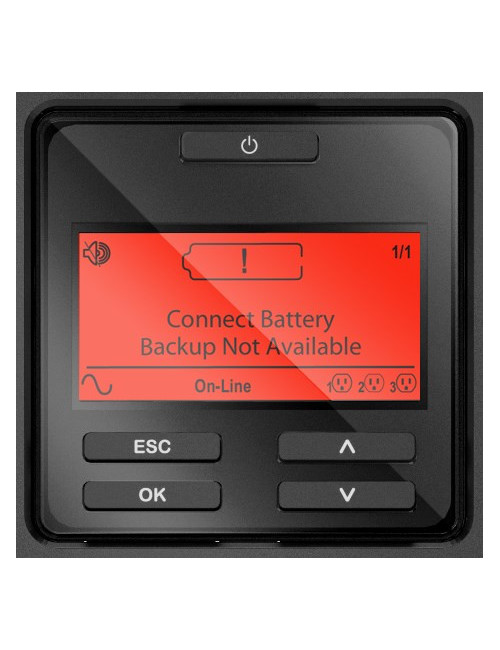

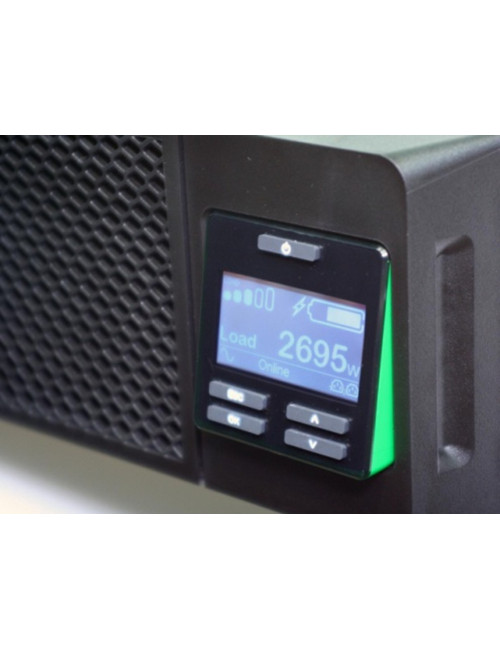

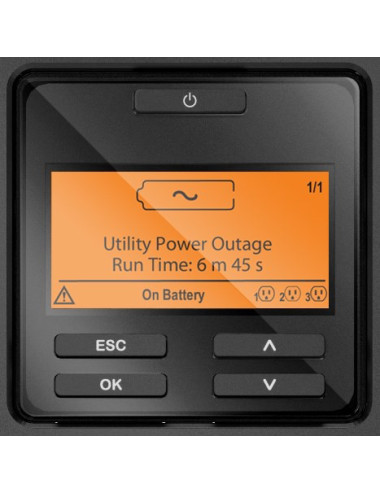

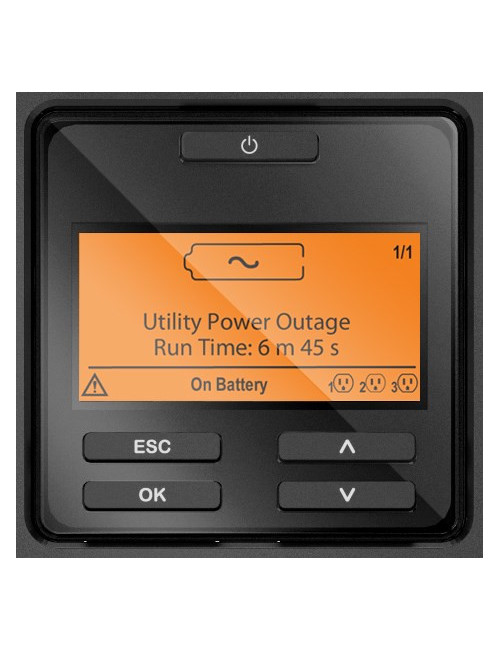

Display type

LCD

Efficiency

92%

Input operation voltage (min)

100 V

Power protection features

Overload

Cold start

Yes

Output power capacity

3 kVA

Output operation voltage (max)

240 V

Waveform

Sine

Auto-restart

Yes

AC outlet types

C19 coupler

Input operation voltage (max)

275 V

Audible alarm(s)

Yes

Output operation voltage (min)

220 V

UPS topology

Double-conversion (Online)

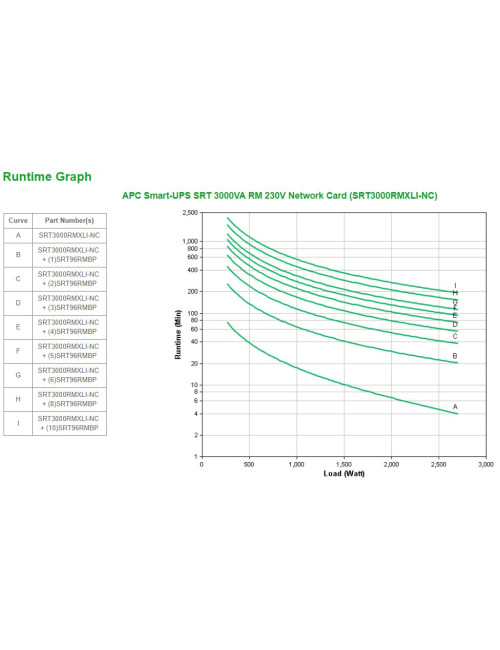

Typical backup time at full load

4 min

Automatic Voltage Regulation (AVR)

Yes

Automatic battery test

Yes

Typical backup time at half load

11.8 min

Surge protection

Yes

Operating altitude

0 - 3000 m

International Protection (IP) code

IP20

Serial interface type

RJ-45

Quick installation guide

Yes

Output frequency

50/60 Hz

Noise Level

55 dB

Surge energy rating

340 J

Power plug

C20 coupler

Non-operating altitude

0 - 15000 m

Product colour

Black

Harmonized System (HS) code

85078000

Sustainability certificates

Green Premium

Products per pallet

6 pc(s)

Serial interface

Yes

Output voltage Total Harmonic Distortion (THD)

2%

Hot-swap battery

Yes

Compliance certificates

RoHS

Total carbon footprint (kg of CO2e)

4988.41

Audible alarm modes

Battery replacement

SmartSlot

Yes

Crest factor

3:1

Emergency Power Off (EPO)

Yes

Rack capacity

2U
