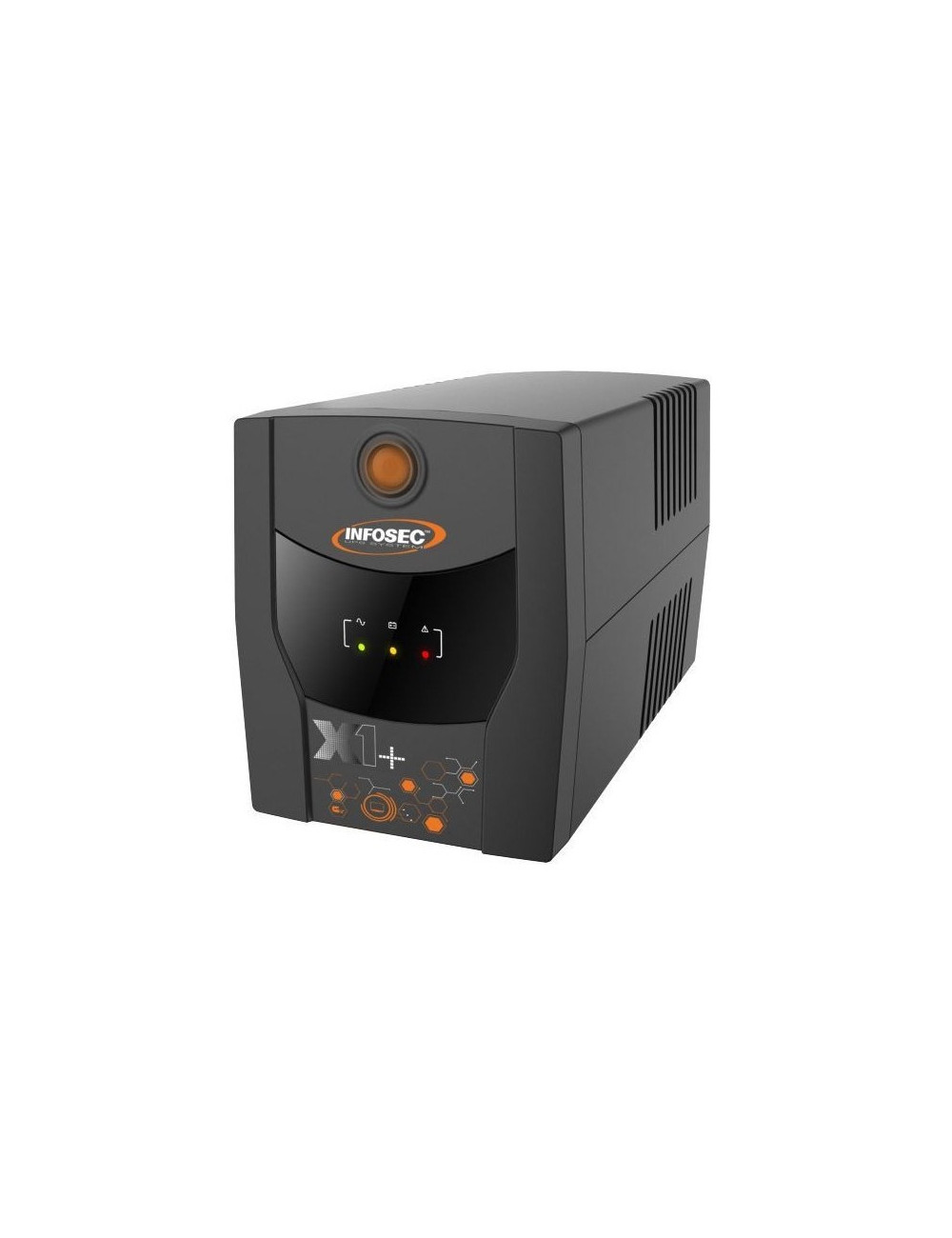

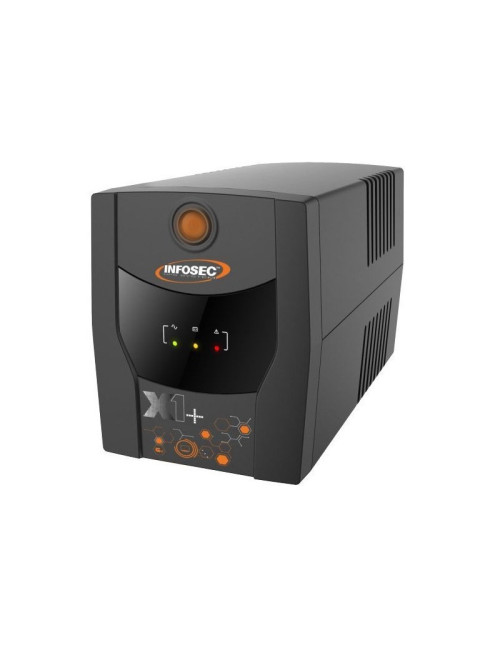

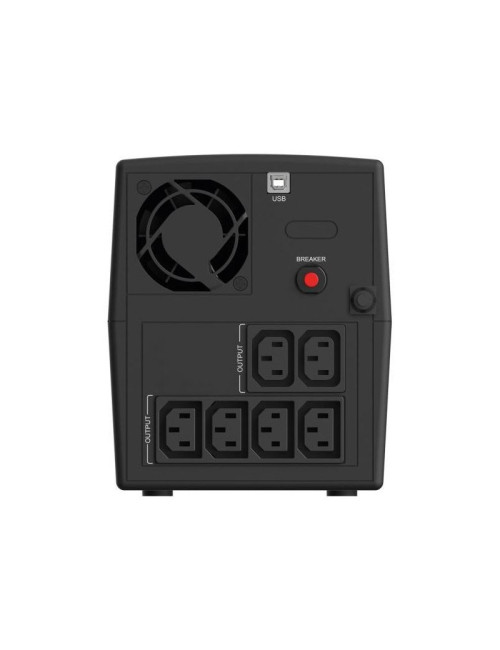

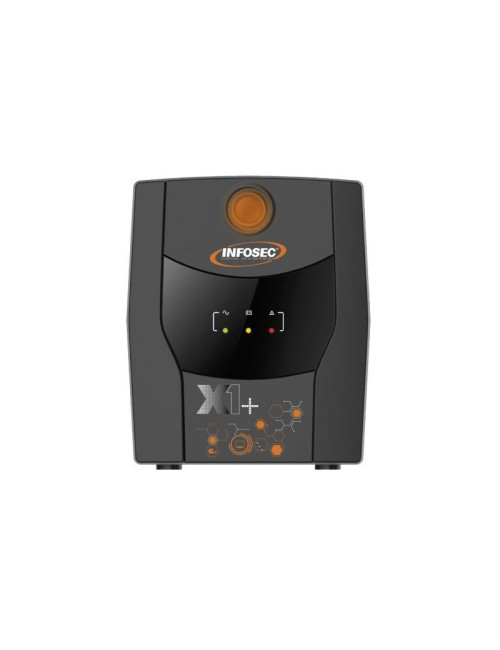

    Infosec INF_661147 Backup Power Supply UPS X1+ 1300 IEC, 1300VA, 720W, 6× C13

    €159.11
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    INFOSEC
    ZSIIFOUPS0009
    2 Items

    Data sheet

    Width
    148 mm
    Height
    178 mm
    Depth
    298 mm
    Weight
    7.5 kg
    Cables included
    USB cable, Input power cable
    Manual
    Yes
    Operating temperature (T-T)
    0 - 40 °C
    Operating relative humidity (H-H)
    0 - 90%
    Form factor
    Tower
    USB port
    Yes
    Battery technology
    Lead-acid
    Battery capacity
    2 x 7 Ah
    Battery recharge time
    8 h
    Output power
    720 W
    Input frequency
    50/60 Hz
    USB 2.0 ports quantity
    1
    Input operation voltage (min)
    162 V
    Power protection features
    Overvoltage protection
    Cold start
    Yes
    AC outlets quantity
    6 AC outlet(s)
    Output power capacity
    1300 VA
    Output operation voltage (max)
    220 V
    Waveform
    Simulated Sine Wave
    AC outlet types
    IEC C13
    Input operation voltage (max)
    290 V
    Audible alarm(s)
    Yes
    Battery voltage
    12 V
    Output operation voltage (min)
    240 V
    UPS topology
    Line-Interactive
    Typical backup time at full load
    60 min
    Automatic Voltage Regulation (AVR)
    Yes
    Typical backup time at half load
    10 min
    Surge protection
    Yes
    Output voltage regulation
    -10 - 10%
    Output frequency
    50/60 Hz
    Noise Level
    45 dB
    Product colour
    Black
    USB port type
    USB Type-B
    Compliance certificates
    RoHS
    Audible alarm modes
    Alarm when on battery, Fault, Overload alarm, Low battery alarm
    Number of input phases
    1
    Number of output phases
    1
    Warnings
    Use the appliance in well-ventilated areas to avoid overheating.

    Quick Compare

    Product
    		 UPS|EATON|660 Watts|1200 VA|Wave form type Pure sinewave|LineInteractive|Phase 1phase|Desktop/pedestal|5E1200UD UPS|EATON|660 Watts|1200 VA|Wave form type Pure sinewave|LineInteractive|Phase 1phase|Desktop/pedestal|5E1200UD UPS BACKUP POWER SUPPLY PowerWalker VI 1200 SHL Green Cell UPS08 uninterruptible power supply (UPS) Line-Interactive 1000 VA 700 W 4 AC outlet(s) Eaton 3S850D uninterruptible power supply (UPS) Standby (Offline) 0.85 kVA 510 W 8 AC outlet(s)
    Availability
    Price
    €150.26
    €152.84
    €155.08
    €159.31
    Description
    		 660 Watts | 1200 VA | Wave form type Pure sinewave | Topology LineInteractive | Phase 1phase | Output power connector type IEC 320 C13 | Colour Black
    Colour
    		 Black
    Cable length
    		 1.5 m
    Width
    		 139 mm 350 mm 335 mm
    Height
    		 195 mm 160 mm 86 mm
    Depth
    		 365 mm 146 mm 170 mm
    Weight
    		 8.6 kg 8 kg 4.3 kg
    Package depth
    		 452 mm
    Package height
    		 292 mm
    Package width
    		 230 mm
    Package weight
    		 8.9 kg
    Number of batteries supported
    		 2
    Cables included
    		 Input power cable, USB cable
    Manual
    		 Yes
    Operating temperature (T-T)
    		 0 - 40 °C 0 - 40 °C
    Operating relative humidity (H-H)
    		 0 - 90%
    Form factor
    		 Tower Tower
    USB port
    		 Yes Yes
    LED indicators
    		 Yes Yes
    Battery technology
    		 Sealed Lead Acid (VRLA)
    Battery capacity
    		 7 Ah 7 Ah
    Battery recharge time
    		 4 h 8 h
    Cooling type
    		 Passive
    Output power
    		 600 W 700 W 510 W
    Input frequency
    		 50/60 Hz 50/60 Hz 50/60 Hz
    USB 2.0 ports quantity
    		 1 1 2
    Response time
    		 6 ms
    Display type
    		 LCD
    Ethernet LAN (RJ-45) ports
    		 2
    Garantija
    		 24
    Category Code
    		 UPW
    Unit Box Height
    		 0.32
    Unit Box Length
    		 0.46
    Unit Box Width
    		 0.245
    Vendor Homepage
    		 www.eaton.com/content/dam/eaton/products/backup-power-ups-surge-it-power-distribution/backup-power-ups/eaton_5e_ups/eaton-5e-ups---emea/eaton-dpq-5egen2-ups-datasheet-en-gb.pdf
    Dimensions
    		 330 x 180 x 133mm
    Efficiency
    		 95%
    Input operation voltage (min)
    		 170 V 220 V 161 V
    Power protection features
    		 Short circuit Overdischarge
    Cold start
    		 Yes
    AC outlets quantity
    		 4 AC outlet(s) 4 AC outlet(s) 8 AC outlet(s)
    Output power capacity
    		 1.2 kVA 1000 kVA 0.85 kVA
    Output operation voltage (max)
    		 230 V 240 V
    Waveform
    		 Pure sine
    AC outlet types
    		 C13 coupler IEC 320
    Input operation voltage (max)
    		 280 V 240 V 284 V
    Battery voltage
    		 12 V 12 V
    Output operation voltage (min)
    		 220 V
    UPS topology
    		 Line-Interactive Line-Interactive Standby (Offline)
    Modem (RJ-11) ports
    		 2
    Typical backup time at full load
    		 1.3 min
    Automatic Voltage Regulation (AVR)
    		 Yes
    Automatic battery test
    		 Yes
    Typical backup time at half load
    		 11 min
    Surge protection
    		 Yes Yes
    Nominal input voltage
    		 230 V
    Nominal output voltage
    		 230 V
    Output frequency regulation
    		 1 Hz
    Output voltage regulation
    		 10%
    Operating altitude
    		 0 - 3000 m
    Serial interface type
    		 RJ-45
    MODEL
    		 5E1200UD
    Output frequency
    		 50/60 Hz 50 Hz
    Mounting Type (Desktop/pedestal)
    		 Yes
    Maximum current
    		 10 A
    Power plug
    		 C14 coupler
    Product colour
    		 Black Black Black
    Harmonized System (HS) code
    		 85078000 85078000
    Products per pallet
    		 42 pc(s)
    Safety
    		 IEC 62040-1; IEC 62040-2 C2; IEC 62040-3; IEC 62040-4; IEC 61643-11
    Serial interface
    		 Yes
    Charging current
    		 1.2 A
    Hot-swap battery
    		 No
    Surge protection features
    		 Modem
    Resource CD
    		 Yes
    Number of type F outputs
    		 2
    Output power factor
    		 0.5
    Units per Shipping Box
    		 1
    Product Net Weight
    		 8.5 kg
    Unit Calculated Weight
    		 9.6 kg
    Unit Calculated Volume
    		 0.036064 cubm
    Output power capacity, W
    		 660 Watts
    Output power capacity, VA
    		 1200 VA
    Wave form type
    		 Pure sinewave
    Topology
    		 LineInteractive
    Phase
    		 1phase
    Output power connector type
    		 IEC 320 C13
    Communication ports (USB)
    		 1
    Buttons: (On/Off)
    		 YES
