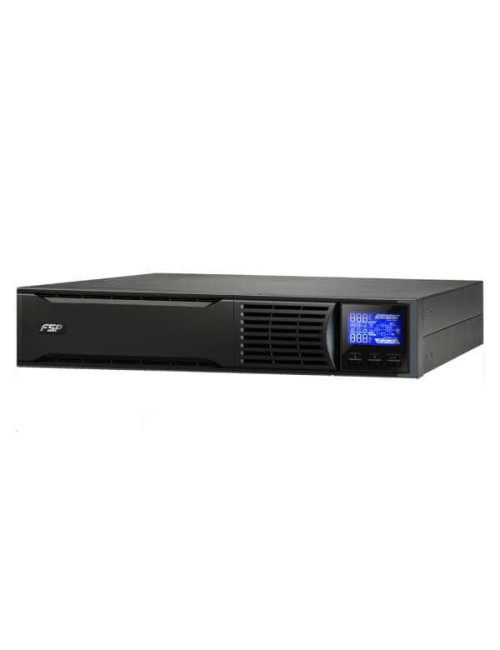

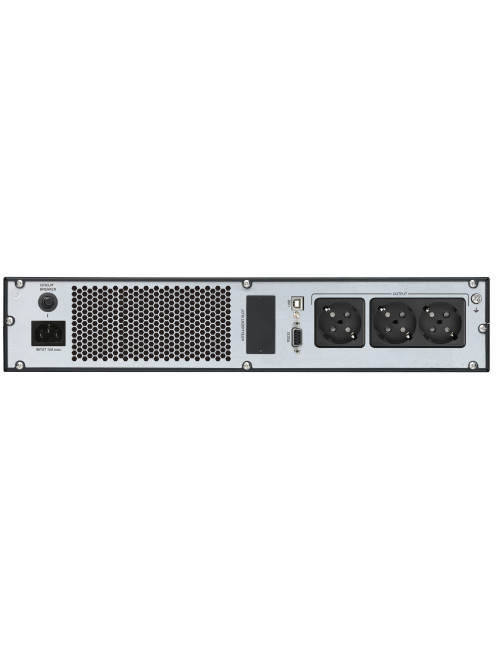

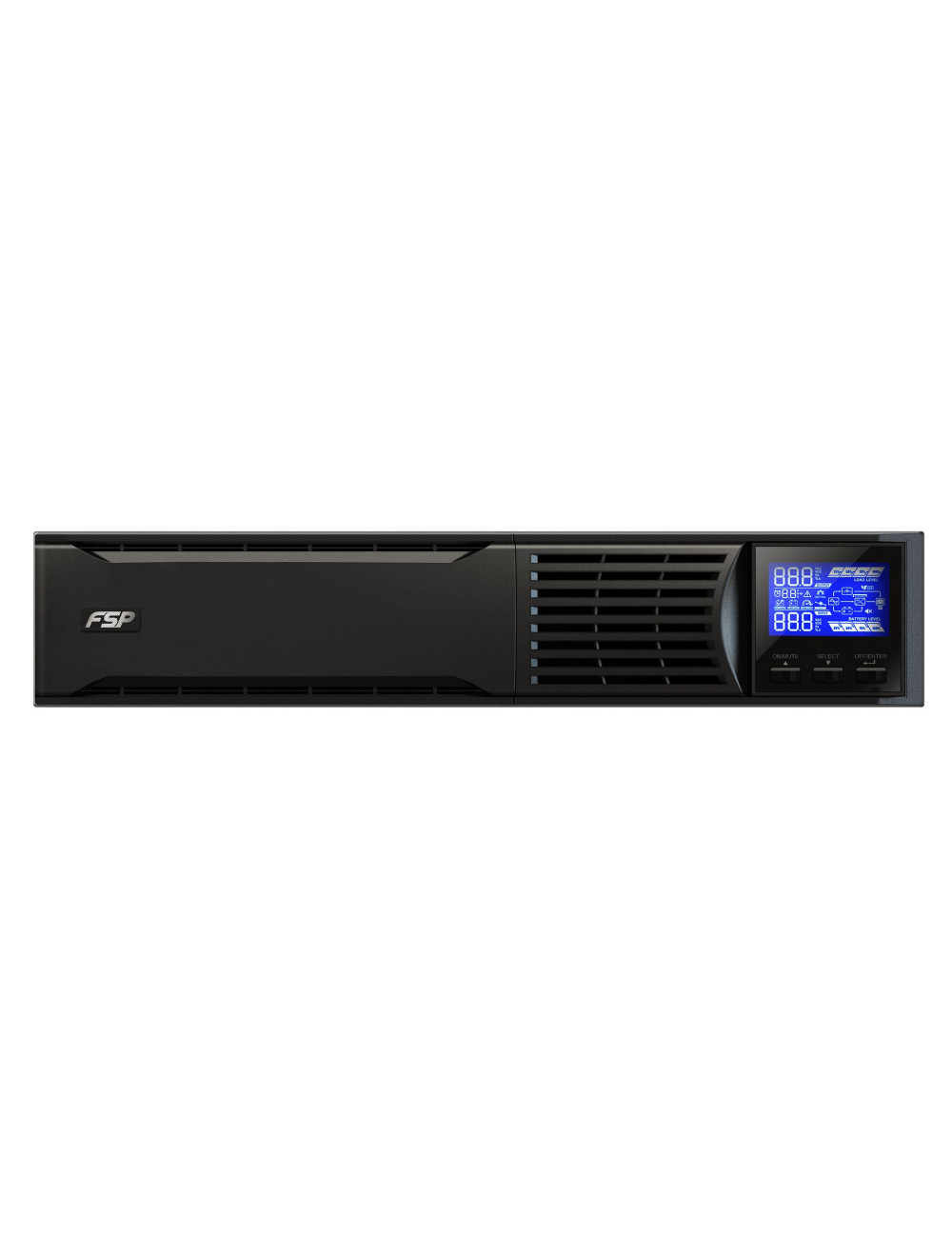

FSP Champ Rack 1K uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W 3 AC outlet(s)

Product Details

Data sheet

Width

438 mm

Height

88 mm

Depth

310 mm

Weight

12 kg

Batteries included

Yes

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 90%

Form factor

Rackmount

USB port

Yes

LED indicators

Yes

Battery capacity

9 Ah

Control type

Buttons

Cooling type

Active

Output power

900 W

Input frequency

40 - 70 Hz

USB 2.0 ports quantity

1

Display type

LCD

Number of battery cells

2

Input operation voltage (min)

120 V

AC outlets quantity

3 AC outlet(s)

Output power capacity

1 kVA

Output operation voltage (max)

240 V

Waveform

Pure sine

AC outlet types

Type F

Input operation voltage (max)

300 V

Audible alarm(s)

Yes

Battery voltage

12 V

Output operation voltage (min)

110 V

UPS topology

Double-conversion (Online)

Number of phases

1

Output voltage regulation

1%

RS-232 ports

1

Serial interface type

RS-232

Output frequency

47/63 Hz

Noise Level

50 dB

Product colour

Black

Harmonized System (HS) code

85078000

Sustainability certificates

CE

Sustainability compliance

Yes

Serial interface

Yes

USB port type

USB Type-B

Total Harmonic Distortion (THD) (non-linear load)

6%

Audible alarm modes

Alarm when on battery, Fault, Low battery alarm, Overload alarm

Power factor

0.99

Crest factor

3:1

Rack capacity

2U

Built-in fan

Yes

Battery recharge time (90%)

4 h

Total Harmonic Distortion (THD) (linear load)

3%
