No name

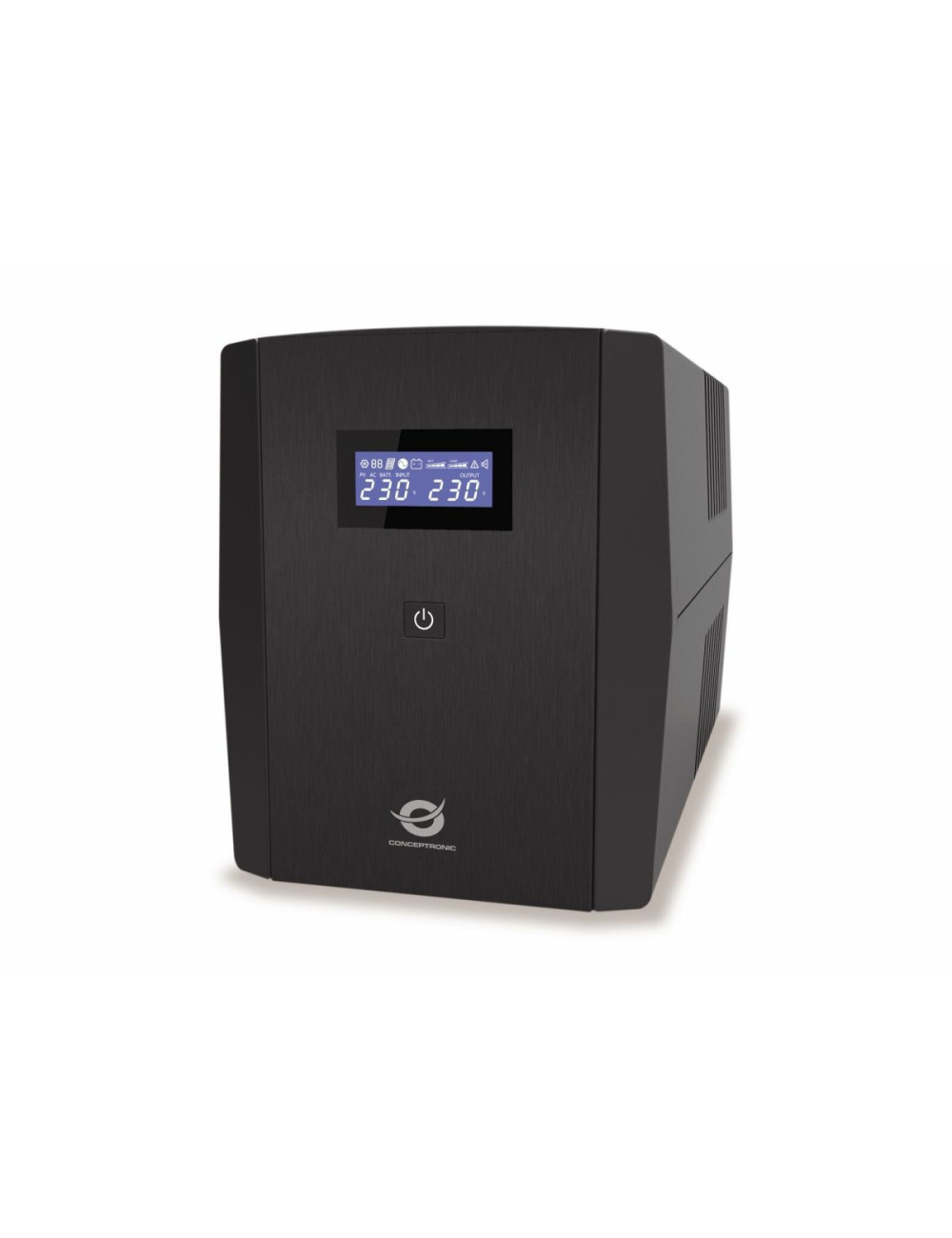

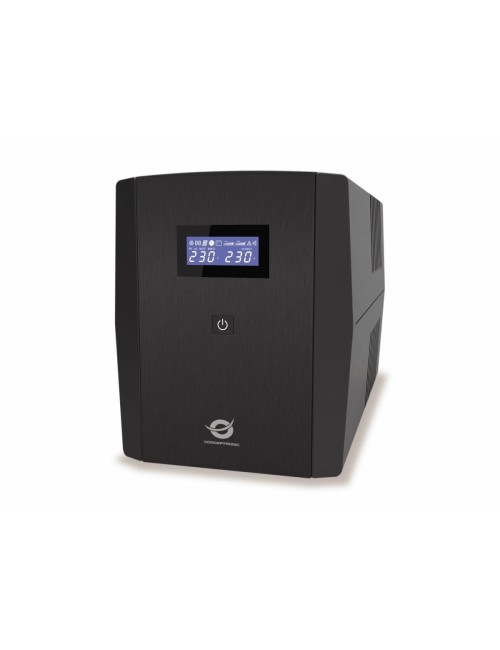

    Uninterruptible Power Supply Conceptronic

    €286.33
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    No name
    WLONONWCRRSDA
    59 Items

    Data sheet

    Width
    148 mm
    Height
    178 mm
    Depth
    298 mm
    Weight
    9.8 kg
    Package depth
    376 mm
    Package height
    268 mm
    Package width
    255 mm
    Package weight
    10.6 kg
    Cables included
    Output power cable, USB cable
    Operating temperature (T-T)
    0 - 40 °C
    Operating relative humidity (H-H)
    0 - 90%
    Form factor
    Compact
    USB port
    Yes
    Battery capacity
    9 Ah
    Country of origin
    China
    Output power
    900 W
    USB 2.0 ports quantity
    1
    Display type
    LCD
    Ethernet LAN (RJ-45) ports
    2
    Input operation voltage (min)
    220 V
    Power protection features
    Short circuit

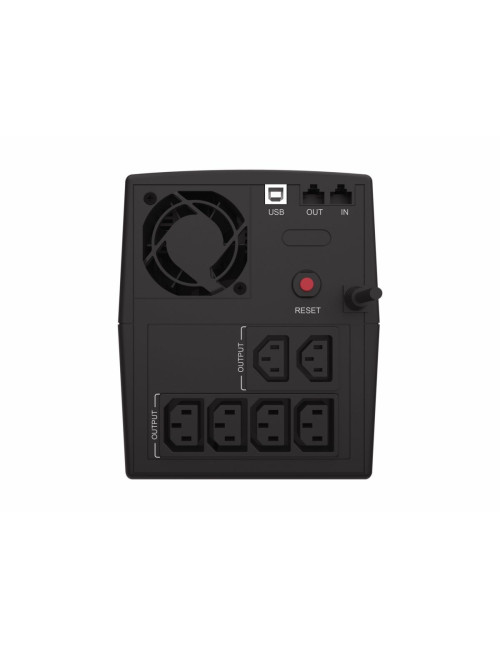

    AC outlets quantity
    6 AC outlet(s)
    Output power capacity
    1.5 kVA
    Output operation voltage (max)
    240 V
    Waveform
    Sine
    Auto-restart
    Yes
    AC outlet types
    C13 coupler
    Input operation voltage (max)
    240 V
    Battery voltage
    12 V
    Output operation voltage (min)
    220 V
    UPS topology
    Line-Interactive
    Automatic Voltage Regulation (AVR)
    Yes
    International Protection (IP) code
    IP20
    Product colour
    Black
    Harmonized System (HS) code
    8504402000
    Pallet gross length
    80 cm
    Products per pallet
    48 pc(s)
    Pallet gross width
    120 cm
    Pallet gross height
    2.04 m
    Products per master (outer) case
    1 pc(s)
    Master (outer) case gross weight
    11.2 kg
    Master (outer) case height
    293 mm
    Master (outer) case length
    397 mm
    Master (outer) case width
    272 mm
    USB port type
    USB Type-B
    Compliance certificates
    RoHS
    Audible alarm modes
    Alarm when on battery, Fault, Low battery alarm, Overload alarm
    Battery recharge time (90%)
    8 h

    Quick Compare

    Product
    		 FSP Champ Rack 1K uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W 3 AC outlet(s) FSP/Fortron USV Champ 1kVA Rack online 900W Schuko Conceptronic UPS Emergency Power Supply 1500VA/900 UPS ZASILACZ AWARYJNY VOLT POLSKA MICRO 3000VA 1800W
    Availability
    Price
    €283.82
    €283.82
    €286.33
    €287.43
    Description
    Width
    		 438 mm 438 mm 148 mm
    Height
    		 88 mm 88 mm 178 mm
    Depth
    		 310 mm 310 mm 298 mm
    Weight
    		 12 kg 12 kg 9.8 kg
    Package depth
    		 376 mm
    Package height
    		 268 mm
    Package width
    		 255 mm
    Package weight
    		 10.5 kg
    Batteries included
    		 Yes Yes
    Cables included
    		 Input power cable, USB cable
    Operating temperature (T-T)
    		 0 - 40 °C 0 - 40 °C 0 - 40 °C
    Operating relative humidity (H-H)
    		 20 - 90% 20 - 90% 0 - 90%
    Form factor
    		 Rackmount Rackmount Compact
    USB port
    		 Yes Yes Yes
    LED indicators
    		 Yes Yes
    Battery capacity
    		 9 Ah 9 Ah 9 Ah
    Control type
    		 Buttons Buttons
    Country of origin
    		 China
    Cooling type
    		 Active Active
    Output power
    		 900 W 900 W 900 W
    Input frequency
    		 40 - 70 Hz 40 - 70 Hz
    USB 2.0 ports quantity
    		 1 1 1
    Response time
    		 0 ms
    Display type
    		 LCD LCD LCD
    Ethernet LAN (RJ-45) ports
    		 2
    Number of battery cells
    		 2 2
    Input operation voltage (min)
    		 120 V 120 V 220 V
    Power protection features
    		 Short circuit
    AC outlets quantity
    		 3 AC outlet(s) 3 AC outlet(s) 5 AC outlet(s)
    Output power capacity
    		 1 kVA 1 kVA 1.5 kVA
    Output operation voltage (max)
    		 240 V 240 V 240 V
    Waveform
    		 Pure sine Pure sine Sine
    Auto-restart
    		 Yes
    AC outlet types
    		 Type F Type F Type F
    Input operation voltage (max)
    		 300 V 300 V 240 V
    Audible alarm(s)
    		 Yes Yes
    Battery voltage
    		 12 V 12 V 12 V
    Output operation voltage (min)
    		 110 V 110 V 220 V
    UPS topology
    		 Double-conversion (Online) Double-conversion (Online) Line-Interactive
    Automatic Voltage Regulation (AVR)
    		 Yes
    Number of phases
    		 1 1
    Output voltage regulation
    		 1% 1%
    RS-232 ports
    		 1 1
    International Protection (IP) code
    		 IP20
    Serial interface type
    		 RS-232 RS-232
    Quick installation guide
    		 Yes
    Output frequency
    		 47/63 Hz 47/63 Hz
    Noise Level
    		 50 dB 50 dB
    Product colour
    		 Black Black Black
    Harmonized System (HS) code
    		 85078000 85078000 8504402000
    Sustainability certificates
    		 CE
    Sustainability compliance
    		 Yes Yes
    Pallet gross length
    		 80 cm
    Products per pallet
    		 48 pc(s)
    Pallet gross width
    		 120 cm
    Pallet gross height
    		 2.04 m
    Software CD
    		 Yes
    Products per master (outer) case
    		 1 pc(s)
    Master (outer) case gross weight
    		 11.1 kg
    Master (outer) case height
    		 293 mm
    Master (outer) case length
    		 397 mm
    Master (outer) case width
    		 272 mm
    Serial interface
    		 Yes Yes
    USB port type
    		 USB Type-B USB Type-B USB Type-B
    Total Harmonic Distortion (THD) (non-linear load)
    		 6% 6%
    Compliance certificates
    		 CE RoHS
    Audible alarm modes
    		 Alarm when on battery, Fault, Low battery alarm, Overload alarm Alarm when on battery, Fault, Low battery alarm, Overload alarm Alarm when on battery, Fault, Low battery alarm, Overload alarm
    Power factor
    		 0.99 0.99
    Crest factor
    		 3:1 3:1
    Rack capacity
    		 2U 2U
    Built-in fan
    		 Yes Yes
    Battery recharge time (90%)
    		 4 h 4 h 8 h
    Total Harmonic Distortion (THD) (linear load)
    		 3% 3%
