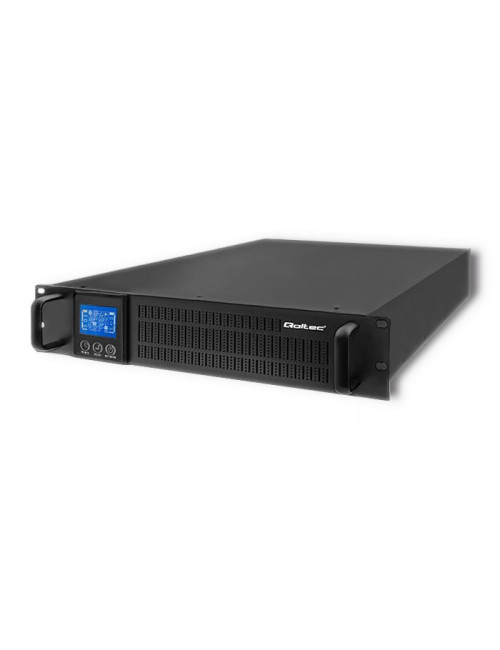

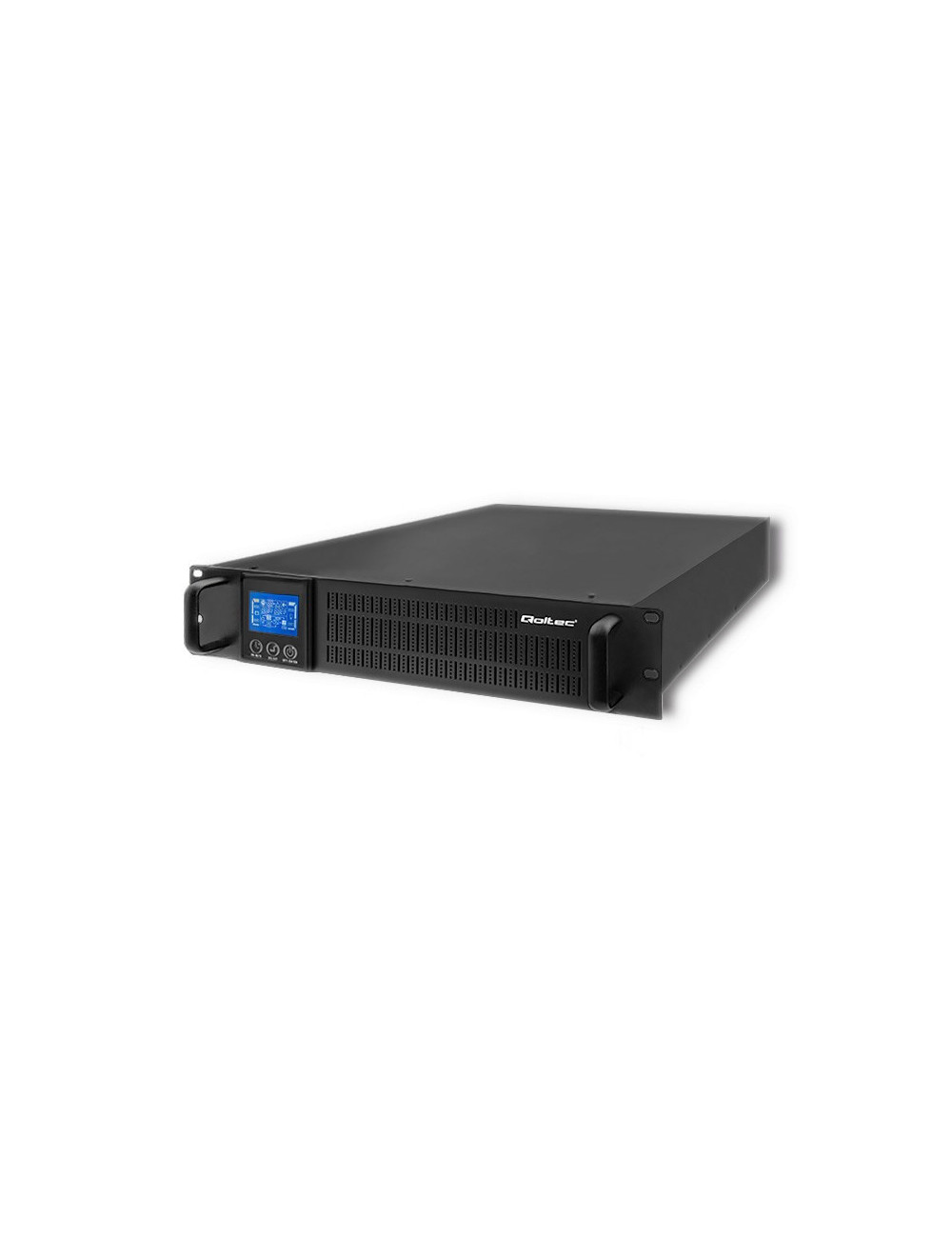

    Qoltec 53946 Uninterruptible power supply UPS RACK | 2KVA | 1600 W | LCD

    €309.71
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    Qoltec
    ZSIQOCUPS0053
    63 Items

    Data sheet

    Width
    483 mm
    Height
    87 mm
    Depth
    635 mm
    Weight
    10.8 kg
    Battery technology
    AGM (Absorbed Glass Mat)
    Battery capacity
    7 Ah
    Output power
    1600 W
    Input frequency
    45/55 Hz
    Number of battery cells
    4
    Output power capacity
    2 kVA
    Input operation voltage (max)
    300 V
    Audible alarm(s)
    Yes
    Battery voltage
    12 V
    Output operation voltage (min)
    220 V
    Surge protection
    Yes
    Connectors
    2 x SCHUKO
    Short circuit protection
    Yes
    Product colour
    Black
    RS-232 interface
    Yes
    Overvoltage protection
    Y
    Audible alarm modes
    Fault
    Overload protection
    Yes
    Power factor
    0.8

    Quick Compare

    Product
    		 CyberPower VP1600EILCD uninterruptible power supply (UPS) Line-Interactive 1.6 kVA 960 W 8 AC outlet(s) Qoltec RACK UPS | 2kVA | 1600W | LCD APC OffGrid Portable Power Station 330, 230V, 332Wh Lithium-ion, LCD, 2 CEE 7/3 Schuko outlets, Sinewave, 3 USB-A, 1 USB-C, Wire APC OffGrid Portable Power Station 330, 230V, 332Wh Lithium-ion, LCD, 2 CEE 7/3 Schuko outlets, Sinewave, 3 USB-A, 1 USB-C, Wire CyberPower OR600ERM1U uninterruptible power supply (UPS) Line-Interactive 0.6 kVA 360 W 6 AC outlet(s)
    Availability
    Price
    €298.46
    €301.69
    €303.05
    €303.68
    Description
    		 APC OffGrid Portable Power Station 330, 230V, 332Wh Lithium-ion, LCD, 2 CEE 7/3 Schuko outlets, Sinewave, 3 USB-A, 1 USB-C, Wireless Charger | Schneider Electric
    Warranty
    		 24 month(s)
    Net weight
    		 3.30 kg
    Gross weight
    		 6.30 kg
    WEEE tax
    		 Yes
    Packing quantity
    		 1.00 pc(s)
    Volume (m3)
    		 0.02 m
    Tare weight (kg)
    		 3.00 kg
    Gross depth (mm)
    		 300.00 mm
    Gross width (mm)
    		 238.00 mm
    Gross height (mm)
    		 280.00 mm
    WEE classification
    		 CL109:5:2017-04-01
    Paper/Pasteboard
    		 2400.00 g
    Embeeded battery
    		 Yes
    TI weight (kg)
    		 0.5 kg
    Cable length
    		 1.83 m
    Width
    		 100 mm 483 mm 433 mm
    Height
    		 227 mm 87 mm 44 mm
    Depth
    		 260 mm 635 mm 235 mm
    Plastic (No PET)
    		 600.00 g
    Composition of battery
    		 CL127:KT:2016-12-09
    Classification of battery
    		 CL126:NE:2016-12-09
    Type of battery
    		 Accumulator
    Weight
    		 10.4 kg 10.8 kg 7.8 kg
    Package depth
    		 165 mm
    Package height
    		 384 mm 180 mm 155 mm
    Package width
    		 430 mm 530 mm 530 mm
    Package weight
    		 11.3 kg
    Number of batteries supported
    		 1
    Cables included
    		 USB cable USB cable
    Storage relative humidity (H-H)
    		 0 - 90% 20 - 95% 0 - 95%
    Manual
    		 Yes
    Operating temperature (T-T)
    		 0 - 40 °C 0 - 40 °C 0 - 40 °C
    Operating relative humidity (H-H)
    		 0 - 90% 0 - 95%
    Storage temperature (T-T)
    		 -20 - 50 °C -15 - 60 °C -15 - 45 °C
    Form factor
    		 Tower Rackmount
    USB port
    		 Yes Yes
    LED indicators
    		 Operation Alarm Operation
    Battery technology
    		 Sealed Lead Acid (VRLA) Sealed Lead Acid (VRLA)
    Battery capacity
    		 7 Ah
    Palette Qty
    		 86 pc(s)
    Battery recharge time
    		 8 h 6 h 8 h
    Country of origin
    		 China
    Output power
    		 960 W 1600 W 360 W
    Input frequency
    		 50/60 Hz 50/60 Hz 50/60 Hz
    Response time
    		 4 ms 4 ms
    Display type
    		 LCD LCD
    Ethernet LAN (RJ-45) ports
    		 1 1
    Input operation voltage (min)
    		 167 V 115 V 165 V
    Power protection features
    		 Overload Overload Overload
    Cold start
    		 Yes
    AC outlets quantity
    		 8 AC outlet(s) 1 AC outlet(s) 6 AC outlet(s)
    Output power capacity
    		 1.6 kVA 2 kVA 0.6 kVA
    Output operation voltage (max)
    		 230 V 230 V 230 V
    Waveform
    		 Sine Pure sine Sine
    AC outlet types
    		 C13 coupler Schuko C13 coupler
    Input operation voltage (max)
    		 295 V 300 V 271 V
    Audible alarm(s)
    		 Yes Yes
    Battery voltage
    		 12 V
    Output operation voltage (min)
    		 230 V 230 V 230 V
    UPS topology
    		 Line-Interactive Double-conversion (Online) Line-Interactive
    Modem (RJ-11) ports
    		 1 1
    Typical backup time at full load
    		 2 min 4 min
    Cabling technology
    		 10/100/1000Base-T(X)
    Automatic Voltage Regulation (AVR)
    		 Yes Yes Yes
    Housing material
    		 Plastic Metal
    Typical backup time at half load
    		 11 min 13 min
    Surge protection
    		 Yes Yes
    Operating altitude
    		 0 - 3000 m 0 - 3000 m
    Output frequency
    		 50/60 Hz 50 Hz 50/60 Hz
    Noise Level
    		 50 dB
    Serial ports quantity
    		 1
    Maximum current
    		 6.96 A 10 A
    Surge energy rating
    		 450 J 405 J
    Power plug
    		 C14 coupler C14 coupler
    Non-operating altitude
    		 0 - 3000 m 0 - 15000 m
    Product colour
    		 Black Black Silver
    Harmonized System (HS) code
    		 8504408590 8504408590
    Hot-swap battery
    		 Yes
    Producer
    		 Schneider Electric
    Compliance certificates
    		 RoHS RoHS
    Audible alarm modes
    		 Fault, Low battery alarm, Overload alarm Low battery alarm, Overload alarm
    Power factor
    		 0.8 0.6
    Surge protection features
    		 Network Digital Subscriber Line (DSL)
    Number of output IEC jumpers
    		 1
    Rack capacity
    		 1U
    Number of type F outputs
    		 2
    EMI/RFI noise filtering
    		 Yes Yes
    Warnings
    		 Do not disassemble the unit housing, there may be a risk of electric shock.
