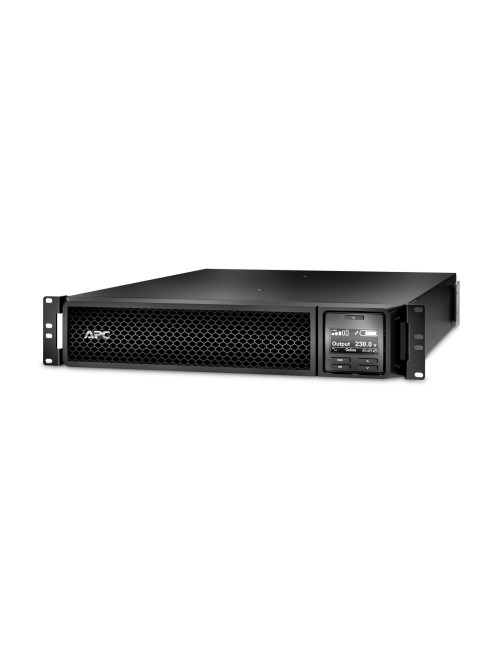

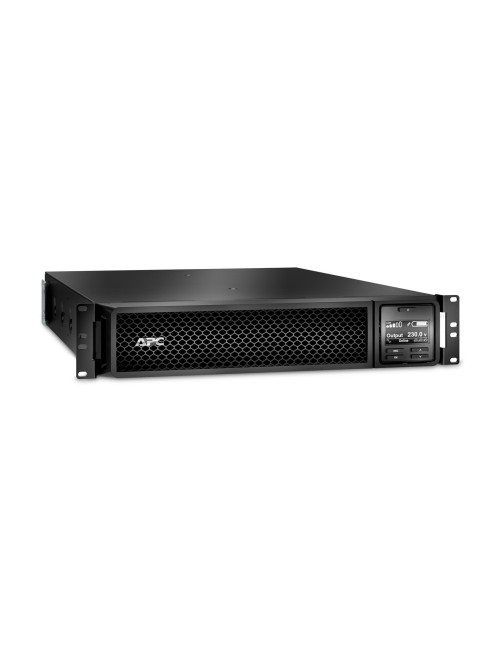

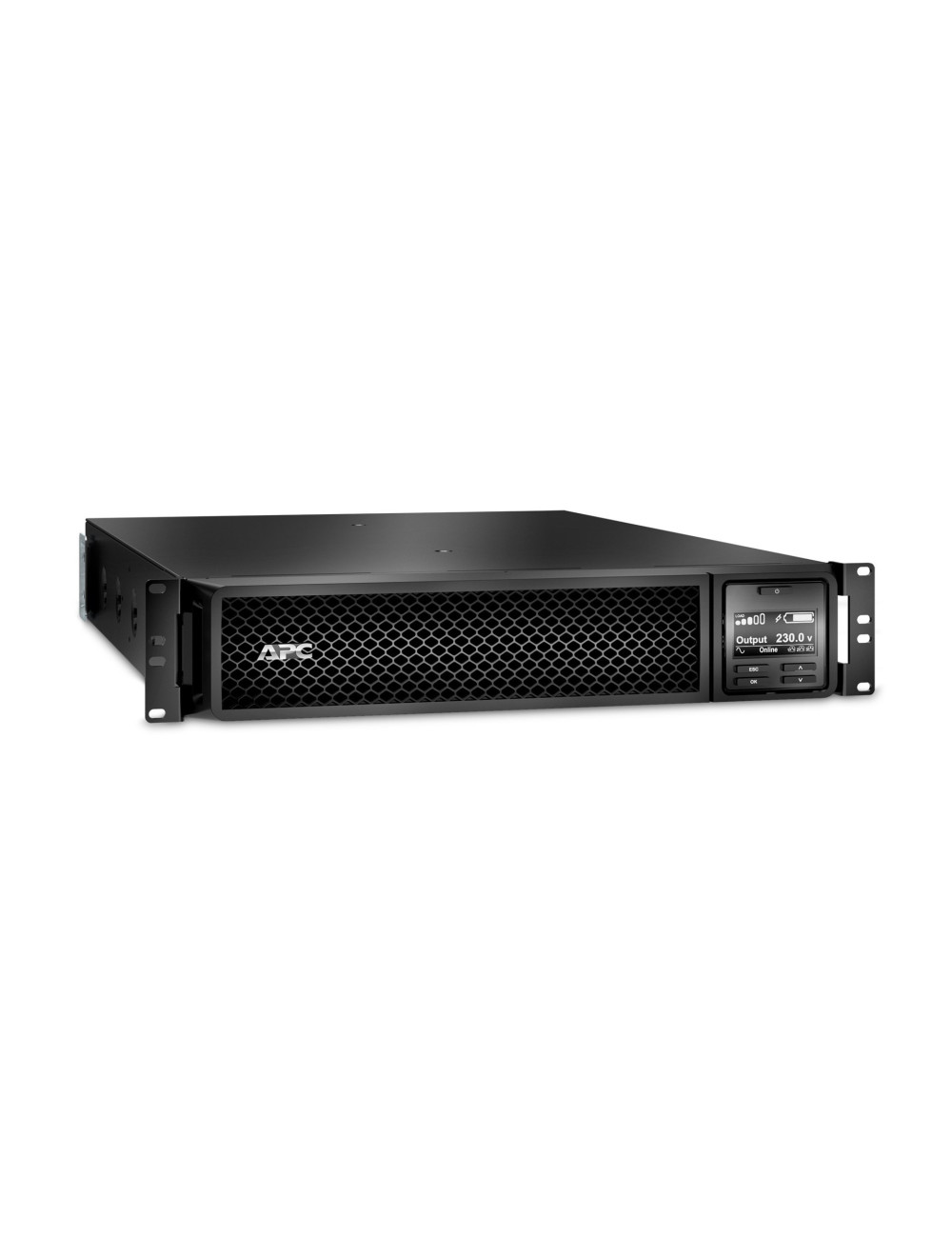

APC Smart-UPS On-Line SRT2200RMXLI-NC - 2200VA, 8x C13 & 2x C19, rack mount, NMC

Product Details

Reference WLONONWCRJHT4

In stock 11 Items

Data sheet

Cable length

2.44 m

Width

432 mm

Height

85 mm

Depth

584 mm

Weight

25 kg

Package depth

810 mm

Package height

246 mm

Package width

599 mm

Package weight

34 kg

Number of batteries supported

1

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-20 - 50 °C

Form factor

Rackmount

USB port

Yes

LED indicators

Yes

Battery technology

Sealed Lead Acid (VRLA)

Battery life (max)

5 year(s)

Battery capacity

367 VAh

Battery recharge time

3 h

Output power

1980 W

Input frequency

40 - 70 Hz

Output voltage

230 V

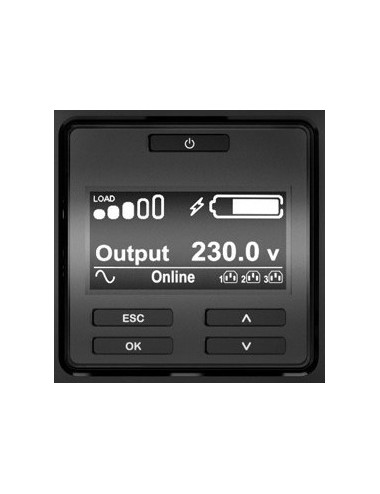

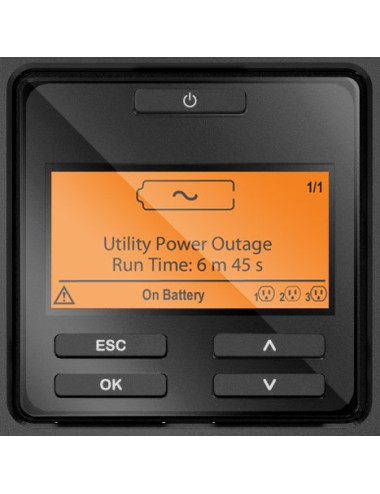

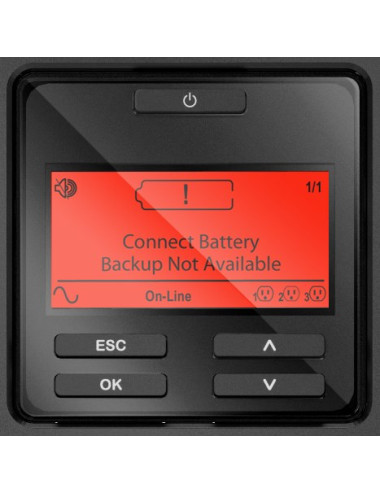

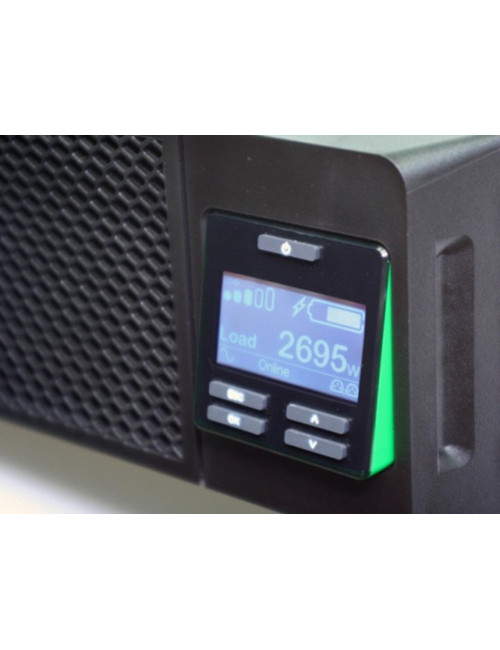

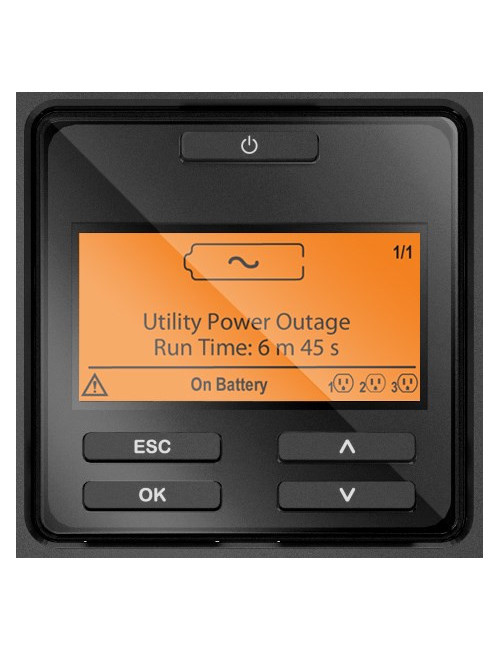

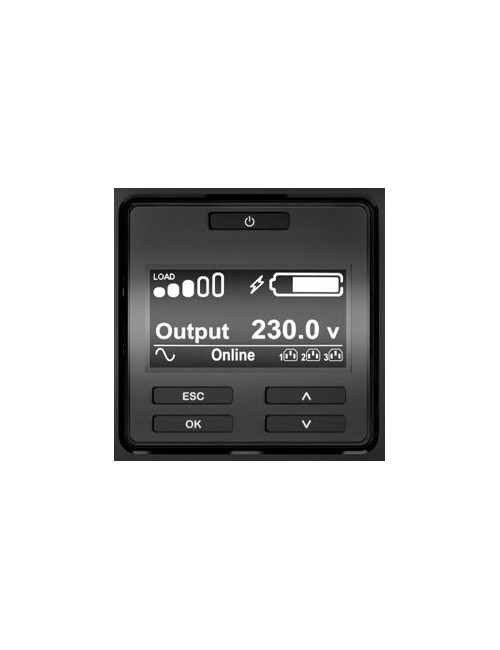

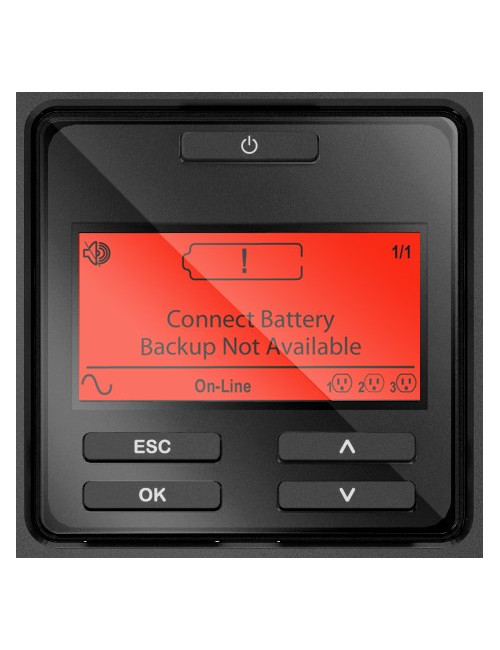

Display type

LCD

Ethernet LAN (RJ-45) ports

1

Input operation voltage (min)

160 V

AC outlets quantity

12 AC outlet(s)

Output power capacity

2.2 kVA

Output operation voltage (max)

240 V

Waveform

Sine

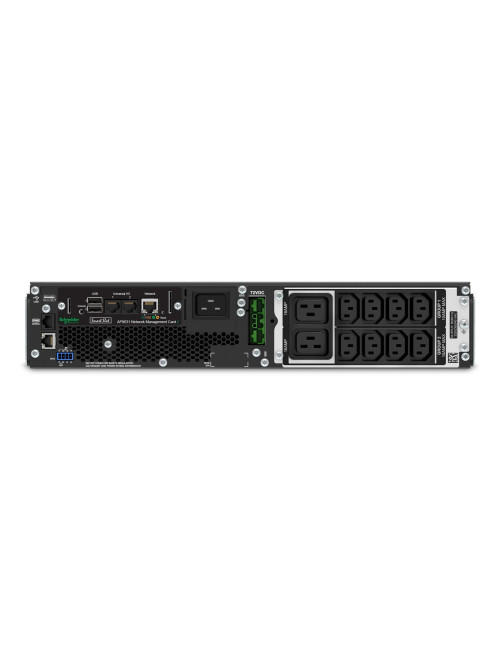

AC outlet types

C19 coupler

Input operation voltage (max)

275 V

Audible alarm(s)

Yes

Output operation voltage (min)

220 V

UPS topology

Double-conversion (Online)

Operating altitude

0 - 3000 m

International Protection (IP) code

IP20

Serial interface type

RJ-45

Noise Level

55 dB

Surge energy rating

340 J

Non-operating altitude

0 - 15000 m

Product colour

Black

Harmonized System (HS) code

85078000

Sustainability certificates

ENERGY STAR

Serial interface

Yes

Output voltage Total Harmonic Distortion (THD)

2%

Compliance certificates

RoHS

Total carbon footprint (kg of CO2e)

3656.79

Number of output IEC jumpers

2

SmartSlot

Yes

Crest factor

3:1

Emergency Power Off (EPO)

Yes

Rack capacity

2U

Management card included

Yes

SmartConnect port

No
