INFOSEC

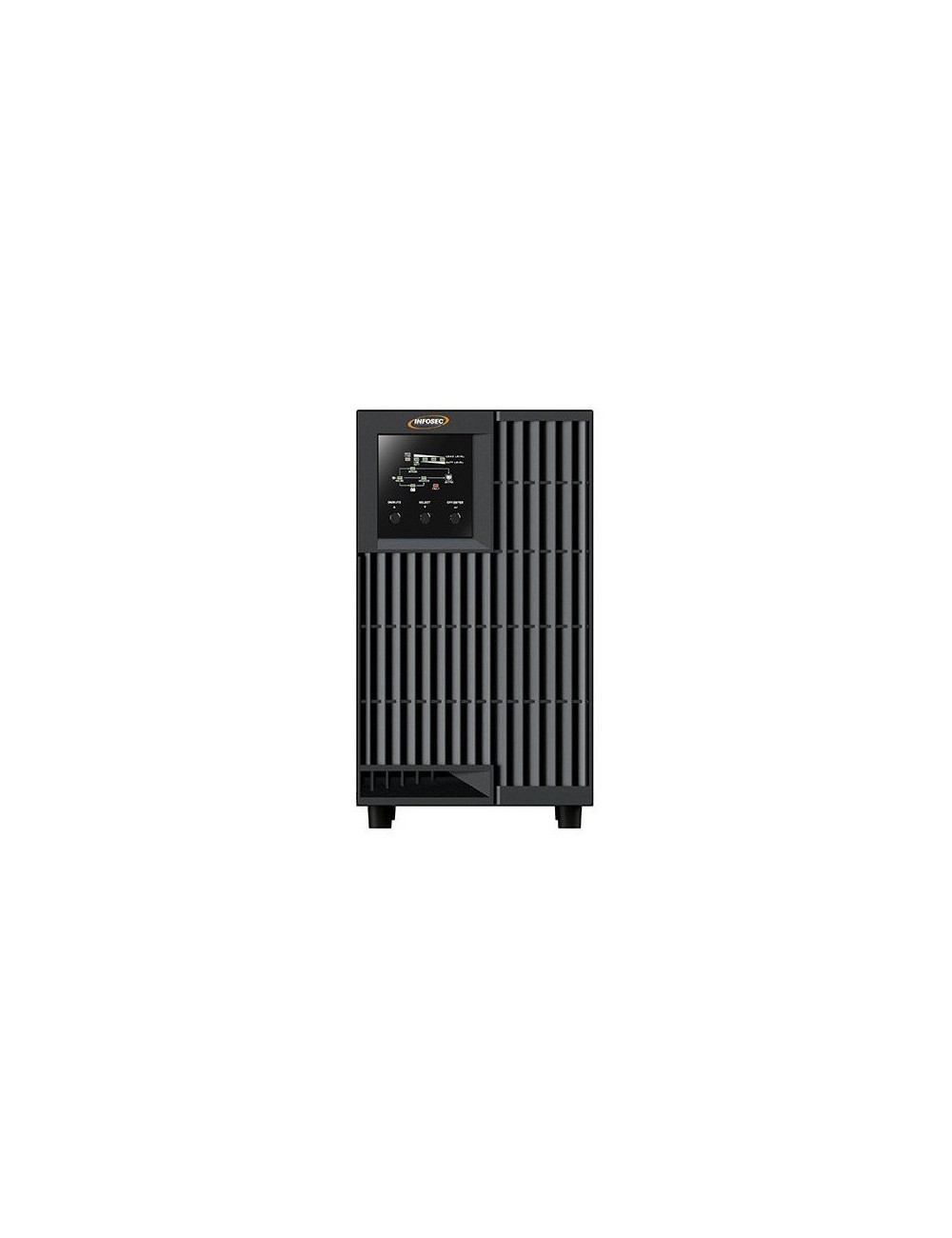

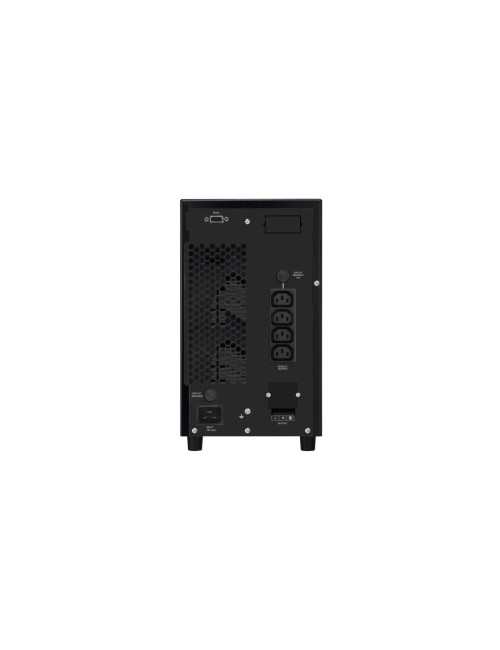

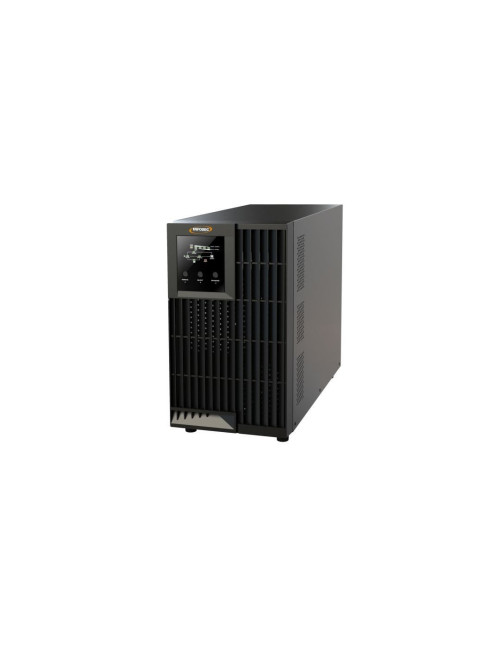

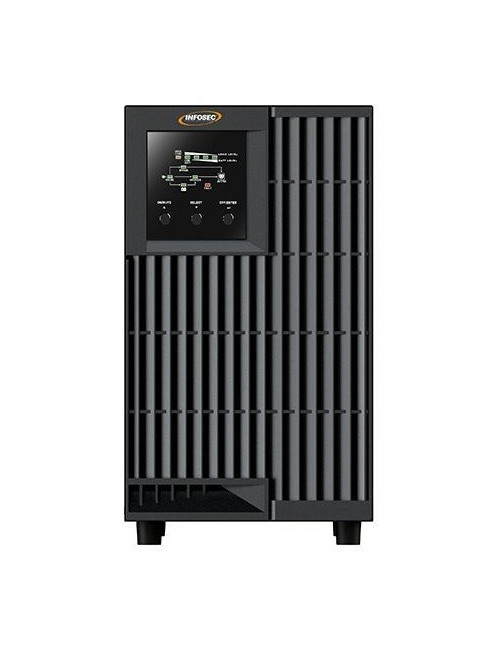

    Infosec E4 Value 3000 uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2400 W 4 AC outlet(s)

    €732.31
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    INFOSEC
    ZSIIFOUPS0028
    2 Items

    Data sheet

    Width
    190 mm
    Height
    421 mm
    Depth
    335 mm
    Weight
    25.2 kg
    Cables included
    Input power cable, Output power cable, RS-232
    Manual
    Yes
    Operating temperature (T-T)
    0 - 40 °C
    Operating relative humidity (H-H)
    20 - 90%
    Form factor
    Tower
    Battery technology
    Sealed Lead Acid (VRLA)
    Battery capacity
    9 Ah
    Battery recharge time
    4 h
    Output power
    2400 W
    Input frequency
    40/70 Hz
    Response time
    4 ms
    Display type
    LED
    Efficiency
    90%
    Input operation voltage (min)
    100 V
    AC outlets quantity
    4 AC outlet(s)
    Output power capacity
    3 kVA
    Output operation voltage (max)
    240 V
    Waveform
    Pure sine
    AC outlet types
    C13 coupler
    Input operation voltage (max)
    240 V
    Audible alarm(s)
    Yes
    Battery voltage
    12 V
    Output operation voltage (min)
    100 V
    UPS topology
    Double-conversion (Online)
    Typical backup time at full load
    30 min
    Typical backup time at half load
    10 min
    Output voltage regulation
    -1 - 1%
    Serial interface type
    RS-232
    Output frequency
    47/63 Hz
    Noise Level
    50 dB
    Serial ports quantity
    1
    Maximum current
    10 A
    Product colour
    Black
    Serial interface
    Yes
    ECO mode
    Yes
    Charging current
    1 A
    Output voltage Total Harmonic Distortion (THD)
    6%
    Compliance certificates
    RoHS
    Audible alarm modes
    Alarm when on battery, Fault, Overload alarm, Low battery alarm
    Power factor
    0.8
    Crest factor
    3:1
    Input power factor
    0.99
    Number of input phases
    1
