APC

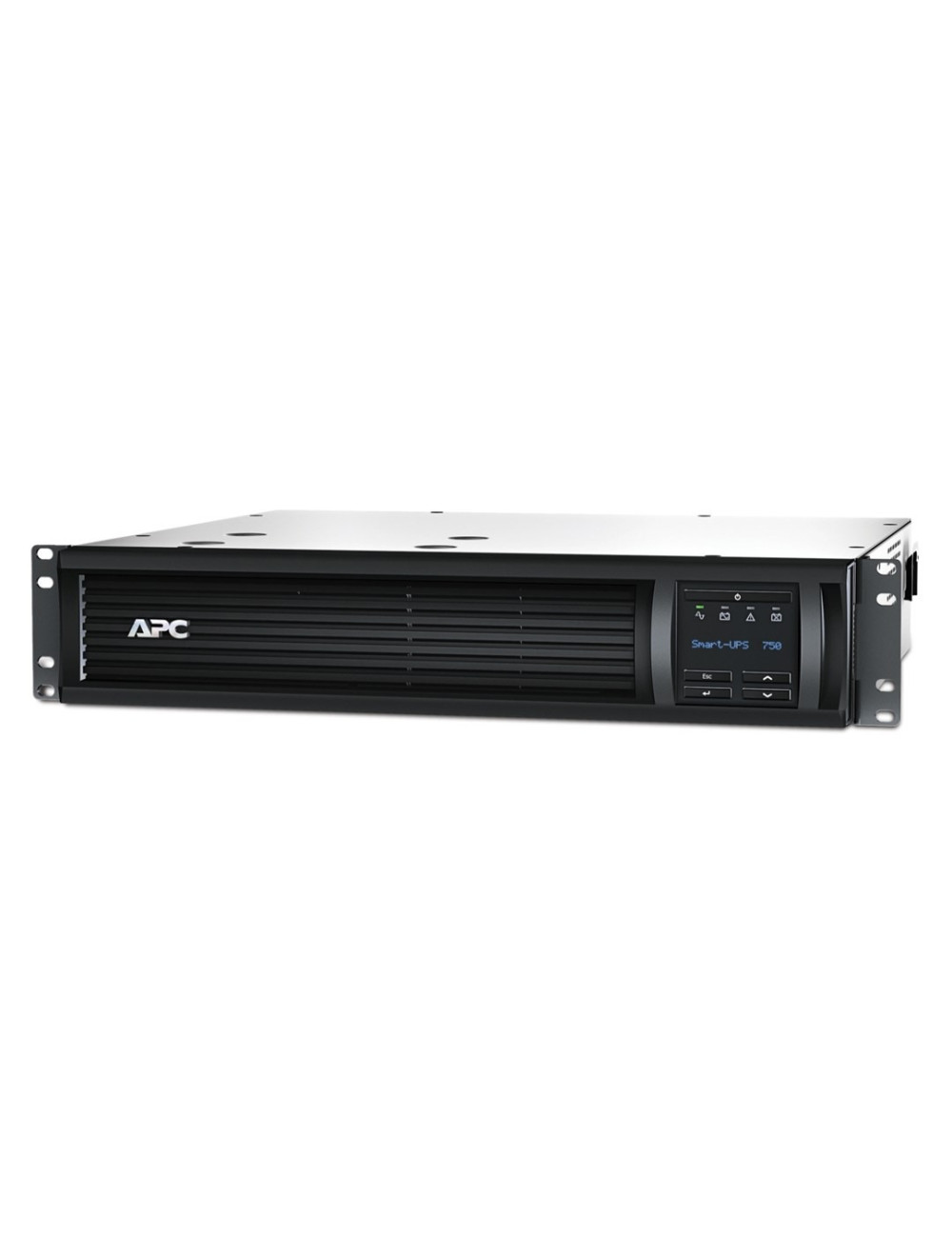

    APC Smart-UPS 750VA LCD RM - UPS - 500

    €739.39
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    WLONONWCRDWUA
    6 Items

    Data sheet

    Width
    432 mm
    Height
    89 mm
    Depth
    406 mm
    Weight
    17.3 kg
    Package height
    241 mm
    Package width
    546 mm
    Cables included
    RS-232, USB cable
    Storage relative humidity (H-H)
    0 - 95%
    Operating temperature (T-T)
    0 - 40 °C
    Operating relative humidity (H-H)
    0 - 95%
    Storage temperature (T-T)
    -15 - 45 °C

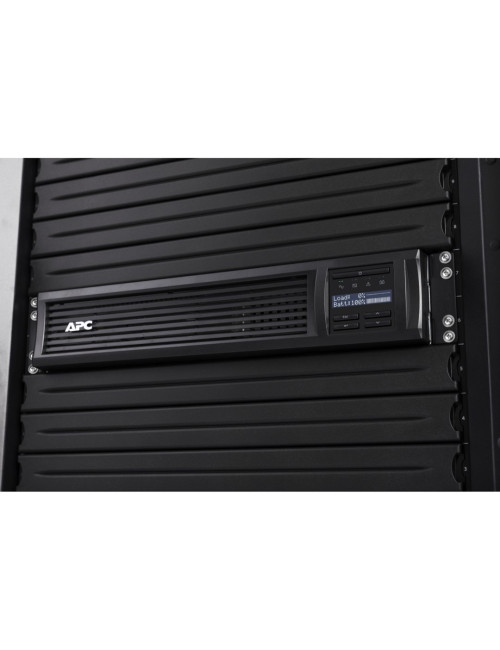

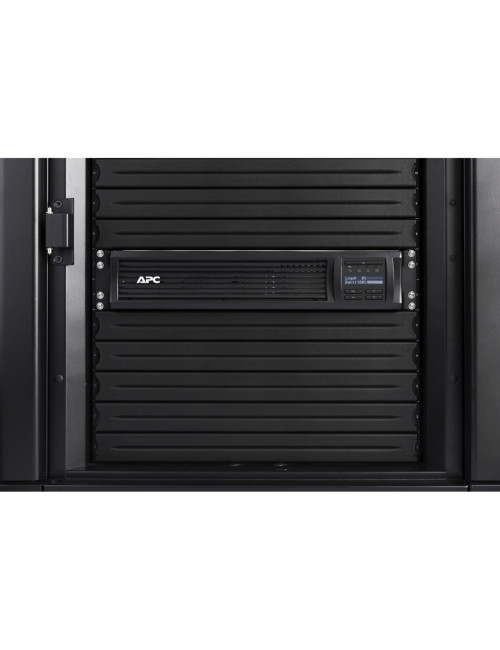

    Form factor
    Rackmount
    USB port
    Yes
    LED indicators
    Battery replacement
    Battery technology
    Sealed Lead Acid (VRLA)
    Battery life (max)
    5 year(s)
    Battery capacity
    168 VAh
    Battery recharge time
    3 h
    Output power
    500 W
    Input frequency
    50/60 Hz
    Efficiency
    97.7%
    Input operation voltage (min)
    151 V
    Cold start
    Yes

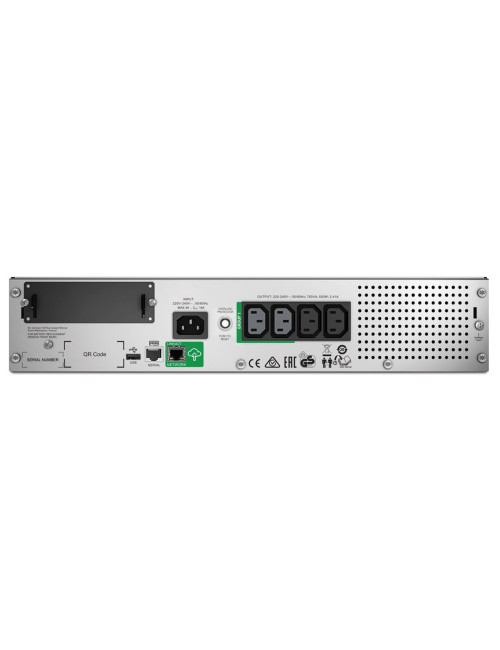

    AC outlets quantity
    4 AC outlet(s)
    Output power capacity
    0.75 kVA
    Output operation voltage (max)
    240 V
    Waveform
    Pure sine
    Auto-restart
    Yes
    AC outlet types
    C13 coupler
    Input operation voltage (max)
    302 V
    Audible alarm(s)
    Yes
    Output operation voltage (min)
    220 V
    UPS topology
    Line-Interactive

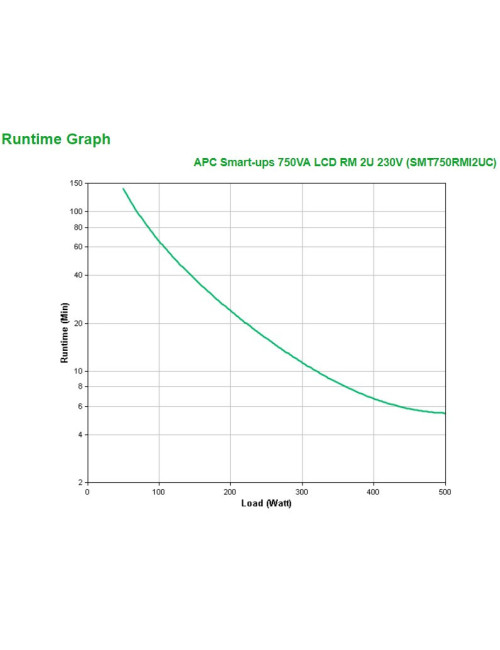

    Typical backup time at full load
    5.5 min

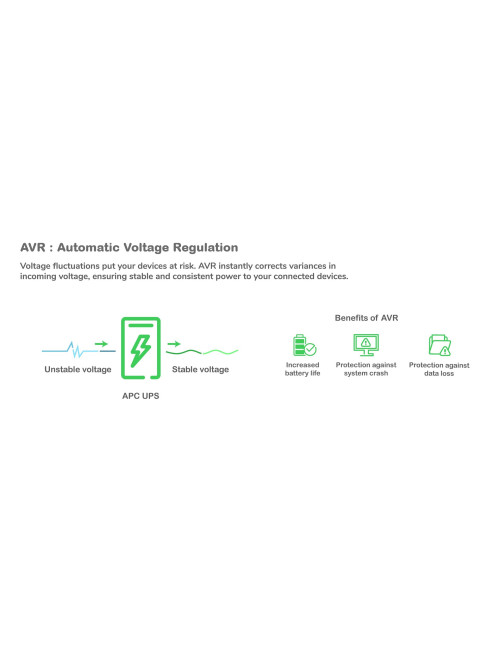

    Automatic Voltage Regulation (AVR)
    Yes
    Automatic battery test
    Yes
    Typical backup time at half load
    16 min
    Surge protection
    Yes
    Operating altitude
    0 - 3000 m

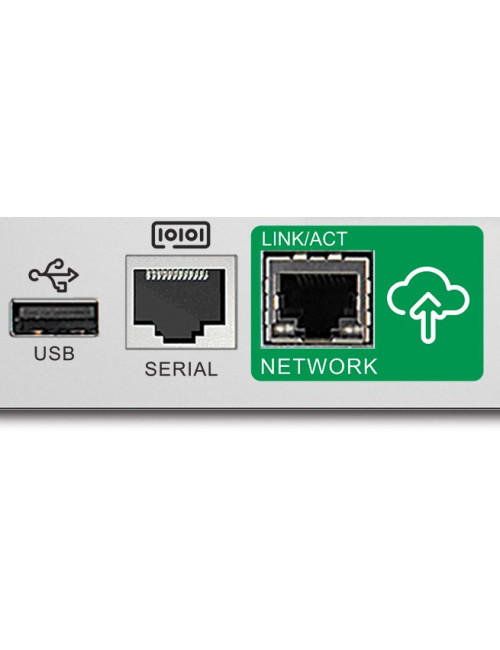

    Serial interface type
    RJ-45
    Quick installation guide
    Yes
    Noise Level
    42 dB
    Surge energy rating
    459 J
    Power plug
    C14 coupler
    Non-operating altitude
    0 - 15000 m
    Product colour
    Black
    Harmonized System (HS) code
    85078000
    Sustainability certificates
    Green Premium
    Serial interface
    Yes
    Hot-swap battery
    Yes
    Compliance certificates
    RoHS
    Total carbon footprint (kg of CO2e)
    821.3
    Hold time (max)
    2 ms
    Number of output IEC jumpers
    2
    SmartSlot
    Yes
    Rack capacity
    2U
    Rack mount kit
    Yes
    Warnings
    Do not disassemble the unit housing, there may be a risk of electric shock.
