APC

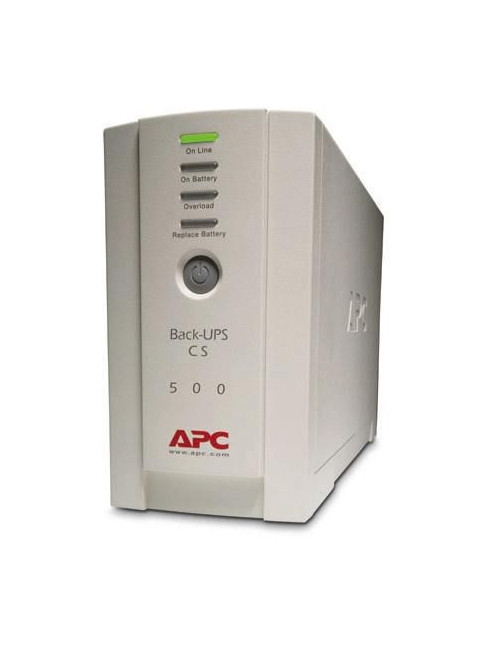

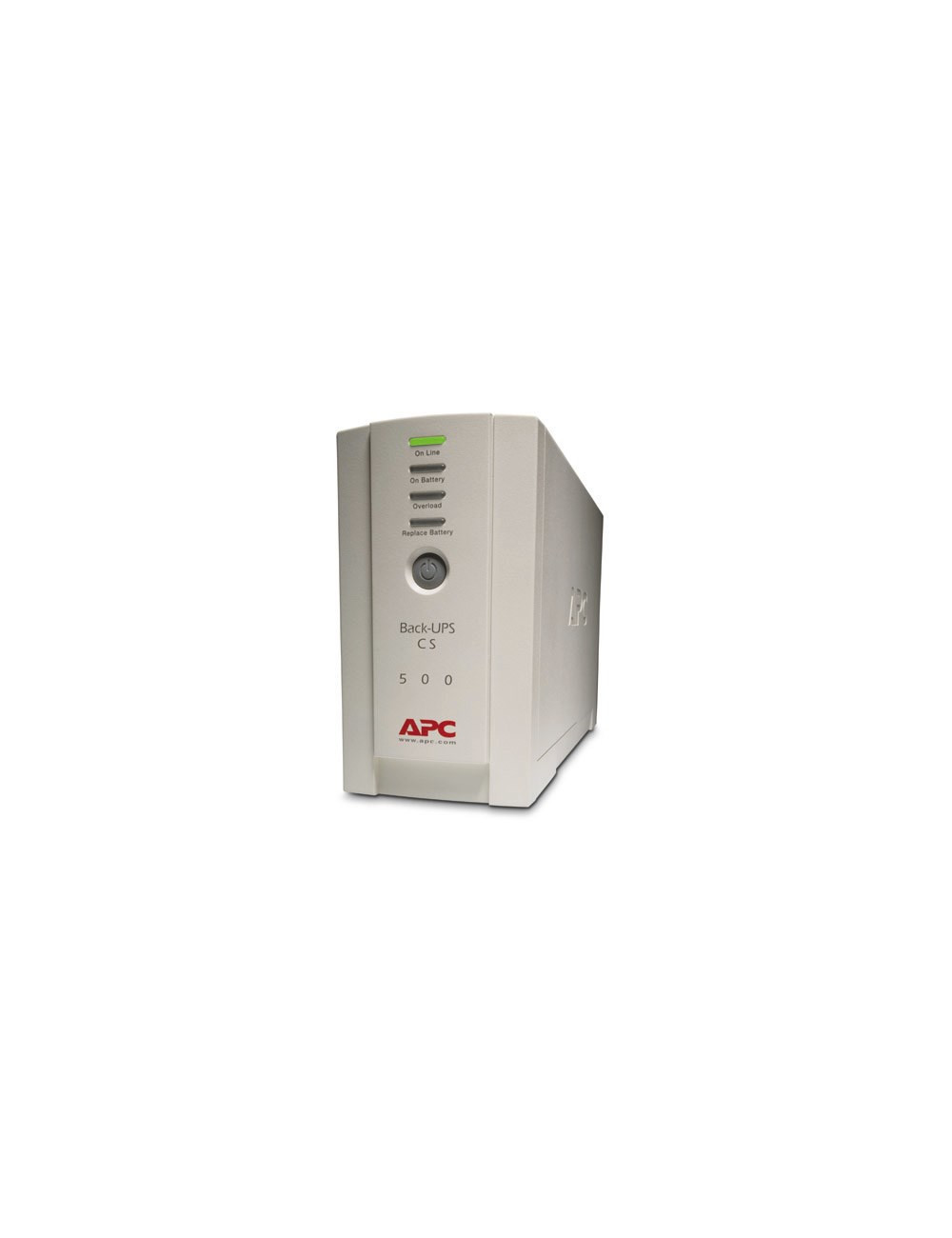

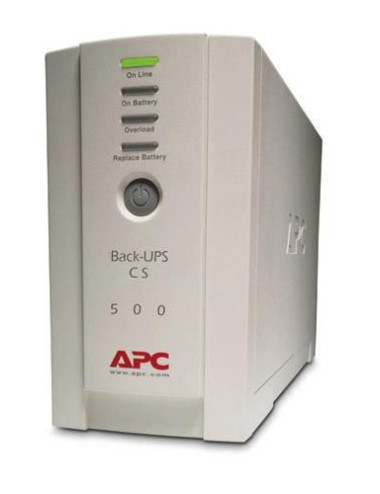

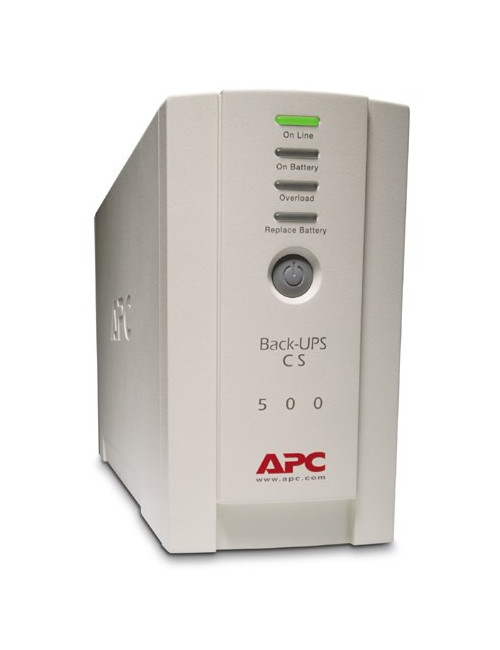

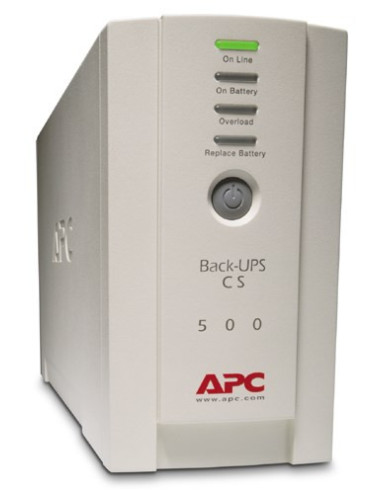

    APC Back-UPS CS 500 - UPS - 300 Watt - 5

    €190.78
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    WLONONWCROD39
    3 Items

    Data sheet

    Cable length
    1.83 m
    Width
    91 mm
    Height
    165 mm
    Depth
    284 mm
    Weight
    6.32 kg
    Package height
    178 mm
    Package width
    241 mm
    Cables included
    Phone (RJ-11), USB cable
    Storage relative humidity (H-H)
    0 - 95%
    Operating temperature (T-T)
    0 - 40 °C
    Operating relative humidity (H-H)
    0 - 95%
    Storage temperature (T-T)
    -15 - 45 °C
    Form factor
    Tower
    USB port
    Yes
    LED indicators
    Battery replacement
    Battery technology
    Sealed Lead Acid (VRLA)
    Battery life (max)
    6 year(s)
    Battery capacity
    7 Ah
    Battery recharge time
    8 h
    Output power
    300 W
    Input frequency
    50/60 Hz
    Efficiency
    99%
    Input operation voltage (min)
    160 V
    Power protection features
    Overload

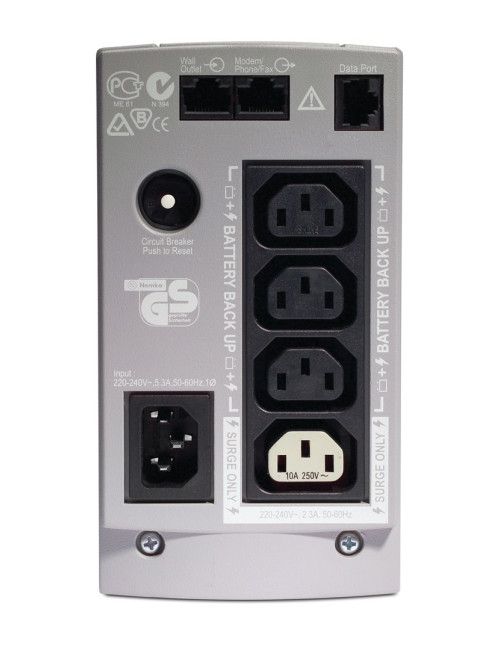

    AC outlets quantity
    4 AC outlet(s)
    Output power capacity
    0.5 kVA
    Waveform
    Sine
    AC outlet types
    C13 coupler
    Input operation voltage (max)
    300 V
    Audible alarm(s)
    Yes
    Battery voltage
    12 V
    UPS topology
    Standby (Offline)

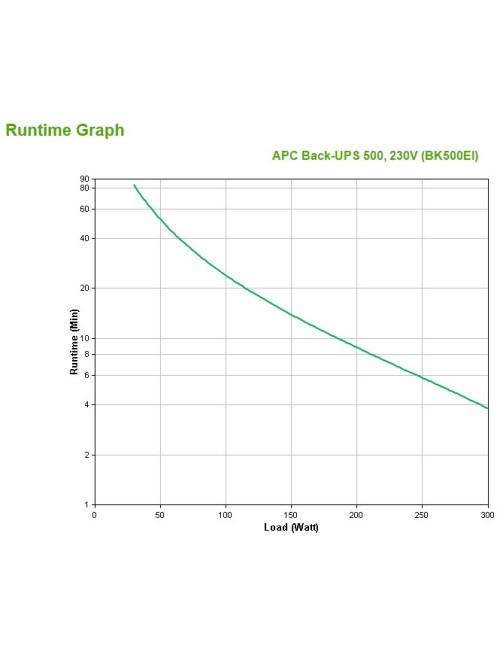

    Typical backup time at full load
    3.8 min
    Warranty card
    Yes
    Automatic battery test
    Yes
    Typical backup time at half load
    13.8 min
    Surge protection
    Yes
    Nominal input voltage
    230 V
    Nominal output voltage
    230 V
    Output frequency regulation
    47 - 63 Hz
    Operating altitude
    0 - 3000 m
    Quick installation guide
    Yes
    Noise Level
    40 dB
    Surge energy rating
    310 J
    Power plug
    C14 coupler
    Non-operating altitude
    0 - 15000 m
    Product colour
    Beige
    Harmonized System (HS) code
    85078000
    Sustainability certificates
    ENERGY STAR
    Products per master (outer) case
    1 pc(s)
    Compliance certificates
    RoHS
    Audible alarm modes
    Low battery alarm, Overload alarm
    Hold time (max)
    10 ms
    Hold time (min)
    6 ms
    Surge protection features
    Modem
    Number of output IEC jumpers
    2
    Filtering
    Yes
    SmartSlot
    No
    Management card included
    No
    SmartConnect port
    No

    Quick Compare

    Product
    		 PowerWalker VI 2000 SCL FR Line-Interactive 2 kVA 1200 W 4 AC outlet(s) PowerWalker VI 2000 SCL Line-Interactive 2 kVA 1200 W APC Back-UPS Standby (Offline) 0.5kVA 300W 4 x AC Outlet UPS|EATON|900 Watts|1600 VA|Wave form type Pure sinewave|LineInteractive|Phase 1phase|Desktop/pedestal|5E1600UD UPS|EATON|900 Watts|1600 VA|Wave form type Pure sinewave|LineInteractive|Phase 1phase|Desktop/pedestal|5E1600UD
    Availability
    Price
    €179.37
    €181.76
    €182.06
    €183.53
    Description
    		 900 Watts | 1600 VA | Wave form type Pure sinewave | Topology LineInteractive | Phase 1phase | Output power connector type IEC 320 C13 | Colour Black
    Colour
    		 Black
    Width
    		 130 mm 130 mm
    Height
    		 182 mm 182 mm
    Depth
    		 320 mm 320 mm
    Weight
    		 11 kg 11 kg
    Package depth
    		 390 mm
    Package height
    		 275 mm 275 mm
    Package width
    		 192 mm 192 mm
    Number of batteries supported
    		 2
    Manual
    		 Yes Yes
    Operating temperature (T-T)
    		 0 - 40 °C
    Operating relative humidity (H-H)
    		 0 - 90%
    Form factor
    		 Tower Tower
    USB port
    		 Yes Yes
    Battery capacity
    		 18 Ah 9 Ah
    Battery recharge time
    		 6 h
    Output power
    		 1200 W 1200 W
    Input frequency
    		 50/60 Hz 50/60 Hz
    Response time
    		 6 ms
    Display type
    		 LCD
    Ethernet LAN (RJ-45) ports
    		 1 1
    Number of battery cells
    		 2
    Garantija
    		 24
    Category Code
    		 UPW
    Unit Box Height
    		 0.315
    Unit Box Length
    		 0.46
    Unit Box Width
    		 0.25
    Vendor Homepage
    		 www.eaton.com/content/dam/eaton/products/backup-power-ups-surge-it-power-distribution/backup-power-ups/eaton_5e_ups/eaton-5e-ups---emea/eaton-dpq-5egen2-ups-datasheet-en-gb.pdf
    Dimensions
    		 330 x 180 x 133mm
    Efficiency
    		 90%
    Input operation voltage (min)
    		 162 V 162 V
    Power protection features
    		 Overload Overload
    AC outlets quantity
    		 4 AC outlet(s)
    Output power capacity
    		 2 kVA 2 kVA
    Output operation voltage (max)
    		 240 V 230 V
    Waveform
    		 Sine Sine
    AC outlet types
    		 Type E Type F
    Input operation voltage (max)
    		 290 V 290 V
    Battery voltage
    		 12 V 12 V
    Output operation voltage (min)
    		 220 V
    UPS topology
    		 Line-Interactive Line-Interactive
    Modem (RJ-11) ports
    		 1 1
    Output voltage regulation
    		 10%
    MODEL
    		 5E1600UD
    Output frequency
    		 50/60 Hz
    Mounting Type (Desktop/pedestal)
    		 Yes
    Noise Level
    		 40 dB 40 dB
    Maximum current
    		 1 A
    Product colour
    		 Black Black
    Harmonized System (HS) code
    		 85078000
    Serial interface
    		 Yes
    Number of type F outputs
    		 1
    Output power factor
    		 0.6 0.6
    Built-in fan
    		 No
    Warnings
    		 Use the appliance in well-ventilated areas to avoid overheating. Use the appliance in well-ventilated areas to avoid overheating.
    Units per Shipping Box
    		 1
    Product Net Weight
    		 9.3 kg
    Unit Calculated Weight
    		 10.5 kg
    Unit Calculated Volume
    		 0.036225 cubm
    Output power capacity, W
    		 900 Watts
    Output power capacity, VA
    		 1600 VA
    Wave form type
    		 Pure sinewave
    Topology
    		 LineInteractive
    Phase
    		 1phase
    Output power connector type
    		 IEC 320 C13
    Communication ports (USB)
    		 1
    Buttons: (On/Off)
    		 YES
