POWER WALKER

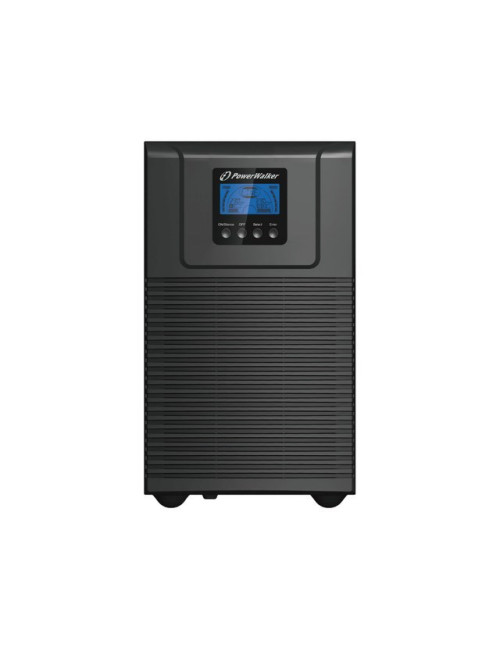

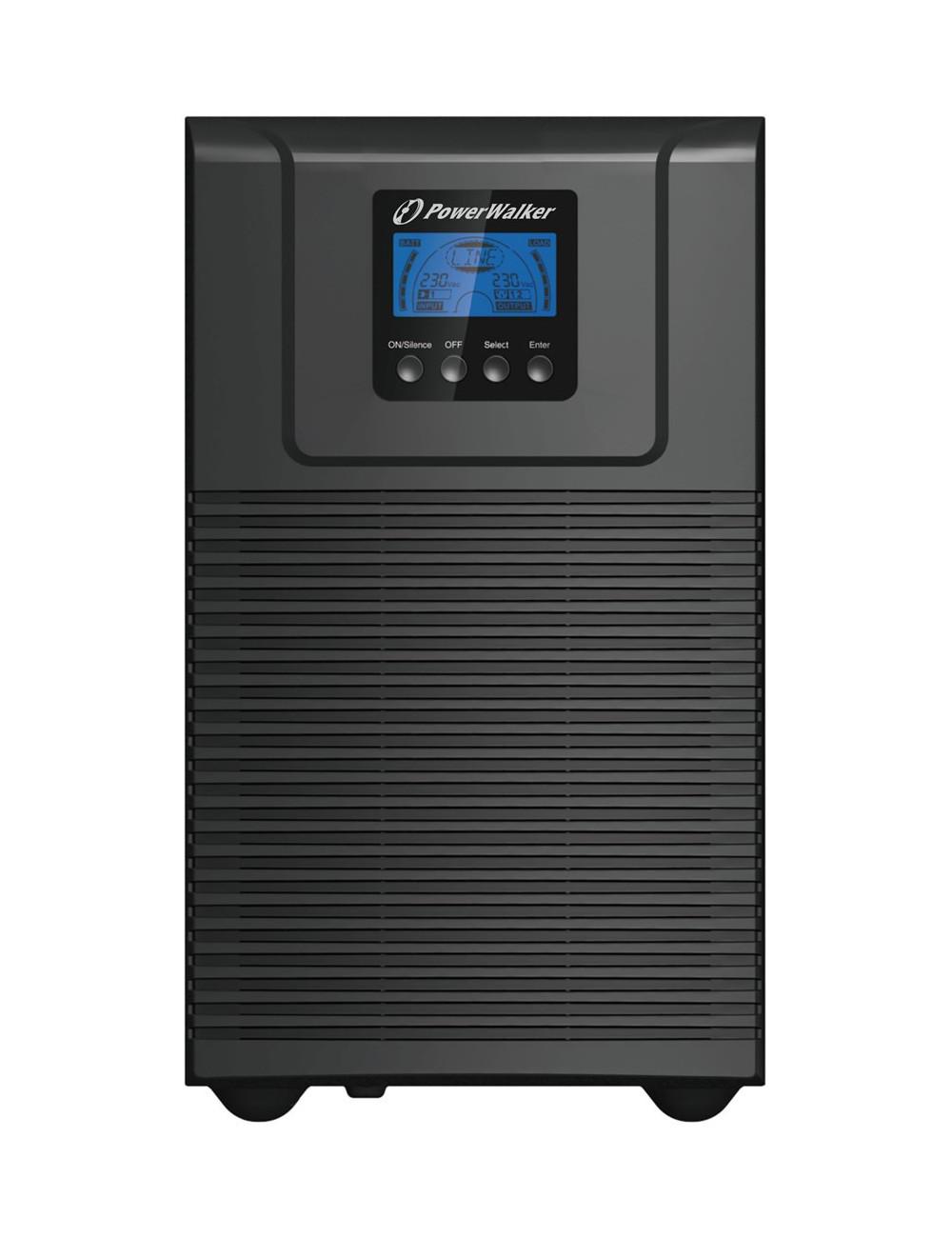

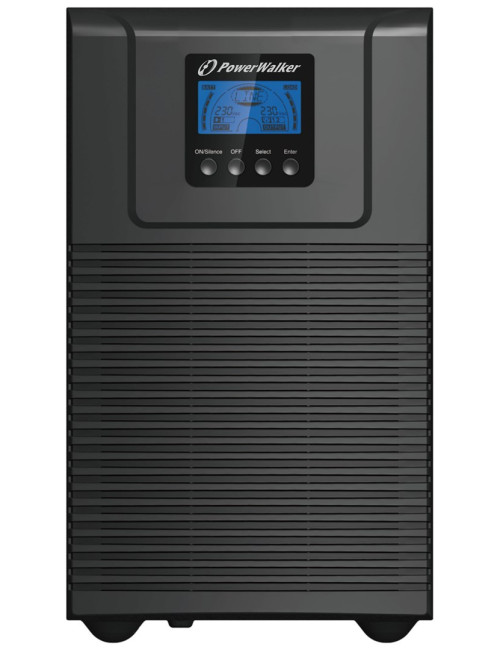

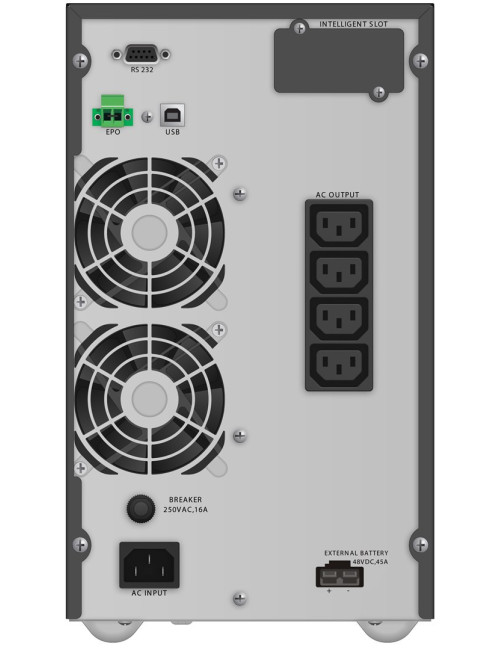

PowerWalker VFI 2000 TGB Double-conversion (Online) 2 kVA 1800 W 4 AC outlet(s)

€429.07

Tax included

Product Details
Quick Compare

Product Details

Brand POWER WALKER

Reference WLONONWCRFR39

In stock 7 Items

Data sheet

Width: 190 mm
Height: 328 mm
Depth: 399 mm
Weight: 17.2 kg
Package depth: 500 mm
Package height: 464 mm
Package width: 324 mm
Package weight: 20 kg
Number of batteries supported: 4
Cables included: Input power cable, USB cable
Manual: Yes
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 95%
USB port: Yes
Battery capacity: 9 Ah
Battery recharge time: 4 h
Output power: 1800 W
Input frequency: 40 - 70 Hz
Input operation voltage (min): 176 V
AC outlets quantity: 4 AC outlet(s)
Output power capacity: 2 kVA
Output operation voltage (max): 240 V
Waveform: Sine
AC outlet types: C13 coupler
Input operation voltage (max): 300 V
Battery voltage: 12 V
Output operation voltage (min): 220 V
UPS topology: Double-conversion (Online)
Typical backup time at full load: 3.8 min
Typical backup time at half load: 11 min
Noise Level: 50 dB
Power plug: C14 coupler
Product colour: Black
Harmonized System (HS) code: 85078000
Products per pallet: 14 pc(s)
Software CD: Yes
Output voltage Total Harmonic Distortion (THD): 2%
Power factor: 0.9
Crest factor: 3:1
Emergency Power Off (EPO): Yes
Input current Total Harmonic Distortion (THD): 5%
