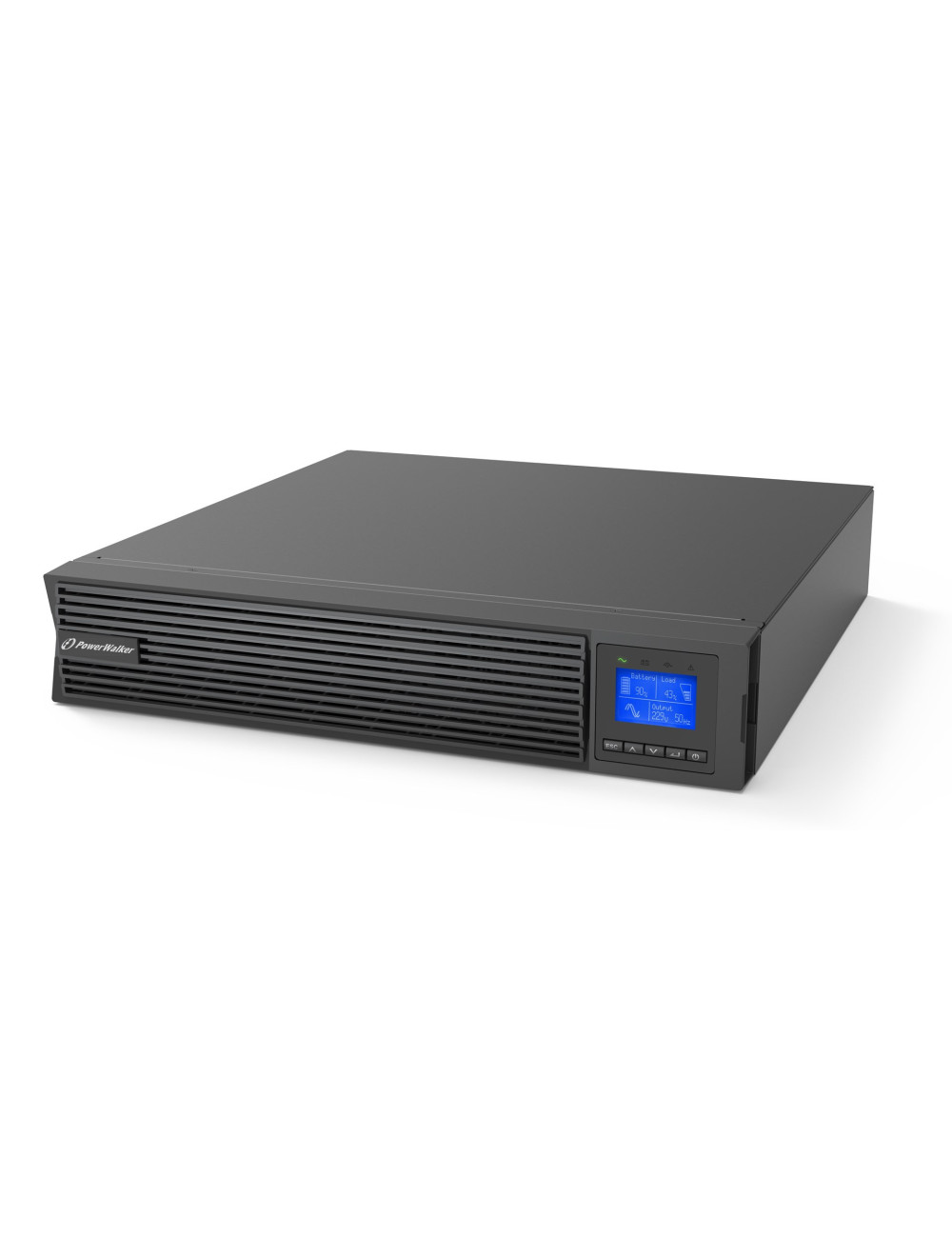

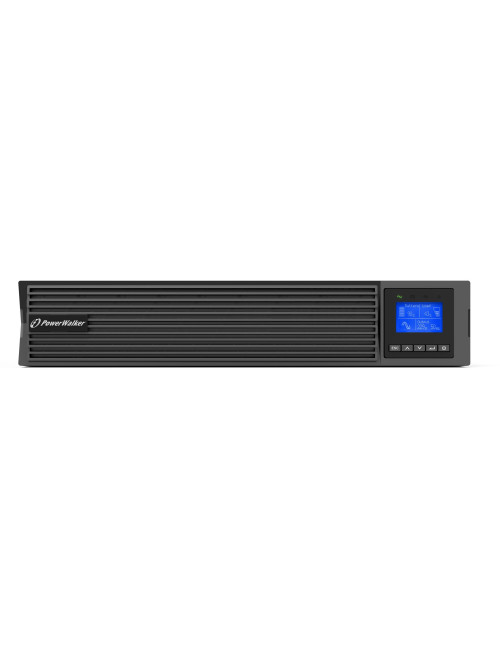

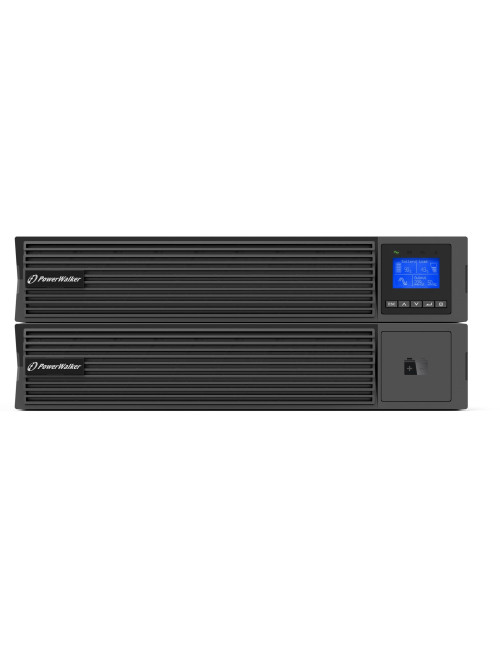

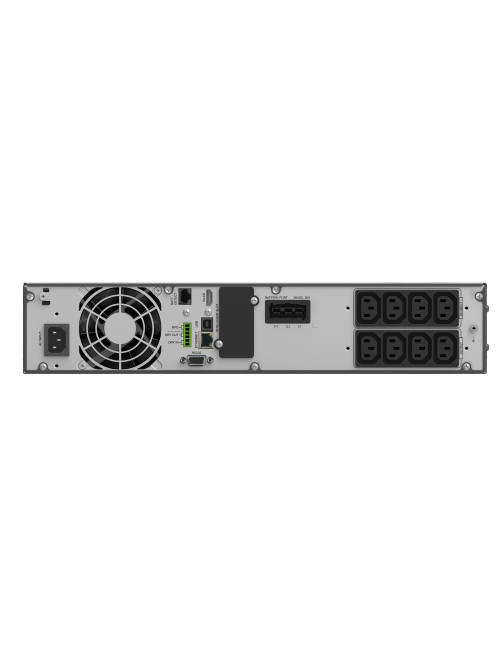

PowerWalker VFI 1500 ICR IoT Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)

Product Details

Data sheet

Width

438 mm

Height

85.5 mm

Depth

445 mm

Weight

15.8 kg

Package depth

587 mm

Package height

240 mm

Package width

498 mm

Package weight

19 kg

Number of batteries supported

3

Cables included

Input power cable, Output power cable, USB cable

Manual

Yes

Operating temperature (T-T)

0 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Form factor

Rackmount/Tower

USB port

Yes

LED indicators

Yes

Battery capacity

9 Ah

Battery recharge time

3 h

Output power

1500 W

Input frequency

40/70 Hz

USB 2.0 ports quantity

1

Response time

0 ms

Display type

LCD

Efficiency

89%

Input operation voltage (min)

110 V

AC outlets quantity

8 AC outlet(s)

Output power capacity

1.5 kVA

Output operation voltage (max)

240 V

Waveform

Sine

AC outlet types

C13 coupler

Input operation voltage (max)

300 V

Battery voltage

12 V

Output operation voltage (min)

200 V

UPS topology

Double-conversion (Online)

Output voltage regulation

1%

Serial interface type

RS-232

Noise Level

45 dB

Serial ports quantity

1

Power plug

C14 coupler

Harmonized System (HS) code

85078000

Serial interface

Yes

ECO mode

Yes

Charging current

1.5 A

Output voltage Total Harmonic Distortion (THD)

1%

Hot-swap battery

Yes

Crest factor

3:1

Emergency Power Off (EPO)

Yes

Output power factor

1

Emergency Power Off (EPO) connector

Yes

Input current Total Harmonic Distortion (THD)

5%

Warnings

Keep away from sources of fire and water.
