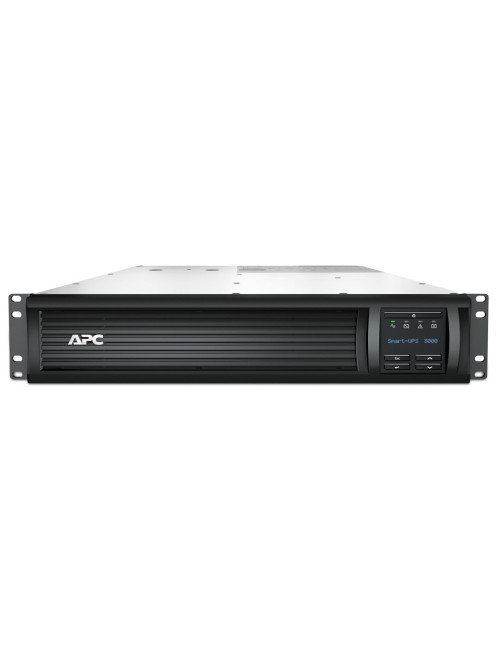

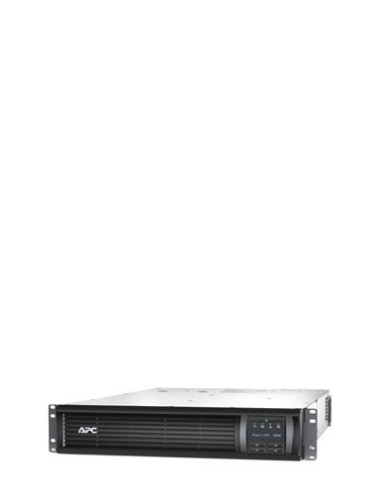

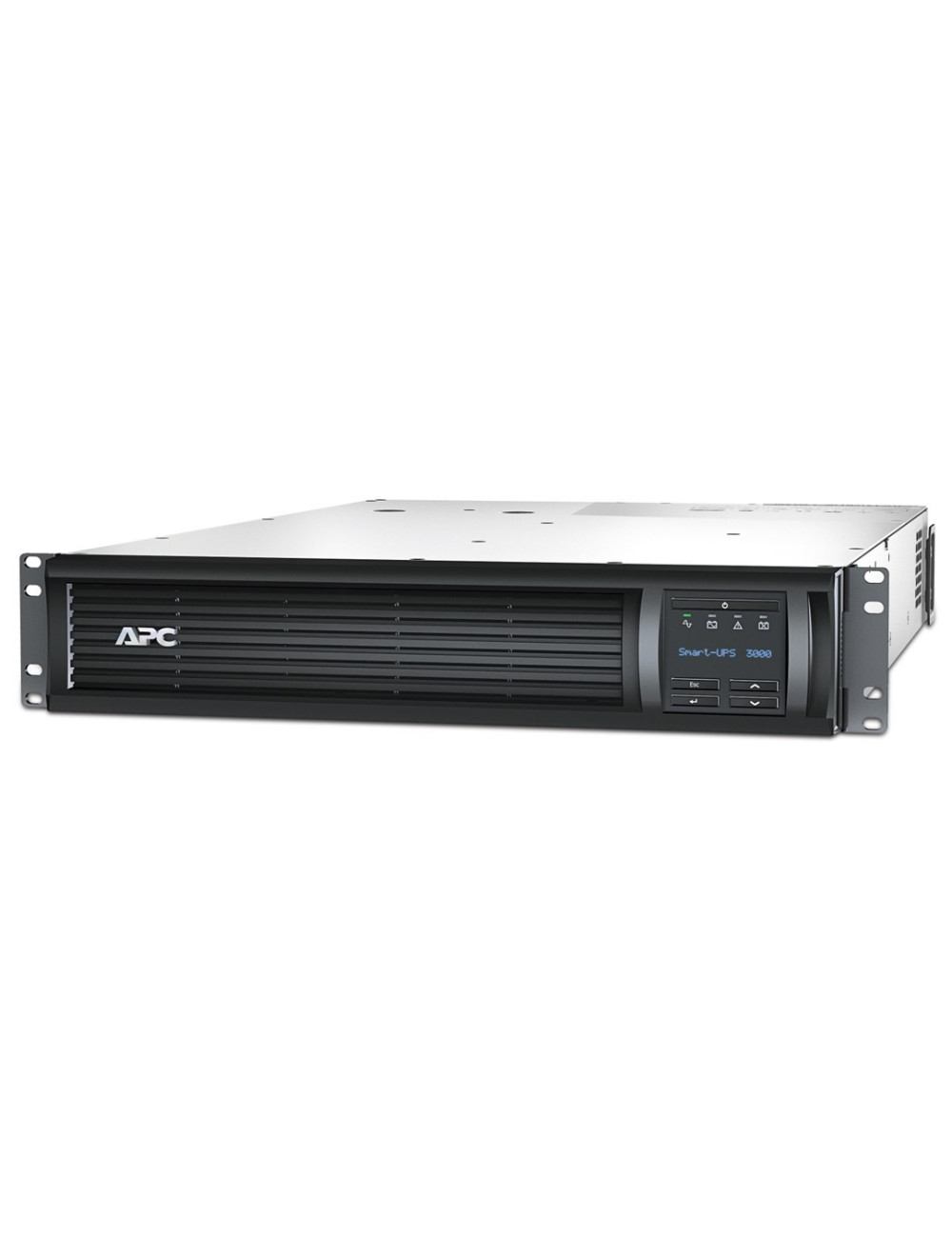

APC Smart-UPS SMT3000RMI2UC - UPS - 27

Product Details

Reference WLONONWCRDZB5

In stock 15 Items

Data sheet

Cable length

2 m

Width

432 mm

Height

86 mm

Depth

683 mm

Weight

44.3 kg

Package depth

980 mm

Package height

254 mm

Package width

600 mm

Package weight

51.7 kg

Cables included

RS-232, USB cable

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-15 - 45 °C

Form factor

Rackmount

USB port

Yes

LED indicators

Status

Battery technology

Sealed Lead Acid (VRLA)

Battery life (max)

5 year(s)

Battery capacity

547 VAh

Battery recharge time

3 h

Output power

2700 W

Input frequency

50/60 Hz

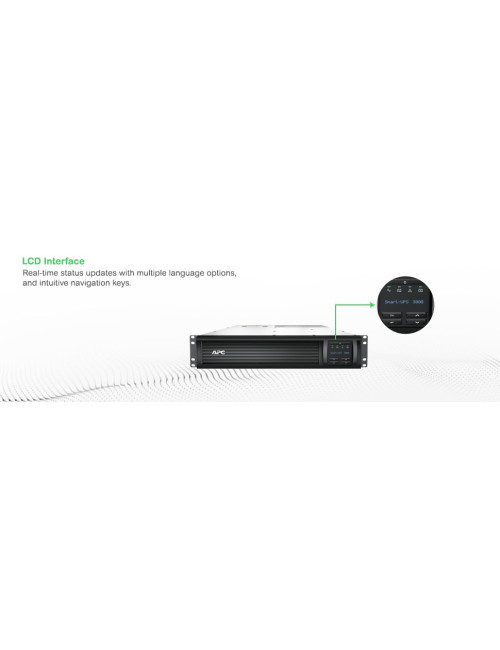

Display type

LCD

Ethernet LAN (RJ-45) ports

1

Efficiency

98.9%

Input operation voltage (min)

151 V

Cold start

Yes

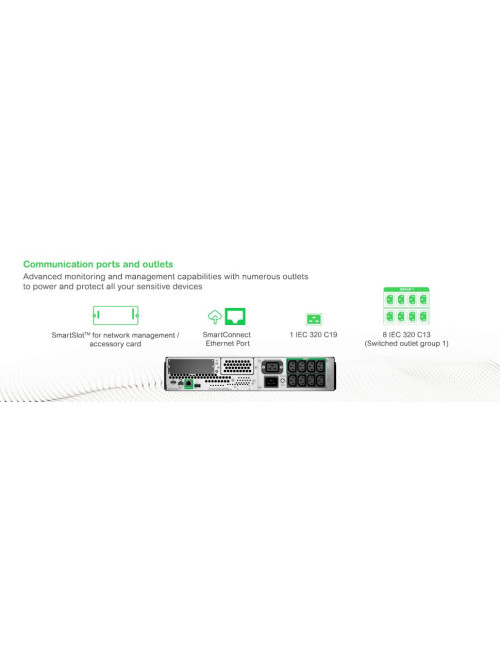

AC outlets quantity

9 AC outlet(s)

Output power capacity

3 kVA

Output operation voltage (max)

240 V

Waveform

Sine

Auto-restart

Yes

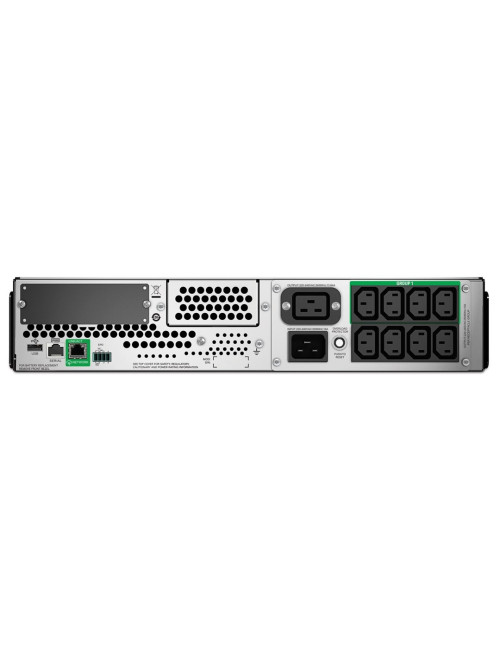

AC outlet types

C19 coupler

Input operation voltage (max)

302 V

Audible alarm(s)

Yes

Output operation voltage (min)

220 V

UPS topology

Line-Interactive

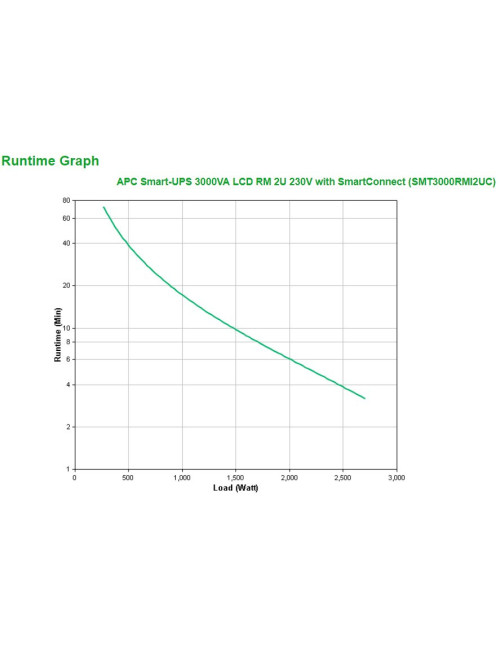

Typical backup time at full load

3.2 min

Automatic Voltage Regulation (AVR)

Yes

Automatic battery test

Yes

Typical backup time at half load

11.5 min

Nominal input voltage

230 V

Nominal output voltage

230 V

Operating altitude

0 - 3000 m

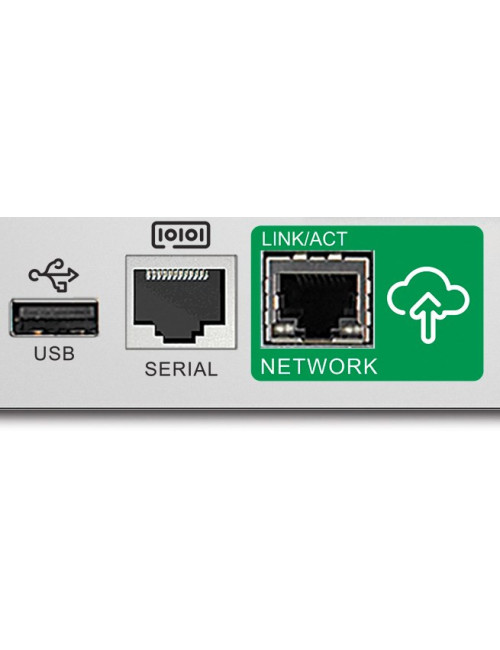

Serial interface type

RJ-45

Quick installation guide

Yes

Noise Level

55 dB

Surge energy rating

320 J

Power plug

C20 coupler

Non-operating altitude

0 - 15000 m

Product colour

Black

Harmonized System (HS) code

85078000

Sustainability certificates

Green Premium

Software CD

Yes

Serial interface

Yes

Hot-swap battery

Yes

Compliance certificates

RoHS

Total carbon footprint (kg of CO2e)

2968.55

Hold time (max)

8 ms

Hold time (min)

4 ms

Number of output IEC jumpers

3

SmartSlot

Yes

Rack capacity

2U

Rack mount kit

Yes

Management card included

No

SmartConnect port

Yes
