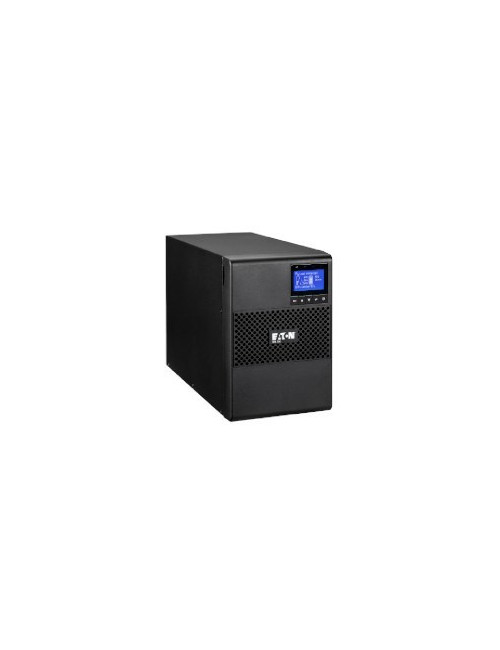

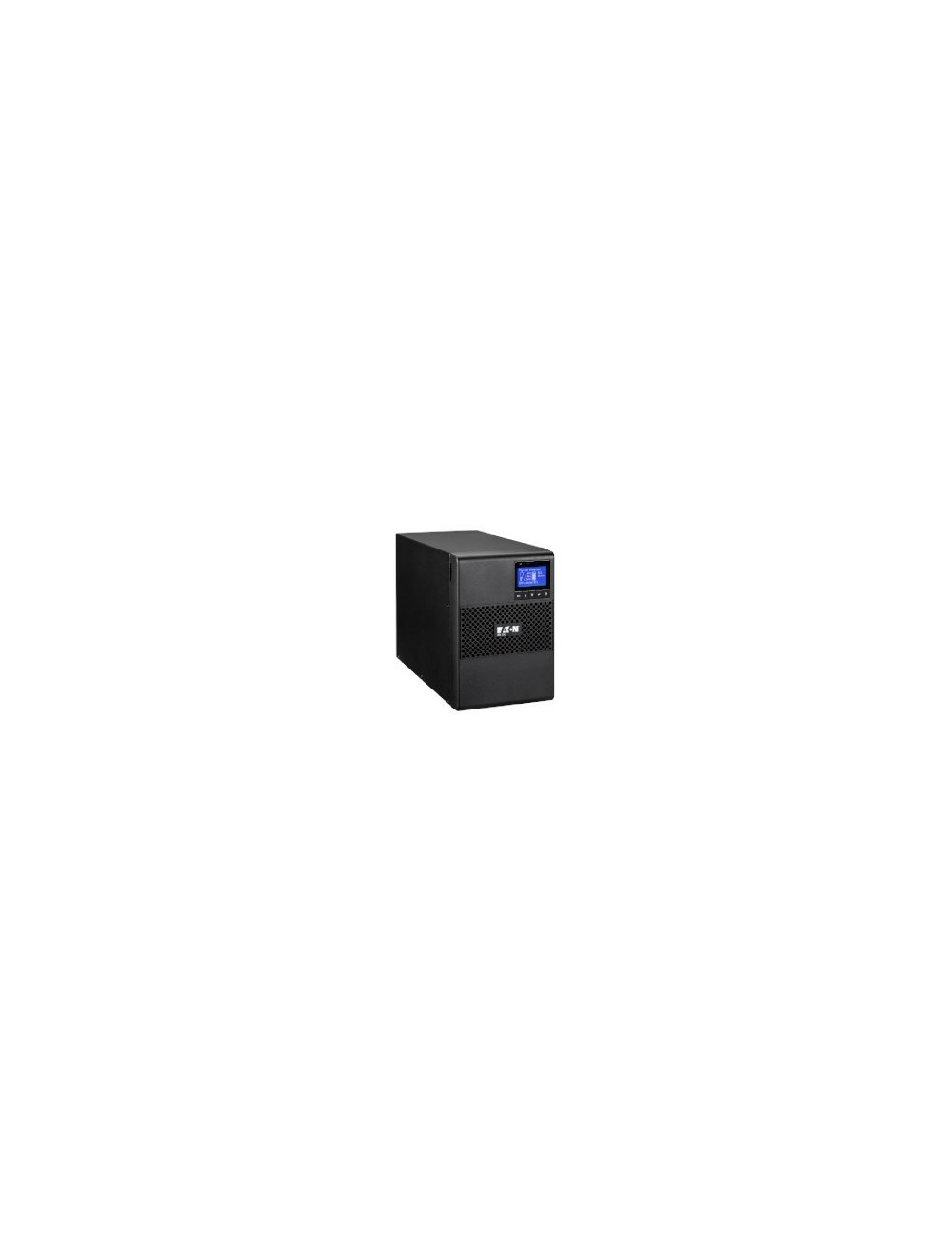

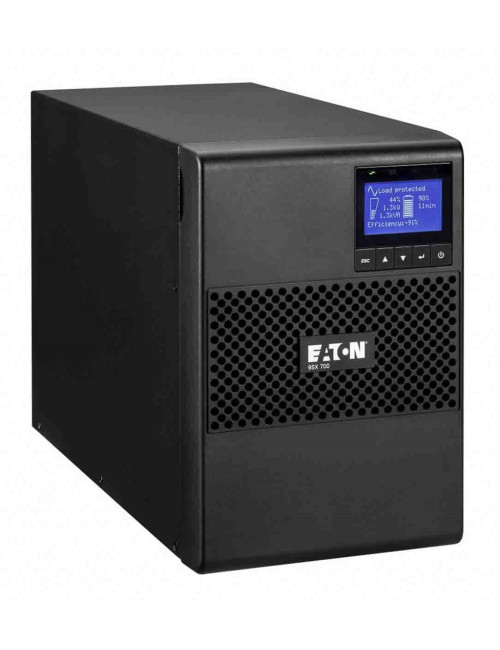

Eaton USV 9SX700i 700VA/ 630W USB/RS232

Product Details

Reference WLONONWCRFUAF

In stock 2 Items

Data sheet

Width

160 mm

Height

252 mm

Depth

357 mm

Weight

11.5 kg

Operating temperature (T-T)

0 - 40 °C

Form factor

Mini tower

USB port

Yes

Battery technology

Sealed Lead Acid (VRLA)

Output power

630 W

Input frequency

40/70 Hz

USB 2.0 ports quantity

1

Display type

LCD

Input operation voltage (min)

120 V

AC outlets quantity

6 AC outlet(s)

Output power capacity

0.7 kVA

Output operation voltage (max)

240 V

Waveform

Pure sine

AC outlet types

C13 coupler

Input operation voltage (max)

276 V

Output operation voltage (min)

200 V

UPS topology

Double-conversion (Online)

Automatic battery test

Yes

Typical backup time at half load

14 min

Nominal input voltage

230 V

Nominal output voltage

230 V

RS-232 ports

1

Output frequency

50/60 Hz

Noise Level

40 dB

Power plug

C14 coupler

Product colour

Black

Harmonized System (HS) code

85078000

Safety

IEC/EN 62040-1, UL 1778, CSA 22.2

Serial interface

Yes

ECO mode

No

Hot-swap battery

Yes

Power factor

0.9

Number of input phases

1

Number of output phases

1

Input connection type

IEC C14

Management card included

No
