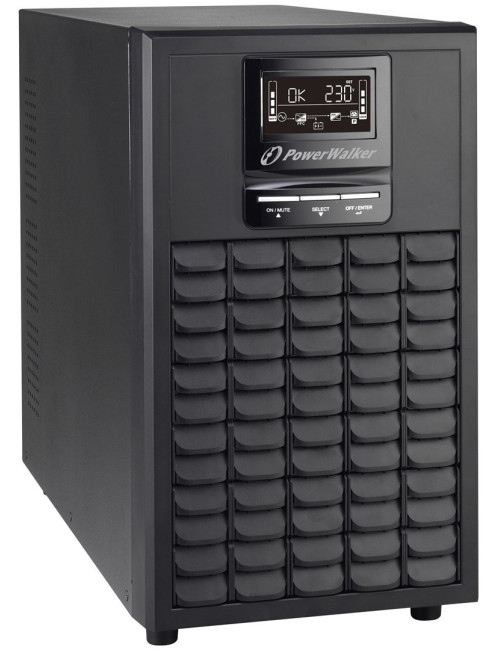

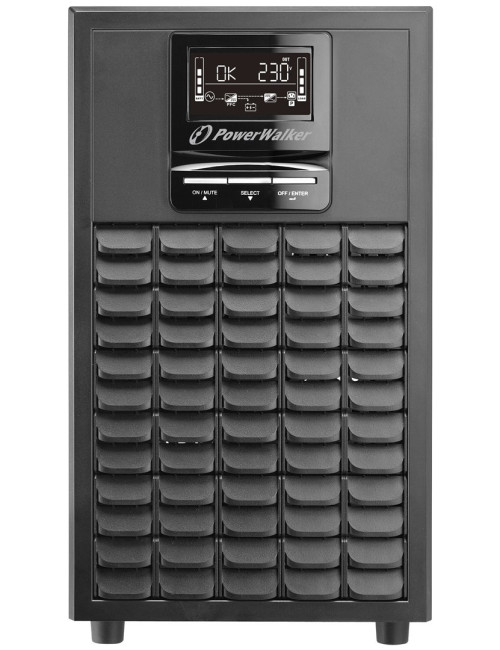

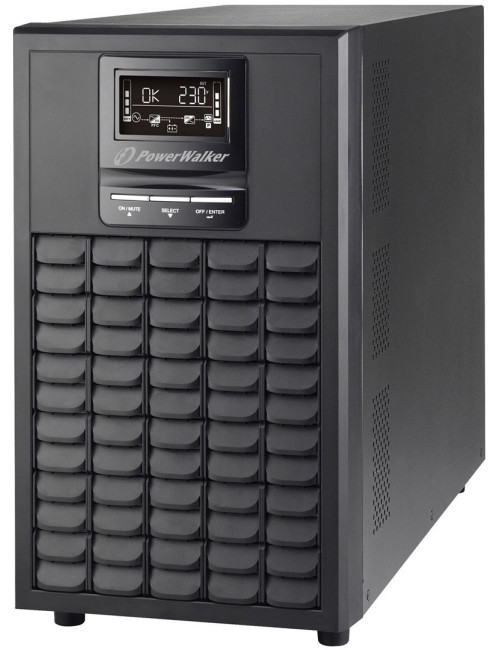

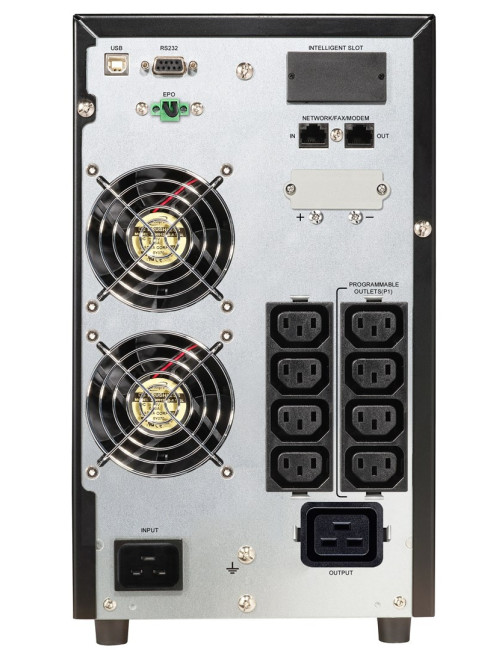

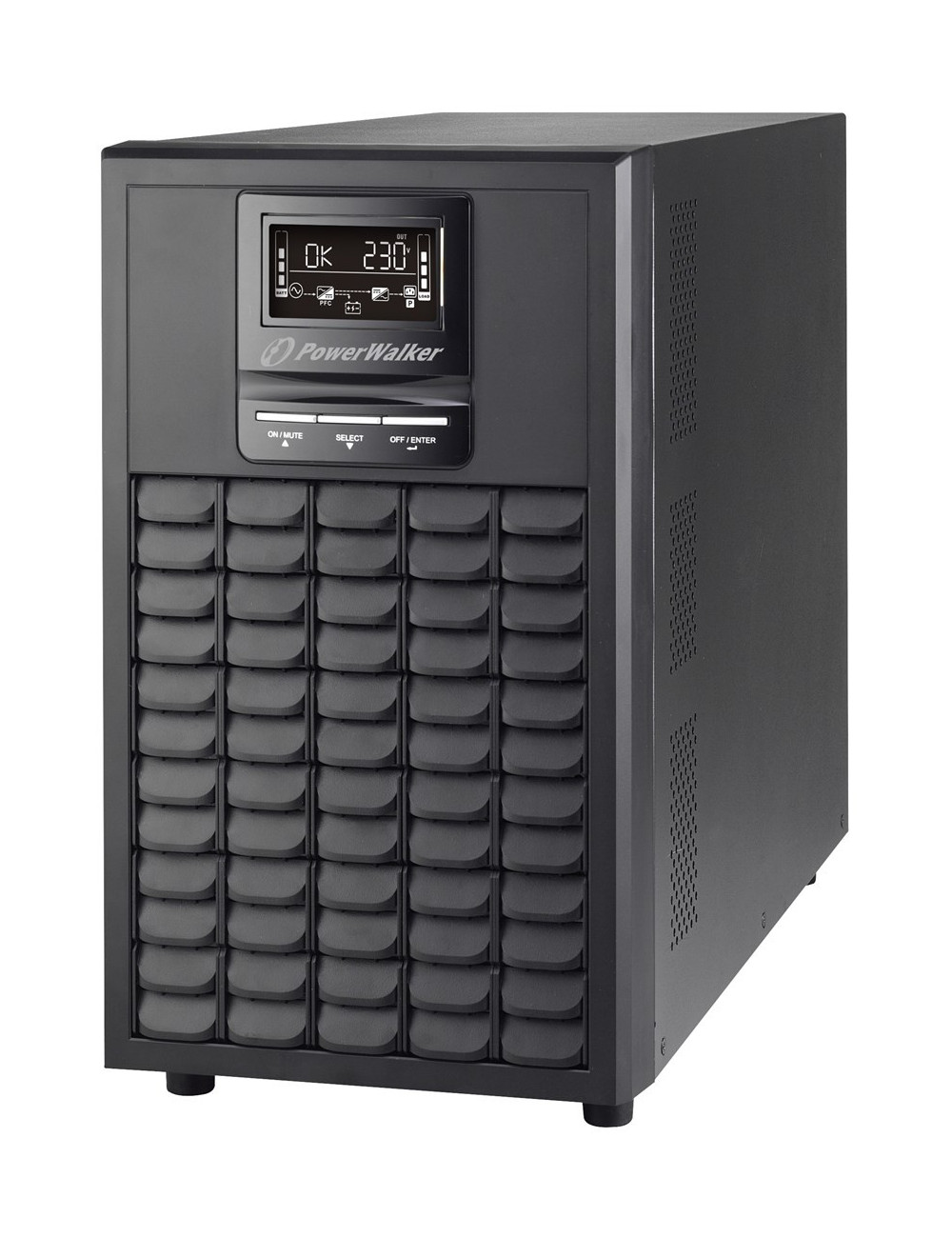

PowerWalker VFI 3000 CG PF1 Double-conversion (Online) 3 kVA 3000 W 9 AC outlet(s)

Product Details

Data sheet

Package type

Box

Width

190 mm

Height

318 mm

Depth

421 mm

Weight

28 kg

Package height

325 mm

Package width

230 mm

Number of batteries supported

3

Cables included

Input power cable, Output power cable, USB cable

Manual

Yes

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 95%

Form factor

Tower

USB port

Yes

Battery capacity

9 Ah

Battery recharge time

6 h

Cooling type

Active

Output power

3000 W

Input frequency

40/70 Hz

Display type

LCD

Efficiency

89%

Input operation voltage (min)

110 V

AC outlets quantity

9 AC outlet(s)

Output power capacity

3 kVA

Output operation voltage (max)

240 V

AC outlet types

C13 coupler

Input operation voltage (max)

300 V

Battery voltage

12 V

Output operation voltage (min)

200 V

UPS topology

Double-conversion (Online)

Typical backup time at full load

3 min

Warranty card

Yes

Typical backup time at half load

10.1 min

Surge protection

Yes

Output voltage regulation

1%

Serial interface type

RS-232

Noise Level

50 dB

Power plug

C20 coupler

Product colour

Black

Harmonized System (HS) code

85078000

Serial interface

Yes

Output voltage Total Harmonic Distortion (THD)

2%

Power factor

0.99

Surge protection features

Fax

Crest factor

3:1

Emergency Power Off (EPO)

Yes

Resource CD

Yes

Emergency Power Off (EPO) connector

Yes

Input current Total Harmonic Distortion (THD)

1.6%
