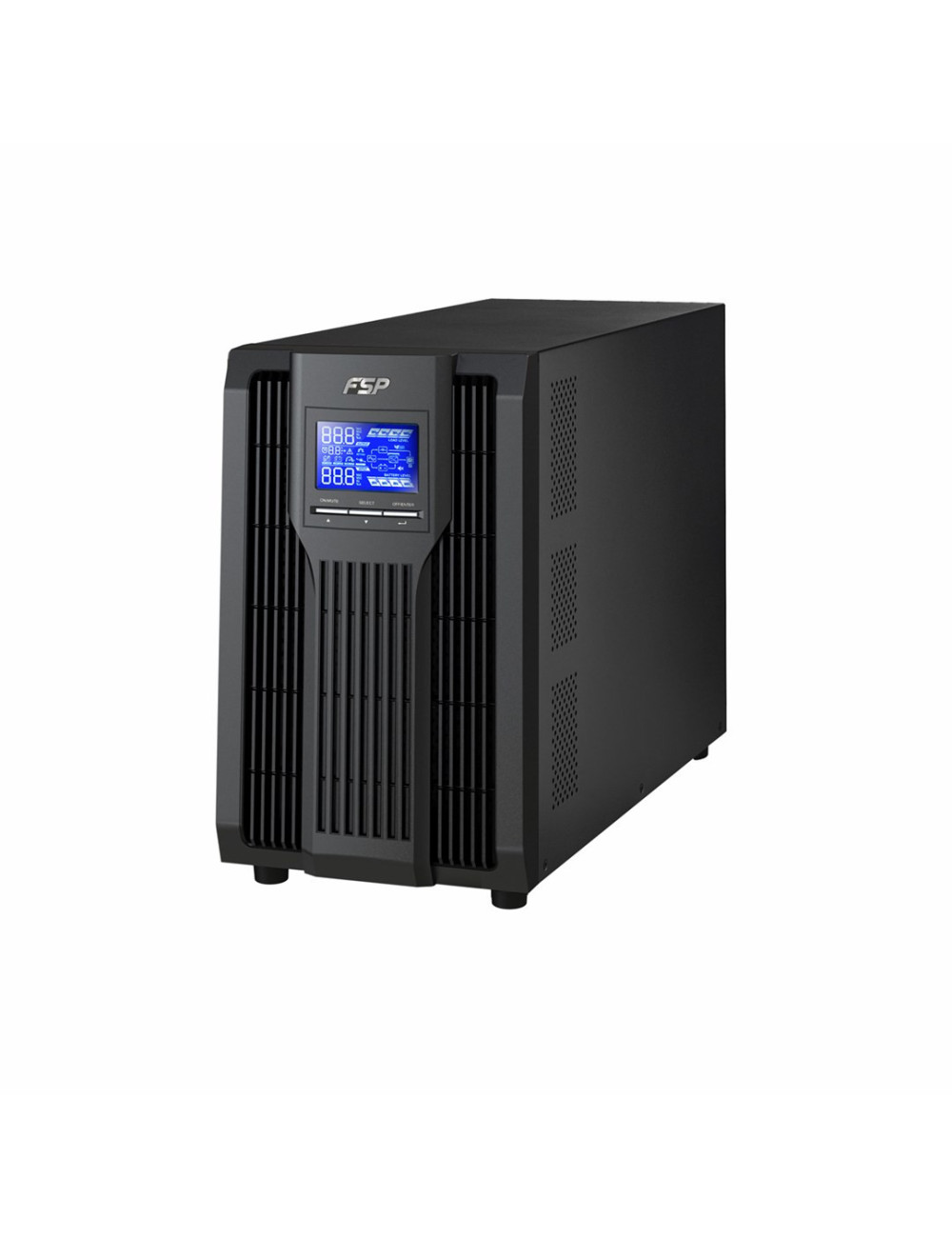

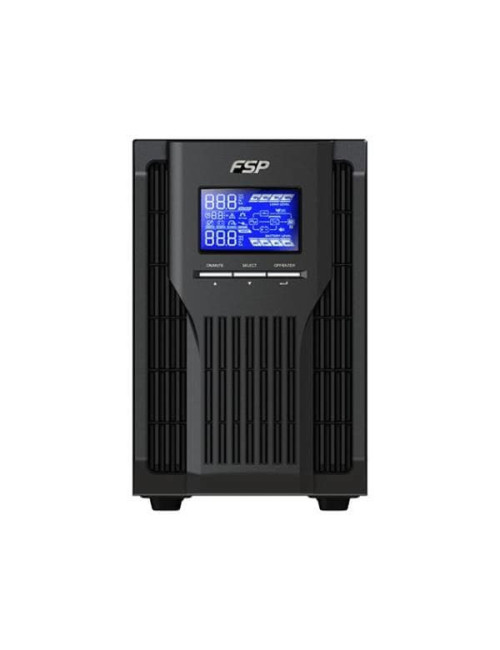

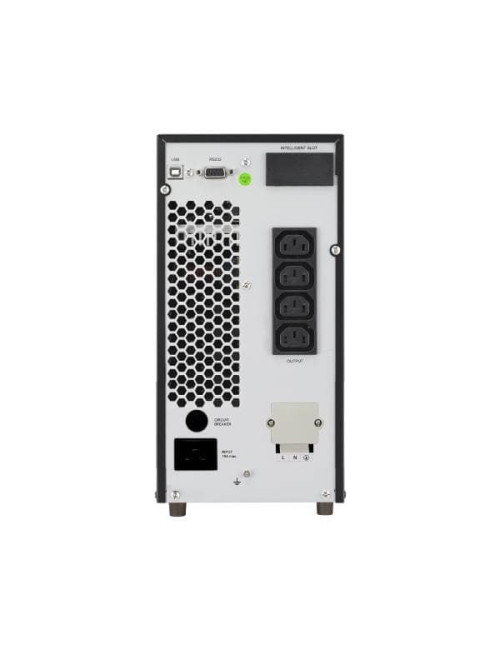

FSP/Fortron USV Champ 3kVA Tower online 2700W IEC

Product Details

Data sheet

Width

190 mm

Height

318 mm

Depth

421 mm

Weight

27.6 kg

Batteries included

Yes

Cables included

Input power cable, USB cable

Manual

Yes

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 90%

Form factor

Tower

USB port

Yes

LED indicators

Yes

Battery capacity

9 Ah

Control type

Buttons

Output power

2700 W

Input frequency

40 - 70 Hz

USB 2.0 ports quantity

1

Response time

0 ms

Display type

LCD

Number of battery cells

6

Input operation voltage (min)

120 V

Output power capacity

3 kVA

Output operation voltage (max)

240 V

Waveform

Sine

AC outlet types

C13 coupler

Input operation voltage (max)

300 V

Audible alarm(s)

Yes

Battery voltage

12 V

Output operation voltage (min)

200 V

UPS topology

Double-conversion (Online)

Typical backup time at full load

3.5 min

Typical backup time at half load

9.8 min

Output voltage regulation

1%

RS-232 ports

1

Serial interface type

RS-232

Output frequency

47/63 Hz

Noise Level

50 dB

Product colour

Black

Harmonized System (HS) code

85078000

Software CD

Yes

Serial interface

Yes

USB port type

USB Type-B

Total Harmonic Distortion (THD) (non-linear load)

6%

Audible alarm modes

Alarm when on battery, Fault, Low battery alarm, Overload alarm

Power factor

0.99

Number of output IEC jumpers

4

Crest factor

3:1

Battery recharge time (90%)

4 h

Total Harmonic Distortion (THD) (linear load)

3%
