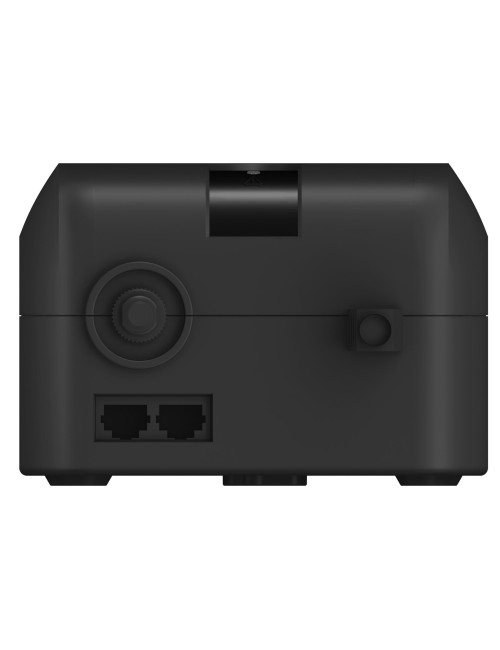

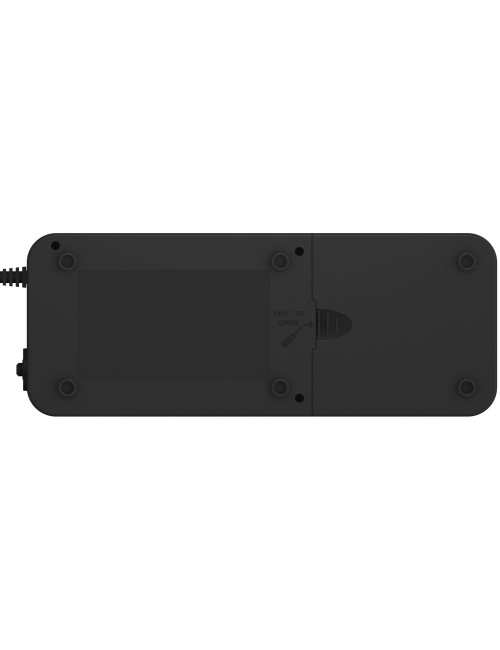

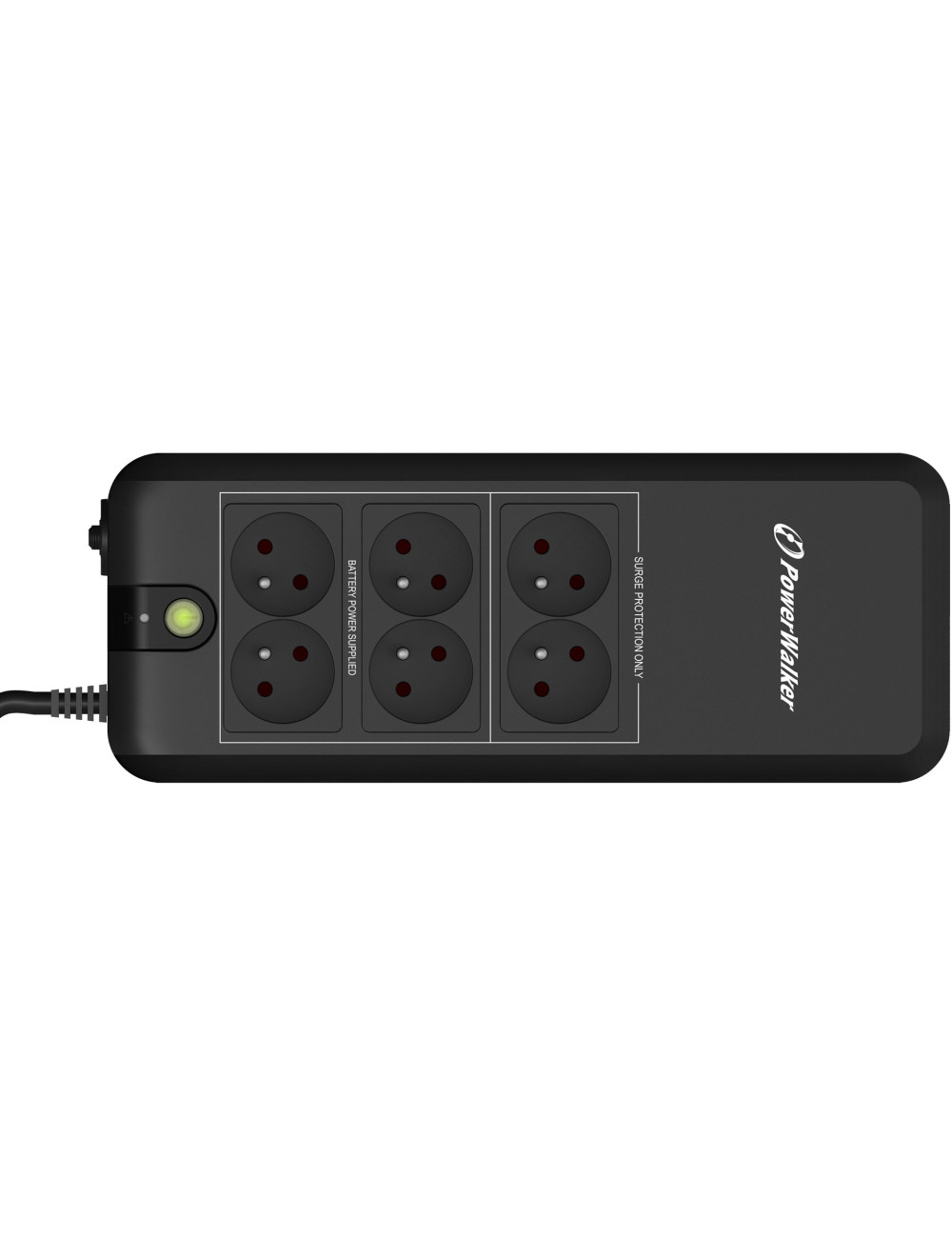

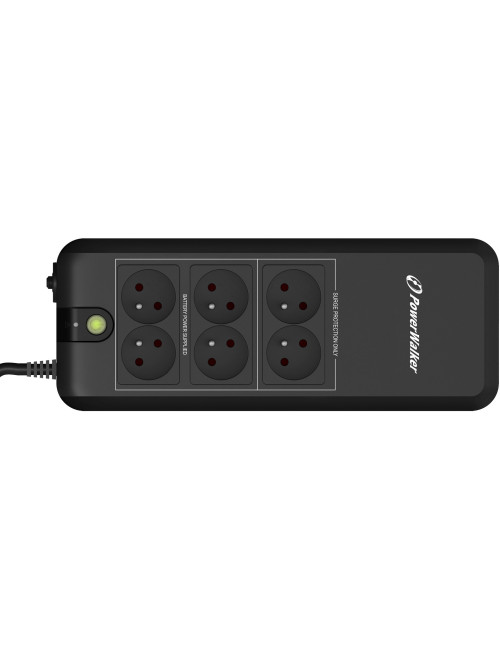

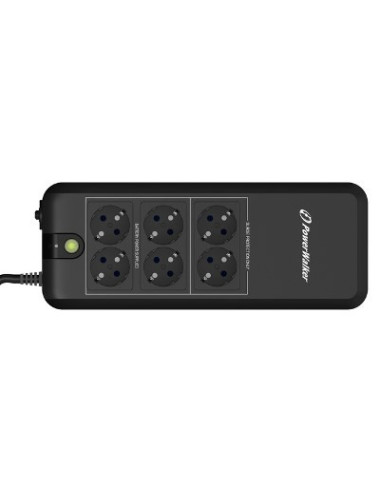

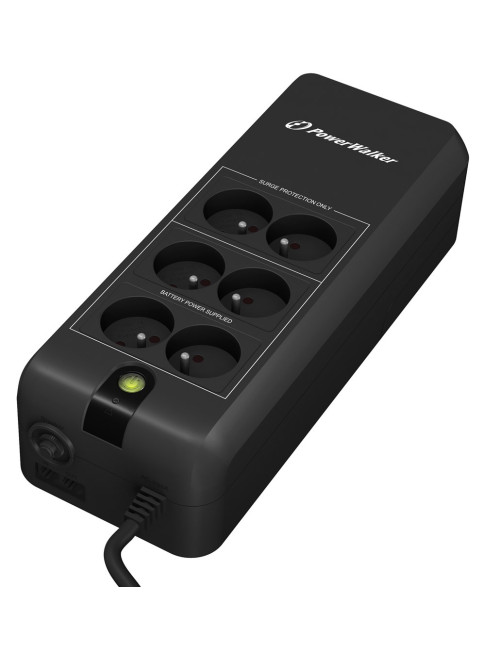

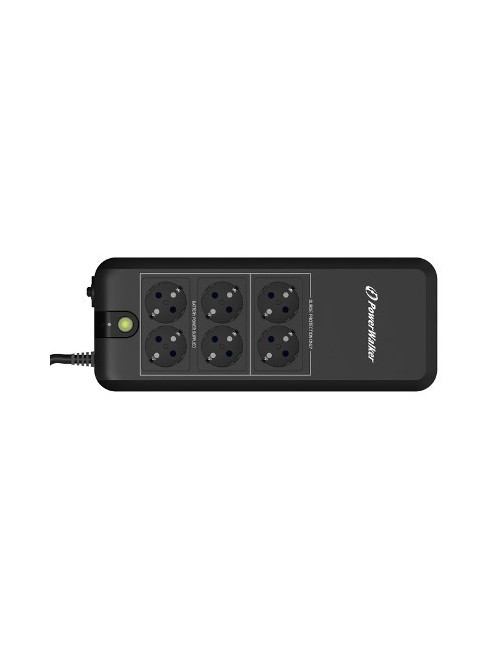

PowerWalker VFD 600 APFC FR Standby (Offline) 0.6 kVA 300 W 6 AC outlet(s)

Product Details

Data sheet

Width

125 mm

Height

86 mm

Depth

320 mm

Weight

2.8 kg

Package depth

152 mm

Package height

90 mm

Package width

378 mm

Package weight

3.15 kg

Number of batteries supported

1

Manual

Yes

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 85%

LED indicators

Yes

Battery capacity

5 Ah

Output power

300 W

Input frequency

50/60 Hz

Ethernet LAN (RJ-45) ports

2

Efficiency

95%

Input operation voltage (min)

170 V

AC outlets quantity

6 AC outlet(s)

Output power capacity

0.6 kVA

Output operation voltage (max)

240 V

Waveform

Sine

AC outlet types

Type E

Input operation voltage (max)

280 V

Audible alarm(s)

Yes

Battery voltage

12 V

Output operation voltage (min)

220 V

UPS topology

Standby (Offline)

Typical backup time at full load

2 min

Typical backup time at half load

8 min

Output frequency regulation

2 Hz

Output voltage regulation

20%

Harmonized System (HS) code

85078000

Products per pallet

144 pc(s)

Audible alarm modes

Alarm when on battery, Fault, Low battery alarm, Overload alarm

Output power factor

0.5

Battery recharge time (90%)

10 h
