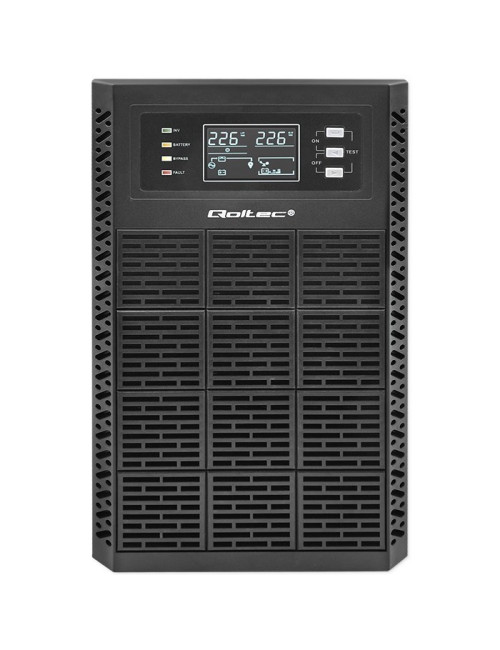

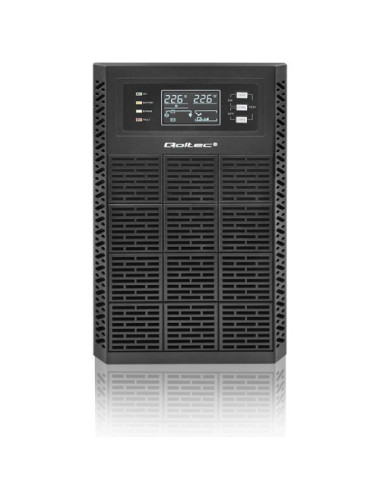

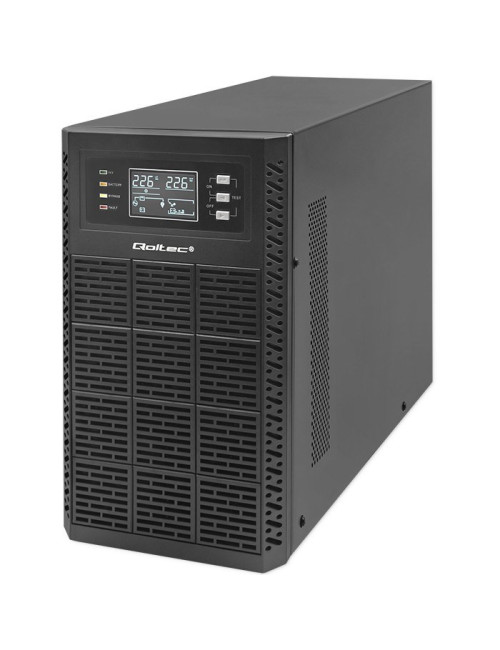

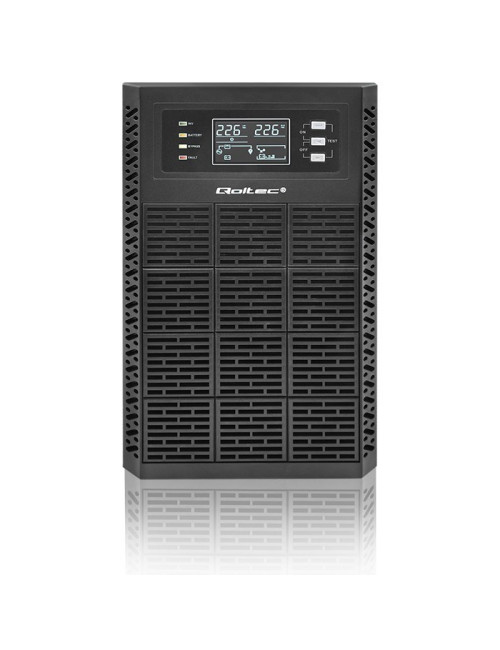

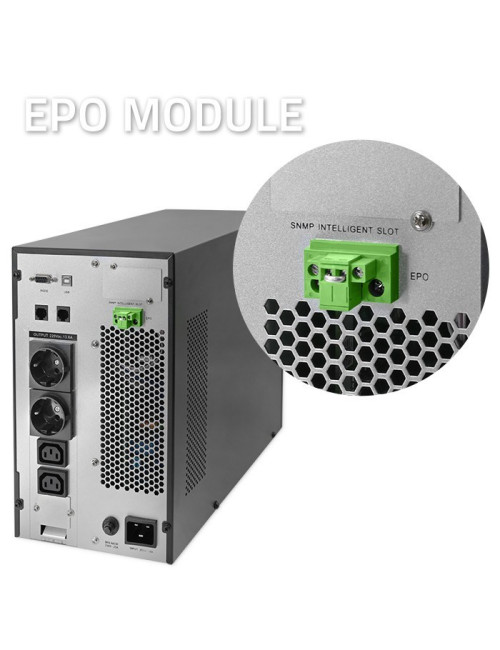

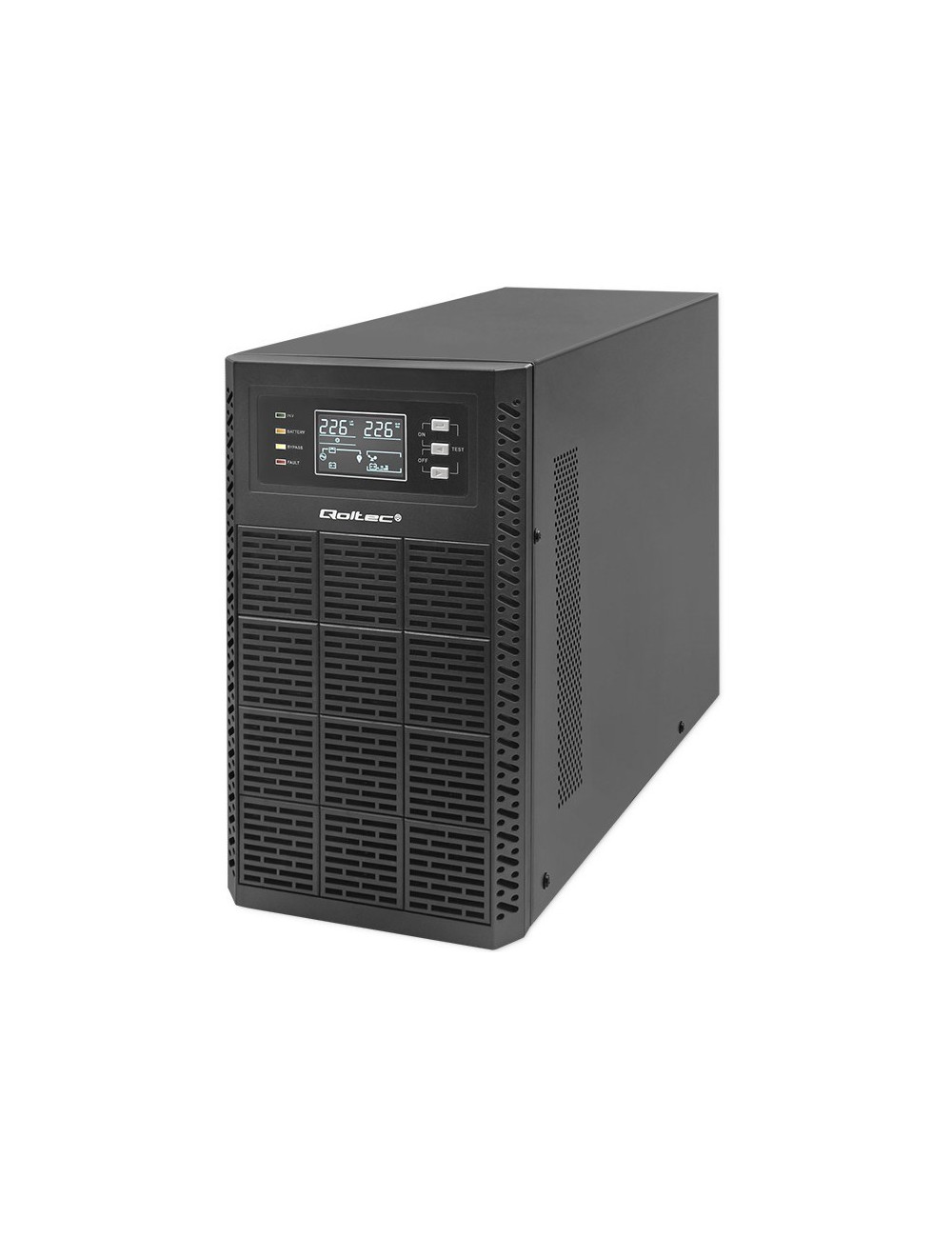

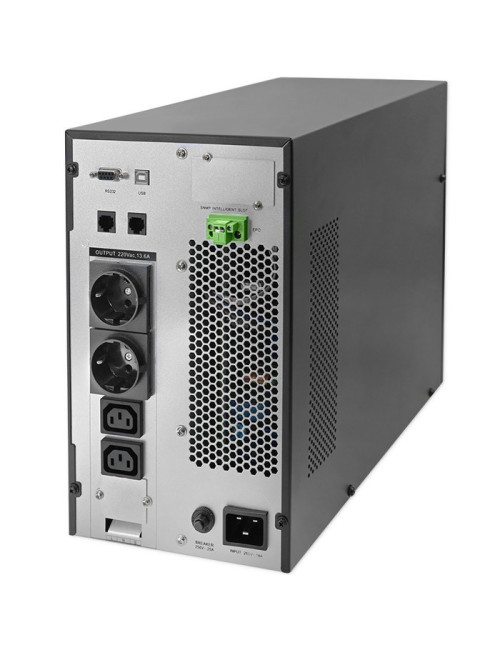

Qoltec Uninterruptible Power Supply (UPS) | 3kVA | 3000W | Power Factor 1.0 | LCD | EPO | USB | Online

€404.18

Tax included

Product Details
Quick Compare

Product Details

Brand Qoltec

Reference WLONONWCROFF8

In stock 59 Items

Data sheet

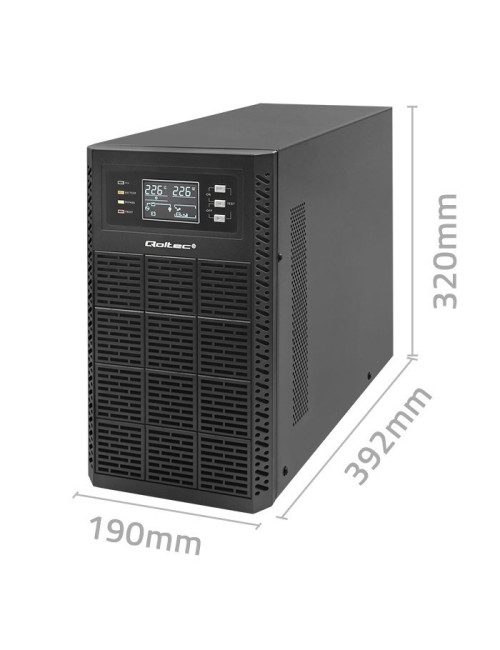

Width: 190 mm
Height: 320 mm
Depth: 392 mm
Weight: 20.5 kg
Package height: 445 mm
Package width: 425 mm
Storage relative humidity (H-H): 20 - 95%
Manual: Yes
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 60 °C

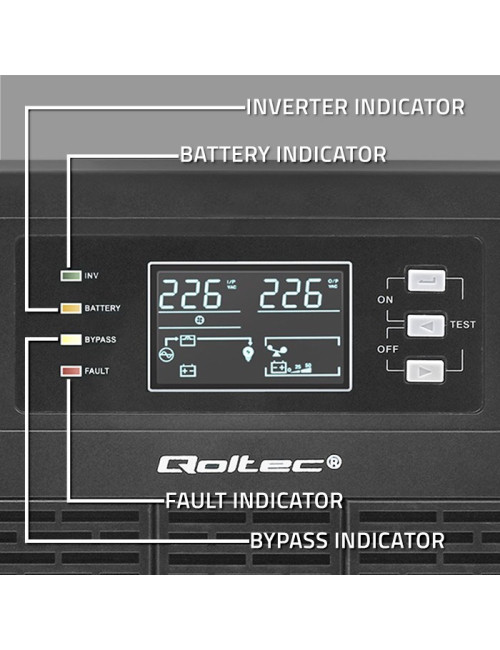

LED indicators: Alarm
Battery capacity: 7 Ah
Battery recharge time: 6 h
Output power: 3000 W
Input frequency: 50/60 Hz
Input operation voltage (min): 110 V
Power protection features: Overload
Cold start: Yes

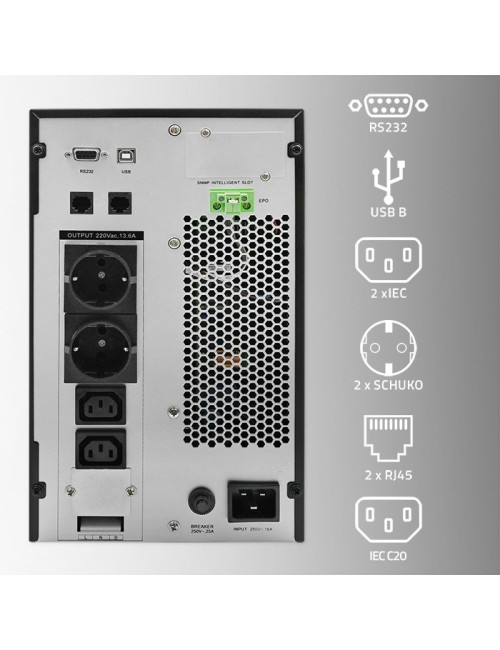

AC outlets quantity: 3 AC outlet(s)
Output power capacity: 3 kVA
Output operation voltage (max): 220 V
Waveform: Pure sine
AC outlet types: IEC 320 C19
Input operation voltage (max): 300 V
Battery voltage: 12 V
Output operation voltage (min): 230 V
UPS topology: Double-conversion (Online)
Automatic Voltage Regulation (AVR): Yes
Output frequency: 50 Hz
Noise Level: 50 dB
Product colour: Black
Power factor: 1
Number of output IEC jumpers: 3
Number of type F outputs: 2

Quick Compare

Product	Eaton UPS Ellipse PRO 1600 DIN \| Eaton	UPS UNINTERRUPTIBLE POWER SUPPLY Armac Rack 1000VA ON-LINE PF1 Dust Free	PowerWalker VI 1000 RLP Line-Interactive 1 kVA 900 W 8 AC outlet(s)	APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 0.45 kVA 280 W 4 AC outlet(s)
Availability
Price	€393.63	€397.00	€398.24	€399.70
Description	Eaton UPS Ellipse PRO 1600 DIN \| Eaton
Warranty	36 month(s)
Net weight	11.30 kg
Gross weight	11.80 kg
WEEE tax	Yes
Packing quantity	1.00 pc(s)
Volume (m3)	0.01 m
Tare weight (kg)	0.50 kg
Gross depth (mm)	280.00 mm
Gross width (mm)	90.00 mm
Gross height (mm)	400.00 mm
WEE classification	CL109:5:2017-04-01
Paper/Pasteboard	400.00 g
Embeeded battery	Yes
TI weight (kg)	9.00 kg
Width			438 mm	432 mm
Height			88 mm	44 mm
Depth			430 mm	383 mm
Plastic (No PET)	100.00 g
Composition of battery	CL127:KT:2016-12-09
Classification of battery	CL126:NE:2016-12-09
Type of battery	Accumulator
Weight			16 kg	10.2 kg
Package depth			550 mm
Package height			231 mm	164 mm
Package width			556 mm	476 mm
Package weight			18 kg
Number of batteries supported			2
Power source type			AC
Cables included				RS-232
Storage relative humidity (H-H)				0 - 95%
Manual				Yes
Operating temperature (T-T)			0 - 40 °C	0 - 40 °C
Operating relative humidity (H-H)			5 - 90%	0 - 95%
Storage temperature (T-T)				-15 - 45 °C
Form factor			Rackmount/Tower	Rackmount/Tower
USB port			Yes
LED indicators			Yes	Battery replacement
Battery technology				Sealed Lead Acid (VRLA)
Battery life (max)				5 year(s)
Battery capacity			9 Ah	108 VAh
Palette Qty	85 pc(s)
Battery recharge time			4 h	5 h
Output power			900 W	280 W
Input frequency			45/65 Hz	50/60 Hz
Response time			6 ms
Display type			LCD
Input operation voltage (min)			165 V	151 V
Power protection features			Overload
Cold start			Yes
AC outlets quantity			8 AC outlet(s)	4 AC outlet(s)
Output power capacity			1 kVA	0.45 kVA
Waveform			Pure sine	Sine
Auto-restart				Yes
AC outlet types			C13 coupler	C13 coupler
Input operation voltage (max)			290 V	302 V
Audible alarm(s)				Yes
Battery voltage			12 V
UPS topology			Line-Interactive	Line-Interactive
Typical backup time at full load			2 min	5.9 min
Off-mode charging			Yes
Automatic Voltage Regulation (AVR)			Yes	Yes
Automatic battery test				Yes
Typical backup time at half load			8 min	19.4 min
Surge protection				Yes
Nominal output voltage			230 V	230 V
Output voltage regulation			10%
RS-232 ports			1
Operating altitude				0 - 3000 m
International Protection (IP) code			IP20
Serial interface type				RS-232
Noise Level			40 dB	38 dB
Serial ports quantity				1
Surge energy rating				320 J
Power plug			C14 coupler	C14 coupler
Non-operating altitude				0 - 15000 m
Product colour			Black	Grey
Harmonized System (HS) code				85078000
Serial interface				Yes
USB port type			USB Type-B
Charging current			6 A
Output voltage Total Harmonic Distortion (THD)			3%
Hot-swap battery				Yes
Producer	Eaton
Compliance certificates				RoHS
Total carbon footprint (kg of CO2e)				484.92
Audible alarm modes				Low battery alarm, Overload alarm
Hold time (max)				8 ms
Hold time (min)				4 ms
Surge protection features				Modem
Number of output IEC jumpers				2
SmartSlot			Yes	No
Emergency Power Off (EPO)			Yes
Rack capacity			2U	1U
Rack mount kit				Yes
Output power factor			0.9
Built-in fan			Yes
Number of input phases			1
Number of output phases			1
Efficiency (On-line mode)			98.8%
Efficiency (ECO mode)			82.3%
Management card included				No
Warnings			Use the appliance in well-ventilated areas to avoid overheating.	Do not disassemble the unit housing, there may be a risk of electric shock.
SmartConnect port				No
