DIGITUS

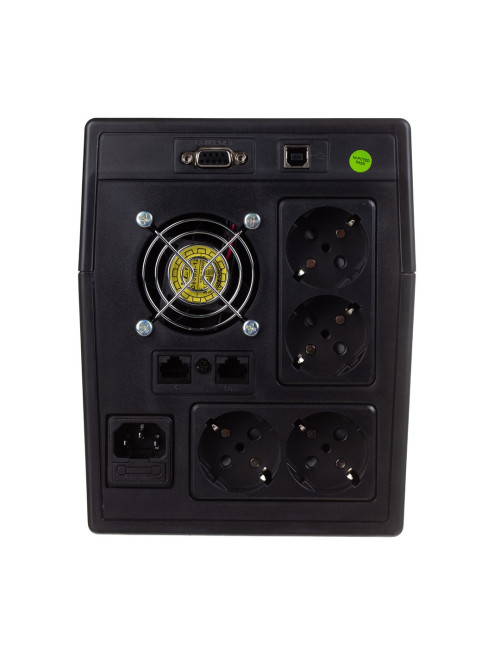

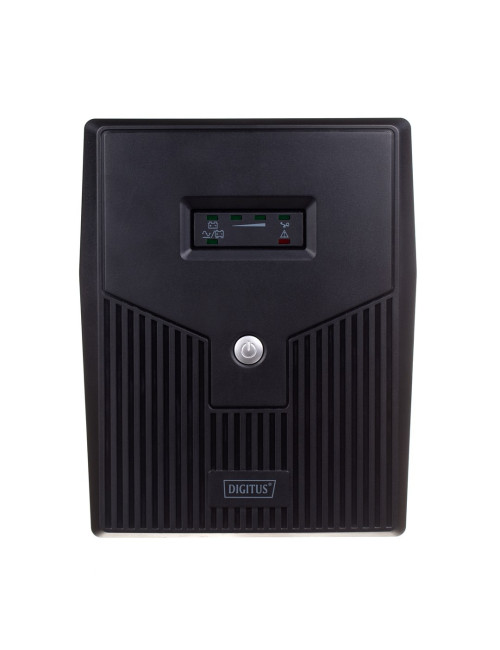

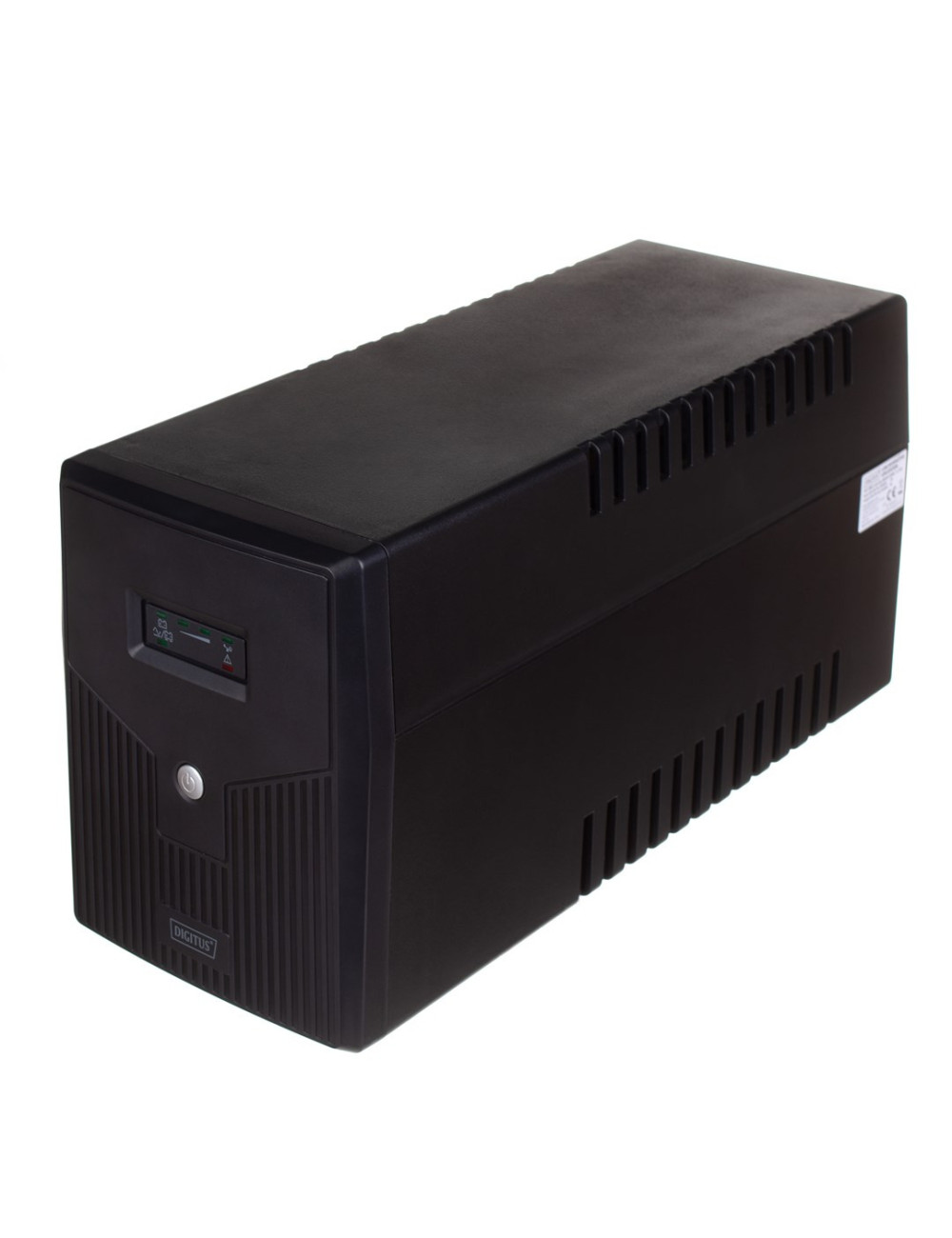

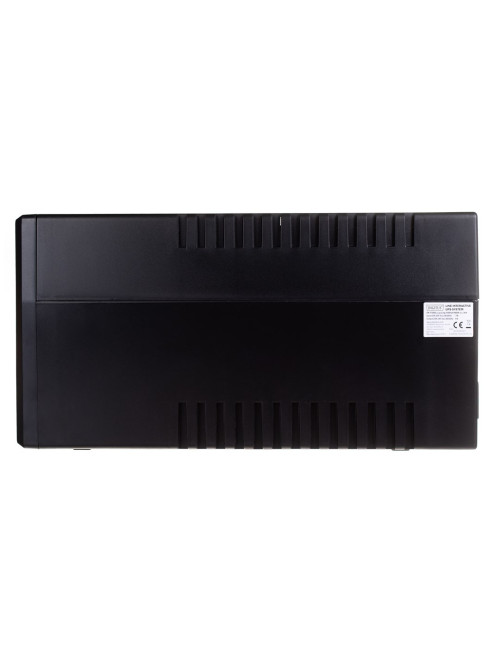

    Digitus DN-170066 uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 900 W

    €111.33
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    DIGITUS
    WLONONWCRATJE
    34 Items

    Data sheet

    Width
    158 mm
    Height
    198 mm
    Depth
    380 mm
    Weight
    10.1 kg
    Operating temperature (T-T)
    0 - 40 °C
    Operating relative humidity (H-H)
    0 - 95%
    Form factor
    Tower
    USB port
    Yes
    LED indicators
    Yes
    Battery capacity
    9 Ah
    Battery recharge time
    8 h
    Output power
    900 W
    Input frequency
    50/60 Hz
    USB 2.0 ports quantity
    1
    Response time
    6 ms
    Display type
    LED
    Ethernet LAN (RJ-45) ports
    2
    Input operation voltage (min)
    162 V
    Power protection features
    Overload
    Output power capacity
    1.5 kVA
    Output operation voltage (max)
    240 V
    Waveform
    Sine
    Auto-restart
    Yes
    AC outlet types
    Type E / F
    Input operation voltage (max)
    290 V
    Audible alarm(s)
    Yes
    Battery voltage
    12 V
    Output operation voltage (min)
    220 V
    UPS topology
    Line-Interactive
    Automatic Voltage Regulation (AVR)
    Yes
    Output voltage regulation
    10%
    RS-232 ports
    1
    Output frequency
    50 Hz
    Noise Level
    40 dB
    Product colour
    Black
    USB port type
    USB Type-B
    Audible alarm modes
    Battery replacement, Fault, Low battery alarm, Overload alarm
    Number of type F outputs
    4
    Warnings
    Do not disassemble the unit housing, there may be a risk of electric shock.
