APC Smart-UPS X 3000 Rack/Tower LCD -

Product Details

Reference WLONONWCRDZFH

In stock 10 Items

Data sheet

Cable length

1.83 m

Width

432 mm

Height

85 mm

Depth

667 mm

Weight

37.3 kg

Package depth

869 mm

Package height

243 mm

Package width

596 mm

Package weight

45.4 kg

Cables included

RS-232, USB cable

Storage relative humidity (H-H)

0 - 95%

Manual

Yes

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-15 - 45 °C

Form factor

Rackmount/Tower

LED indicators

Battery replacement

Battery technology

Sealed Lead Acid (VRLA)

Battery life (max)

5 year(s)

Battery capacity

738 VAh

Battery recharge time

3 h

Output power

2700 W

Input frequency

50/60 Hz

Efficiency

98.5%

AC outlets quantity

9 AC outlet(s)

Output power capacity

3 kVA

Output operation voltage (max)

240 V

Waveform

Sine

Auto-restart

Yes

AC outlet types

C19 coupler

Audible alarm(s)

Yes

Output operation voltage (min)

208 V

UPS topology

Line-Interactive

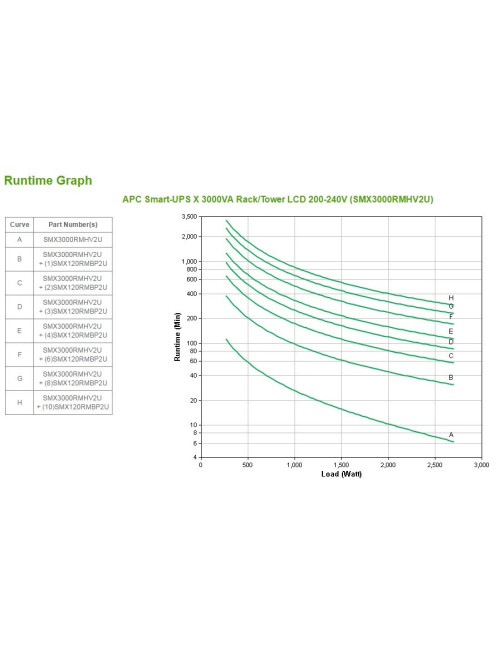

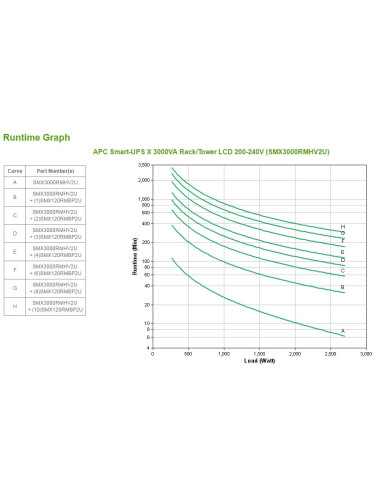

Typical backup time at full load

6.25 min

Automatic Voltage Regulation (AVR)

Yes

Automatic battery test

Yes

Typical backup time at half load

18 min

Surge protection

Yes

Nominal input voltage

230 V

Nominal output voltage

230 V

Output frequency regulation

50/60 Hz

Operating altitude

0 - 3000 m

Quick installation guide

Yes

Noise Level

55 dB

Surge energy rating

645 J

Power plug

C20 coupler

Non-operating altitude

0 - 15000 m

Product colour

Black

Harmonized System (HS) code

85078000

Sustainability certificates

Green Premium

Products per pallet

8 pc(s)

Software CD

Yes

Hot-swap battery

Yes

Compliance certificates

RoHS

Total carbon footprint (kg of CO2e)

2723.78

Hold time (max)

10 ms

Hold time (min)

2 ms

Number of output IEC jumpers

2

SmartSlot

Yes

Crest factor

3:1

Emergency Power Off (EPO)

Yes

Rack capacity

2U

Rack mount kit

Yes

Management card included

No

SmartConnect port

No
