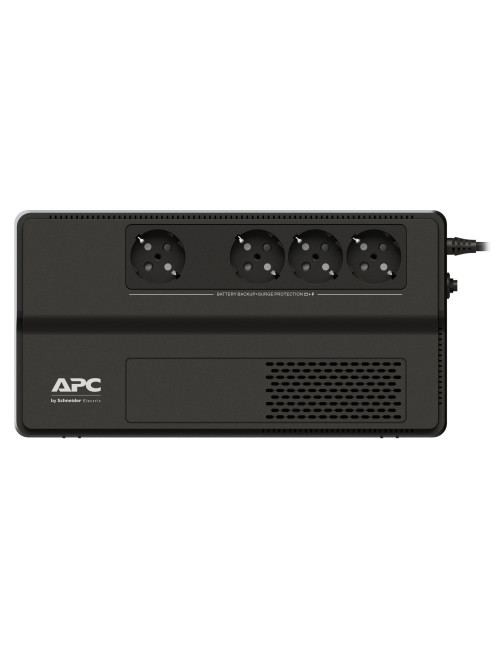

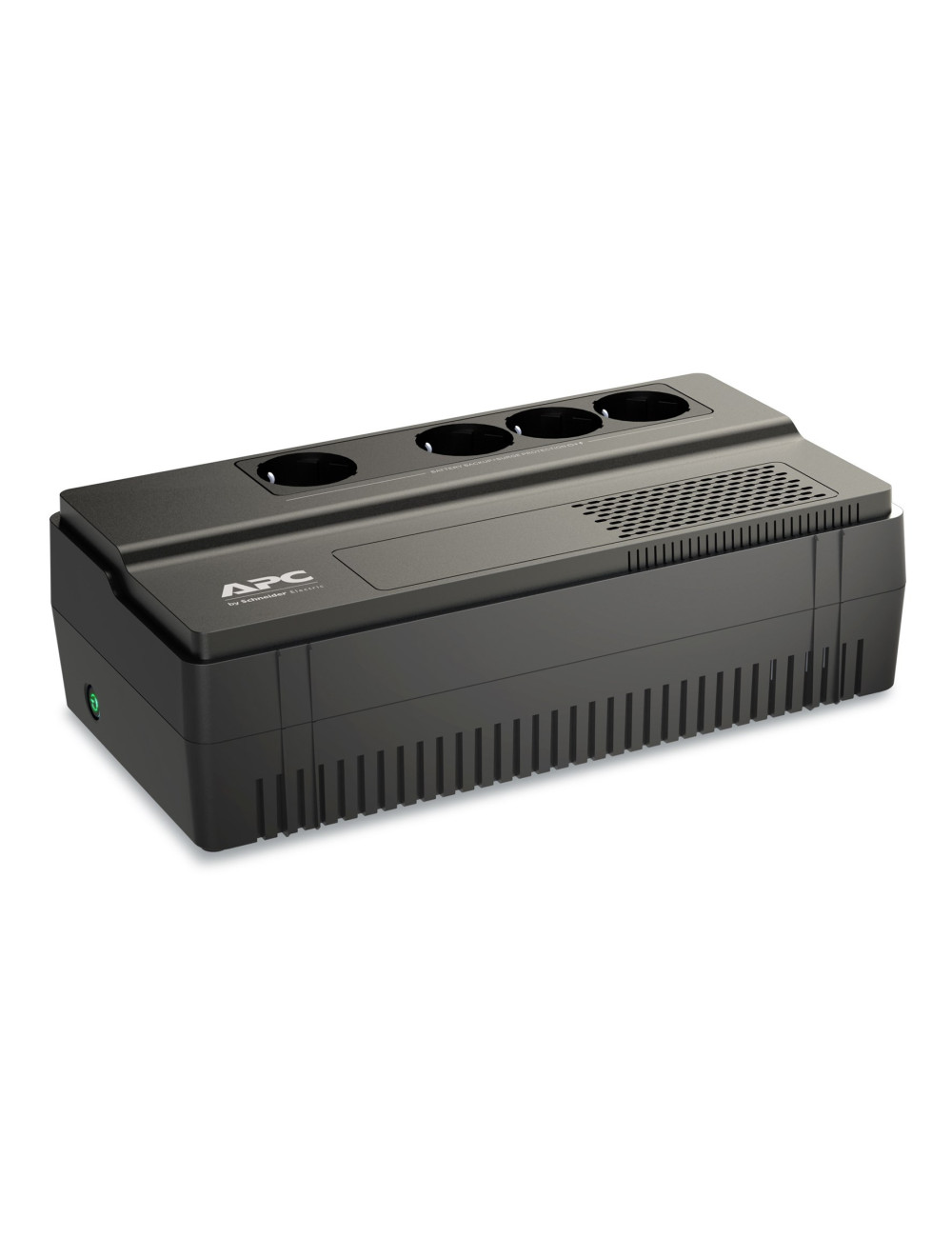

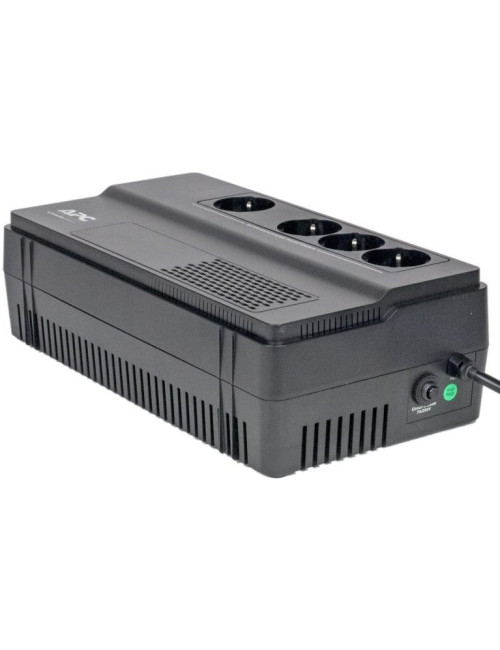

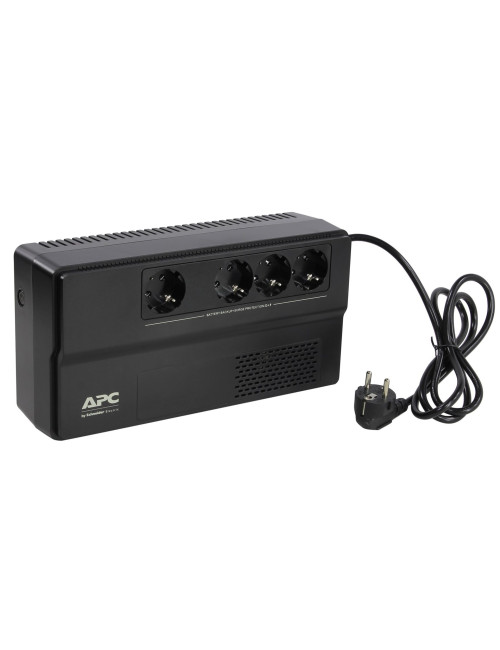

APC BV1000I-GR uninterruptible power supply (UPS) Line-Interactive 1 kVA 600 W 4 AC outlet(s)

Product Details

Reference ZSIAPCUPS0227

In stock 13 Items

Data sheet

Cable length

1.52 m

Width

160.5 mm

Height

92.5 mm

Depth

305 mm

Weight

5.7 kg

Package height

237 mm

Package width

373 mm

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 90%

Form factor

Compact

LED indicators

Yes

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

9 Ah

Battery recharge time

8 h

Output power

600 W

Input frequency

50/60 Hz

Input operation voltage (min)

170 V

Cold start

Yes

AC outlets quantity

4 AC outlet(s)

Output power capacity

1 kVA

Waveform

Sine

AC outlet types

Type F

Input operation voltage (max)

280 V

Audible alarm(s)

Yes

Battery voltage

12 V

UPS topology

Line-Interactive

Automatic Voltage Regulation (AVR)

Yes

Surge protection

Yes

Nominal output voltage

230 V

Operating altitude

0 - 2032.1 m

International Protection (IP) code

IP20

Output frequency

50/60 Hz

Noise Level

40 dB

Surge energy rating

156 J

Product colour

Black

Harmonized System (HS) code

85078000

Warranty period

2 year(s)

Compliance certificates

RoHS

Audible alarm modes

Alarm when on battery, Low battery alarm, Overload alarm

Number of input phases

1

Number of output phases

1

Transfer time (Line Mode to Battery Mode)

6 ms

Warnings

Do not disassemble the unit housing, there may be a risk of electric shock.
