POWER WALKER

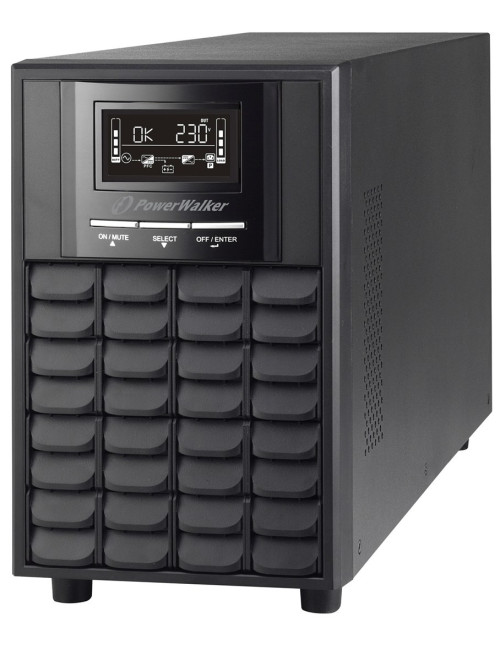

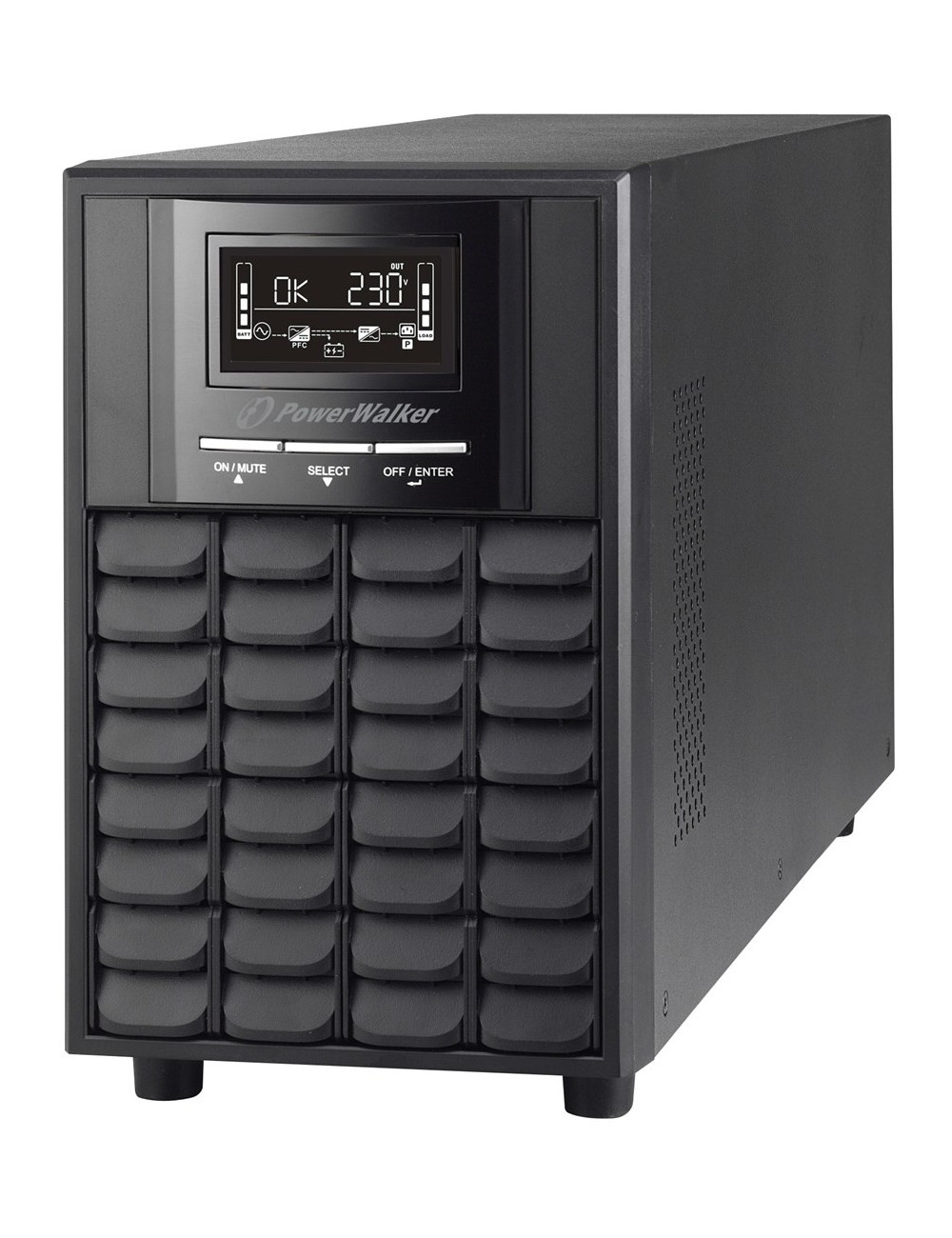

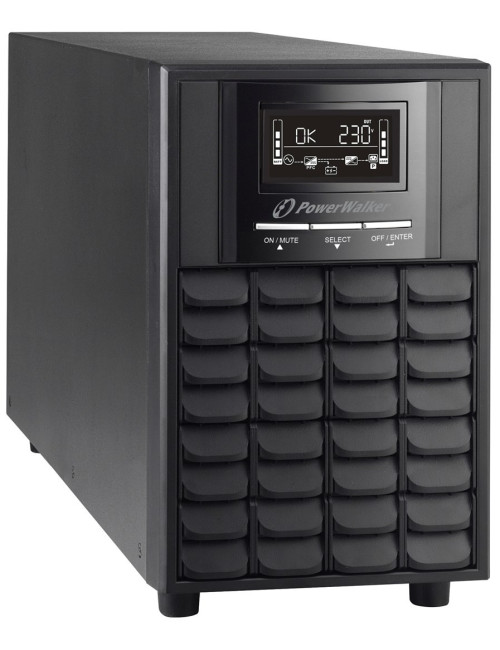

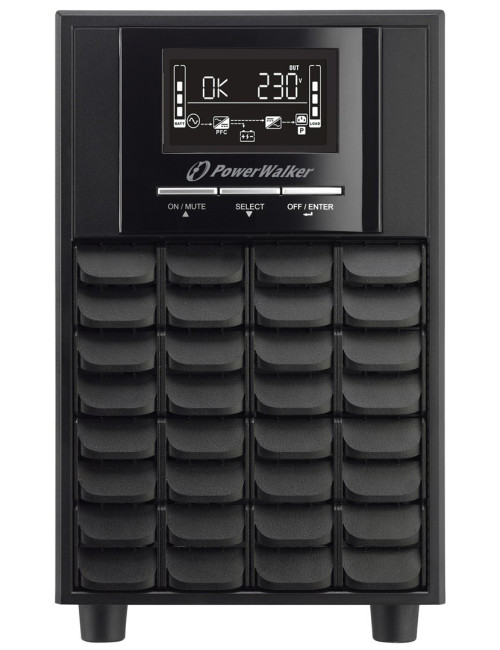

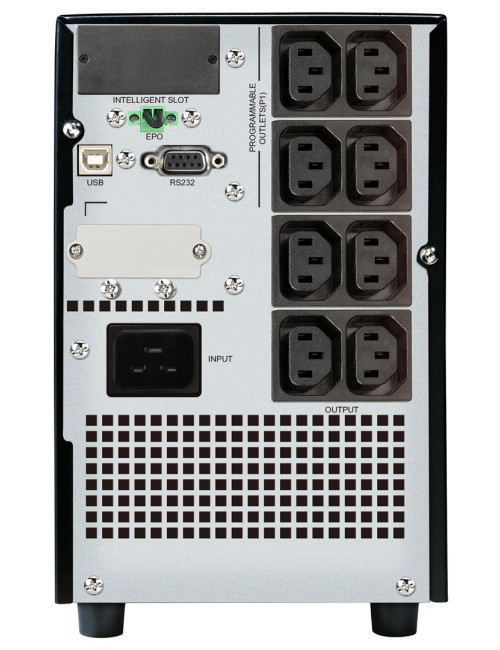

    Bluewalker UPS Powerwalker VI 3000 CW IEC 2100W Line-Int

    €466.49
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    POWER WALKER
    WLONONWCROSOX
    3 Items

    Data sheet

    Width
    145 mm
    Height
    220 mm
    Depth
    455 mm
    Weight
    22.3 kg
    Package depth
    540 mm
    Package height
    325 mm
    Package width
    235 mm
    Package weight
    22.3 kg
    Manual
    Yes
    Operating temperature (T-T)
    0 - 40 °C
    Operating relative humidity (H-H)
    20 - 95%
    Form factor
    Tower
    USB port
    Yes
    LED indicators
    Fault
    Battery capacity
    9 Ah
    Battery recharge time
    4 h
    Output power
    2100 W
    Input frequency
    50/60 Hz
    Response time
    10 ms

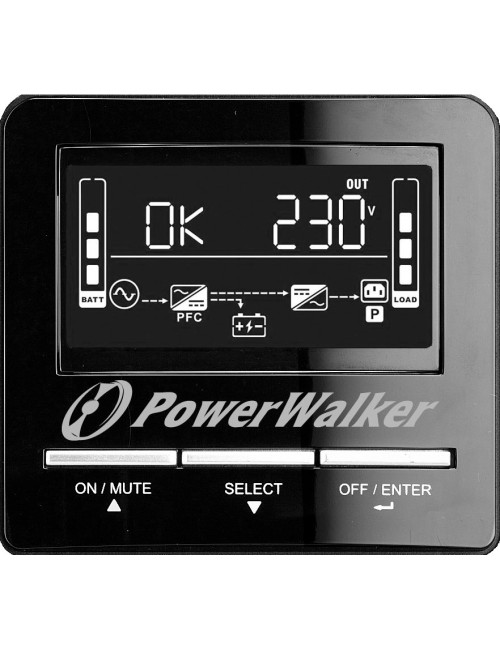

    Display type
    LCD
    Number of battery cells
    4
    Efficiency
    96%
    Input operation voltage (min)
    162 V
    AC outlets quantity
    8 AC outlet(s)
    Output power capacity
    3 kVA
    Output operation voltage (max)
    240 V
    Waveform
    Sine
    AC outlet types
    Type F
    Input operation voltage (max)
    290 V
    Audible alarm(s)
    Yes
    Battery voltage
    12 V
    Output operation voltage (min)
    208 V
    UPS topology
    Line-Interactive
    Typical backup time at full load
    2.3 min
    Typical backup time at half load
    9 min
    Output frequency regulation
    ±1 Hz
    RS-232 ports
    1
    Noise Level
    45 dB
    Maximum current
    1.4 A
    Power plug
    C14 coupler
    Product colour
    Black
    Harmonized System (HS) code
    85078000
    Charging current
    1.4 A
    Power factor
    0.7
    Crest factor
    3:1
    Emergency Power Off (EPO)
    Yes
    Emergency Power Off (EPO) connector
    Yes
    Efficiency (On-line mode)
    88%
