POWER WALKER

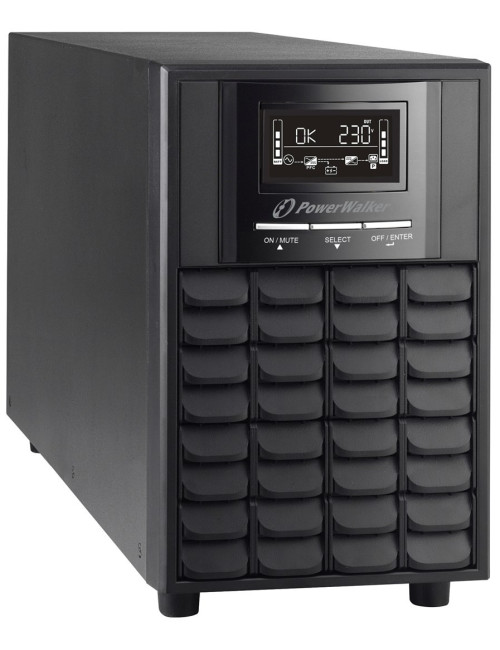

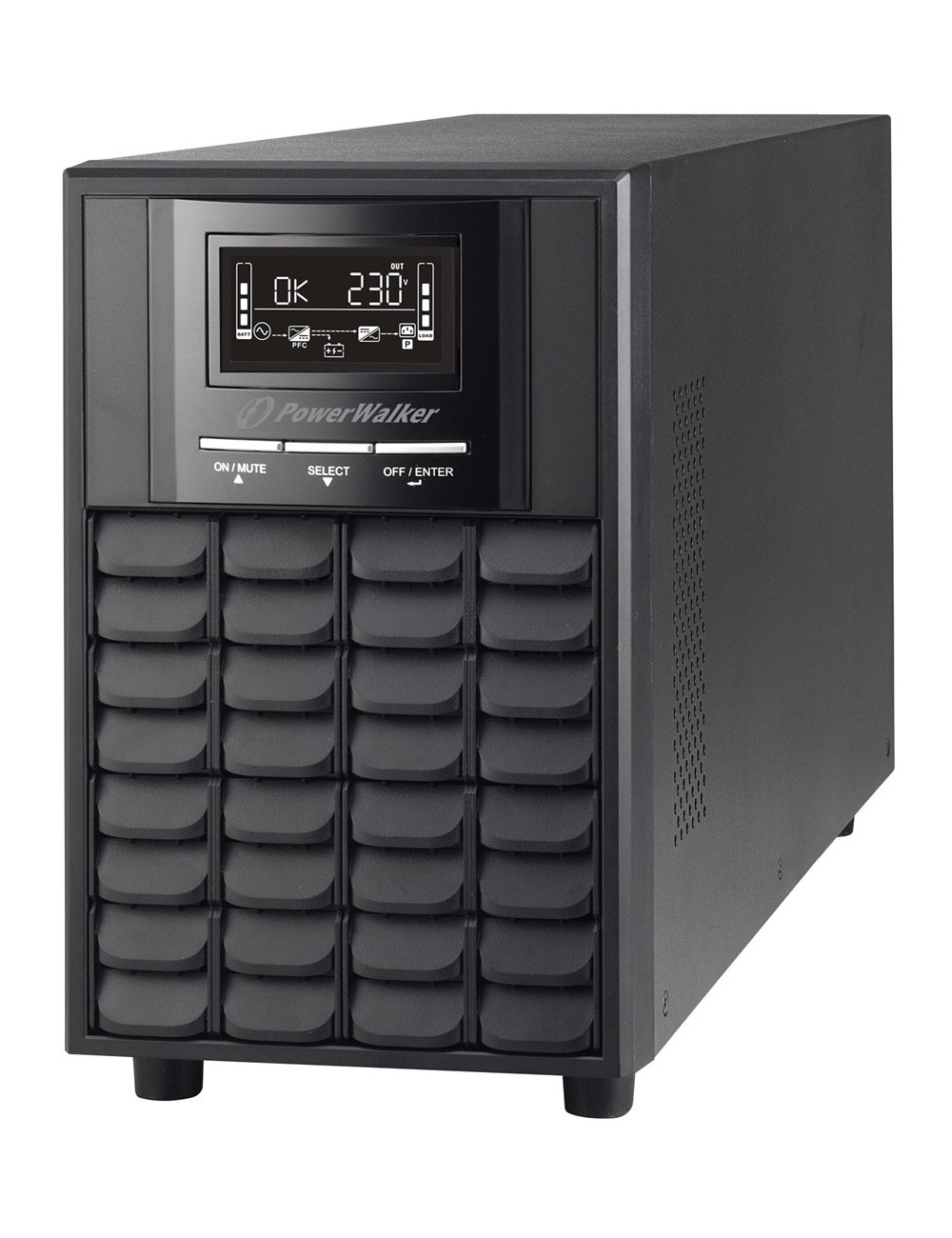

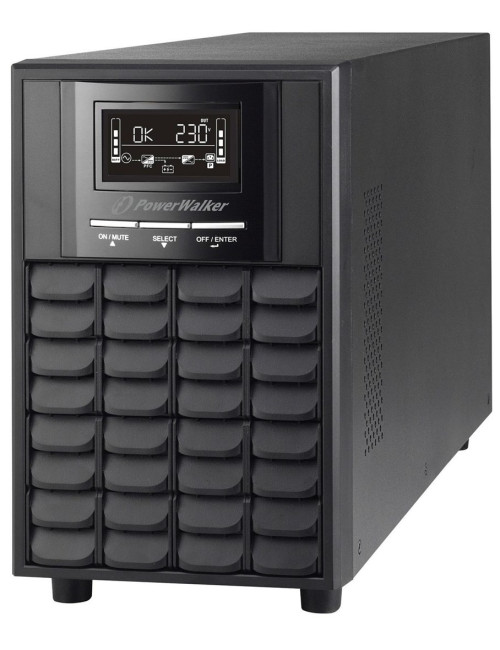

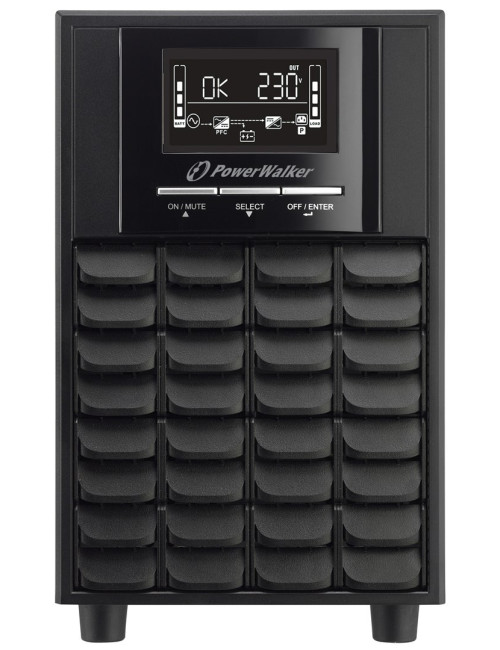

PowerWalker VI 3000 CW uninterruptible power supply (UPS) Line-Interactive 3 kVA 2100 W 8 AC outlet(s)

462,58 €

Su mokesčiais

Prekė detaliau
Greitas palyginimas

Prekė detaliau

Prekės ženklas POWER WALKER

Kodas WLONONWCROSOX

Yra sandėlyje 3 Prekės

Charakteristikos

Width: 145 mm
Height: 220 mm
Depth: 455 mm
Weight: 22.3 kg
Package depth: 540 mm
Package height: 325 mm
Package width: 235 mm
Package weight: 22.3 kg
Manual: Yes
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 95%
Form factor: Tower
USB port: Yes
LED indicators: Battery replacement
Battery capacity: 9 Ah
Battery recharge time: 4 h
Output power: 2100 W
Input frequency: 50/60 Hz
Response time: 10 ms

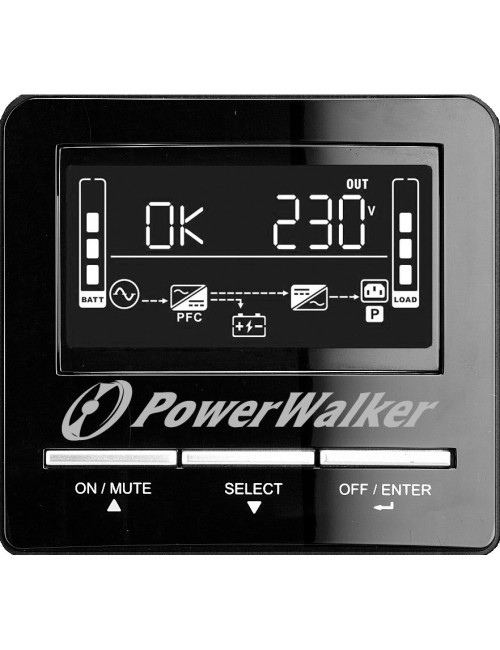

Display type: LCD
Number of battery cells: 4
Efficiency: 96%
Input operation voltage (min): 162 V

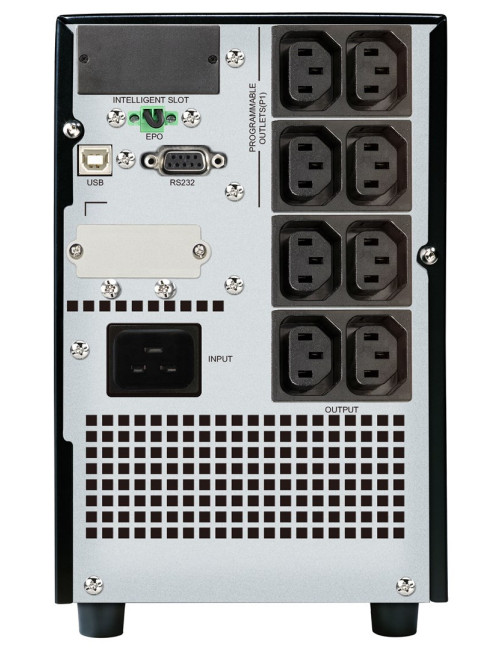

AC outlets quantity: 8 AC outlet(s)
Output power capacity: 3 kVA
Output operation voltage (max): 240 V
Waveform: Sine
AC outlet types: Type F
Input operation voltage (max): 290 V
Audible alarm(s): Yes
Battery voltage: 12 V
Output operation voltage (min): 208 V
UPS topology: Line-Interactive
Typical backup time at full load: 2.3 min
Typical backup time at half load: 9 min
Output frequency regulation: ±1 Hz
RS-232 ports: 1
Noise Level: 45 dB
Maximum current: 1.4 A
Power plug: C14 coupler
Product colour: Black
Harmonized System (HS) code: 85078000
Charging current: 1.4 A
Power factor: 0.7
Crest factor: 3:1
Emergency Power Off (EPO): Yes
Emergency Power Off (EPO) connector: Yes
Efficiency (On-line mode): 88%
