POWER WALKER

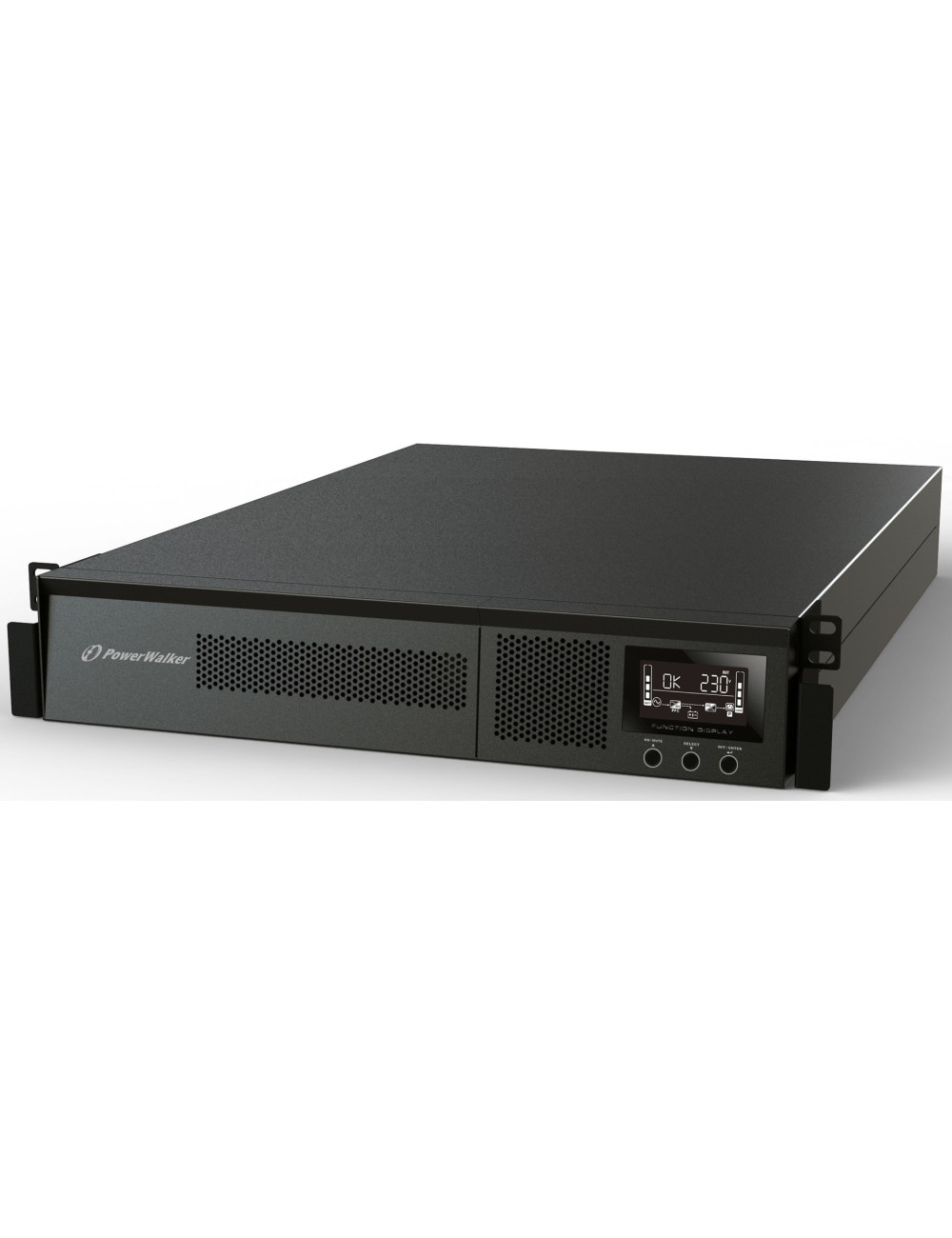

PowerWalker VFI 1000 RMG PF1 uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 1000 W

466,32 €

Su mokesčiais

Prekė detaliau
Greitas palyginimas

Prekė detaliau

Prekės ženklas POWER WALKER

Kodas WLONONWCRELJZ

Yra sandėlyje 4 Prekės

Charakteristikos

Package type: Box
Width: 438 mm
Height: 88 mm
Depth: 410 mm
Weight: 14.1 kg
Package depth: 560 mm
Package height: 180 mm
Package width: 500 mm
Package weight: 17.6 kg
Number of batteries supported: 3
Cables included: Input power cable, Output power cable, USB cable
Manual: Yes
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 95%
Form factor: Rackmount
USB port: Yes
Battery capacity: 7 Ah
Battery recharge time: 3 h
Output power: 1000 W
Input frequency: 40/70 Hz
USB 2.0 ports quantity: 1
Display type: LCD
Ethernet LAN (RJ-45) ports: 1
Input operation voltage (min): 110 V
Output power capacity: 1 kVA
Output operation voltage (max): 240 V
Waveform: Sine
AC outlet types: C13 coupler
Input operation voltage (max): 300 V
Battery voltage: 12 V
Output operation voltage (min): 200 V
UPS topology: Double-conversion (Online)
Modem (RJ-11) ports: 1
Typical backup time at full load: 4.5 min
Warranty card: Yes
Typical backup time at half load: 12.9 min
Surge protection: Yes
Output voltage regulation: 1%
RS-232 ports: 1
Serial interface type: RS-232
Noise Level: 50 dB
Power plug: C14 coupler
Product colour: Black
Harmonized System (HS) code: 85078000
Serial interface: Yes
Output voltage Total Harmonic Distortion (THD): 2%
Power factor: 0.99
Surge protection features: Network
Crest factor: 3:1
Emergency Power Off (EPO): Yes
Rack capacity: 2U
Resource CD: Yes
Number of type F outputs: 8
Emergency Power Off (EPO) connector: Yes
Input current Total Harmonic Distortion (THD): 1.6%
