Product Details
Data sheet
- Warranty
- 24 month(s)
- Producer product name
- OR1500ERM1U
- Net weight
- 15.92 kg
- Gross weight
- 17.51 kg
- WEEE tax
- Yes
- Packing quantity
- 1.00 pc(s)
- Volume (m3)
- 0.040110281 m
- Tare weight (kg)
- 1.59 kg
- Gross depth (mm)
- 541 mm
- Gross width (mm)
- 491 mm
- Gross height (mm)
- 151 mm
- WEE classification
- CL109:4:2017-04-01
- Paper/Pasteboard
- 1000 g
- Embeeded battery
- No
- TI weight (kg)
- 20.00 kg
- Dimensions (WxDxH)
- 433 x 389 x 44 mm
- Other features
- Line-interactive UPS Topology Simulated Sine Wave Output Overload Protection Surge and Spike Protection Phone/Fax/Modem/DSL/Network Protection USB Connectivity Port SNMP/HTTP Remote Management Capability (Optional) Energy Saving Technology Automatic Volta
- Plastic (No PET)
- 592 g
- Composition of battery
- CL127:KT:2016-12-09
- Classification of battery
- CL126:NE:2016-12-09
- Type of battery
- Accumulator
- Producer product family
- Smart App UPS Systems
- Form factor
- Rack
- Capacity
- 900 W
- Palette Qty
- 43 pc(s)
- Battery recharge time
- 8 (Typical) h
- UPS topology
- Line-Interactive
- Typical backup time at full load
- 2.5 min
- Typical backup time at half load
- 11 min
- Producer
- CyberPower
Quick Compare
Product |

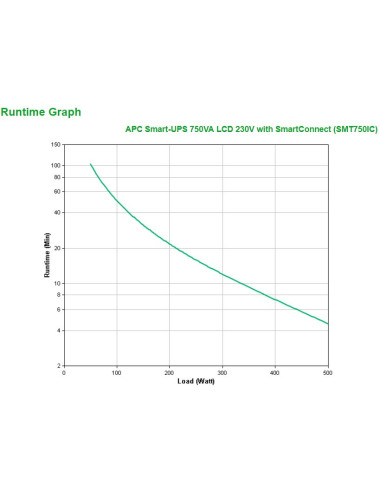

APC Smart-UPS SMT750IC - 6x C13, USB, SmartConnect, 750VA
|
APC Smart-UPS SMT750IC - UPS - 500 Wat
|

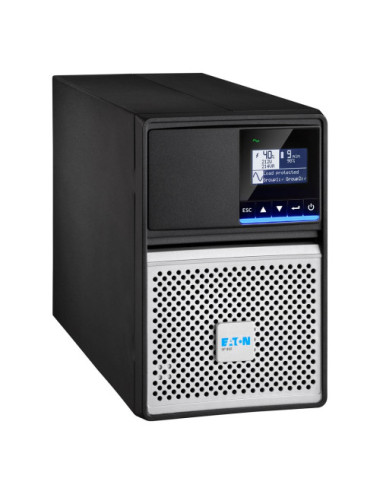

Uninterruptible Power Supply (UPS) EATON 5P 850i G2
|
APC BACK-UPS PRO 1500
|
Availability |
|
|
|
|
Price |
€502.96
|
€502.96
|
€503.75
|
€505.21
|
Description |
||||
Cable length |
1.83 m | 1.83 m | 1.83 m | |
Width |
138 mm | 138 mm | 150 mm | 112 mm |
Height |
157 mm | 157 mm | 233 mm | 301 mm |
Depth |
358 mm | 358 mm | 345 mm | 382 mm |
Weight |
13.2 kg | 13.2 kg | 10.2 kg | 13 kg |
Package depth |
499 mm | |||
Package height |
301 mm | 301 mm | 390 mm | |
Package width |
278 mm | 278 mm | 235 mm | |
Package weight |
14.2 kg | |||
Battery type |
APCRBC124 | |||
Cables included |
USB cable | USB cable | Phone (RJ-11), USB cable | |
Storage relative humidity (H-H) |
0 - 95% | 0 - 95% | 0 - 95% | |
Manual |
Yes | Yes | Yes | |
Operating temperature (T-T) |
0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C |
Operating relative humidity (H-H) |
5 - 95% | 5 - 95% | 0 - 95% | |
Storage temperature (T-T) |
-15 - 45 °C | -15 - 45 °C | -15 - 45 °C | |
Form factor |
Tower | Tower | Tower | Tower |
USB port |
Yes | Yes | Yes | Yes |
Mac compatibility |
No | |||
LED indicators |
Status | Status | ||
Battery technology |
Sealed Lead Acid (VRLA) | Sealed Lead Acid (VRLA) | Sealed Lead Acid (VRLA) | |
Battery life (max) |
5 year(s) | 5 year(s) | 5 year(s) | |
Battery capacity |
187 VAh | |||
Battery recharge time |
3 h | 3 h | 8 h | |
Output power |
500 W | 500 W | 680 W | 865 W |
Input frequency |
50/60 Hz | 50/60 Hz | 40/70 Hz | 50/60 Hz |
USB 2.0 ports quantity |
1 | |||
Display type |
LCD | LCD | LCD | LCD |
Ethernet LAN (RJ-45) ports |
1 | 1 | ||
Efficiency |
98% | 98% | 98% | 98.9% |
Input operation voltage (min) |
151 V | 151 V | 160 V | 156 V |
Cold start |
Yes | Yes | Yes | |
AC outlets quantity |
6 AC outlet(s) | 6 AC outlet(s) | 6 AC outlet(s) | 6 AC outlet(s) |
Output power capacity |
0.75 kVA | 0.75 kVA | 0.85 kVA | 1.5 kVA |
Output operation voltage (max) |
240 V | 240 V | 200 V | |
Waveform |
Sine | Sine | Pure sine | Sine |
Auto-restart |
Yes | Yes | ||
AC outlet types |
C13 coupler | C13 coupler | C13 coupler | Type F |
Input operation voltage (max) |
302 V | 302 V | 294 V | 300 V |
Audible alarm(s) |
Yes | Yes | Yes | |
Output operation voltage (min) |
220 V | 220 V | 240 V | |
UPS topology |
Line-Interactive | Line-Interactive | Line-Interactive | Line-Interactive |
Typical backup time at full load |
4.6 min | 4.6 min | 4.5 min | 3.7 min |
Warranty card |
Yes | |||
Automatic Voltage Regulation (AVR) |
Yes | Yes | ||
Automatic battery test |
Yes | Yes | Yes | Yes |
Typical backup time at half load |
15.8 min | 15.8 min | 13 min | 12.3 min |
Surge protection |
Yes | |||
Nominal input voltage |
230 V | 230 V | ||
Nominal output voltage |
230 V | 230 V | ||
Output frequency regulation |
50/60 Hz | |||
RS-232 ports |
1 | |||
Operating altitude |
0 - 3000 m | 0 - 3000 m | 0 - 3000 m | |
Quick installation guide |
Yes | Yes | ||
Output frequency |
50/60 Hz | |||
Noise Level |
40 dB | 40 dB | 35 dB | 45 dB |
Surge energy rating |
540 J | 540 J | 441 J | |
Power plug |
C14 coupler | C14 coupler | C14 coupler | Type F |
Non-operating altitude |
0 - 15000 m | 0 - 15000 m | 0 - 15000 m | |
Product colour |
Black | Black | Black | Black |
Harmonized System (HS) code |
85078000 | 85078000 | 85078000 | |
Sustainability certificates |
Green Premium | Green Premium | Green Premium | |
Products per pallet |
24 pc(s) | |||
Safety |
IEC/EN 62040-1, UL 1778 | |||
ECO mode |
No | |||
Hot-swap battery |
Yes | Yes | Yes | Yes |
Compliance certificates |
RoHS | RoHS | RoHS | |
Total carbon footprint (kg of CO2e) |
639.93 | 639.93 | ||
Hold time (max) |
12 ms | |||
Hold time (min) |
10 ms | |||
Surge protection features |
Network | |||
Number of output IEC jumpers |
2 | 2 | ||
SmartSlot |
Yes | Yes | ||
Number of type F outputs |
6 | |||
Number of input phases |
1 | |||
Number of output phases |
1 | |||
Input connection type |
IEC C14 | |||
Management card included |
No | |||
Warnings |
Do not disassemble the unit housing, there may be a risk of electric shock. | |||
