POWER WALKER

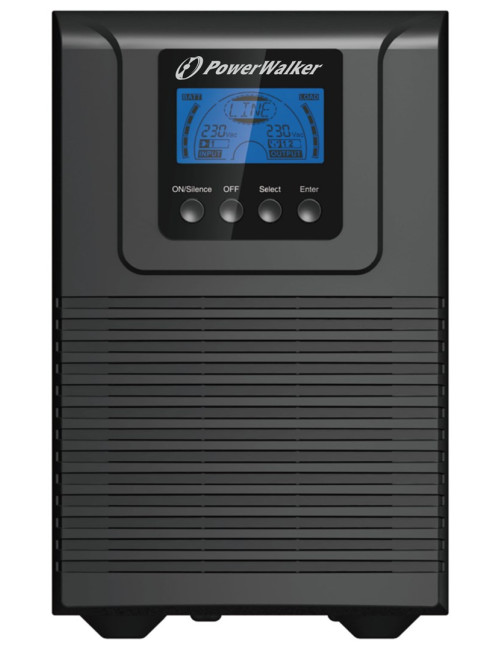

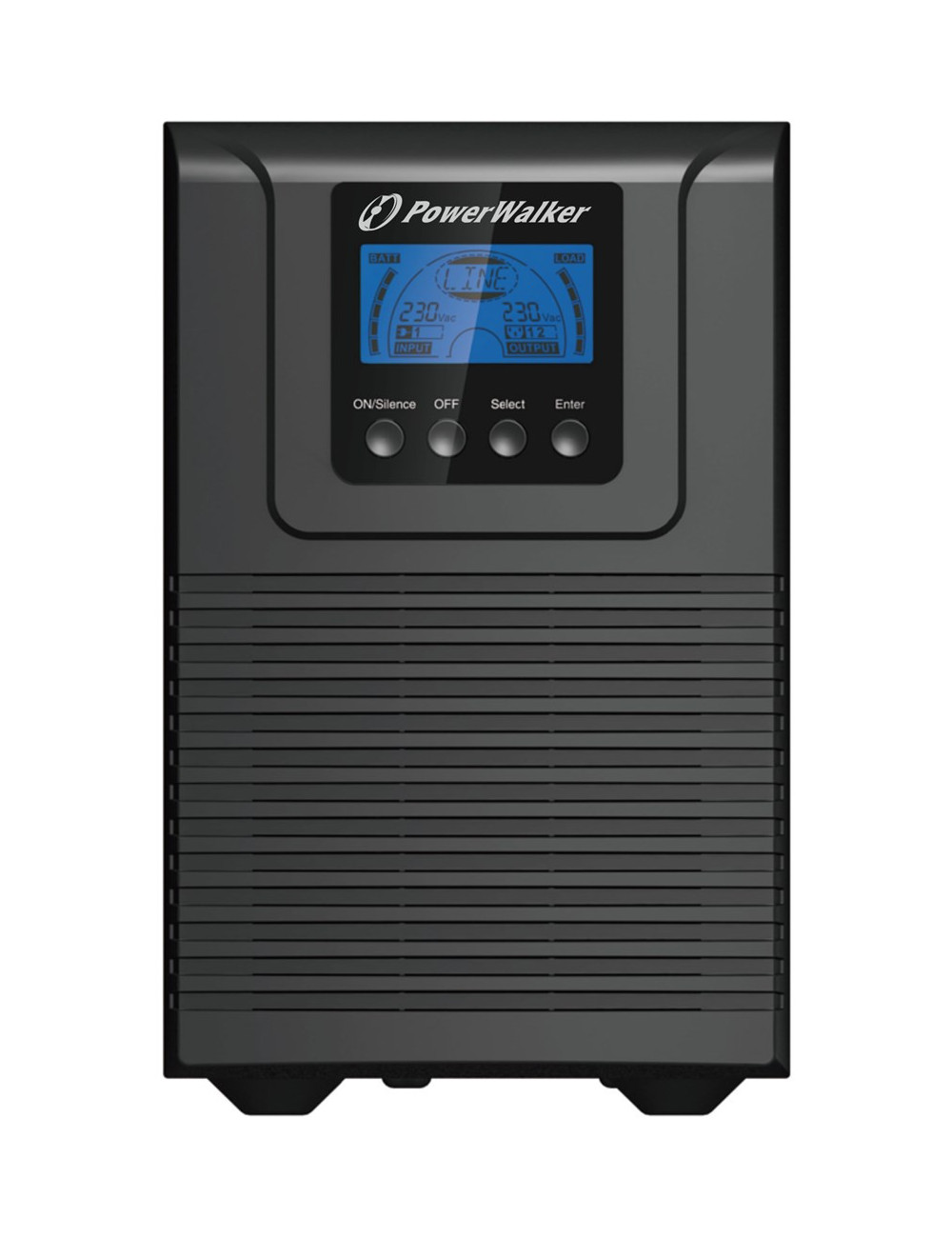

PowerWalker VFI 1000 TGB Double-conversion (Online) 1 kVA 900 W 4 AC outlet(s)

€262.39

Tax included

Product Details
Quick Compare

Product Details

Brand POWER WALKER

Reference WLONONWCRFOXM

In stock 8 Items

Data sheet

Width: 144 mm
Height: 229 mm
Depth: 356 mm
Weight: 9.3 kg
Package depth: 436 mm
Package height: 330 mm
Package width: 240 mm
Package weight: 11 kg
Number of batteries supported: 2
Cables included: Input power cable, USB cable
Manual: Yes
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 95%
USB port: Yes
Battery capacity: 9 Ah
Battery recharge time: 4 h
Output power: 900 W
Input frequency: 40 - 70 Hz
Efficiency: 89%
Input operation voltage (min): 176 V
AC outlets quantity: 4 AC outlet(s)
Output power capacity: 1 kVA
Output operation voltage (max): 240 V
Waveform: Sine
AC outlet types: C13 coupler
Input operation voltage (max): 300 V
Battery voltage: 12 V
Output operation voltage (min): 220 V
UPS topology: Double-conversion (Online)
Typical backup time at full load: 3.7 min
Typical backup time at half load: 10.5 min
Output voltage regulation: 2%
RS-232 ports: 1
Noise Level: 45 dB
Power plug: C14 coupler
Product colour: Black
Harmonized System (HS) code: 85078000
Software CD: Yes
Output voltage Total Harmonic Distortion (THD): 5%
Power factor: 0.9
Crest factor: 3:1
Emergency Power Off (EPO): Yes
Emergency Power Off (EPO) connector: Yes
Input current Total Harmonic Distortion (THD): 5%
