EATON

Eaton Ellipse PRO 850 FR uninterruptible power supply (UPS) Line-Interactive 0.85 kVA 510 W 4 AC outlet(s)

€253.51

Tax included

Quantity

Last items in stock

Add to favorites Add to compare

Product Details
Quick Compare

Product Details

Reference ZASEATUPS0116

In stock 1 Item

Data sheet

Width: 82 mm
Height: 260 mm
Depth: 285 mm
Weight: 7.3 kg
Form factor: Tower
LED indicators: Yes
Battery technology: Sealed Lead Acid (VRLA)
Output power: 510 W
Input frequency: 50/60 Hz
USB 2.0 ports quantity: 1

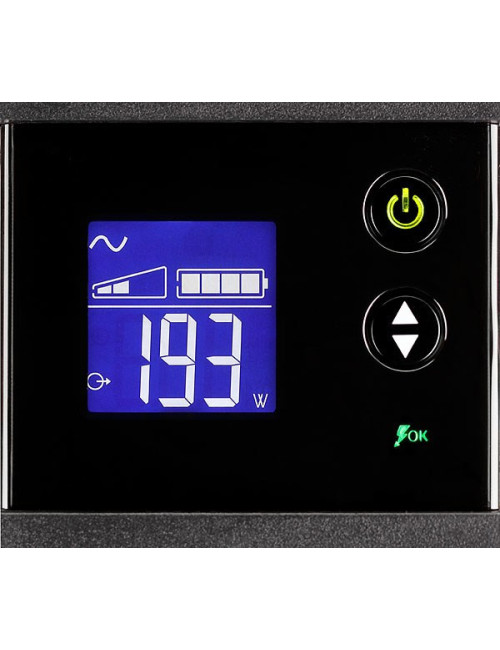

Display type: LCD
Ethernet LAN (RJ-45) ports: 1
Input operation voltage (min): 150 V
Cold start: Yes

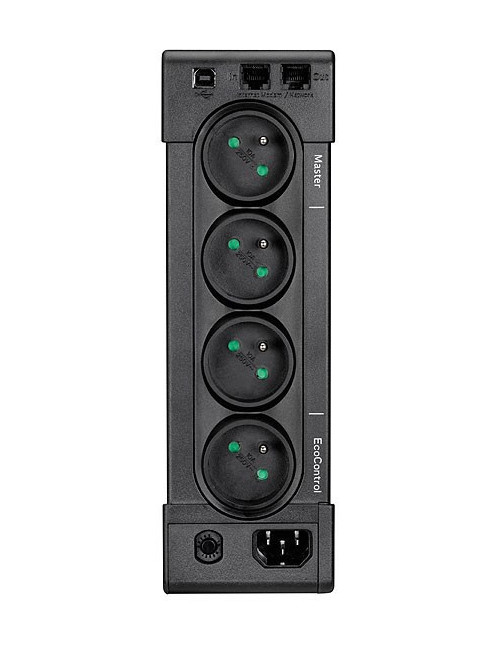

AC outlets quantity: 4 AC outlet(s)
Output power capacity: 0.85 kVA
Output operation voltage (max): 240 V
AC outlet types: Type E
Input operation voltage (max): 285 V
Output operation voltage (min): 220 V
UPS topology: Line-Interactive
Modem (RJ-11) ports: 1
Automatic battery test: Yes
Typical backup time at half load: 9 min
Surge protection: Yes
Nominal input voltage: 230 V
Output frequency: 50 Hz
Power plug: C14 coupler
Product colour: Black
Harmonized System (HS) code: 85078000
Safety: IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
Hot-swap battery: No
Surge protection features: Fax
Emergency Power Off (EPO): Yes
Rack capacity: 2U

Quick Compare

Product	CyberPower VP1200EILCD uninterruptible power supply (UPS) Line-Interactive 1.2 kVA 720 W 8 AC outlet(s)	Eaton 3P Ellipse 1300 uninterruptible power supply (UPS) Standby (Offline) 1.3 kVA 840 W 8 AC outlet(s)	Eaton 3P Ellipse UPS uninterruptible power supply (UPS) Standby (Offline) 1.3 kVA 840 W 8 AC outlet(s)	APC Back-UPS Standby 650 VA 400 W 4 outlets
Availability
Price	€246.77	€249.02	€249.02	€251.50
Description
Package type		Box	Box
Cable length				1.8 m
Width	100 mm	81 mm	81 mm	91 mm
Height	281 mm	305 mm	305 mm	165 mm
Depth	355 mm	312 mm	312 mm	284 mm
Weight	9.62 kg	7 kg	7 kg	6.03 kg
Package depth	165 mm			415 mm
Package height	384 mm			494 mm
Package width	430 mm			185 mm
Package weight	10.8 kg			7.31 kg
Cables included	USB cable	USB cable	USB cable	USB cable
Storage relative humidity (H-H)	0 - 90%			5 - 95%
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C	0 - 40 °C	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%			5 - 95%
Storage temperature (T-T)	-20 - 50 °C			-15 - 45 °C
Form factor	Tower	Tower	Tower	Tower
USB port	Yes	Yes	Yes	Yes
LED indicators				Yes
Battery technology	Sealed Lead Acid (VRLA)			Sealed Lead Acid (VRLA)
Battery life (max)				6 year(s)
Battery capacity		7 Ah	7 Ah	111 VAh
Control type		Buttons	Buttons
Battery recharge time	8 h			8 h
Country of origin	China
Output power	720 W	840 W	840 W	400 W
Input frequency	50/60 Hz	46/70 Hz	46/70 Hz	50/60 Hz
USB 2.0 ports quantity	1	2	2
Response time	4 ms
Display type	LCD	LED	LED
Ethernet LAN (RJ-45) ports	1	1	1
Efficiency		97%	97%	98.9%
Input operation voltage (min)	167 V	161 V	161 V	160 V
Power protection features	Overload
AC outlets quantity	8 AC outlet(s)	8 AC outlet(s)	8 AC outlet(s)	4 AC outlet(s)
Output power capacity	1.2 kVA	1.3 kVA	1.3 kVA	0.65 kVA
Output operation voltage (max)	230 V	284 V	284 V
Waveform	Sine	Stepwise	Stepwise	Sine
AC outlet types	C13 coupler	C13 coupler	C13 coupler	C13 coupler
Input operation voltage (max)	295 V	284 V	284 V	286 V
Audible alarm(s)	Yes			Yes
Battery voltage		12 V	12 V	12 V
Output operation voltage (min)	230 V	161 V	161 V
UPS topology	Line-Interactive	Standby (Offline)	Standby (Offline)	Standby (Offline)
Modem (RJ-11) ports	1
Typical backup time at full load	4 min			4.7 min
Cabling technology	10/100/1000Base-T(X)
Automatic Voltage Regulation (AVR)	Yes
Automatic battery test				Yes
Typical backup time at half load	12 min			14.7 min
Surge protection	Yes	Yes	Yes	Yes
Nominal input voltage		220-240 V	220-240 V	230 V
Nominal output voltage				230 V
Output frequency regulation				47 - 63 Hz
Operating altitude	0 - 3000 m			0 - 3048 m
Quick installation guide		Yes	Yes	Yes
Output frequency	50/60 Hz	50/60 Hz	50/60 Hz
Power consumption (average operating)		26 W	26 W
Noise Level		25 dB	25 dB	45 dB
Maximum current	5.2 A			7 A
Surge energy rating	450 J			310 J
Relative humidity		0 - 95%	0 - 95%
Power plug	C14 coupler			C14 coupler
Non-operating altitude	0 - 3000 m			0 - 15240 m
Product colour	Black	Black	Black	Beige
Harmonized System (HS) code	8504408590			85078000
Sustainability certificates				ENERGY STAR
Products per pallet				48 pc(s)
Software CD				Yes
Products per master (outer) case				1 pc(s)
Waste Electrical and Electronic Equipment (WEEE) compliance		Yes	Yes
Compliance certificates	RoHS	CB	CB	RoHS
Audible alarm modes	Fault, Low battery alarm, Overload alarm			Low battery alarm, Overload alarm
Hold time (max)				10 ms
Hold time (min)				6 ms
Surge protection features				Digital Subscriber Line (DSL)
Number of output IEC jumpers				2
Filtering				Yes
SmartSlot				No
Replacement battery cartridge				1
EMI/RFI noise filtering	Yes
Output power factor		0.6	0.6
Number of input phases		1	1
Number of output phases		1	1
Input connection type		C14	C14
Efficiency (ECO mode)		97%	97%
Auto shut-off		Yes	Yes
Management card included				No
SmartConnect port				No
