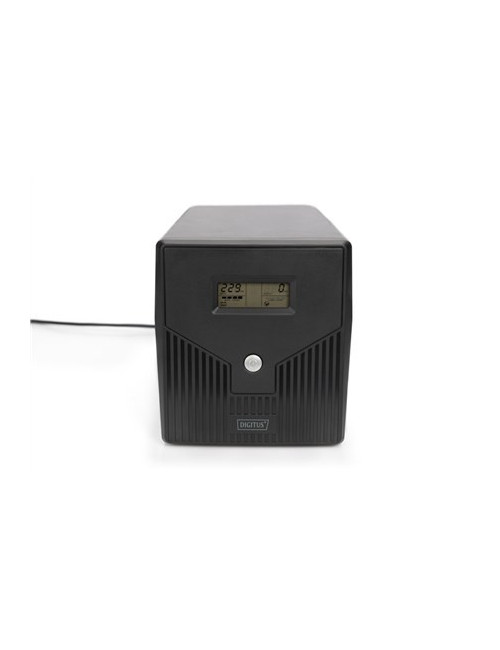

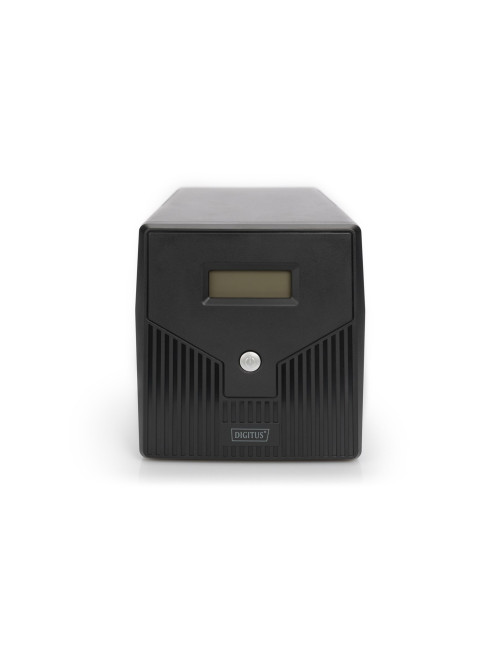

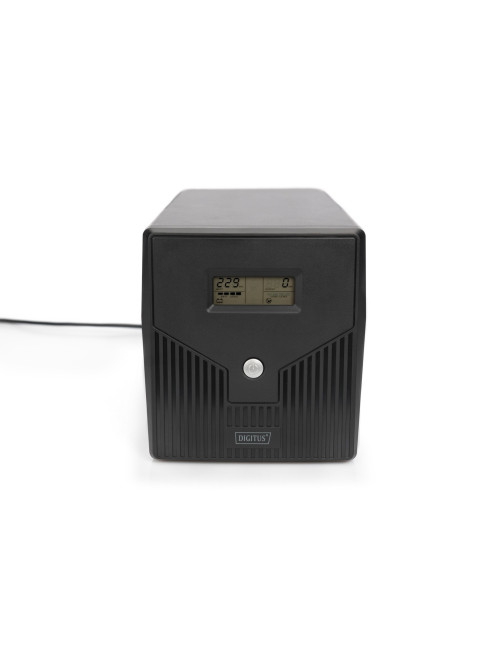

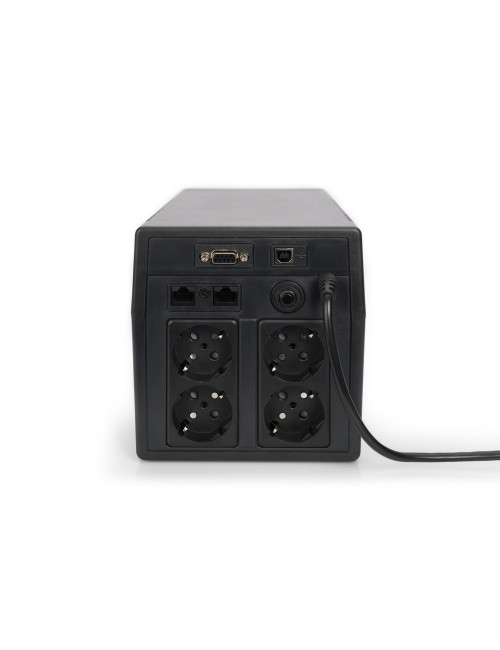

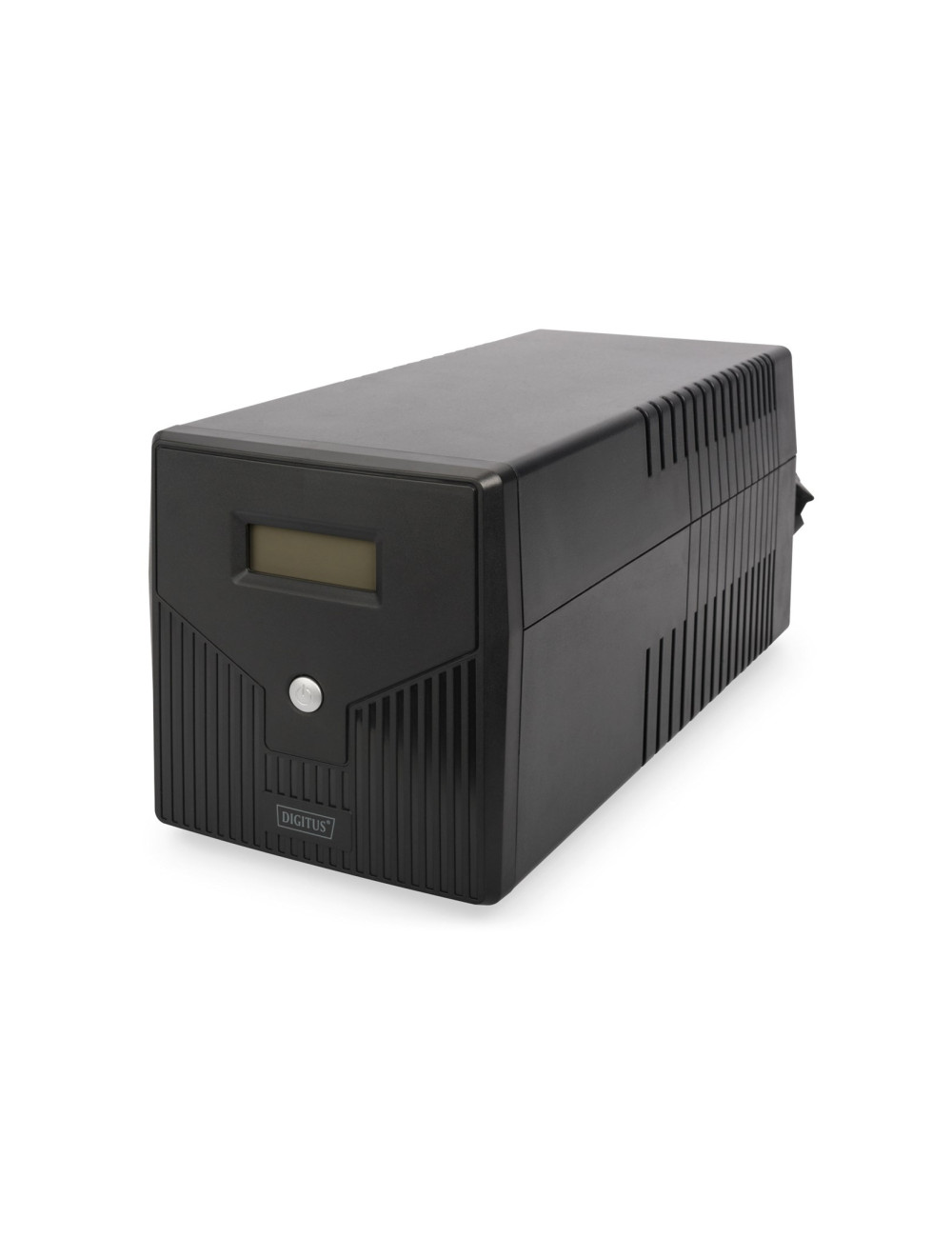

Digitus Line-Interactive UPS, 1000 VA/600 W

Product Details

Data sheet

Width

150 mm

Height

162 mm

Depth

338 mm

Weight

7.8 kg

Package depth

405 mm

Package height

192 mm

Package width

235 mm

Package weight

8.1 kg

Number of batteries supported

2

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Form factor

Tower

USB port

Yes

LED indicators

Yes

Battery capacity

7 Ah

Country of origin

China

Output power

600 W

Input frequency

50 Hz

USB 2.0 ports quantity

1

Display type

LCD

Ethernet LAN (RJ-45) ports

2

Input operation voltage (min)

162 V

Power protection features

Battery discharge

Cold start

Yes

AC outlets quantity

4 AC outlet(s)

Output power capacity

0.6 kVA

Waveform

Pseudo sine

Auto-restart

Yes

AC outlet types

Type E / F

Input operation voltage (max)

290 V

Audible alarm(s)

Yes

Battery voltage

12 V

UPS topology

Line-Interactive

Automatic Voltage Regulation (AVR)

Yes

Surge protection

Yes

Nominal input voltage

230 V

Nominal output voltage

230 V

Output voltage regulation

10%

RS-232 ports

1

Serial interface type

RS-232

Output frequency

50 Hz

Noise Level

40 dB

Serial ports quantity

1

Power plug

Type F

Product colour

Black

Harmonized System (HS) code

85078000

Serial interface

Yes

Package volume

18273.6 cm³

USB port type

USB Type-B

UK Trade Tariff code

85044085

Audible alarm modes

Alarm when on battery, Fault, Low battery alarm, Overload alarm

Power factor

0.6

Surge protection features

Digital Subscriber Line (DSL)

Number of input phases

1

Number of output phases

1

Transfer time (Line Mode to Battery Mode)

2 ms

Battery recharge time (90%)

6 h

Warnings

Use the appliance in well-ventilated areas to avoid overheating.
